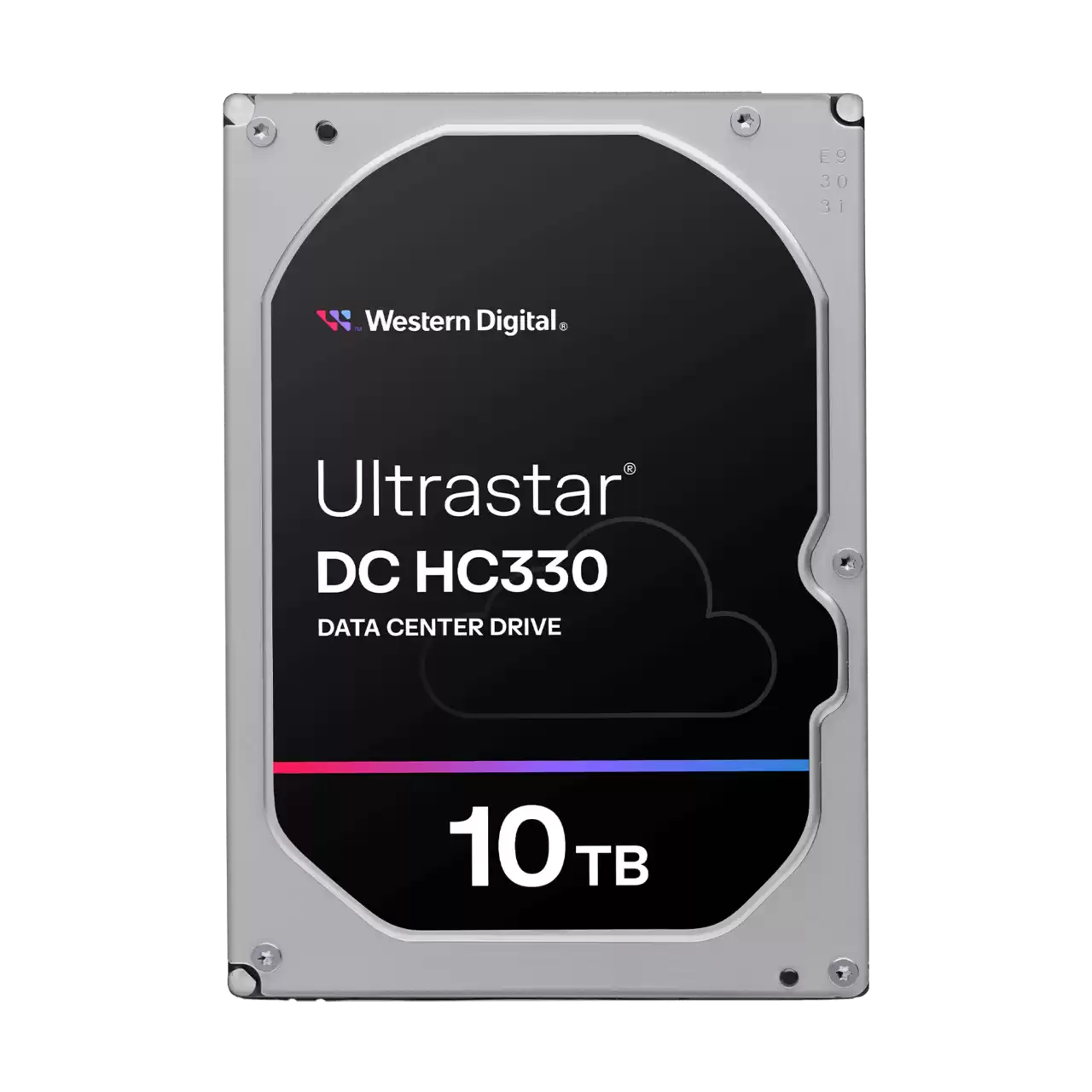

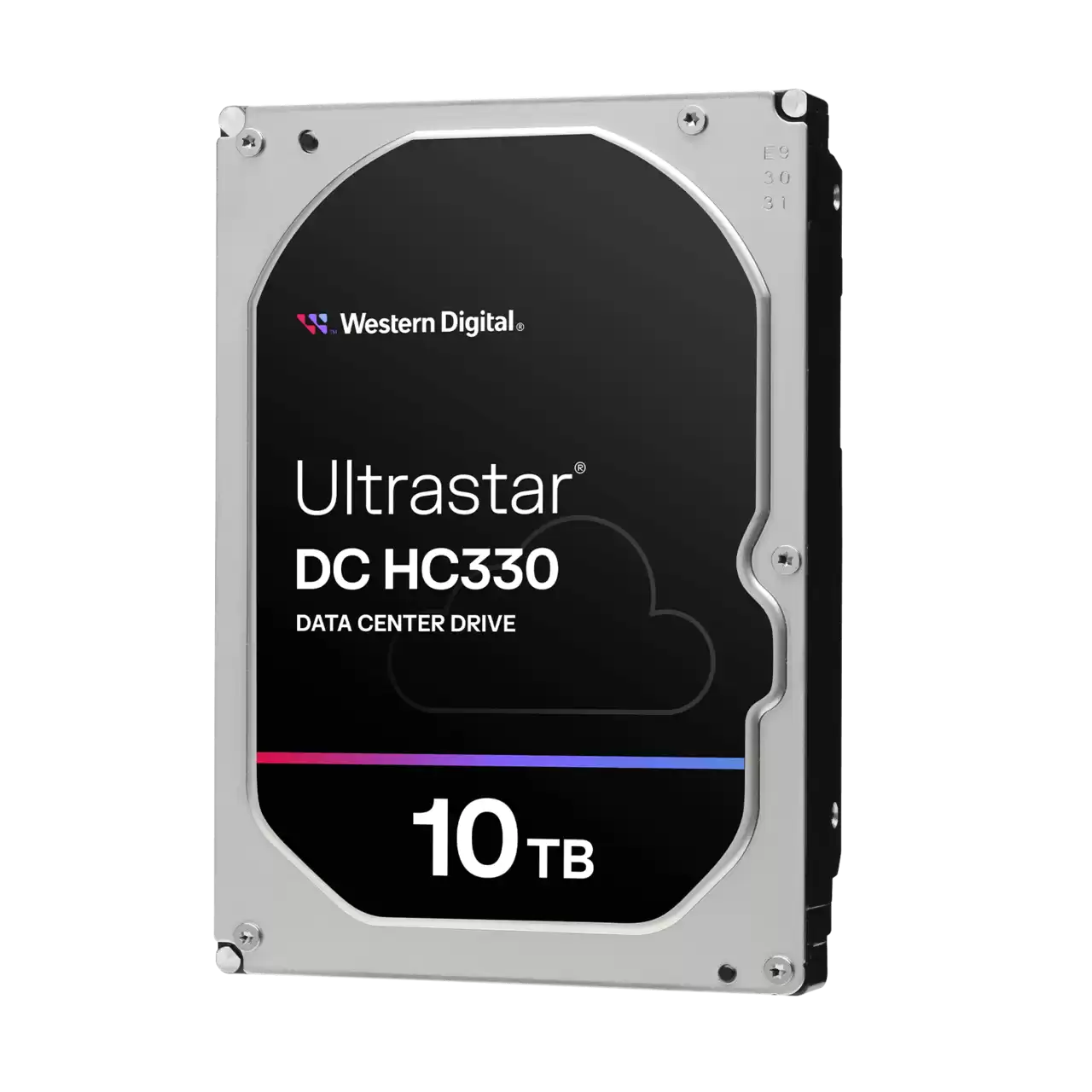

Western Digital Ultrastar DC HC330 10TB 3.5-Inch SAS 7200 RPM 256MB Cache Enterprise Internal Data Center Hard Drive ( 0B42258 )

Western Digital Ultrastar DC HC330 10TB 3.5-Inch SAS 7200 RPM 256MB Cache Enterprise Internal Data Center Hard Drive ( 0B42258 )

• The Western Digital Ultrastar. Offering Mid Capacity Drives.
• The Western Digital Ultrastar DC HC330-series provides low to mid-capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications.
• Economical Capacities and Fast Data Access Key Requirements for HDDs in the Data Center
  IT managers need to offer storage tiers as they deploy purpose-built solutions to meet their on-prem, off-prem & cloud storage requirements.  While helium filled drives enable the highest capacities, air-filled drives offer important benefits.  With a lower TCA (total cost of acquisition), legacy options, and higher access density (IOPs/TB), they are the perfect choice for maintaining a desired level of performance while allowing customers to tailor budgets to meet their needs. The Western Digital Ultrastar DC HC300-Series help to address data center requirements by providing capacities from 4TB to 10TB¹ while increasing performance over prior generations.  They are designed for a variety of applications including traditional storage arrays, rack-mounted storage enclosures and server-based distributed storage systems, as well as distributed and scalable computing, including block and file storage architectures.  They are offered at 7,200 RPM with either 6Gb/s SATA or 12Gb/s SAS interface in Advanced Format 4Kn and512e format⁴. A 512n option is also available on 4TB models to support legacy systems with native 512-byte block sizes.
• Technology Innovation Delivers Efficiency and Performance for Traditional and Legacy Systems
  WD Ultrastar DC SAS and SATA HC3000-Series are based on a proven and cost-efficient air-based HDD platform design, with Conventional Magnetic Recording (CMR) technology in a 3.5-inch large form factor.  These HDDs leverage common hardware and firmware while featuring a second-generation, dual-stage microactuator to enhance head positioning accuracy for better drive performance.  Write performance gains are also supported by Western Digital’s media cache architecture, a disk-based caching technology that provides a large cache area on the disk, improving reliability and data integrity. Finally, the addition of a flash-based non-volatile cache (NVC) on both SATA and SAS models helps improve write performance.

• Specifications
  • Capacity :- 10TB
  • Form Factor:- 5-Inch
  • Interface:- SAS
  • Transfer Rate:- up to 273MB/s
  • Disk Speed (RPM) :- 7200 RPM
  • Recording Technology:- CMR
  • Cache Size:- 256MB
  • Security:- SE
  • Warranty:- 5-Year Limited Warranty
  • Dimensions (L x W x H) :- 79″ x 4″ x 1.03″
  • Weight:- 750gms
  • Model Number:- WUS721010AL5204
  • Operating Temperature:- 5°C to 60°C
  • Non-Operating Temperature:- -40°C to 70°C
  • Certifications:- BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
• Product Features
  • Designed for OEM, cloud deployments, and traditional IT systems
  • Leverages common hardware and firmware to minimize redundant testing needs
  • Advanced format 4Kn and 512e format models
  • Self-Encrypting Drive options
