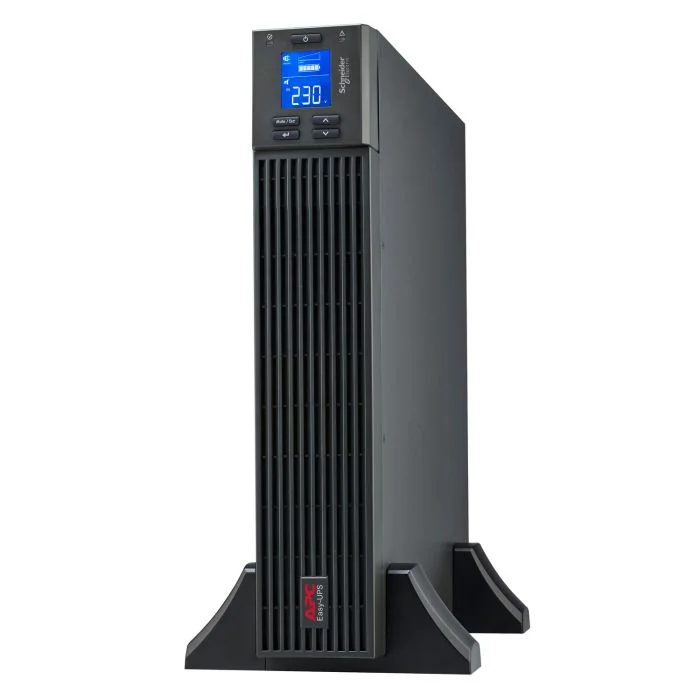

APC Easy SRV3KUXI-IN 2400 W 3kVA 230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot On-Line UPS
APC Easy SRV3KUXI-IN 2400 W 3kVA 230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot On-Line UPS - Image 2
APC Easy SRV3KUXI-IN 2400 W 3kVA 230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot On-Line UPS - Image 3
,

APC Easy SRV3KUXI-IN 2400 W 3kVA 230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot On-Line UPS

APC
Compare

APC Easy SRV3KUXI-IN 2400 W 3kVA 230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot On-Line UPS

₹48,150.00

Compare

APC Easy SRV3KUXI-IN 2400 W 3kVA 230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot On-Line UPS

Product Name APC Easy UPS On-Line, 3kVA,230V, 3x India + 1x Hard wire 3-wire(1P+N+E) outlets, Intelligent Card Slot, No battery, W/O rail kit
Tax Class GST-18
Category UPS
Presentation HIGH QUALITY, DOUBLE-CONVERSION ON-LINE UPS DESIGNED FOR ESSENTIAL POWER PROTECTION NEEDS EVEN IN THE MOST UNSTABLE POWER CONDITIONS.
Lead time USUALLY IN STOCK
Main Input Voltage 230 V AC 1 PHASE
Input voltage 220 V240 V
Input protection type CIRCUIT BREAKER
Input voltage limits 110…280 V HALF LOAD160…280 V FULL LOAD
Number of input connectors 1 HARD WIRE 3-WIRE (1P + N + E)
Network frequency 40…70 HZ AUTO SENSING
Output voltage 230 V AC 1 PHASE
Output voltage 220 V240 V
Rated power in W 2400 W
Rated power in VA 3000 VA
Output connection type 3 INDIA 3-PIN 6A
Output connector type HARD WIRE 3-WIRE (1P + N + E) FOR 1 ZONE(S)
Bypass type INTERNAL BYPASS (AUTOMATIC AND MANUAL)
Crest factor 3 : 1
Harmonic distortion 3 %
Maximum configurable power in VA 3000 VA
Maximum configurable power in W 2400 W
UPS type ON-LINE
Wave type SINE WAVE
Efficiency 90 % (FULL LOAD)
Output frequency 50/60 HZ +/- 3 HZ SYNC TO MAINS
Efficiency View Efficiency Graph
Additional information CONFIGURABLE FOR 220 : 230 OR 240 NOMINAL OUTPUT VOLTAGE
Battery type LEAD-ACID EXTERNAL SOLD SEPARATELY
Control panel MULTIFUNCTION LCD STATUS AND CONTROL CONSOLE
Emergency power off YES
Alarm ALARM WHEN ON BATTERY : DISTINCTIVE LOW BATTERY ALARM : OVERLOAD CONTINUOUS TONE ALARM
UPS connectivity SERIAL PORTUSB PORTAVAILABLE EXPANSION SLOT
Surge energy rate 600 J
Number of rack unit 2U
Colour BLACK (RAL 7010)
Height 86 MM
Width 438 MM
Depth 462 MM
Product weight 10.1 KG
Mounting location FRONT
Mounting preference NO PREFERENCE
Mounting mode RACK-MOUNTED WITH KIT
USB compatible YES
Mounting position HORIZONTAL
Mounting mode RACK-MOUNTED WITH KIT SOLD SEPARATELY
Redundant NO
Range of product EASY UPS ON-LINE
Product or component type UNINTERRUPTIBLE POWER SUPPLY (UPS)
Product certifications BIS
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -20…60 °C
Storage altitude 0…15000 M
IP degree of protection IP20
Relative humidity 0…95 % NON-CONDENSING
Storage Relative Humidity 0…95 % NON-CONDENSING
Acoustic level 50 DBA
Heat dissipation 910 BTU/H
Operating altitude 0…3000 M
Battery type EXTERNAL BATTERY SYSTEM
Battery voltage 72 V
Battery charger power 700 W RATED
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 24 CM
Package 1 Width 70 CM
Package 1 Length 54.5 CM
Package 1 Weight 13.7 KG
Warranty (in months) 24
