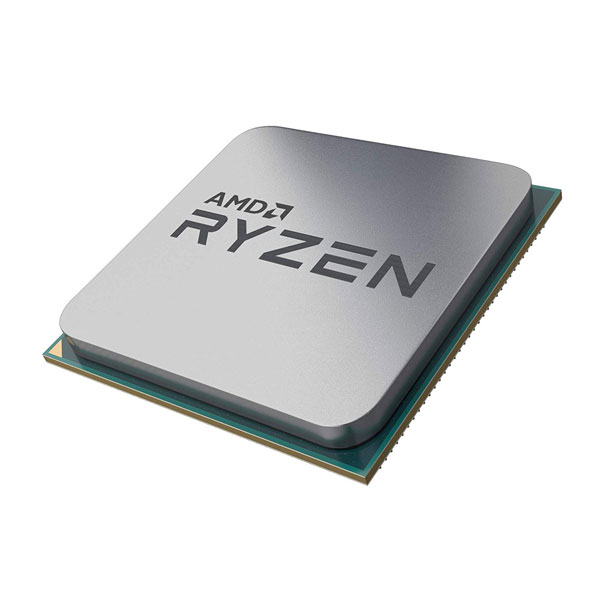

AMD Ryzen 5 3400G Ryzen 3000 Series AM4 Socket Desktop Processor With Radeon RX Vega 11 Graphics YD3400C5FHSBX ( 4 Cores, 8 Threads, Up to 4.2 GHz Max. Boost Clock, 6 MB Cache, )

AMD Ryzen 5 3400G Ryzen 3000 Series AM4 Socket Desktop Processor With Radeon RX Vega 11 Graphics YD3400C5FHSBX ( 4 Cores, 8 Threads, Up to 4.2 GHz Max. Boost Clock, 6 MB Cache, )

• General Specifications

• • Name :- AMD Ryzen 5 3400G with Radeon RX Vega 11 Graphics
  • Family:- Ryzen
  • Series:- Ryzen 3000 Series
  • Form Factor:- Desktops , Boxed Processor
  • Market Segment:- Mainstream Desktop
  • Regional Availability:- Global , China , NA , EMEA , APJ , LATAM
  • Former Codename:- Picasso
  • Processor Architecture:- Zen+
  • # of CPU Cores:- 4
  • Multithreading (SMT) :- Yes
  • # of Threads:- 8
  • Boost Clock :- Up to 4.2 GHz
  • Base Clock :- 7 GHz
  • L1 Cache:- 384 KB
  • L2 Cache:- 2 MB
  • L3 Cache:- 4 MB
  • Default TDP:- 65W
  • AMD Configurable TDP (cTDP) :- 45-65W
  • Processor Technology for CPU Cores:- 12nm FinFET
  • CPU Compute Die (CCD) Size:- 210mm²
  • Package Die Count:- 1
  • Total Transistor Count:- 94 Billion
  • Unlocked for Overclocking :- Yes
  • CPU Socket:- AM4
  • Supporting Chipsets:- X570 , X470 , X370 , B450 , B350 , A320
  • CPU Boost Technology:- Precision Boost 2
  • Instruction Set:- x86-64
  • Supported Extensions:- AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
  • Operating Temperature (Tjmax) :- 95°C
  • Launch Date:- 07/07/2019
  • *OS Support:- Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

• • Native USB 3.2 Gen 2 (10Gbps) :- 0
  • Native USB 3.2 Gen 1 (5Gbps) :- 4
  • Native USB 2.0 (480Mbps) :- 0
  • Native SATA Ports:- 0
  • PCI Express Version:- PCIe 3.0
  • Native PCIe Lanes (Total/Usable) :- 20 , 16
  • Additional Usable PCIe Lanes from Motherboard:-X470 ,2x Gen 3, 8x Gen 2
  • NVMe Support:-Boot , RAID0 , RAID1 , RAID10
  • System Memory Type:-DDR4
  • Memory Channels:-2
  • Memory:-64 GB
  • System Memory Subtype:-UDIMM
  • Max Memory Speed
    • 2x1R:-DDR4-2933
    • 2x2R:-DDR4-2667
    • 4x1R:-DDR4-2133
    • 4x2R:-DDR4-1866
  • ECC Support:-Yes (Requires mobo support)

• Graphics Capabilities

• • • Graphics Model:-Radeon RX Vega 11 Graphics
    • Graphics Core Count:-11
    • Total Graphics Shaders:-704
    • Graphics Frequency:-1400 MHz
    • GPU Max. Memory:-2 GB
    • WDDM Version:-7
    • DirectX Version:-12
    • OpenGL:-6
    • OpenCL:-2
    • DisplayPort Version:-4a
    • DisplayPort Extensions:-Adaptive-Sync , HBR3 , HDR Metadata
    • DisplayPort Max Refresh Rates (SDR) :-3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz
    • DisplayPort Max Refresh Rates (HDR) :-3840×2160 @ 60Hz , 3440×1440 @ 60Hz , 2560×1440 @ 60Hz , 1920×1080 @ 120Hz
    • HDMI Version:-0
    • HDCP Version Supported:-2
    • USB Type-C DisplayPort Alternate Mode:-Yes
    • Multi-Monitor Support:-Yes
    • Max Displays:-3
    • AMD FreeSync:-Yes
    • AMD Eyefinity Single Large Surface (SLS) :-No
    • Wireless Display:-Miracast
    • Max Video Encode Bandwidth (SDR) :-1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
    • Max Video Decode Bandwidth:-1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc

• Product IDs

• • Product ID Boxed :-YD3400C5FHSBX*
  • Product ID Tray:-YD3400C5M4MFH
  • Product ID MPK :-YD3400C5FHSPK*

• Security

• • AMD Enhanced Virus Protection (NX bit) :-Yes
