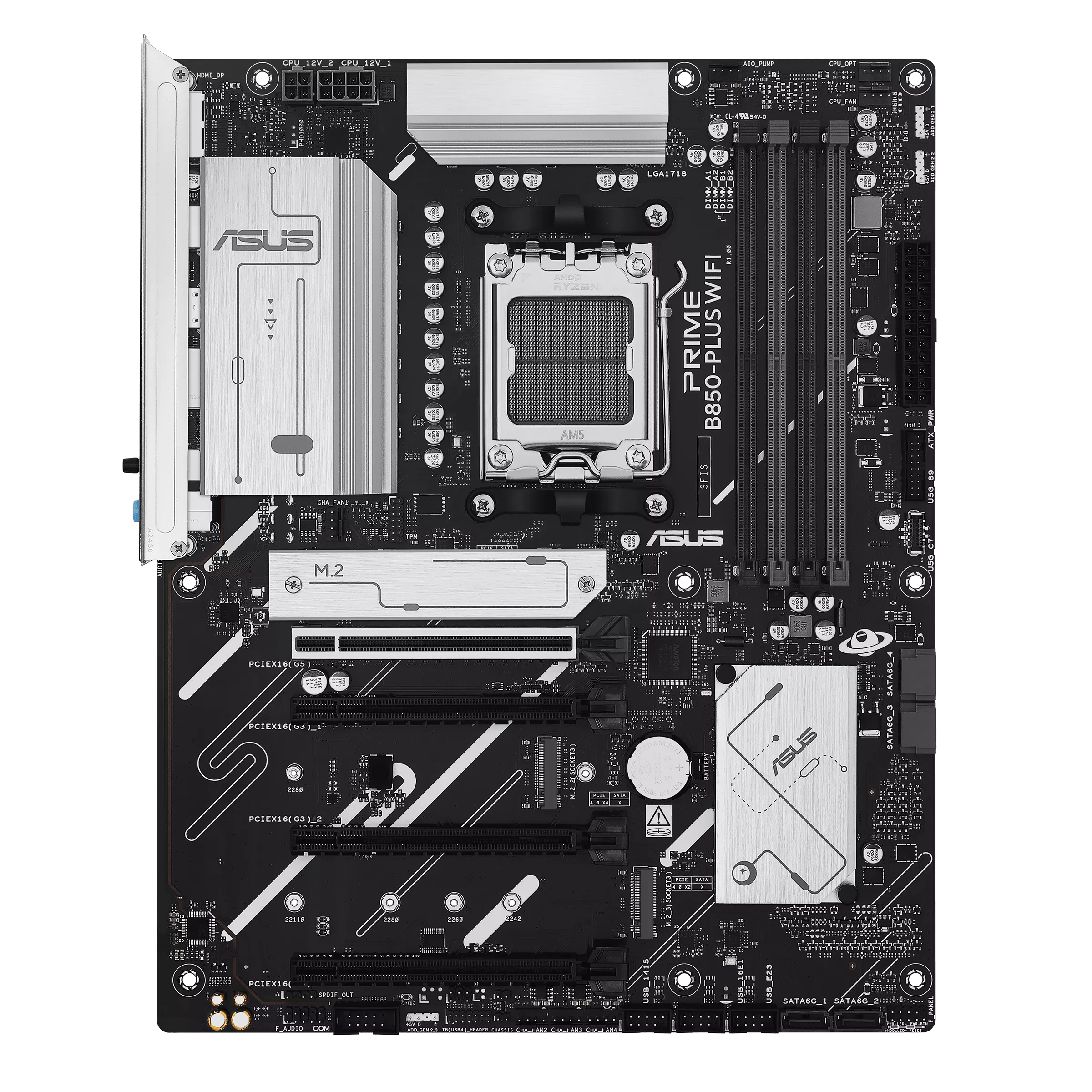

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support )

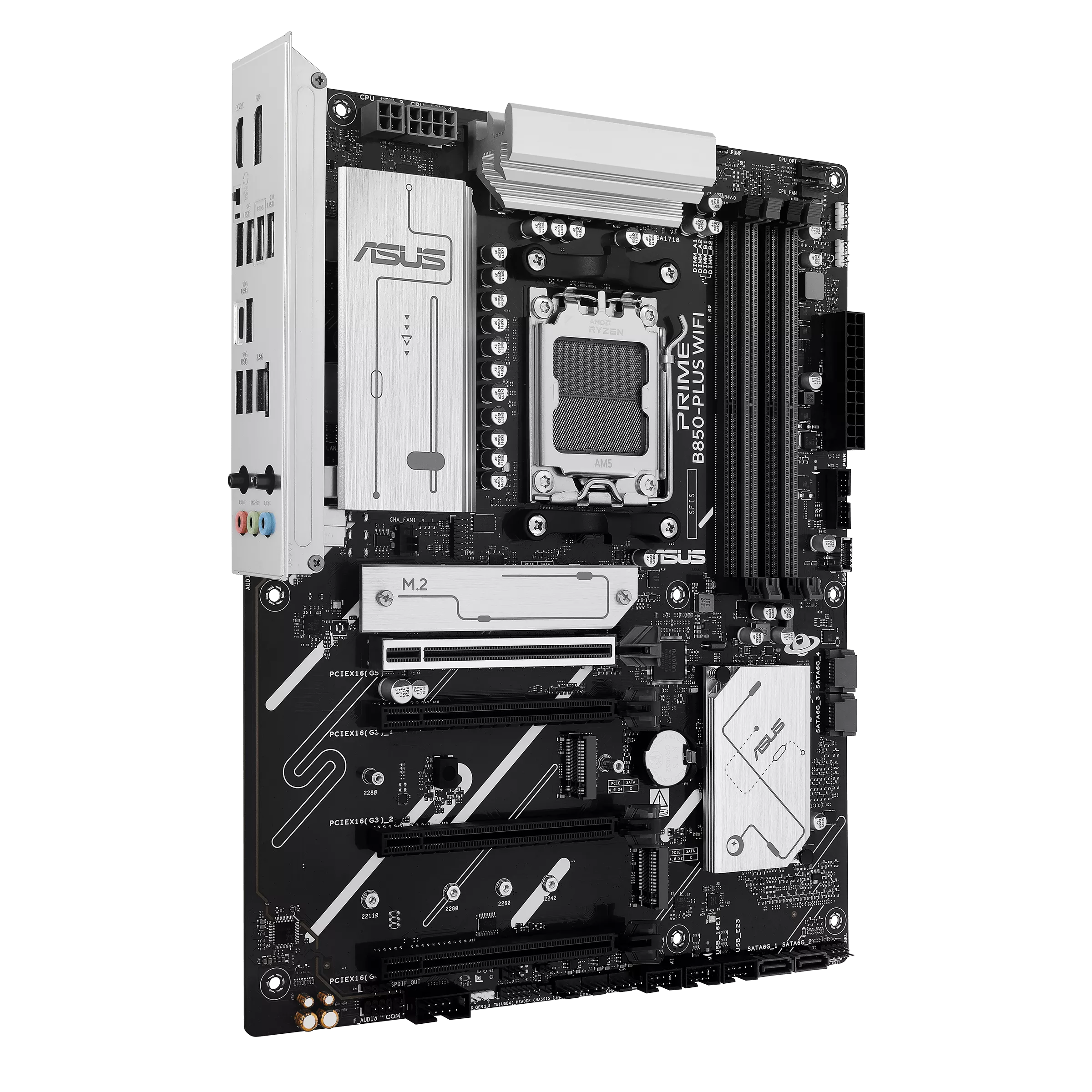

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support ) - Image 2

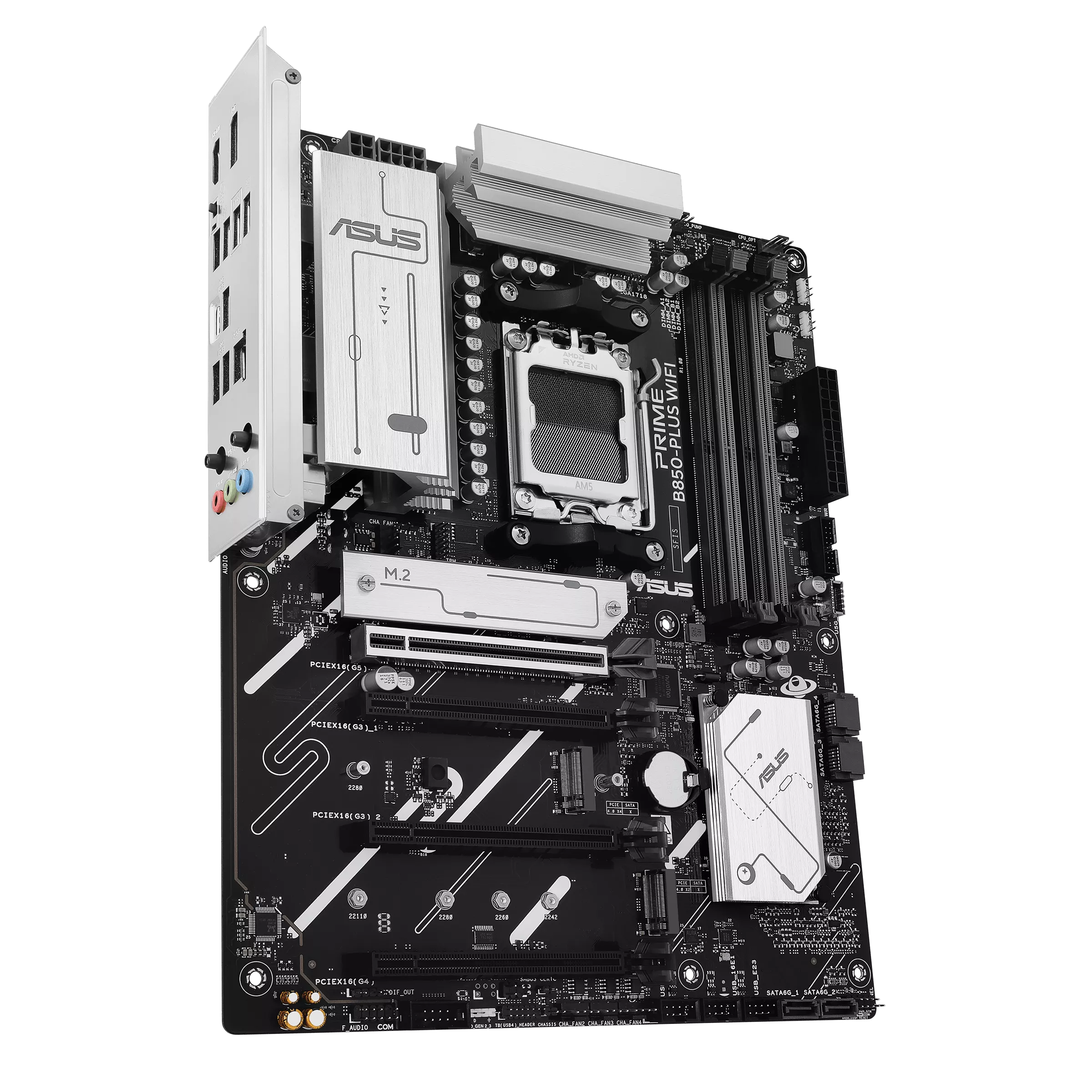

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support ) - Image 3

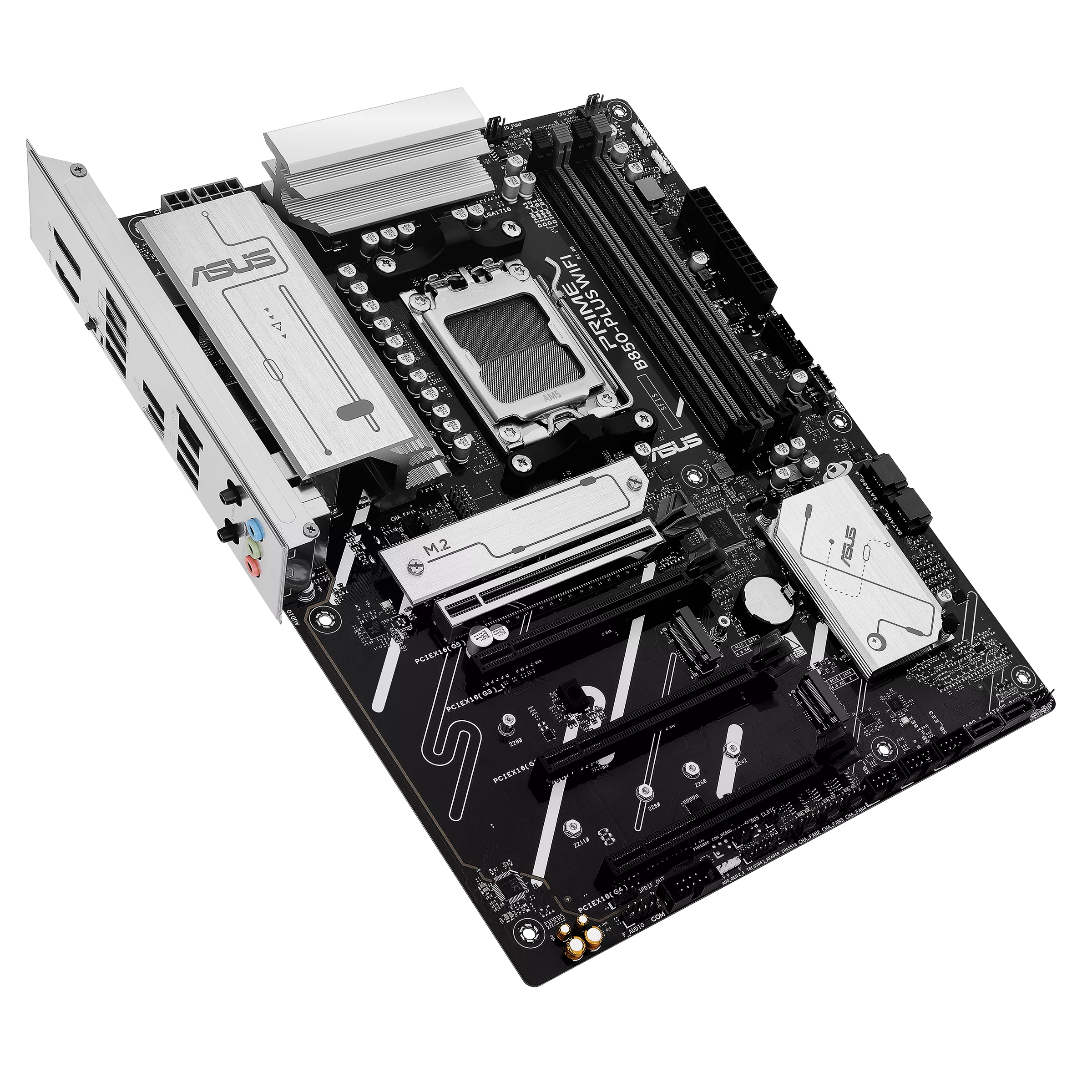

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support ) - Image 4
Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support ) - Image 5

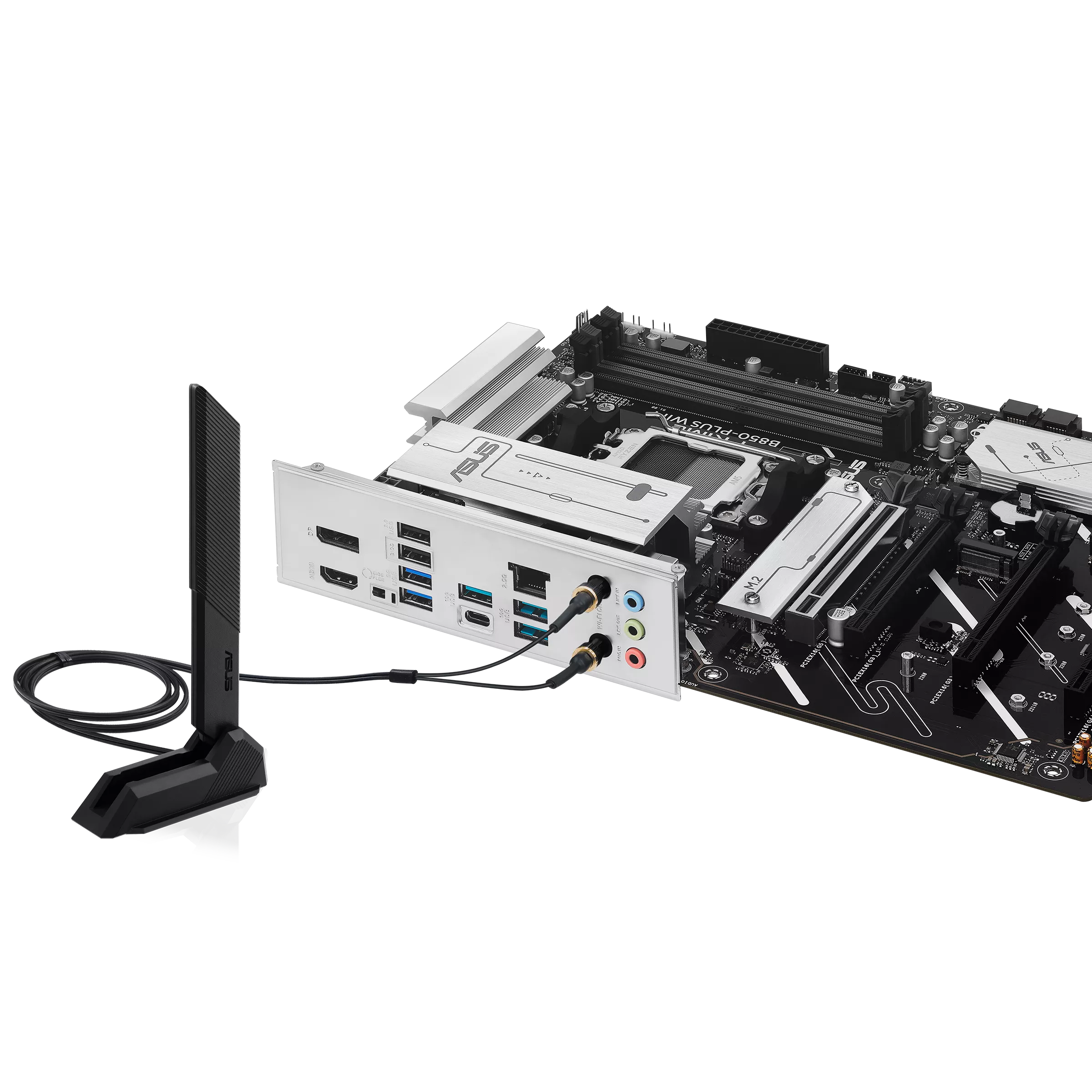

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support ) - Image 6

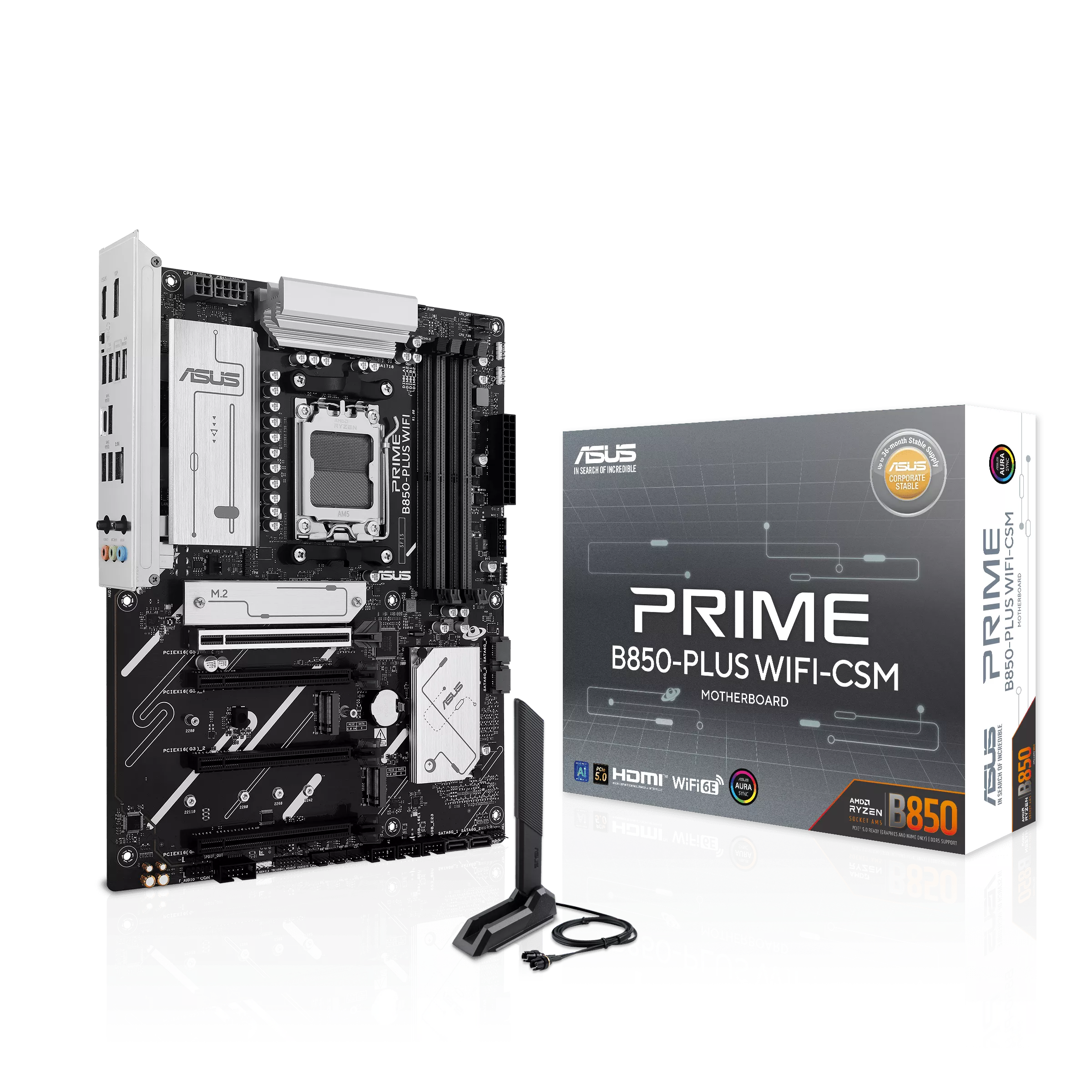

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support ) - Image 7
, ,

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support )

Asus
Compare

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support )

  • Platform :- AMD
  • Socket :- AMD AM5
  • Cpu Type :- AMD Ryzen
  • Chipset :- B850
  • Memory Speed :- up to 8000+
  • Max Memory Support :- 256 GB
  • Supported Memory Type :- DDR5
  • Channel Supported :- Dual Channel

₹17,990.00

Compare

Asus PRIME B850-PLUS WIFI-CSM ATX Motherboard ( AMD Socket AM5 , Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, 4 xDDR5 Ram Slots, Max 256GB Memory Support )

Model PRIME B850-PLUS WIFI-CSM
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
Supports up to AMD 170W CPU
Chipset AMD B850 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics  1x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
2 x PCIe 3.0 x16 slots (support x1 mode)***
* Please check the PCIe bifurcation table on the support site.
** Specifications vary by CPU types.
*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
– To ensure compatibility of the device installed,
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth “Wi-Fi 6E
2×2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
USB Rear USB (Total 8 ports)
4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

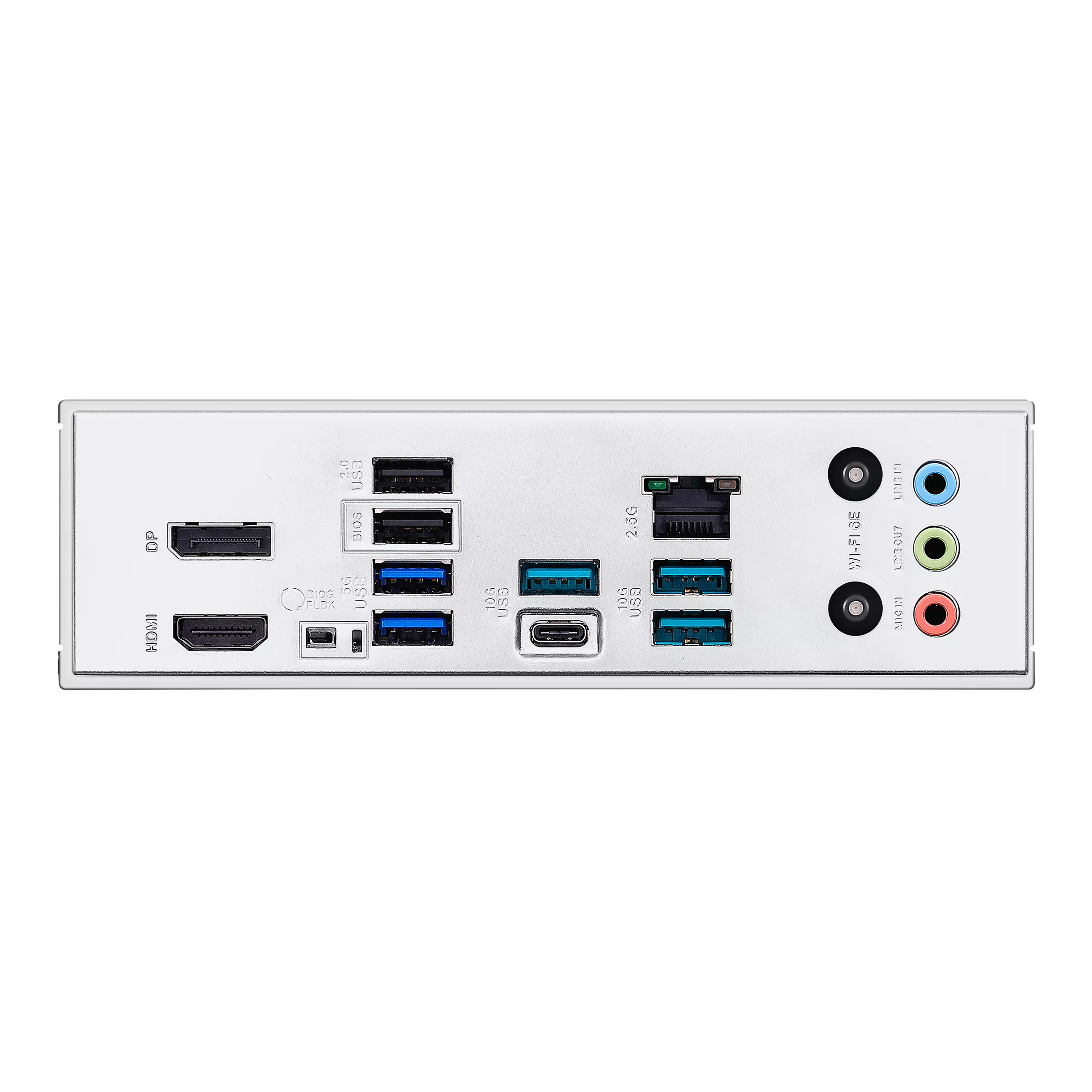

Back Panel I/O Ports 1 x USB 10Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Pre-mounted I/O shield
– SafeSlot
Aura Sync
– Addressable RGB Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Remote Management Features IT Management software supported
– ASUS Control Center Express(ACCE)


BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
