Zebronics Zeb H110M2 Micro-ATX Motherboard ( Intel LGA 1151 Socket , Supports Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9th Generation) Series Processors, 2 x DDR4 RAM Slots, Max 32GB RAM )

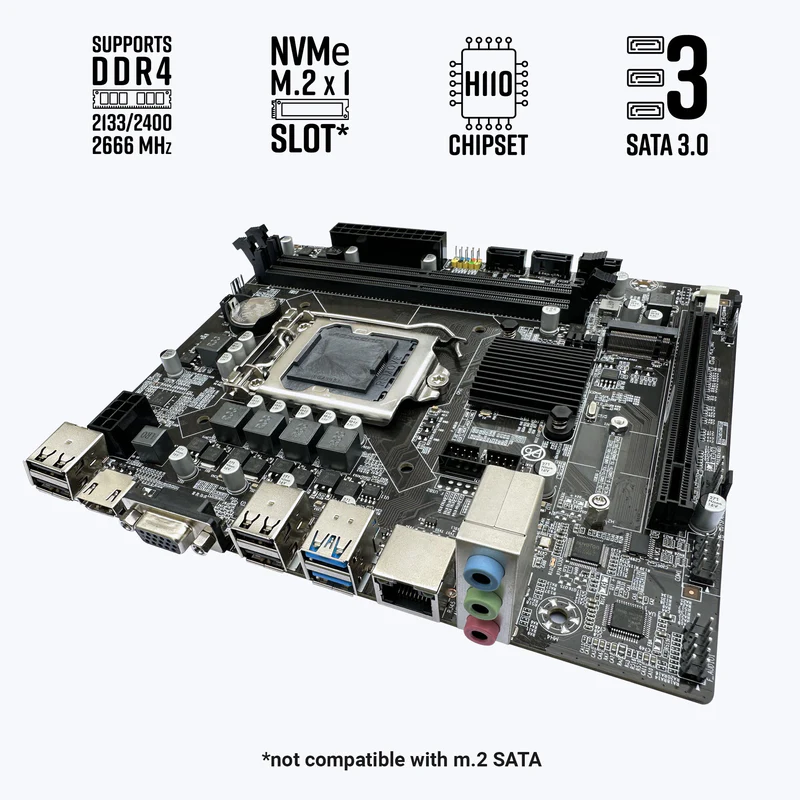

  • H110 Chipset
  • Supports DDR4/2133/ 2400/ 2666 MHz
  • 3 SATA 3.0
  • NVMe M.2 Slot
  • USB 3.0
  • 1 Audio
  • LAN 10/100 Mbps

₹4,525.00

Compare

Zebronics Zeb H110M2 Micro-ATX Motherboard ( Intel LGA 1151 Socket , Supports Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9th Generation) Series Processors, 2 x DDR4 RAM Slots, Max 32GB RAM )

Specifications

Supported CPU

 Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9th
Generation) Series Processors in LGA 1151
Chipset Intel H110
Memory Supported

 “2 x DDR4 DIMM Memory Slots
Memory up to 32GB
Supports DDR4 2133/2400/2666 MHz memory”
BIOS AMI BIOS
I/O Interface 1 x HDMI port, 1 x VGA Port, 4 x USB 2.0 Port,
2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio

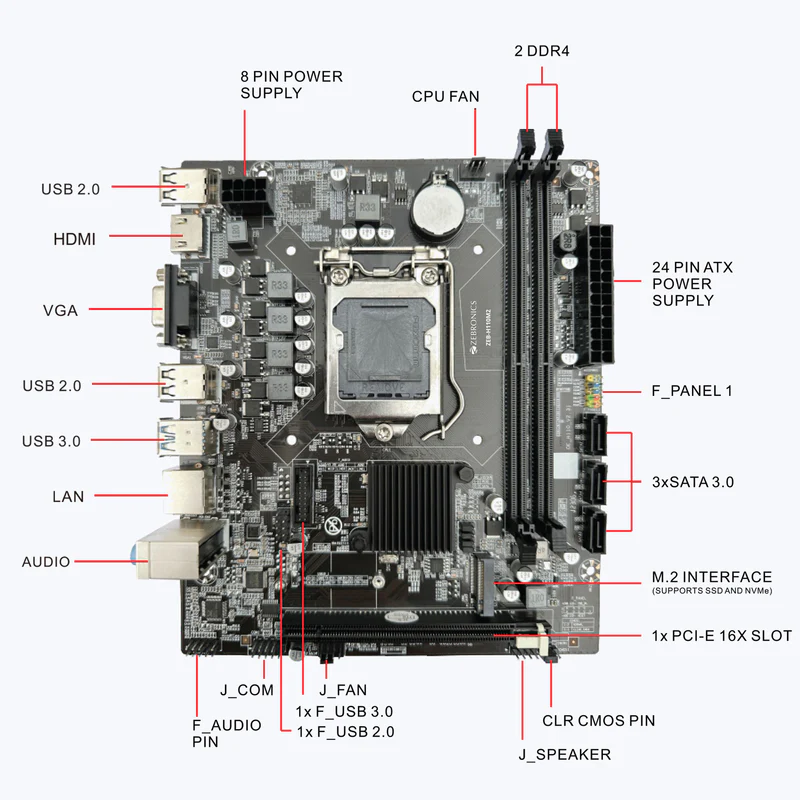

Onboard Interface

 1 x 24 pin ATX Power Connector,
1 x 8 Pin ATX 12V Power Connector,
1 x Front Panel connector, 1 x Front Audio Connector,
1 x Speaker Connector, 1 x USB 2.0 Connectors,
1 x USB 3.0 Connector, 1 x CPU Fan Connector,
1 x SYS Fan Connector, 1 x clear CMOS Connector,3 x SATA 3.0.
Integrated LAN Supports RTL 8111G 10/100/1000 Mbps Ethernet LAN
Integrated Sound With 5.1-Channel HD Audio
Expansion Slot 1 x PCI Express x16 slot,1 x NVMe M.2 slot
Form Factor Micro-ATX
Country of Origin China
Package Contents
Motherboard 1 U
SATA Cable 1 U
I/O Backplate 1 U
Driver Disc 1 U
User Manual 1 U



SKU: Zeb-H110M2 Categories: , , Brand:
Brand

Mb Form Factor

Mb Platform

Mb Cpu Support

Mb Socket

LGA1151
MB Chipset

Intel H110
No Of Ram Slots

Supported Memory Type

DDR4
Max Memory Support

Mb Wifi In Built

Mb M.2 Slots
