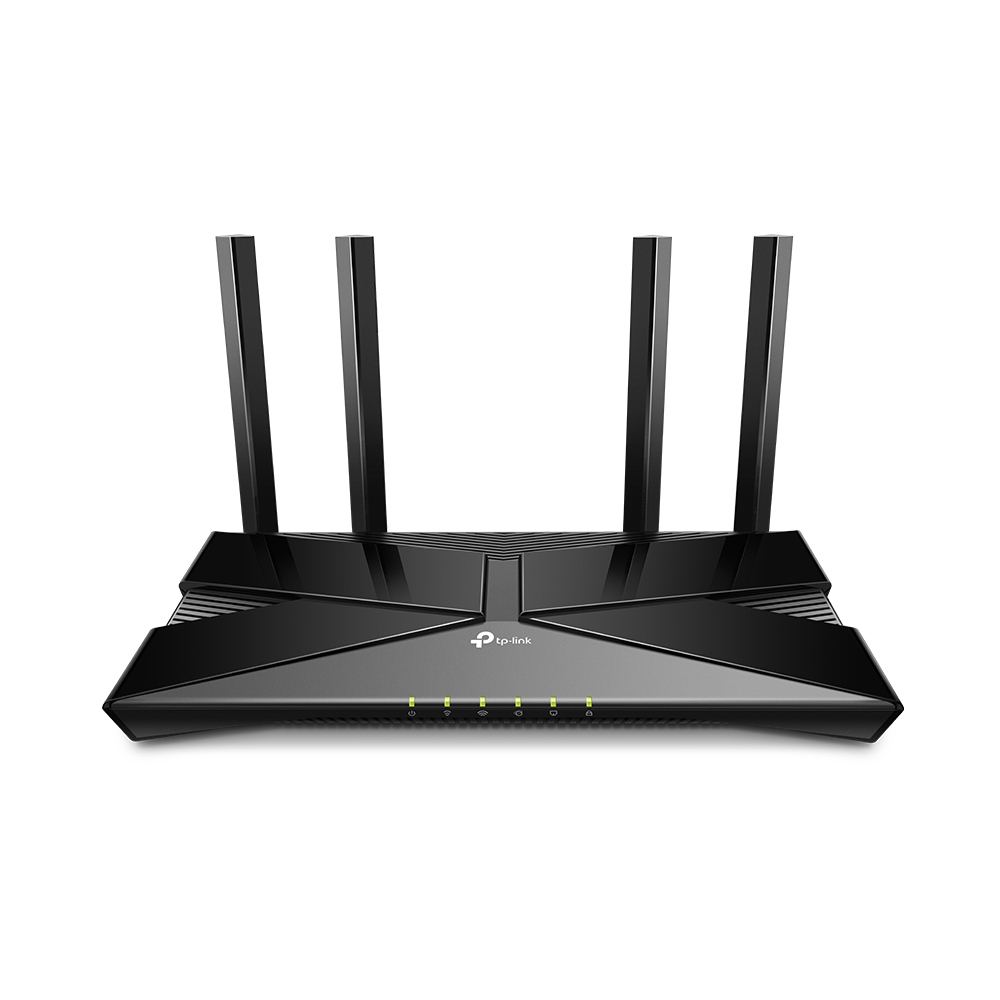

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals

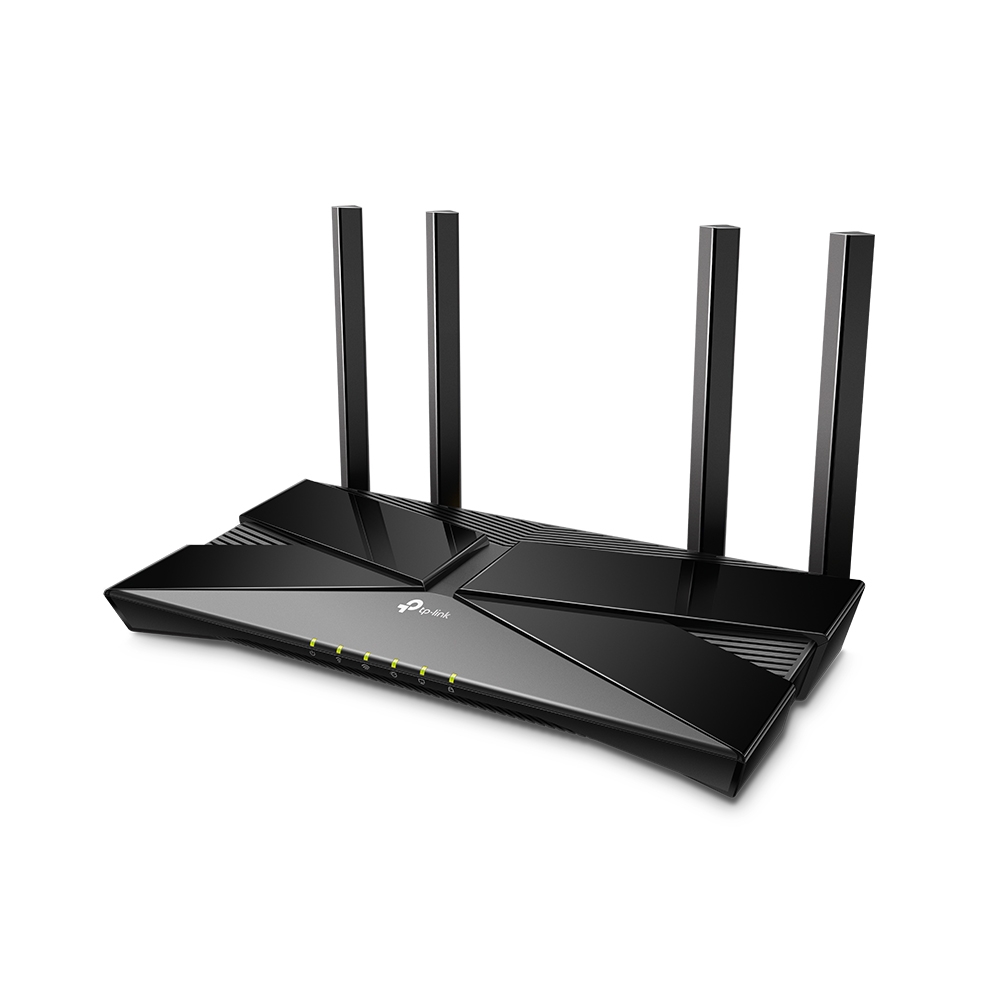

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals - Image 2
TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals - Image 3

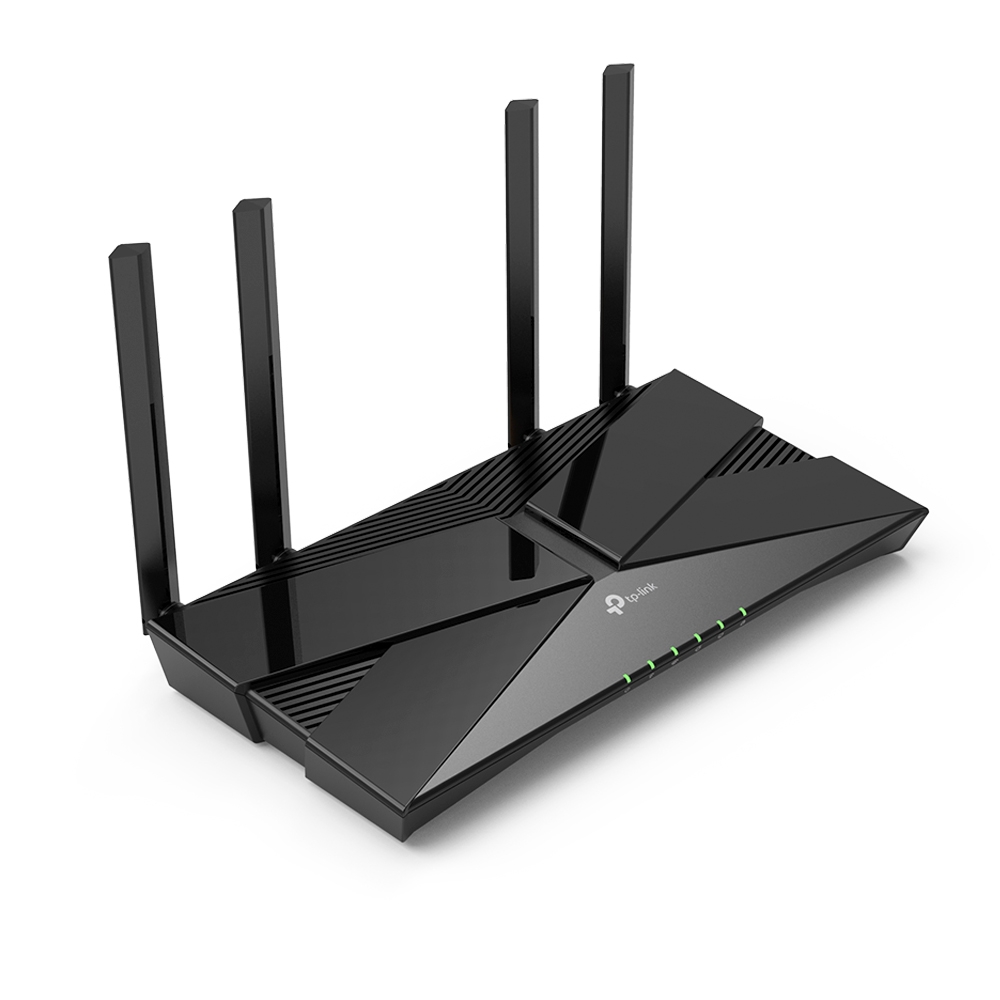

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals - Image 4

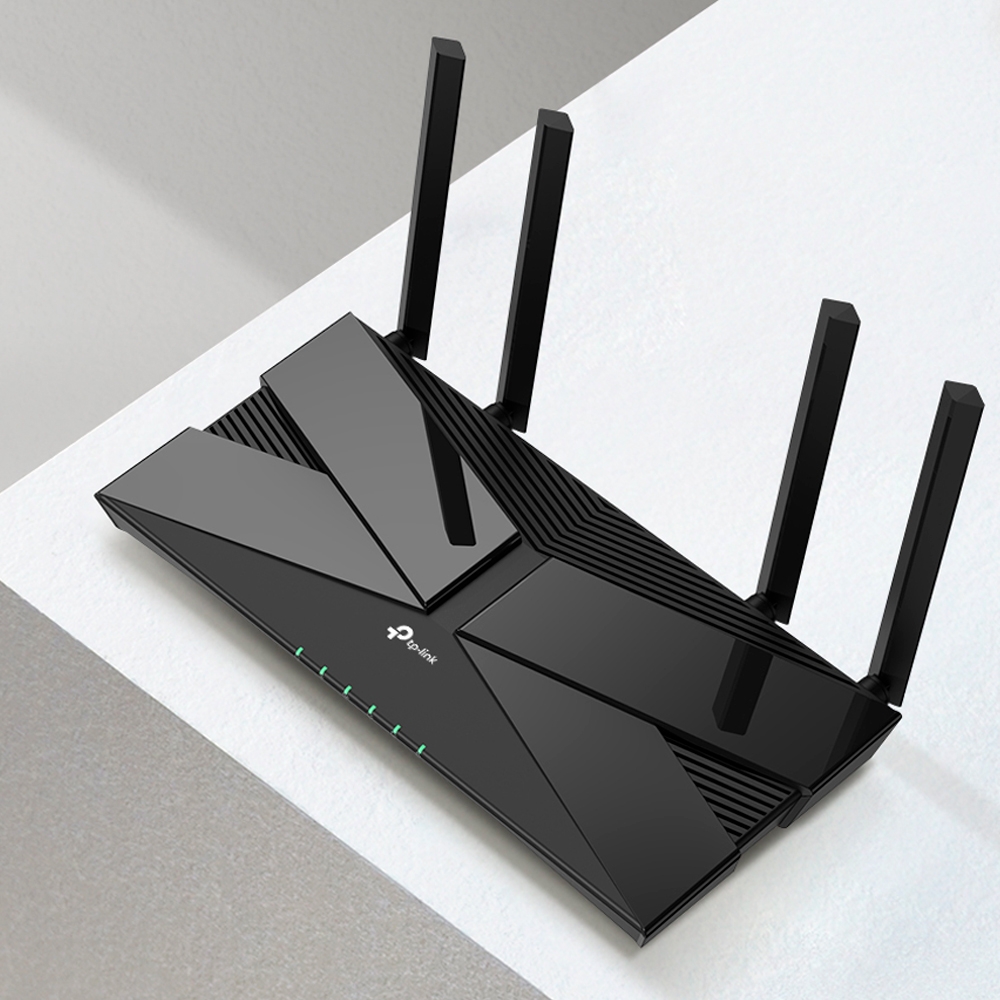

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals - Image 5

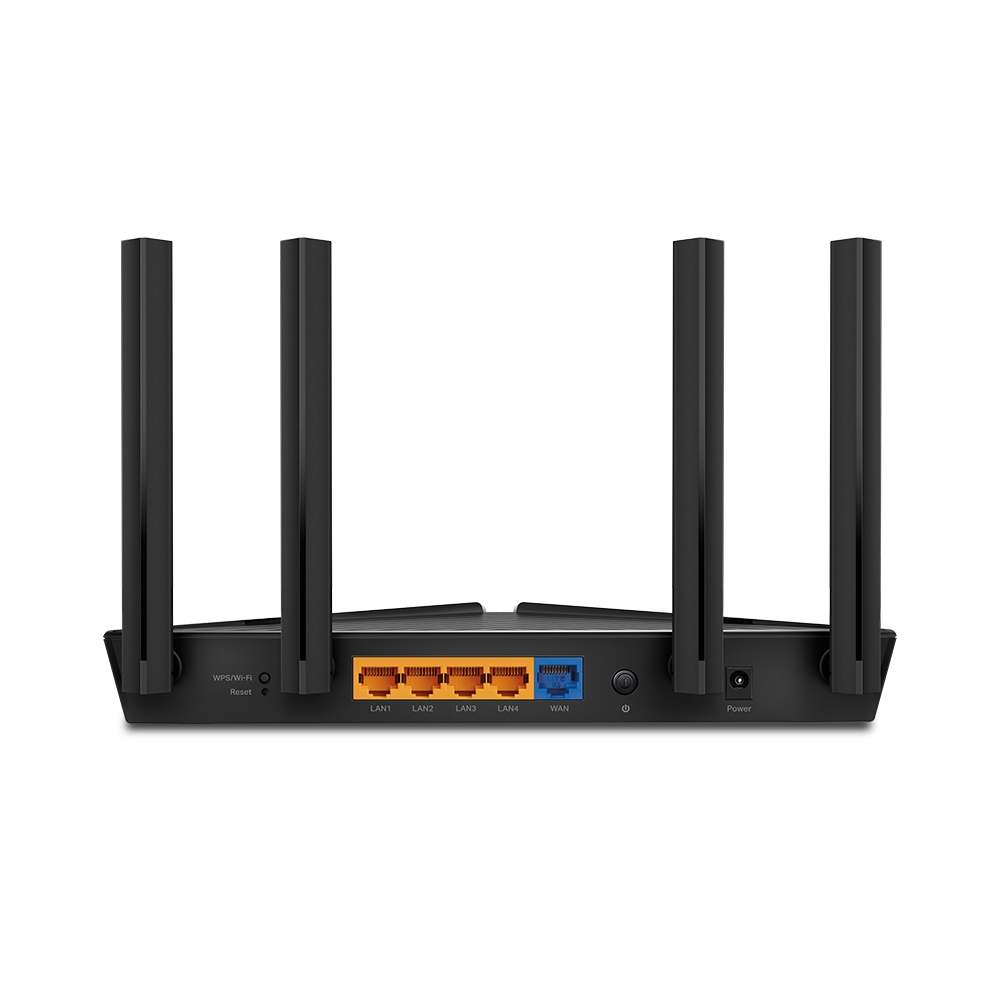

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals - Image 6
,

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals

TP-Link
Compare

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals

  • Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
  • Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.‡
  • Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
  • Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.
  • Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
  • Works with Most ISPs –Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
  • OneMesh – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
  • Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

₹5,450.00

Compare

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router With 4 High-Performance External Antennas Boost Wifi Signals

  • WiFi 6 Upgrades Everything :- The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
  • Super-Fast WiFi 6 :- Transfer HD movies in 10 seconds. WiFi 6’s 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.
  • Connect More, Stay Fast :- Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter
  • WiFi Coverage Throughout Your Home :- 4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.
  • TP-Link OneMesh Flexibly Create Whole Home WiFi :- Want to build a whole-home WiFi? Archer AX23 supports OneMesh to form seamless coverage throughout your home, preventing drops and lag when moving between signals.
  • WPA3—The Next Level of Cybersecurity :- The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi
  • Universal ISP Support :- Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.
  • Easy Setup and Use :- Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes.
    The Tether app allows you to manage network settings from any Android or iOS device.
  • Protect Your Children :- Block inappropriate content for your children, and customize a time range for better online habits.
  • New Connection Notification :- You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
  • Easy Firmware Upgrade :- Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
WIRELESS
Standards and Protocols Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
  • 2-3 Bedroom Houses
  • 4× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas
    Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
  • High
  • Dual-Band
    Allocate devices to different bands for optimal performance
    Airtime Fairness
    Improves network efficiency by limiting excessive occupation
    4 Streams
    Connect your devices to more bandwidth
Working Modes Router Mode Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
VPN Client • OpenVPN Client
• PPTP VPN Client
• WireGuard VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor Dual-Core CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Power 12 V ⎓ 1.5 A
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
SOFTWARE
Protocols IPv4
IPv6
OneMesh™ OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Features Tether App Webpage
OTHER
Network Services Enabled by Default
  • Web Server
    Manage and configure device through web (HTTP/HTTPS)
    • Port: 80/443   Protocol: TCP
  • DNS
    DNS
    • Port: 53   Protocol: TCP & UDP
  • DHCP Server
    IP address assignment (DHCP)
    • Port: 67   Protocol: UDP
  • App management
    Manage and configure device through app
    • Port: 20001   Protocol: TCP
    • Port: 30001   Protocol: TCP
    • Port: 20002   Protocol: UDP
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
US Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Content Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
