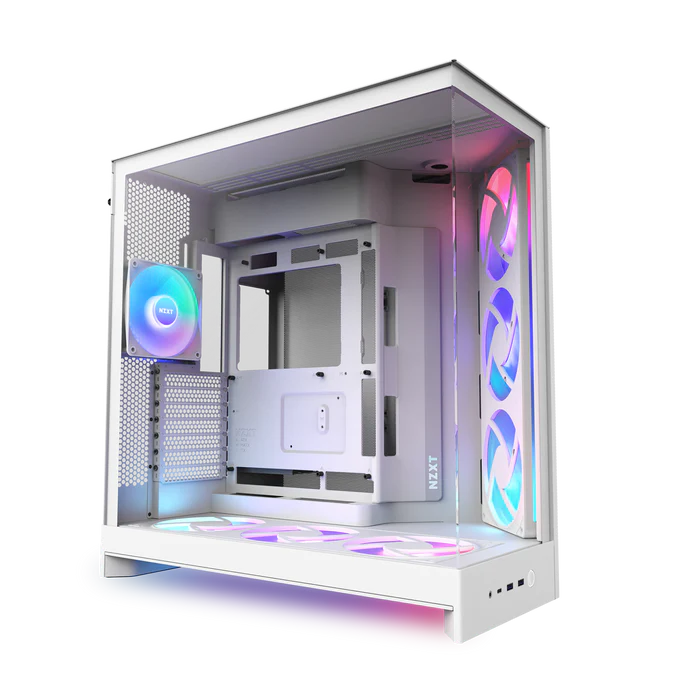

NZXT H9 Flow RGB+ White E-ATX Mid-Tower Large Dual-Chamber Panoramic View Tempered Glass Panel Airflow PC Case With Pre-installed RGB Fans and Control Hub ( CM-H92FW-P1 )

NZXT H9 Flow RGB+ White E-ATX Mid-Tower Large Dual-Chamber Panoramic View Tempered Glass Panel Airflow PC Case With Pre-installed RGB Fans and Control Hub ( CM-H92FW-P1 )

• Built to Flow. Made to Show. :- The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.
• Optimized Airflow :- Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.
• Mesh Panels :- Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.
• Spacious Dual-Chamber :- Separates heat-generating components for improved airflow and a cleaner build.
• 10-Fan Cooling :- Fits up to nine 140 mm fans and one 120 mm rear fan.
• Large Radiator Support :- Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.
• Maximum Graphics :- Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.
• Back-Connect Ready :- Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

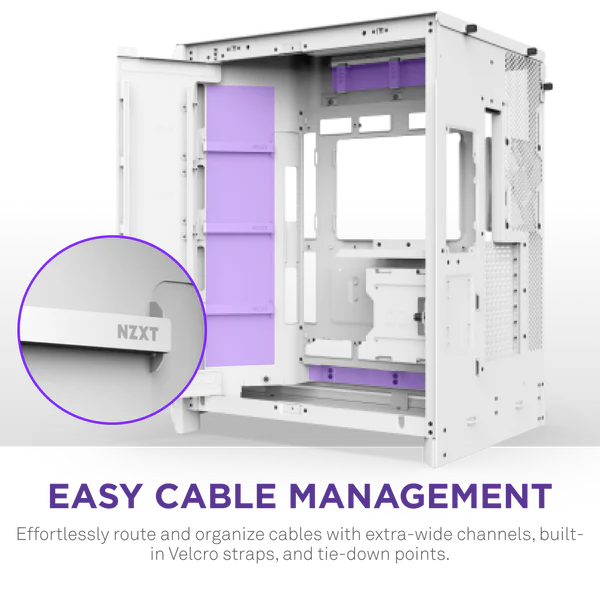

• Easy Cable Management :- Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

Tech Specs

• Dimensions
  • Height :- 506 mm (19.9 in)
  • Width:- 315 mm (12.4 in)
  • Depth:- 481 mm (18.9 in)
  • Volume:- 7 L
  • Weight:- 4 kg (29.54 lb)
• General
  • Enclosure Type:- Mid-tower
  • Motherboard Compatibility:- E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
  • Rear-Connecting Motherboard Support (BTF, Project Zero) :- Yes (ATX)
  • Materials:- SGCC steel, clear tempered glass (white), tinted tempered glass (black)
• Clearance
  • CPU Cooler Height:- 165 mm
  • GPU Length:- Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
  • PSU Length:- 200 mm
  • Top Radiator & Fan Thickness:- Up to 80 mm (360 mm) Up to 62 mm (420 mm)
• Front I/O Ports
  • USB 3.2 Type-A:- 2
  • USB 3.2 Gen2x2 Type-C:- 1
  • Headset Jack:- 1
• Expansion Slots
  • Standard:- 7
  • Vertical:- 0
• Drive Bays
  • 5″:- 4+2
  • 5″:- 2
• Fan Support
  • Front-Right:- 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
  • Top:- 3 x 120 mm / 3 x 140 mm
  • Bottom:- 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
  • Rear:- 1 x 120 mm (1 x F120 RGB (CV) included)
• Radiator Support
  • Front-Right:- Up to 420 mm
  • Top:- Up to 420 mm
  • Bottom:- Up to 360 mm
  • Rear:- Up to 120 mm
• Fan Specs – F420 RGB Core
  • Model:- F420 RGB Core
  • Speed:- 2,000 ± 200 RPM
  • Airflow:- 61 CFM
  • Static Pressure:- 2 mmH2O
  • Noise:- 5 dBA
  • Fan Connector:- 8-pin
• Fan Specs – F120 RGB Core (CV)
  • Model:- F120 RGB Core (CV)
  • Speed:- 1,300 ± 130 RPM
  • Airflow:- 17 CFM
  • Static Pressure:- 27 mmH2O
  • Noise:- 1 dBA
  • Fan Connector:- 3-pin
• Control Hub Specs
  • Fan Channels:- 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)
  • RGB Channels:- 4 x NZXT 8-pin / 1 x NZXT RGB
  • Max LED Support:- Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices.
  • System Requirements:- USB 2.0 Internal Header 8-pin PCIe Power
• Warranty
  • Warranty:- 2 years
• Product Info
  • Model Number:- CM-H92FW-P1
  • UPC:- 810074847889
  • EAN:- 5056547207674
