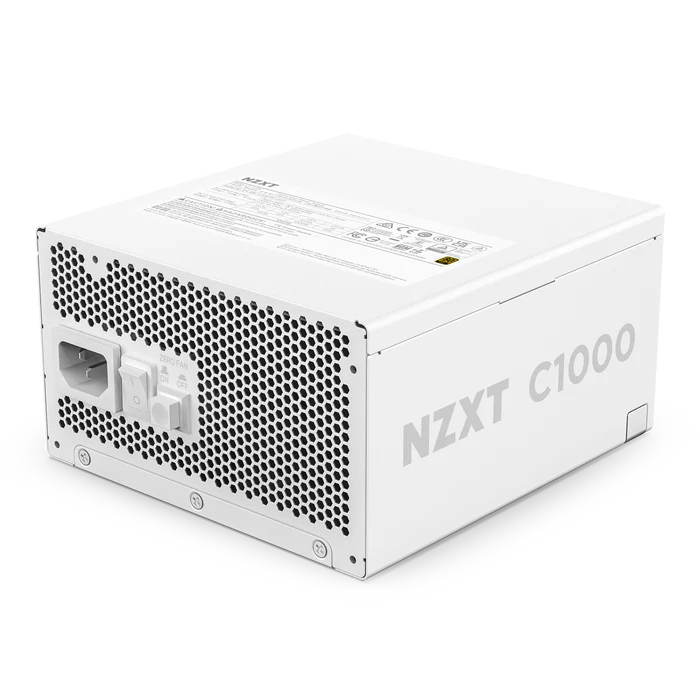

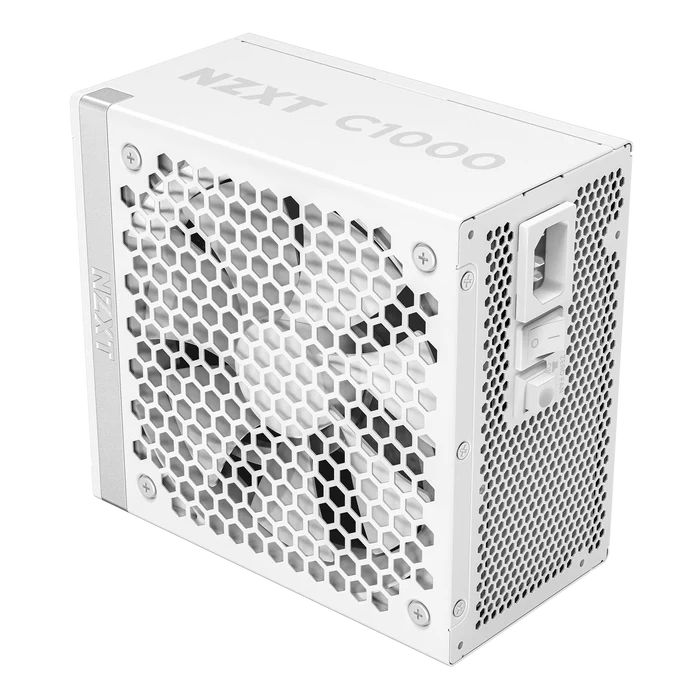

NZXT C1000 Gold ATX 3.1 1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 White Power Supply Unit ( PA-0G2BW-UK )

NZXT C1000 Gold ATX 3.1 1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 White Power Supply Unit ( PA-0G2BW-UK )

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

• Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
• Durable, heat-resistant 12V-2×6 connector pumps up to 600 watts to NVIDIA GeForce RTX 50 Series graphics cards.
• 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
• 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
• Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.

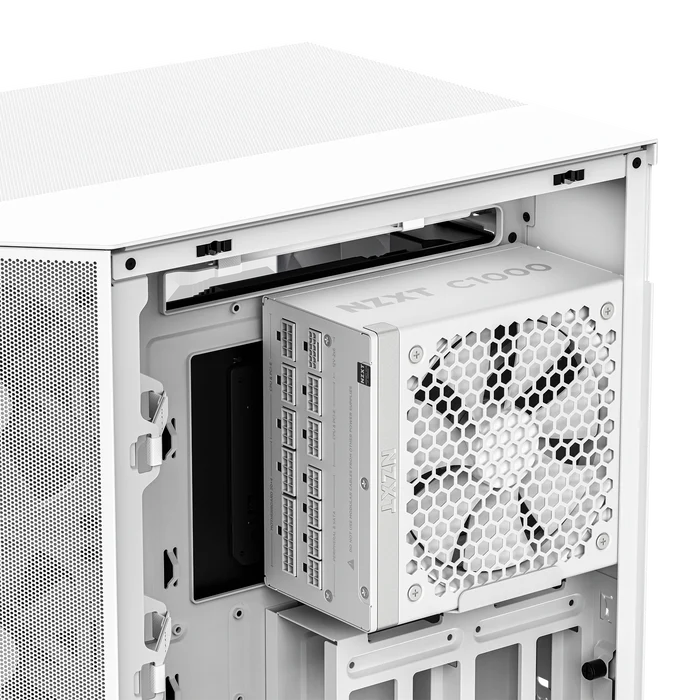

• Compact form factor frees up valuable room for cable management and more case airflow.
• Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.

NZXT Gold ATX 3.1 PSU – ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.

ATX 3.1 Compliant – ATX 3.1 powers high-performance components with stable delivery and improved efficiency.

RTX 50 Series Ready – 12V-2×6 cable delivers up to 600 watts of power to NVIDIA GeForce RTX 50 Series GPUs.

Certified for High Efficiency & Low Noise – 80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A Noise Level Ratings.

Silence is Golden – 135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.

100% Japanese Capacitors – Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

Fully Modular – Only connect the cables needed to keep a tidy build. Full cable set included.

Space-Saving Size – Compact form factor frees up room for cable management and improved airflow.

Peace of Mind – Backed by a 10-year warranty and reliable customer support.

Tech Specs

Output Connectors

• 24-pin ATX Power Cable :- 1
• 4+4-pin CPU Power Cable:- 1
• 8-pin CPU Power Cable:- 1
• 6+2-pin PCIe Power Cable:- 3
• 16-pin (12+4) 12V-2×6 PCIe Cable:- 1
• SATA Cable:- 12
• Peripherals Cable:- 4

Cable Specs

• 24-pin ATX Power Cable:- 600mm with nylon sleeving
• 4+4-pin CPU Power Cable:- 700mm with nylon sleeving
• 8-pin CPU Power Cable:- 700mm with nylon sleeving
• 6+2-pin PCIe Power Cable:- 650mm with nylon sleeving
• 16-pin (12+4) 12V-2×6 PCIe Cable:- 650mm with nylon sleeving
• SATA Cable:- 500 + 150mm
• Peripherals Cable:- 500 + 150mm

AC Input Rating

• 100 – 240Vac:- 13A 50Hz-60Hz

DC Output Rating

• 3V / +5V:- 22A (120W)
• 12V:- 3A (1000W)
• 5Vsb:- 3A (15W)
• Total:- 1000W

Energy Efficiency

• Rating:- 80 Plus Gold
• 10% loading:- 5% @115Vac
• 20% loading:- 7% @115Vac
• 50% loading:- 9% @115Vac
• 100% loading:- 3% @115Vac

Electrical Features

• PF Correction:- Active @0.99
• Protections:- OVP / UVP / SCP / OTP / OPP / OCP

Fan Specs

• Dimensions:- 135 x 135 x 25 mm
• Speed:- 2300 ± 10% RPM
• Airflow:- 02 CFM (Min.)
• Noise:- 5 dBA max
• Bearing:- Fluid Dynamic Bearing (FDB)

Operation

• MTBF:- 100,000 hours
• Temperature:- 0 – 50 °C

Dimensions

• Width:- 150 mm
• Height:- 86 mm
• Depth:- 160 mm

General

• Material(s) :- Steel, PCB and Plastic
• Compliance Standard:- ATX12V v3.1 / EPS12V v2.92
• Regulation & Certification:- FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
• Warranty:- 10 Years
• Model Number :- PA-0G2BW-UK

EAN

• White:- 810074844765 (UK)

UPC

• White :- 810074846387 (UK)
