MSI PRO B840M-B mATX Motherboard ( AMD Socket AM5, Supports AMD Ryzen 9000, 8000, 7000 Series Desktop Cpu, 2x DDR5 RAM Slots, Max 128GB RAM )

  • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
  • Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper
  • EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
  • Lightning Fast Game experience: PCIe 4.0 slot and Lightning Gen 4 x4 M.2
  • 2.5G LAN: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

₹8,790.00

Compare

MSI PRO B840M-B mATX Motherboard ( AMD Socket AM5, Supports AMD Ryzen 9000, 8000, 7000 Series Desktop Cpu, 2x DDR5 RAM Slots, Max 128GB RAM )

Chipset AMD B840
CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have single-sided latches.
Onboard Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x D-Sub
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
Audio Realtek ALC897
7.1-Channel High Definition Audio
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN Realtek 8125D 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED

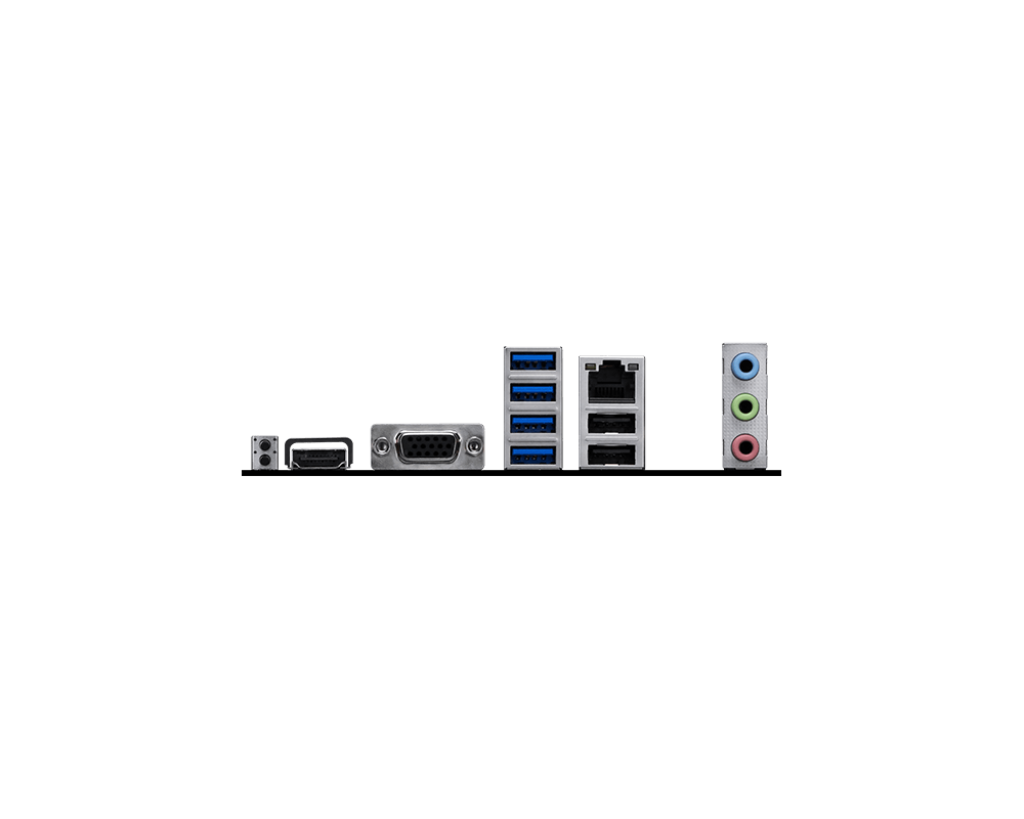

BACK PANEL PORTS
  1. Clear CMOS Button
  2. HDMI
  3. VGA
  4. USB 5Gbps Type-A
  5. 2.5G LAN
  6. Audio connectors
  7. Flash BIOS Button
  8. USB 2.0
OPERATING SYSTEM Support for Windows 11 64-bit
PCB Info mATX
226mmx243.84mm



SKU: PRO-B840M-B Categories: , , Brand:
Brand

Mb Form Factor

Mb Platform

Mb Cpu Support

Mb Socket

AM5
MB Chipset

AMD B840
No Of Ram Slots

Supported Memory Type

DDR5
Max Memory Support

Mb Wifi In Built

Mb M.2 Slots
