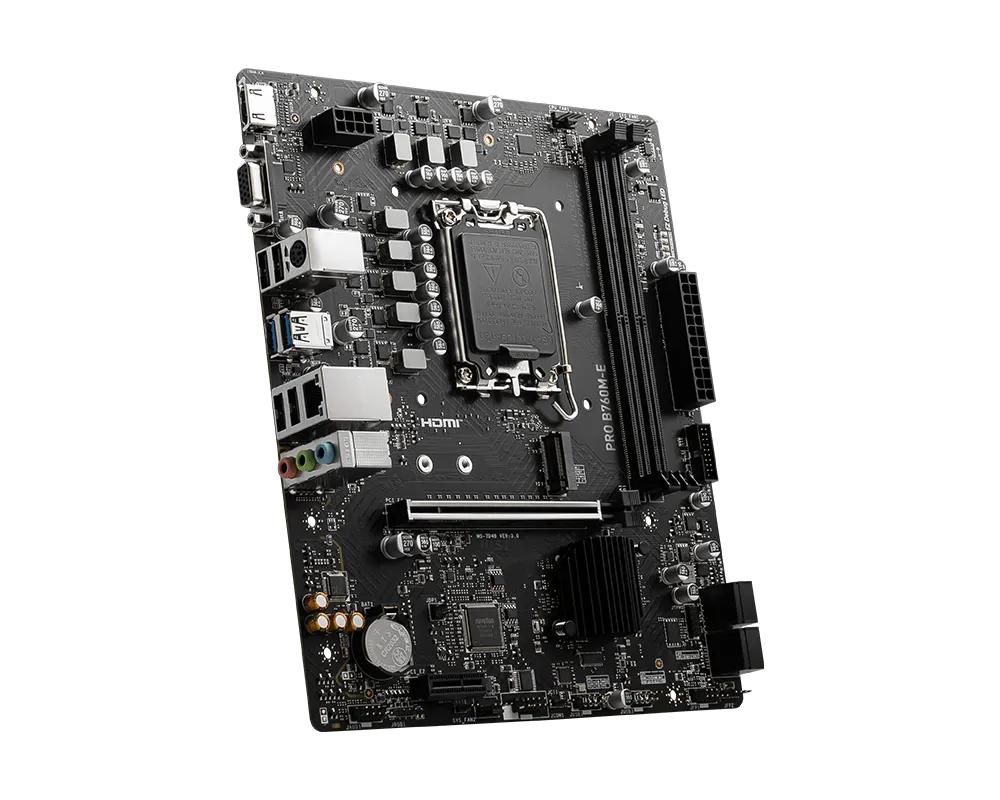

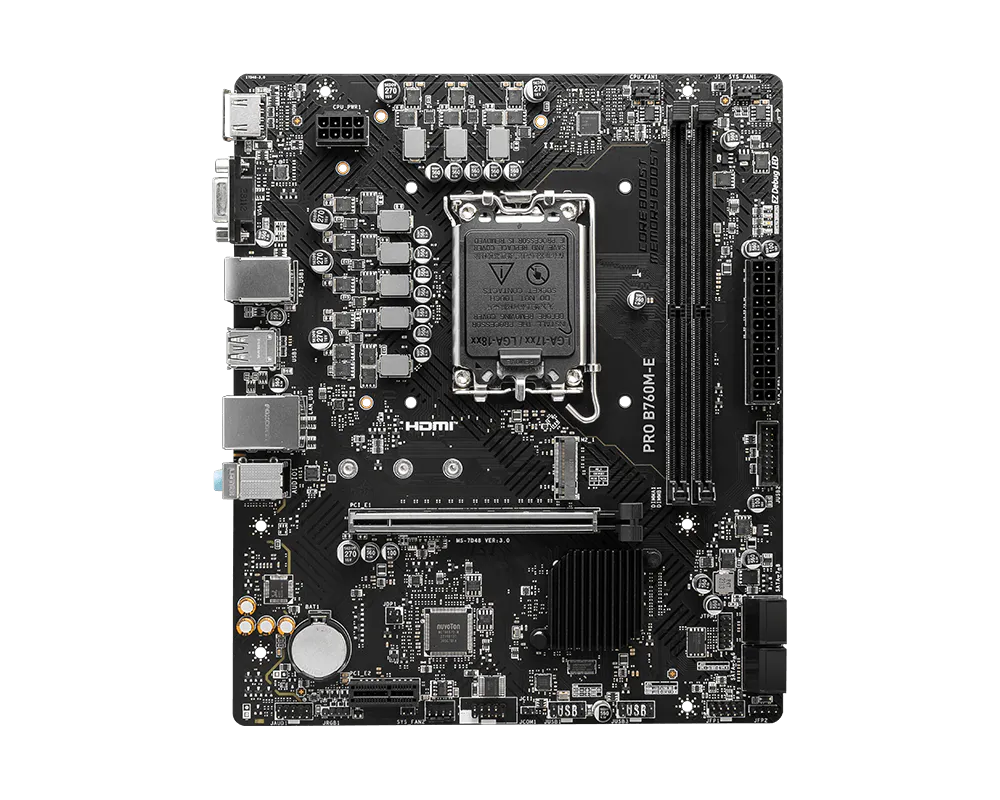

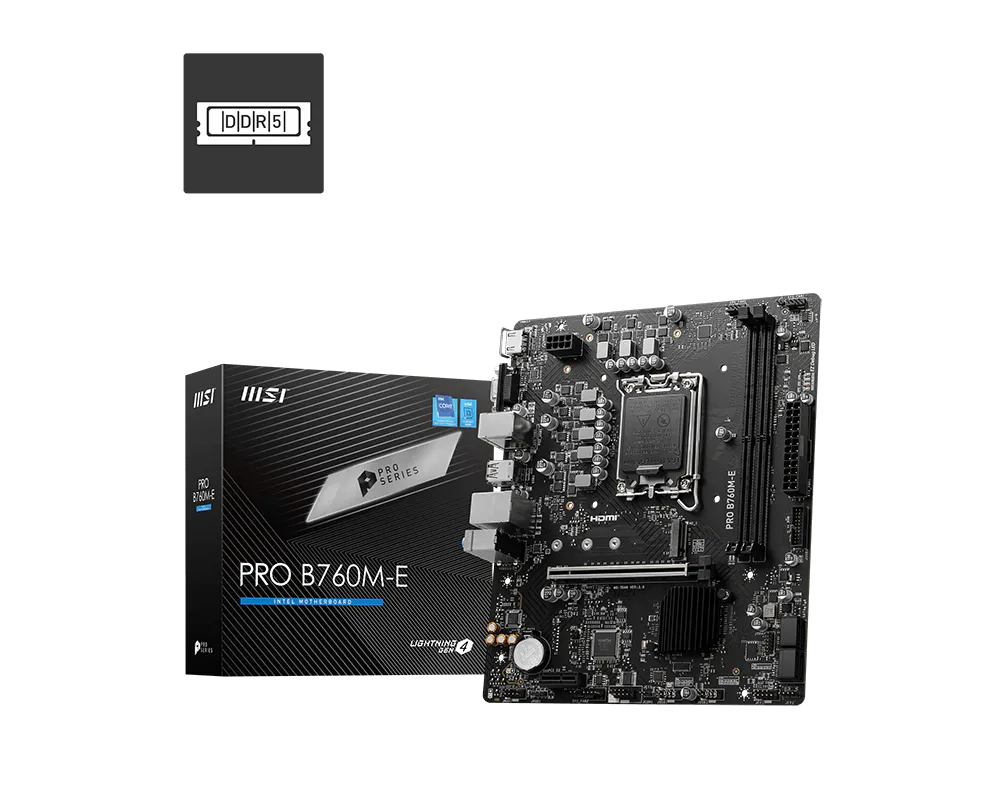

MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support )
MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 2
MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 3
MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 4
MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 5
, ,

MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support )

MSI
Compare

MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support )

  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

₹9,050.00

Compare

MSI PRO B760M-E mATX Motherboards ( Intel LGA 1700 Socket, Supports Intel Core 14th, 13th, 12th Gen Processors, Intel Pentium Gold and Celeron Processors, 2x DDR5 RAM Slots, Max 128GB RAM Support )

Chipset INTEL B760
CPU Support Intel Core14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
  •  1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
LAN Realtek RTL8111H Gigabit LAN
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

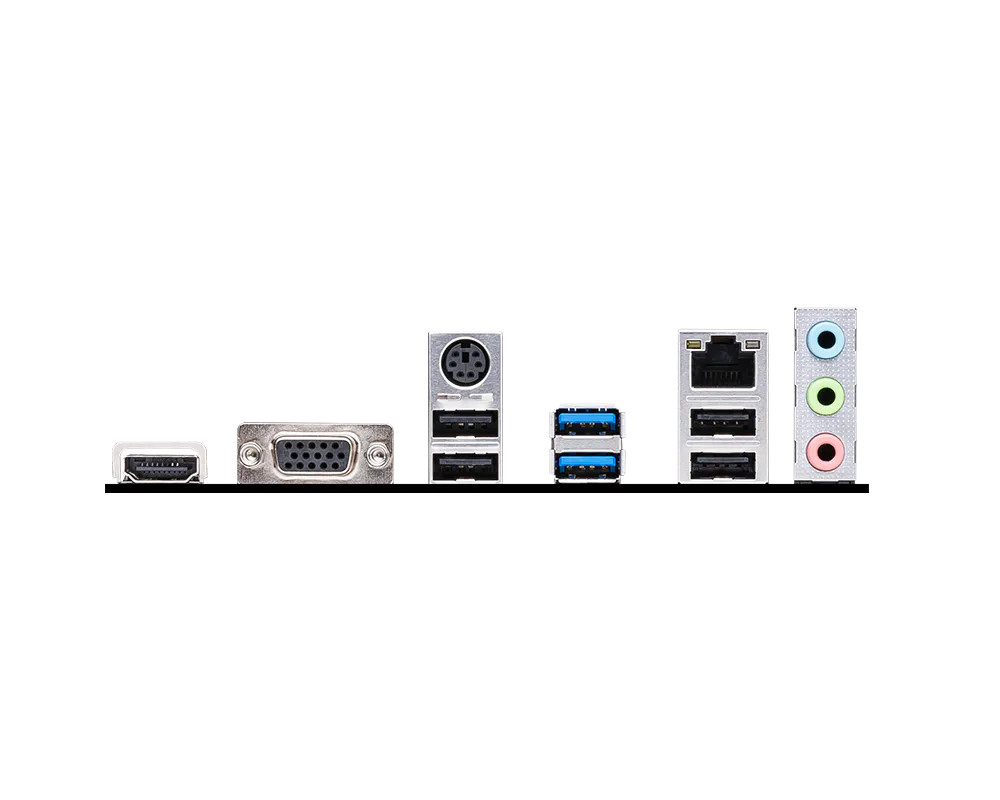

BACK PANEL PORTS 1.      HDMI

2.      VGA

3.      Keyboard / Mouse

4.      USB 3.2 Gen 1 5Gbps (Type-A)

5.      LAN port

6.      Audio Connectors

7.      USB 2.0

8.      USB 2.0
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info mATX 200mmx236.16mm
