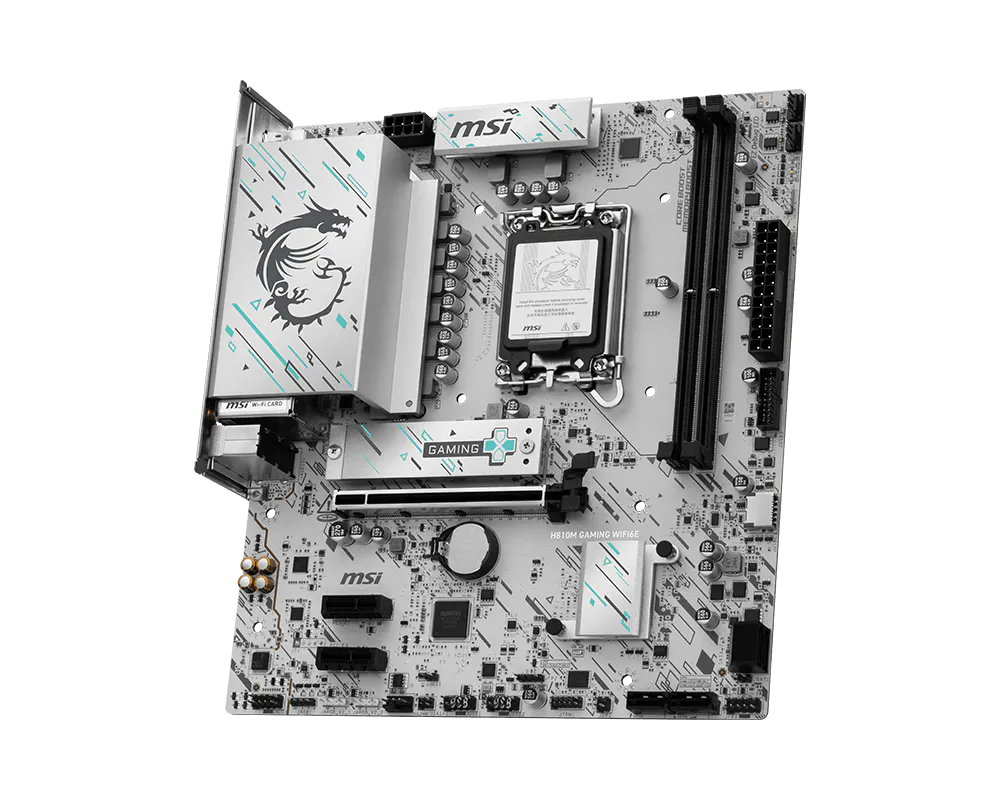

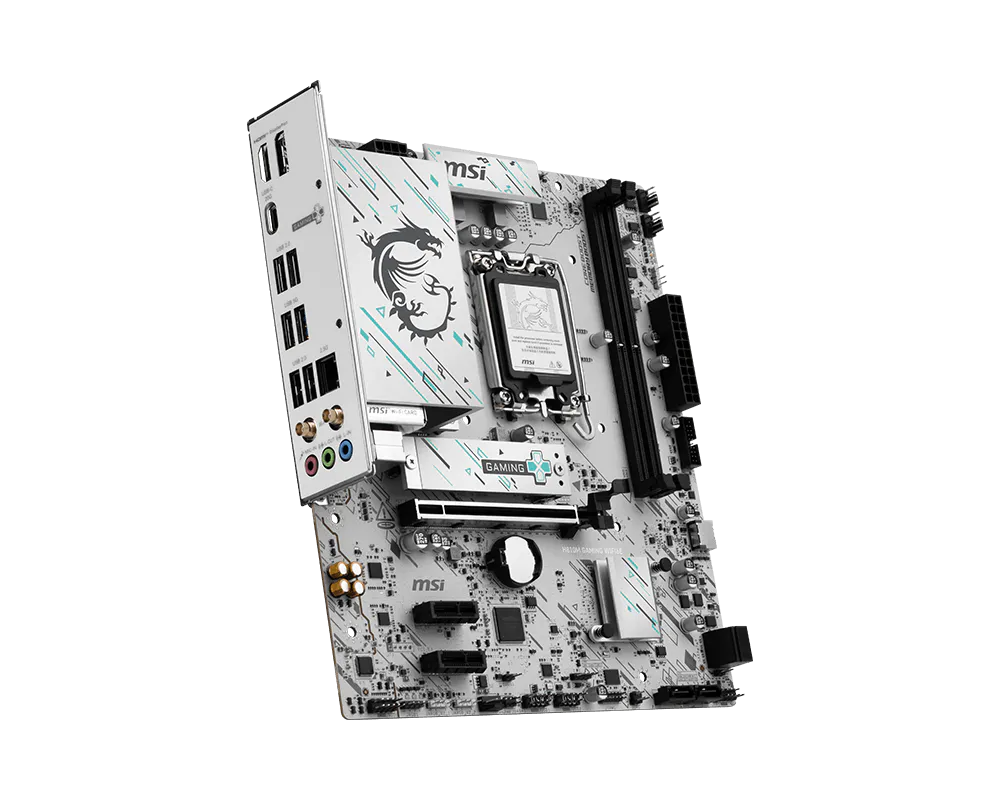

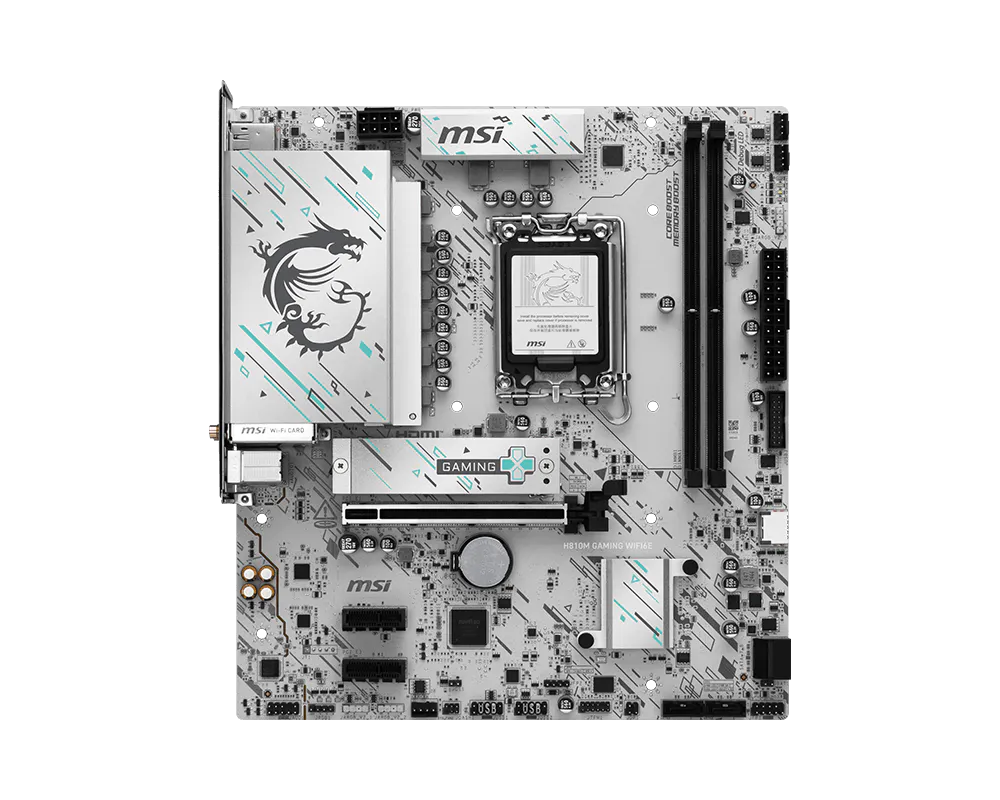

MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support )
MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 2
MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 3
MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 4
MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support ) - Image 5
, ,

MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support )

MSI
Compare

MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support )

  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5-6400+ MT/s (OC)
  • Ultra Performance: 6 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 20G Type-C
  • High-Speed Connectivity: Realtek 2.5G LAN, Wi-Fi 6E Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

₹13,590.00

Compare

MSI H810M GAMING WIFI6E mATX Motherboard ( Intel Socket LGA 1851, Supports Intel Core Ultra (Series 2) Cpu, 2x DDR5 RAM Slots, Max 128GB RAM Support )

Chipset INTEL H810
CPU Supports Intel Core Ultra Processors (Series 2)
LGA 1851
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Realtek 8125 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 6E module
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED

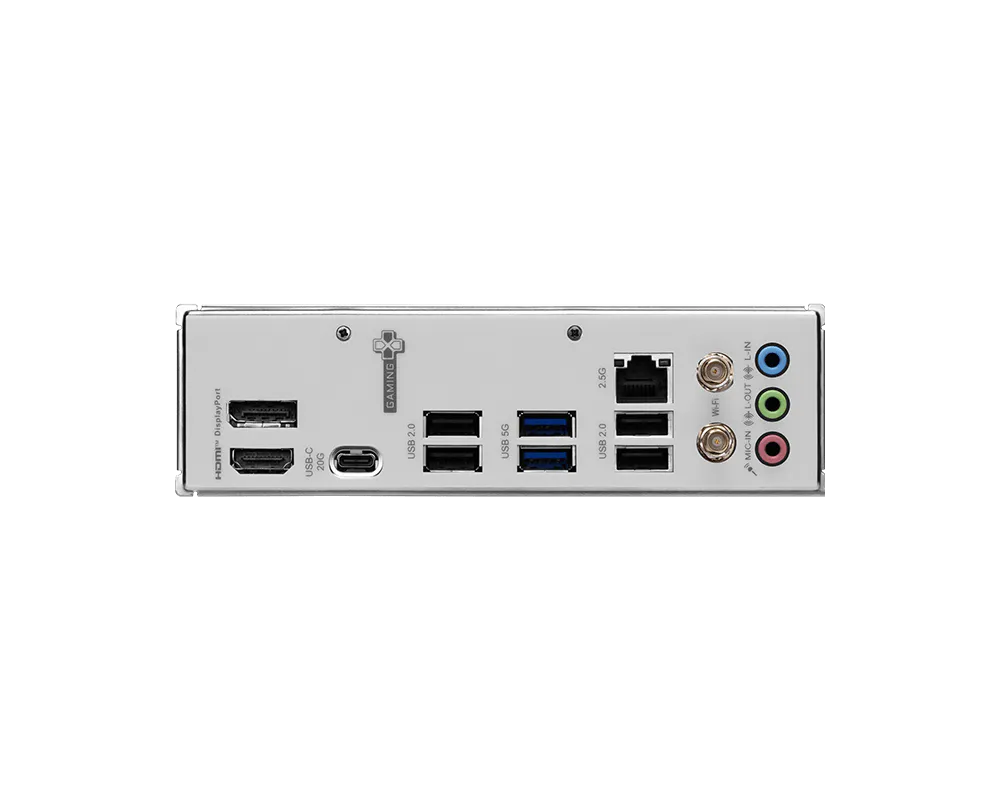

BACK PANEL PORTS
  1. DisplayPort
  2. USB 2.0
  3. USB 5Gbps (Type-A)
  4. 2.5G LAN
  5. Wi-Fi / Bluetooth
  6. HDMI
  7. USB 20Gbps (Type-C)
  8. USB 2.0
  9. Audio connectors
OPERATING SYSTEM Support for Windows 11 64-bit
PCB Info mATX
220mmx243.84mm



SKU: H810M-GAMING-WIFI6E Categories: , , Brand:
Brand

Mb Form Factor

Mb Platform

Mb Cpu Support

Mb Socket

LGA1851
MB Chipset

Intel H810
No Of Ram Slots

Supported Memory Type

DDR5
Max Memory Support

Mb Wifi In Built

Mb M.2 Slots

Call For Availability
