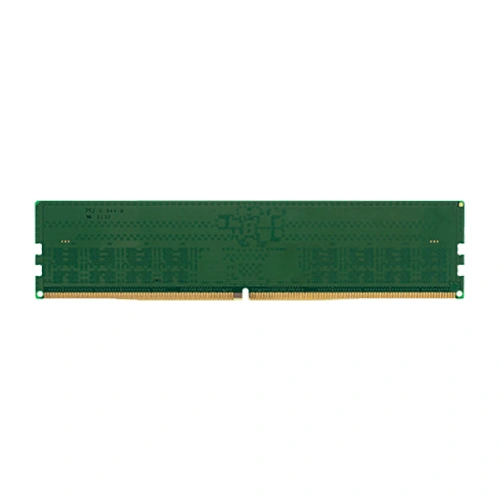

Kingston Value Series 32GB (1x32GB) DDR5 5600MT/s CL46 Non-ECC Unbuffered 288-pin Desktop RAM ( KVR56U46BD8-32 )

Kingston Value Series 32GB (1x32GB) DDR5 5600MT/s CL46 Non-ECC Unbuffered 288-pin Desktop RAM ( KVR56U46BD8-32 )

This document describes ValueRAM’s KVR56U46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers

FEATURES

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
