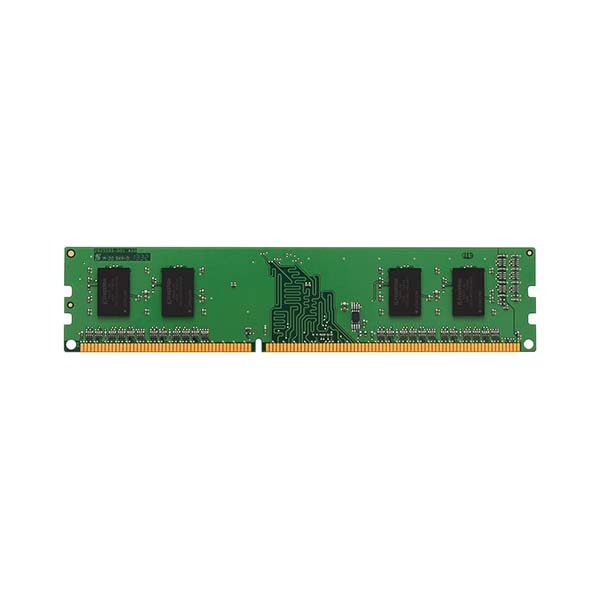

Kingston Value RAM 16GB (1x16GB) DDR4 3200MT/s  CL22 Non-ECC Unbuffered DIMM Desktop RAM ( KVR32N22S8/16 )

Kingston Value RAM 16GB (1x16GB) DDR4 3200MT/s  CL22 Non-ECC Unbuffered DIMM Desktop RAM ( KVR32N22S8/16 )

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
