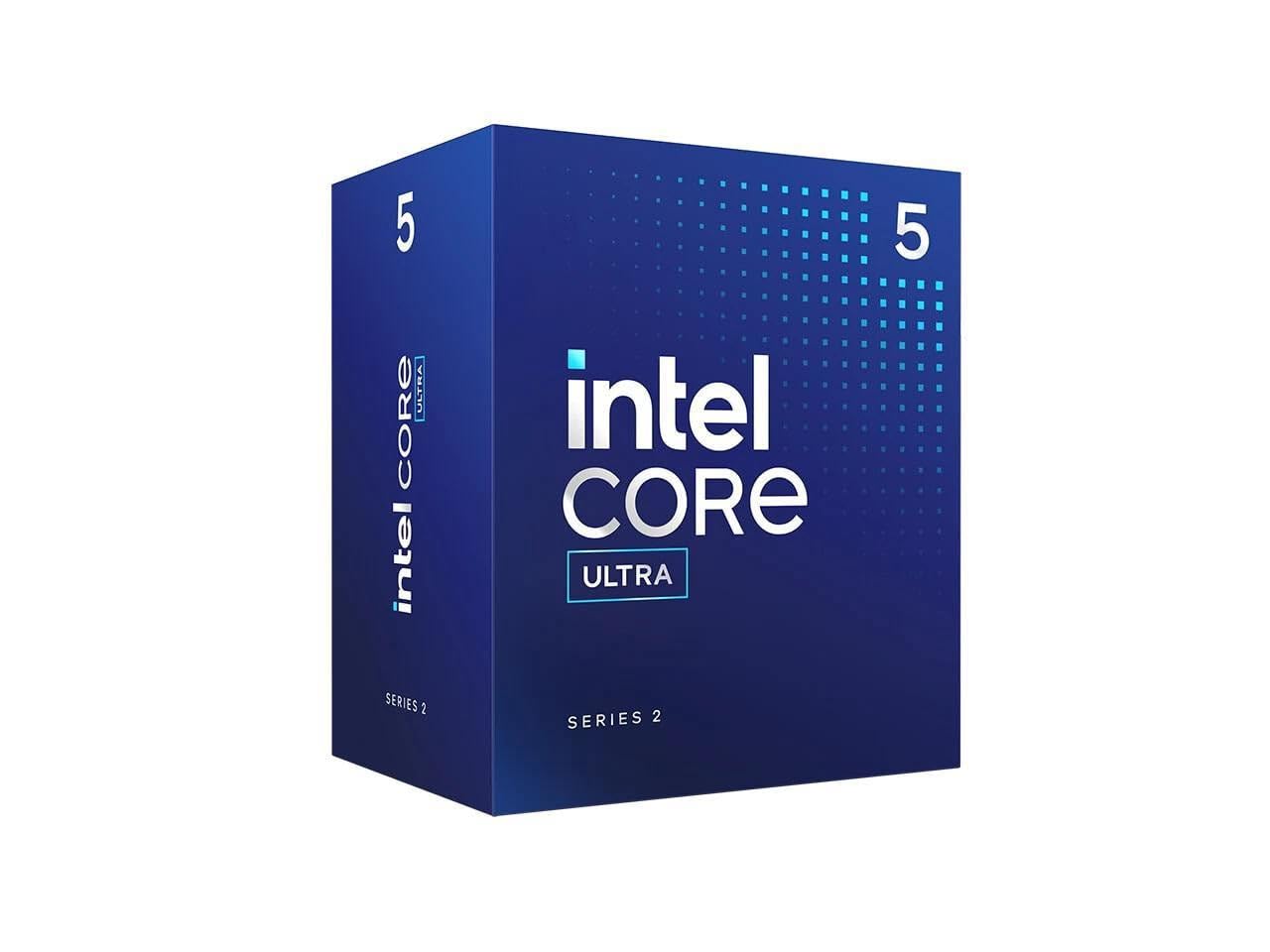

Intel Core Ultra 5 Processor 235 (Series 2) Desktop Processor BX80768235 ( Intel Socket FCLGA1851 , Total Cores 14 , Total Threads 14, 24 MB Intel Smart Cache, Turbo Frequency 5 GHz )

Intel Core Ultra 5 Processor 235 (Series 2) Desktop Processor BX80768235 ( Intel Socket FCLGA1851 , Total Cores 14 , Total Threads 14, 24 MB Intel Smart Cache, Turbo Frequency 5 GHz )

• Essentials
  • Product Collection :- Intel Core Ultra Processors (Series 2)
  • Vertical Segment:- Desktop
  • Processor Number :- 235
  • Overall Peak TOPS (Int8) :- 27
• CPU Specifications
  • Total Cores :- 14
  • # of Performance-cores:- 6
  • # of Efficient-cores:- 8
  • # of Low Power Efficient-cores:- 0
  • Total Threads :- 14
  • Max Turbo Frequency :- 5 GHz
  • Performance-core Max Turbo Frequency :- 5 GHz
  • Efficient-core Max Turbo Frequency :-4 GHz
  • Performance-core Base Frequency :-4 GHz
  • Efficient-core Base Frequency :-9 GHz
  • Cache :- 24 MB Intel Smart Cache
  • Total L2 Cache:- 26 MB
  • Processor Base Power :- 65 W
  • Maximum Turbo Power :- 121 W
  • Intel Deep Learning Boost (Intel DL Boost) on CPU :- Yes
  • AI Software Frameworks Supported by CPU:- OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
  • CPU Lithography :- TSMC N3B
• Supplemental Information
  • Marketing Status:- Launched
  • Launch Date :- Q1’25
  • Embedded Options Available :- No
  • Use Conditions
  • PC/Client/Tablet, Workstation
• Memory Specifications
  • Max Memory Size (dependent on memory type) :- 256 GB
  • Memory Types :- Up to DDR5 6400 MT/s
  • Max # of Memory Channels :- 2
  • ECC Memory Supported ^‡:- Yes
• GPU Specifications
  • GPU Name^‡:- Intel Graphics
  • Graphics Base Frequency :- 300 MHz
  • Graphics Max Dynamic Frequency :- 2 GHz
  • GPU Peak TOPS (Int8) :- 6
  • Graphics Output :-4b, DP 2.1 UHBR20, HDMI 2.1 FRL
  • X^e-cores:- 3
  • Max Resolution (HDMI)^‡:- 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS), 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
  • Max Resolution (DP)‡ :- 7680 x 4320 @ 60Hz
  • Max Resolution (eDP – Integrated Flat Panel)‡ :- 3840 x 2400 @ 120Hz
  • DirectX* Support :- 12
  • OpenGL* Support :-5
  • OpenCL* Support :- 3
  • 264 Hardware Encode/Decode :- Yes
  • 265 (HEVC) Hardware Encode/Decode :- Yes
  • AV1 Encode/Decode :- Yes
  • Intel Quick Sync Video :- Yes
  • # of Displays Supported ^‡:- 4
  • Device ID:- 0x7D67
  • Intel Deep Learning Boost (Intel DL Boost) on GPU :- Yes
  • AI Software Frameworks Supported by GPU:- OpenVINO, WindowsML, DirectML, ONNX RT, WebGPU
• NPU Specifications
  • NPU Name^‡:- Intel AI Boost
  • NPU Peak TOPS (Int8) :- 13
  • Sparsity Support:- Yes
  • Windows Studio Effects Support:- Yes
  • AI Software Frameworks Supported by NPU:- OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
• Expansion Options
  • Direct Media Interface (DMI) Revision:- 4
  • Max # of DMI Lanes:- 8
  • Intel Thunderbolt 4 :- Yes
  • Scalability:- 1S Only
  • PCI Express Revision :-0 and 4.0
  • PCI Express Configurations ^‡:- Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
  • Max # of PCI Express Lanes :- 24
• Package Specifications
  • Sockets Supported :- FCLGA1851
  • Thermal Solution Specification :- PCG 2022C
  • Max Operating Temperature :- 105 °C
  • Package Size:- 45 mm x 37.5 mm
• Advanced Technologies
  • Intel Gaussian & Neural Accelerator :-5
  • Intel Thread Director :- Yes
  • Intel Speed Shift Technology :- Yes
  • Intel Turbo Boost Technology ^‡:-0
  • Intel Hyper-Threading Technology ^‡:- No
  • Intel 64 ^‡:- Yes
  • Instruction Set :- 64-bit
  • Instruction Set Extensions :- Intel SSE4.1, Intel SSE4.2, Intel AVX2
  • Idle States :- Yes
  • Enhanced Intel SpeedStep Technology :- Yes
  • Thermal Monitoring Technologies :- Yes
  • Intel Volume Management Device (VMD) :- Yes
• Security & Reliability
  • Intel vPro Eligibility ^‡:- Intel vPro Enterprise
  • Intel Threat Detection Technology (TDT) :- Yes
  • Intel Active Management Technology (AMT) ^‡:- Yes
  • Intel Standard Manageability (ISM) ^‡:- Yes
  • Intel Remote Platform Erase (RPE) ^‡:- Yes
  • Intel One-Click Recovery ^‡:- Yes
  • Intel Secure Key :- Yes
  • Intel Control-Flow Enforcement Technology :- Yes
  • Intel Total Memory Encryption – Multi Key:- Yes
  • Intel AES New Instructions :- Yes
  • Intel Trusted Execution Technology ^‡:- Yes
  • Execute Disable Bit ^‡:- Yes
  • Intel OS Guard:- Yes
  • Intel Boot Guard :- Yes
  • Mode-based Execute Control (MBEC) :- Yes
  • Intel Stable IT Platform Program (SIPP) :- Yes
  • Intel Virtualization Technology with Redirect Protection (VT-rp) ^‡:- Yes
  • Intel Virtualization Technology (VT-x) ^‡:- Yes
  • Intel Virtualization Technology for Directed I/O (VT-d) ^‡:- Yes
  • Intel VT-x with Extended Page Tables (EPT) ^‡:- Yes
