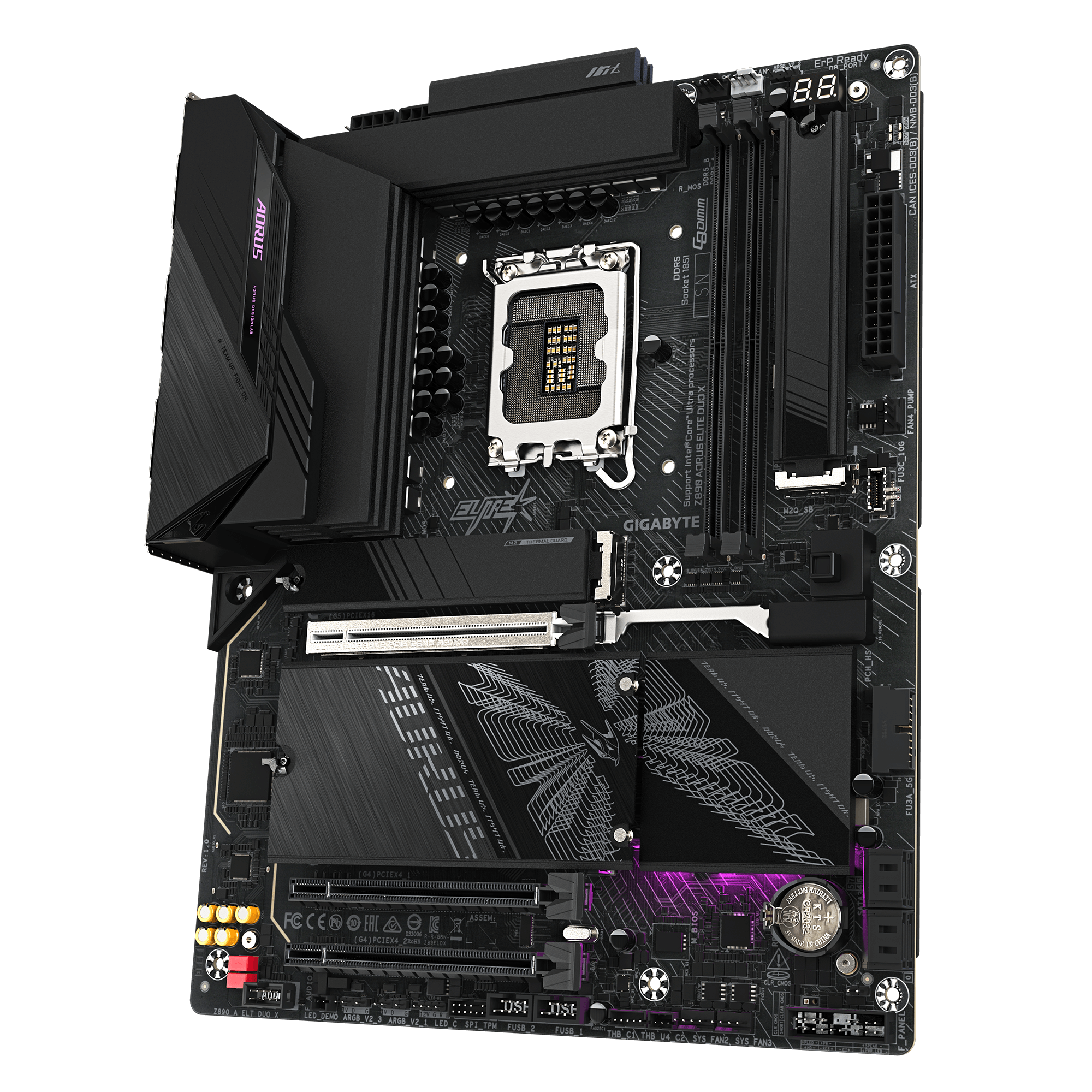

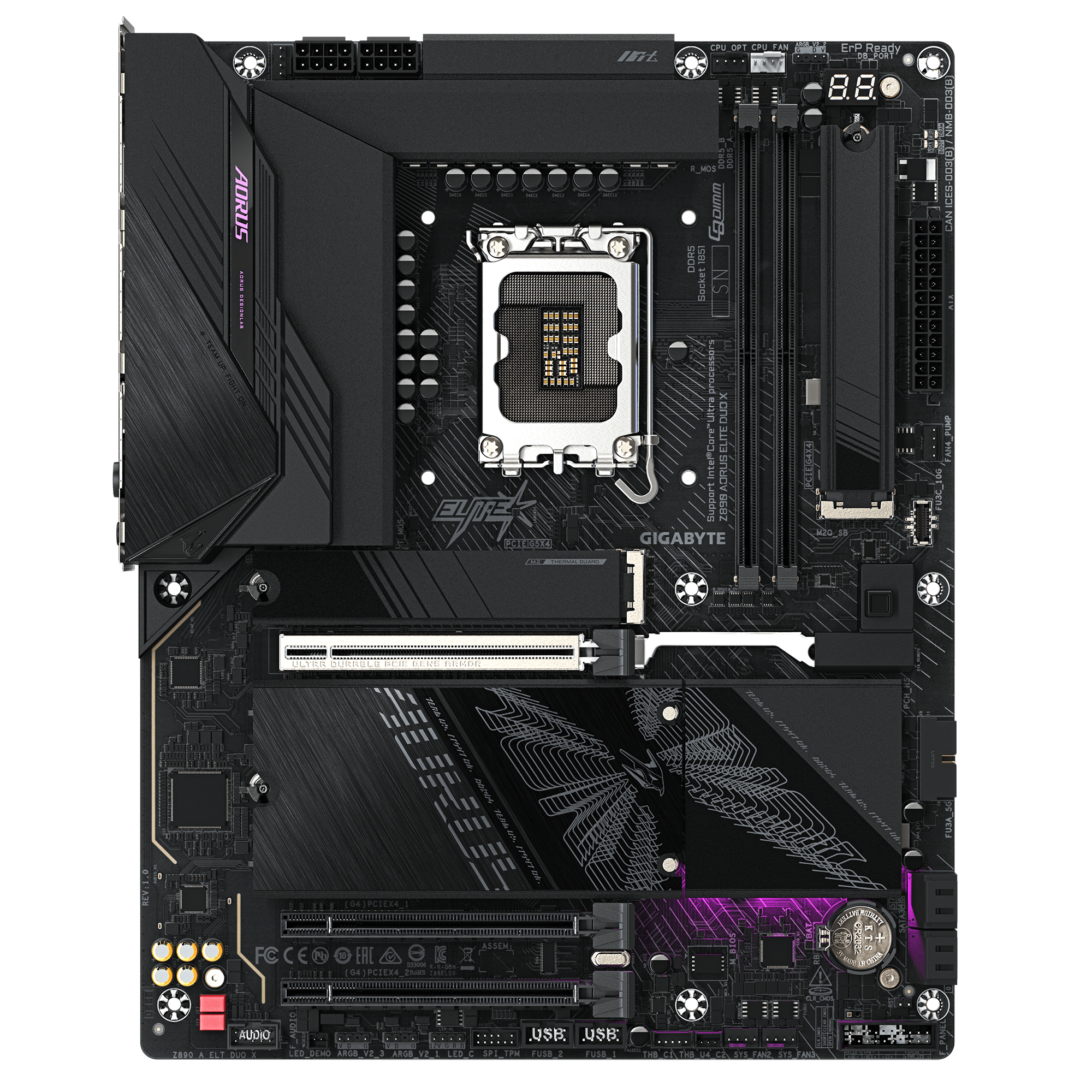

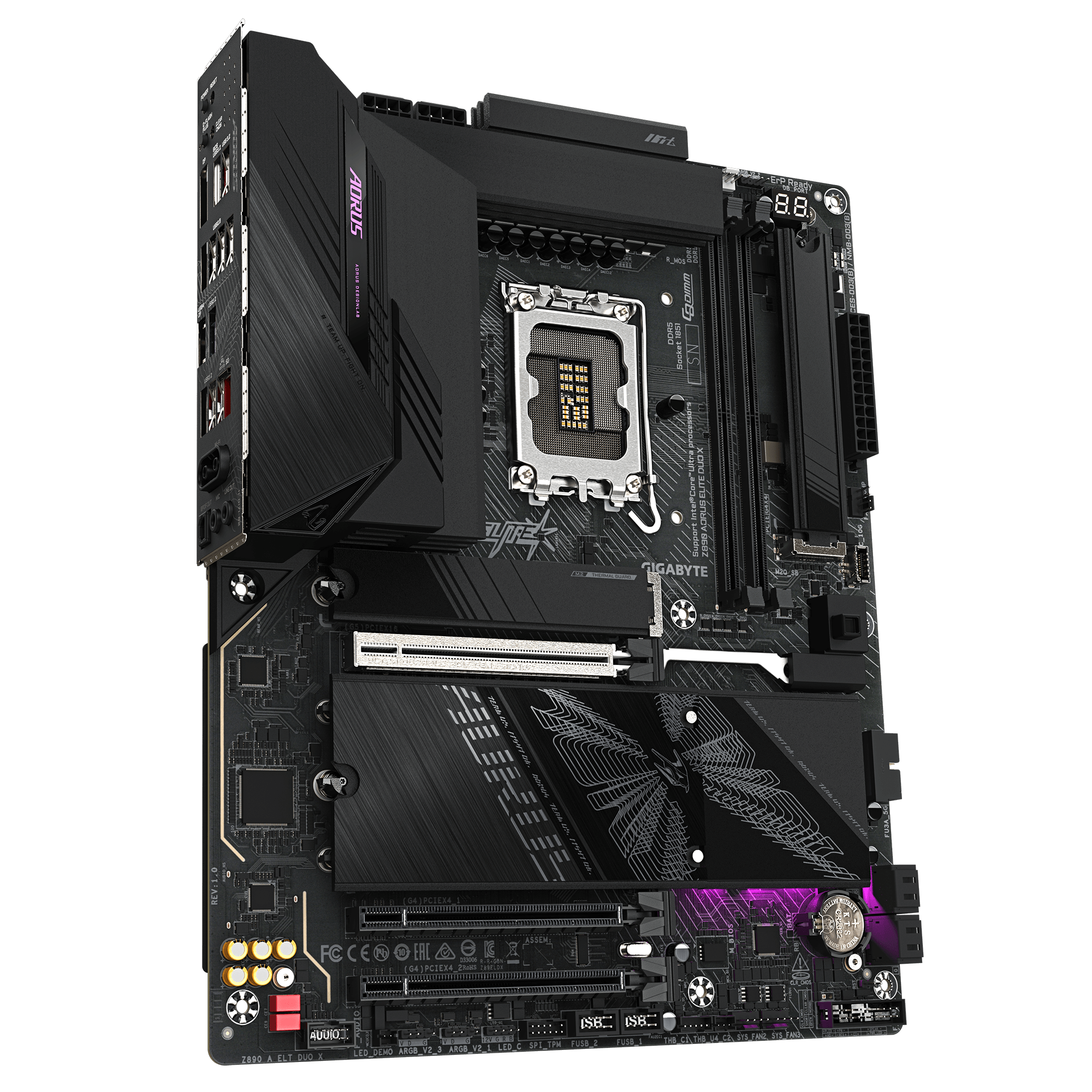

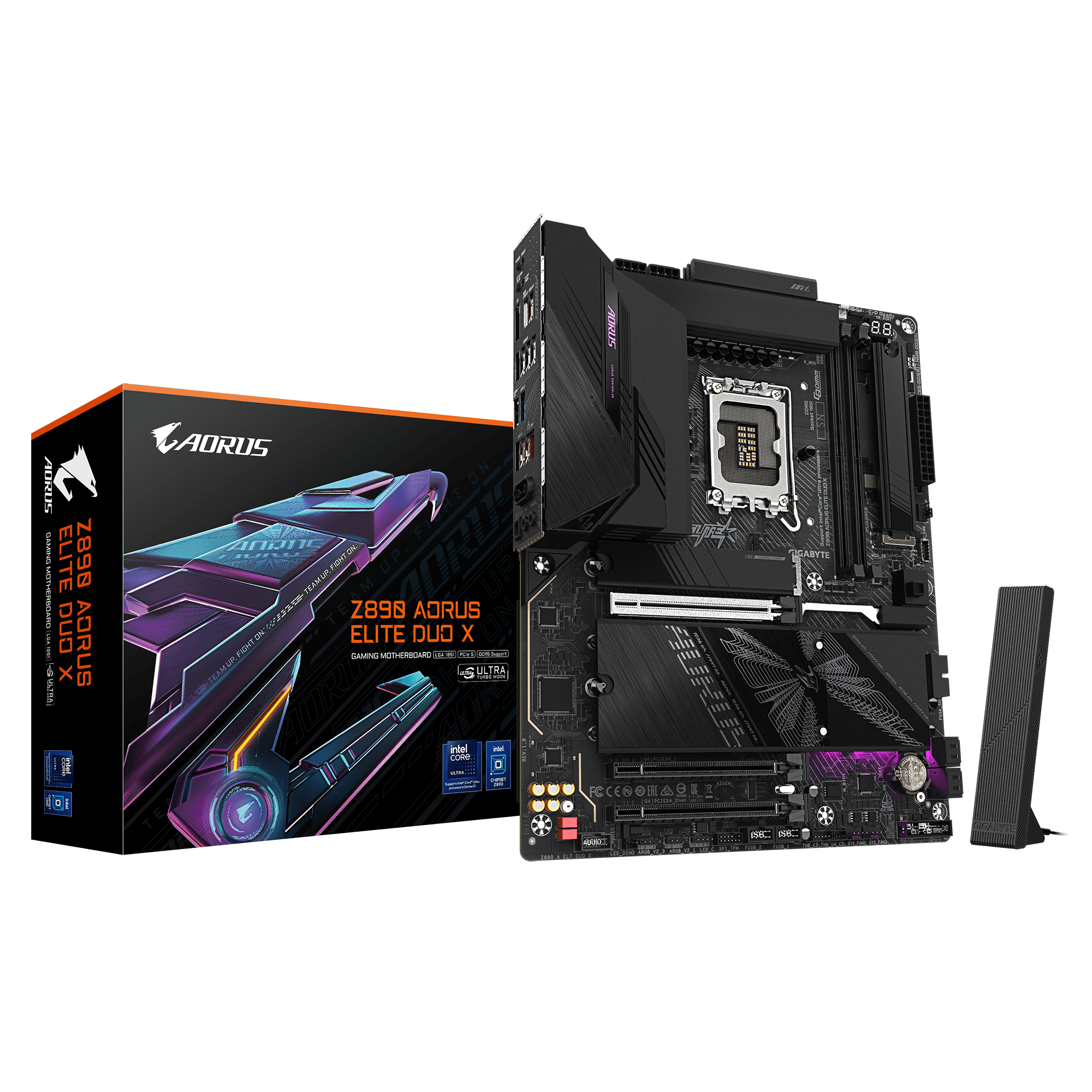

Gigabyte Z890 AORUS ELITE DUO X ATX Motherboard ( Intel Socket LGA1851, Support Support for Intel Core Ultra Processors, 2 x DDR5 RAM Slots, Max 256GB RAM Support )

Gigabyte Z890 AORUS ELITE DUO X ATX Motherboard ( Intel Socket LGA1851, Support Support for Intel Core Ultra Processors, 2 x DDR5 RAM Slots, Max 256GB RAM Support )

• CPU
  • LGA1851 socket: Support for Intel Core Ultra Processors
  • L3 cache varies with CPU
• Chipset
  • Intel Z890 Express Chipset
• Memory
  • Support up to 10266+MT/s (OC)
    CQDIMM Support up to 8000 MT/s (OC)
    2 x DDR5 DIMM slots, Dual Channel
    Capacity 256 GB
    Support ECC (operate in non-ECC mode), Non-ECC, Quad‑Rank Un-buffered DIMM memory modules
    Supports Intel Extreme Memory Profile (XMP) memory module
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,
• Onboard Graphics
  • Integrated Graphics Processor-Intel HD Graphics support: – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 4096×2304@144 Hz
  • Support for DisplayPort 2.1 version and HDCP 2.3
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  • Support for DisplayPort 2.1 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek ALC1220 CODEC
  • The back panel line out jack supports DSD audio.
  • High Definition Audio 2/4/5.1/7.1-channel
  • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
• LAN
  • Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • Intel Wi-Fi 7 BE200NGW
    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.4
    – Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
    ***Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
• Expansion Slots
  • CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
  • The PCIEX4_2 slot shares bandwidth with the M2L_SB connector. The PCIEX4_2 slot becomes unavailable when a device is installed in the M2L_SB connector
• Storage Interface
  • CPU:
    – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU)
    – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) (M2L_SB)
    – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0×4/x2 SSD support) (M2M_SB)
    – 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
  • CPU:
    – 1 x USB4 USB Type-C port on the back panel
    Chipset:
    – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    5 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only)
    1 x reset jumper
    1 x Clear CMOS jumper

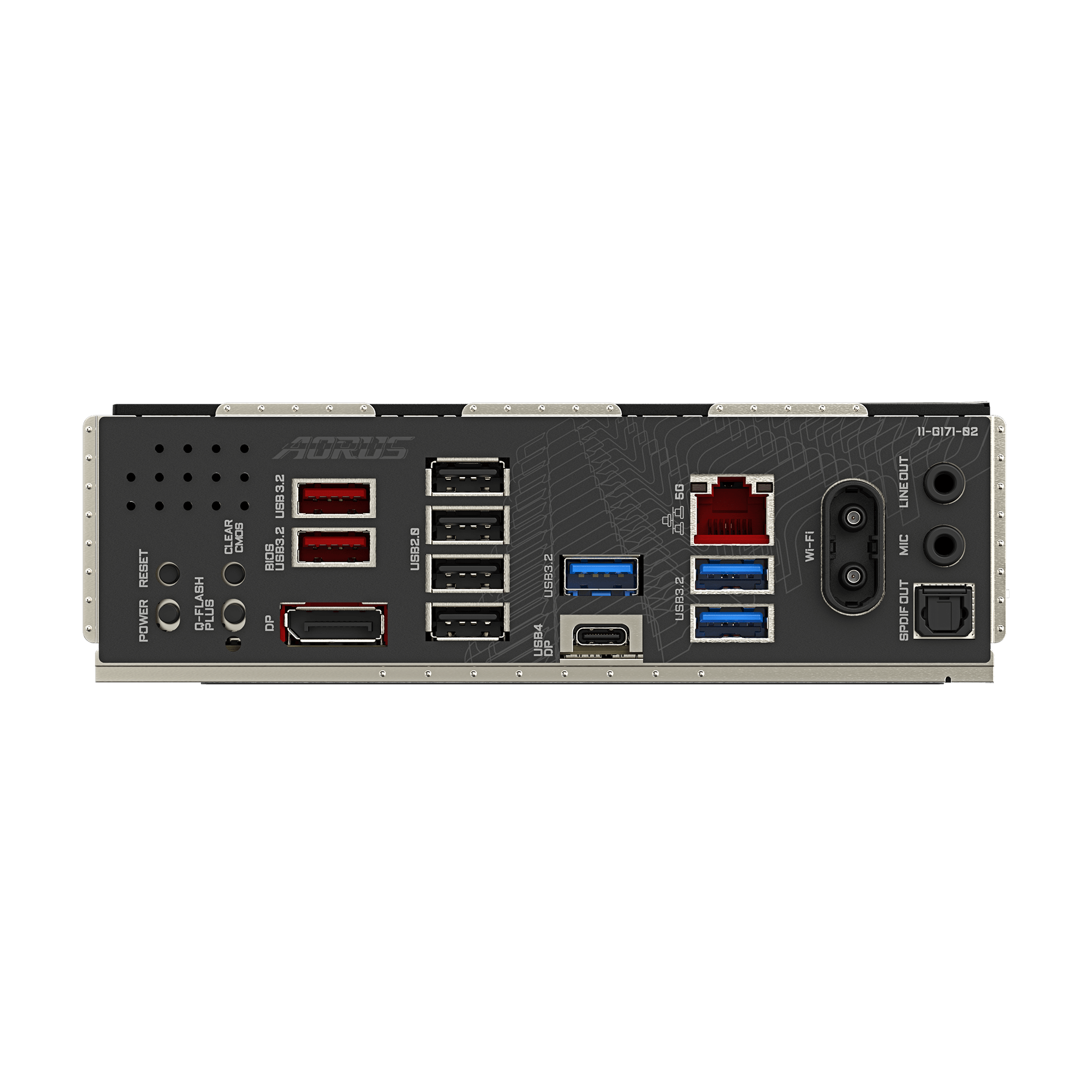

• Back Panel Connectors
  • 1 x reset button
    1 x power button
    1 x Clear CMOS button
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 2 Type-A ports (red)
    1 x DisplayPort (Note)
    4 x USB 2.0/1.1 ports
    3 x USB 3.2 Gen 1 ports
    1 x USB4 USB Type-C port (DisplayPort (Note))
    2 x antenna connectors (2T2R)
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
    (Note) Actual support may vary by CPU.
• I/O Controller
  • iTE I/O Controller Chip
• H/W Monitoring
  • Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
  • Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  • 1 x 512 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
• Bundle Software
  • Norton Internet Security (OEM version)
• Operating System
  • Support for Windows 11 64-bit
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
