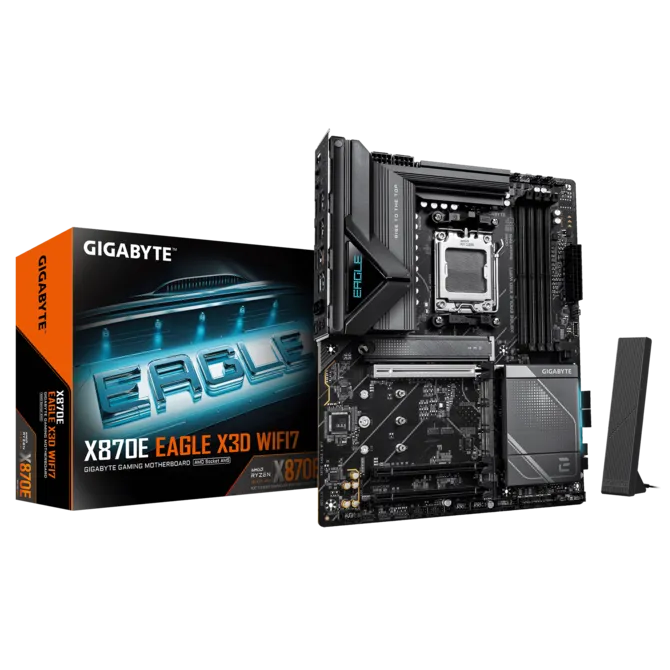

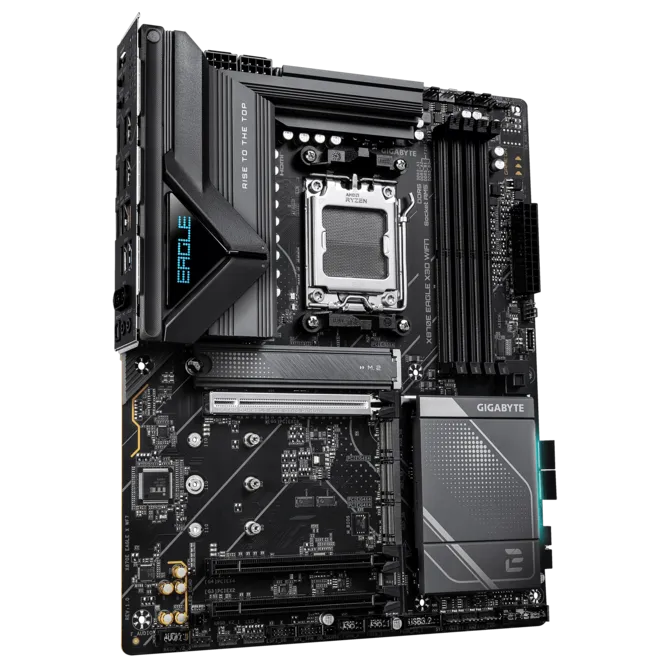

Gigabyte X870E EAGLE X3D WIFI7 ATX Motherboard ( AMD Socket AM5, Support AMD Ryzen 9000, 8000, 7000 Series Cpu, 4 x DDR5 RAM Slots, Max 256GB RAM Support )

  • X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
  • DDR5 OC up to 9000MT/s
  • DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 14+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
  • M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
  • EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
  • Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
  • PCIe UD Slot :  PCIe 5.0 x16 slot with 10X strength for graphics card

₹26,675.00

Compare

Gigabyte X870E EAGLE X3D WIFI7 ATX Motherboard ( AMD Socket AM5, Support AMD Ryzen 9000, 8000, 7000 Series Cpu, 4 x DDR5 RAM Slots, Max 256GB RAM Support )

CPU
  • AMD Socket AM5, support for:
  • AMD Ryzen 9000 Series Processors/
  • AMD Ryzen 8000 Series Processors/
  • AMD Ryzen 7000 Series Processors
Chipset
  • AMD X870E
Memory
  • Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List”
Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
  • – 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
  • · Support for DisplayPort 1.4 version and HDR.
  • · Integrated Graphics Processor with AMD Radeon Graphics support:
  • -1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  • · Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • · ** Support for native HDMI 2.1 TMDS compatible ports.
  • · (Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek ALC1220 CODEC
  • The back panel line out jack supports DSD audio.
  • High Definition Audio
  •  2/4/5.1/7.1-channel
  • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN
  • Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
  • Qualcomm Wi-Fi 7 QCNCM865
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  •  Support for 11be 320MHz wireless standard
  • (Actual data rate may vary depending on environment and equipment.)
  • Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  • ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
  •  ***Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector.
  •  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • RAID 5 is only available on AMD Ryzen 9000 Series Processors.
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
  • CPU+ASMedia USB4 controller:
  •  x USB4 USB Type-C ports on the back panel
  • CPU:
  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • Chipset+USB 3.2 Gen 1 Hub:
  •  4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • Chipset:
  • 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports on the back panel
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • 1 x noise detection header

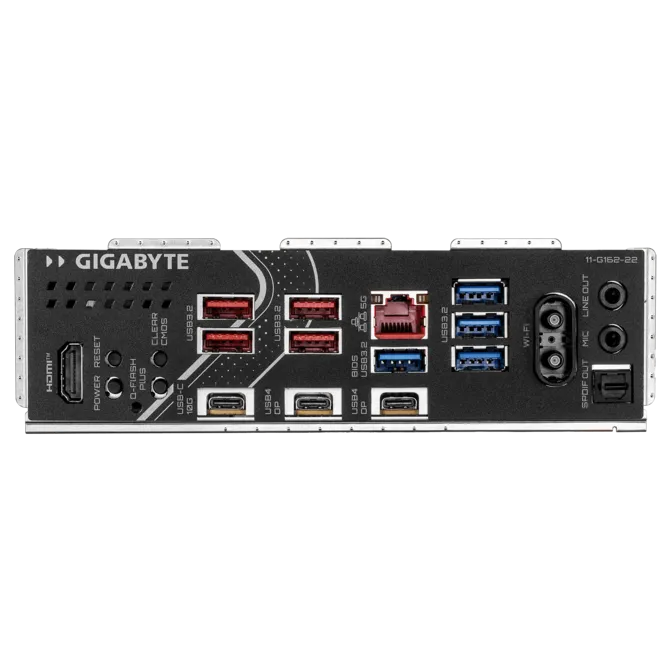

Back Panel Connectors
  • 1 x HDMI port*
  • 1 x reset button
  • 1 x power button
  • 1 x Clear CMOS button
  •  1 x Q-Flash Plus button
  • 4 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C port, with USB 3.2 Gen 2 support
  • 2 x USB4 USB Type-C ports (DisplayPort*)
  • 1 x RJ-45 port
  • 4 x USB 3.2 Gen 1 ports
  • 2 x antenna connectors (2T2R)
  •  2 x audio jacks
  •  1 x optical S/PDIF Out connector
  •  * Actual support may vary by CPU.
I/O Controller
  • iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 512 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  •  Support for Q-Flash
  •  Support for Q-Flash Plus
  •  Support for Smart Backup
Bundled Software
  • Norton Internet Security (OEM version)
Operating System
  • Support for Windows 11 64-bit
Form Factor
  •  ATX Form Factor; 30.5cm x 24.4cm



SKU: X870E-EAGLE-X-WF7 Categories: , , Brand:
Brand

Mb Form Factor

Mb Platform

Mb Cpu Support

Mb Socket

AM5
MB Chipset

AMD X870E
No Of Ram Slots

Supported Memory Type

DDR5
Max Memory Support

Mb Wifi In Built

Mb M.2 Slots
