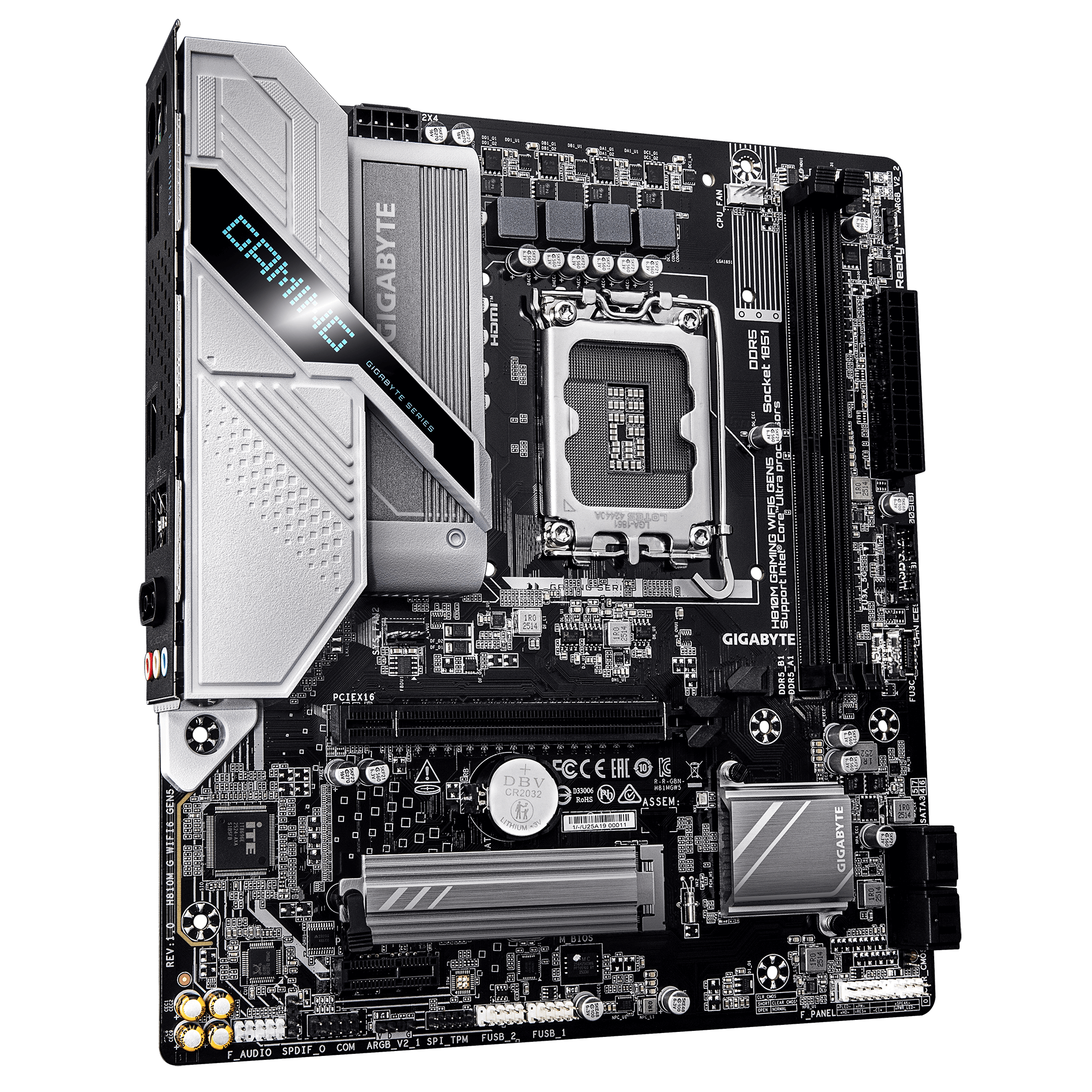

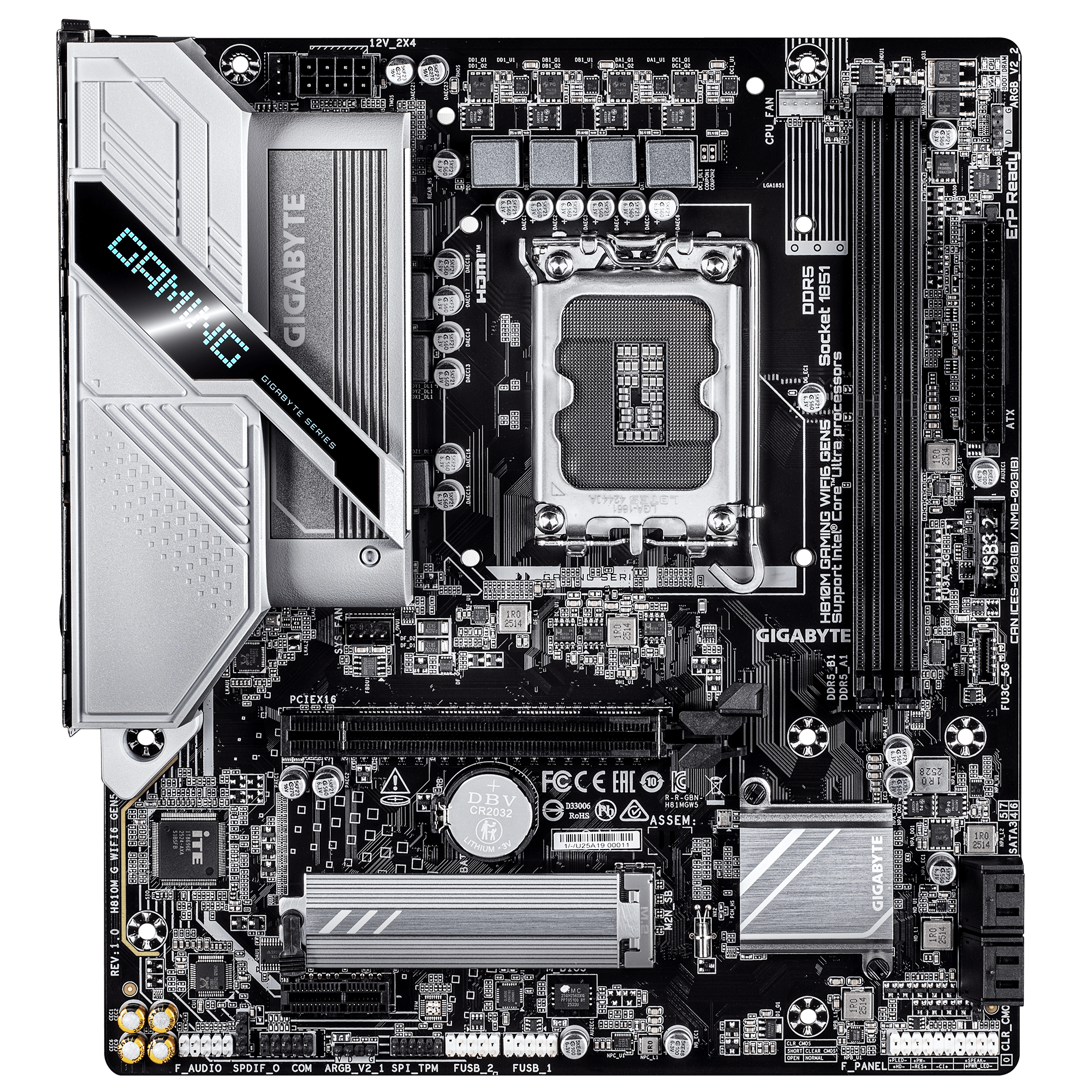

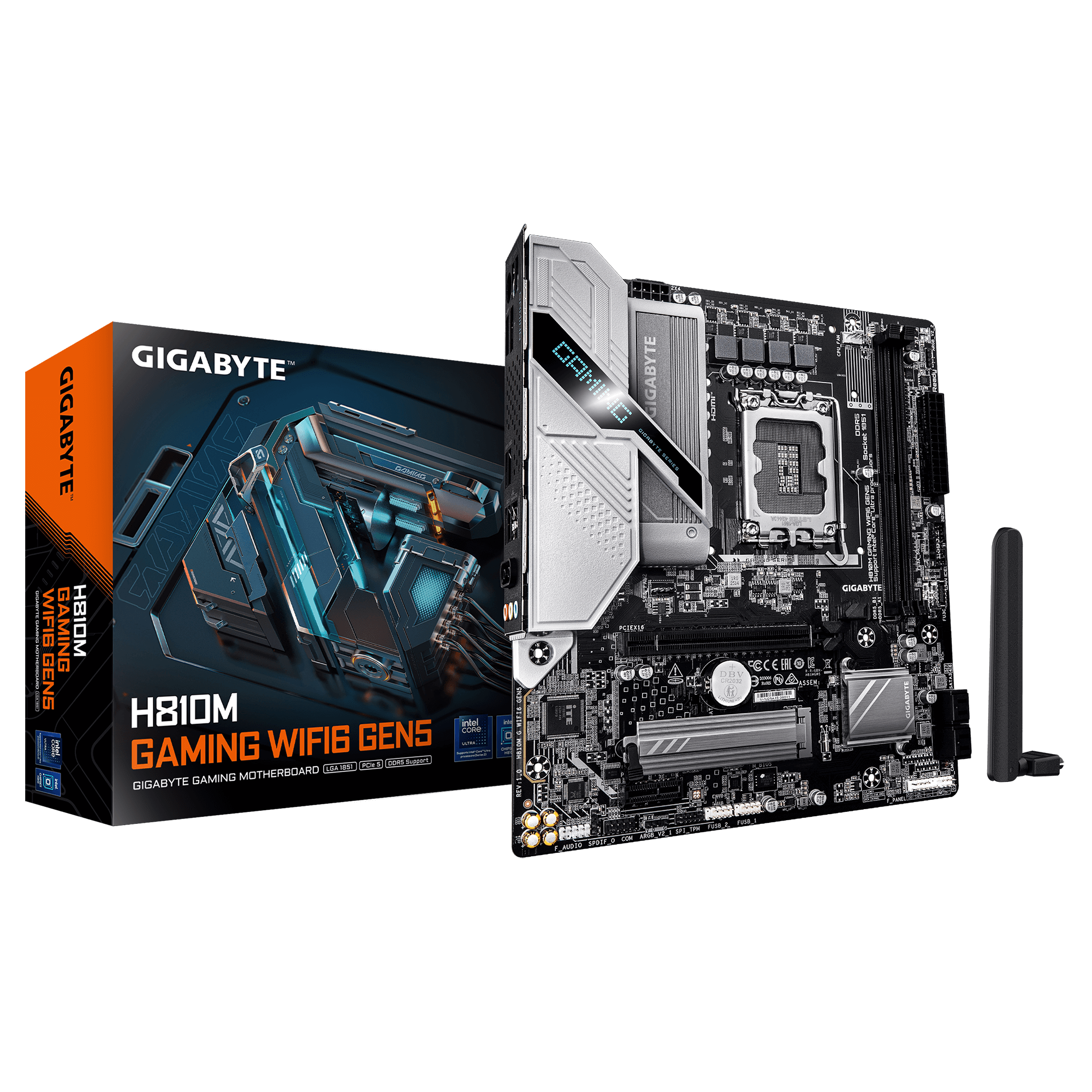

Gigabyte H810M GAMING WIFI6 GEN5 Micro ATX Motherboard ( Intel Socket LGA1851, Support Intel Core Ultra Cpu, 2 x DDR5 RAM Slots, Max 128GB RAM Support )

• LGA1851 socket: Support for Intel Core Ultra Processors, L3 cache varies with CPU

• Intel H810 Express Chipset

• Support for DDR5 6400/5600 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List”)

• Integrated Graphics Processor-Intel HD Graphics support:
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz

* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)

• Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Realtek Wi-Fi 6 RTL8851BE
  – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
  – BLUETOOTH 5.4
  – Support for 11ax 80MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)
  * Bluetooth version may change with updates. See the Wi-Fi chip vendors website for details.

• CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
– 4 x SATA 6Gb/s connectors

• Chipset:
  – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  – 2 x USB 2.0/1.1 ports on the back panel
  Chipset+2 USB 2.0 Hubs:
  – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable RGB Gen2 LED strip headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper

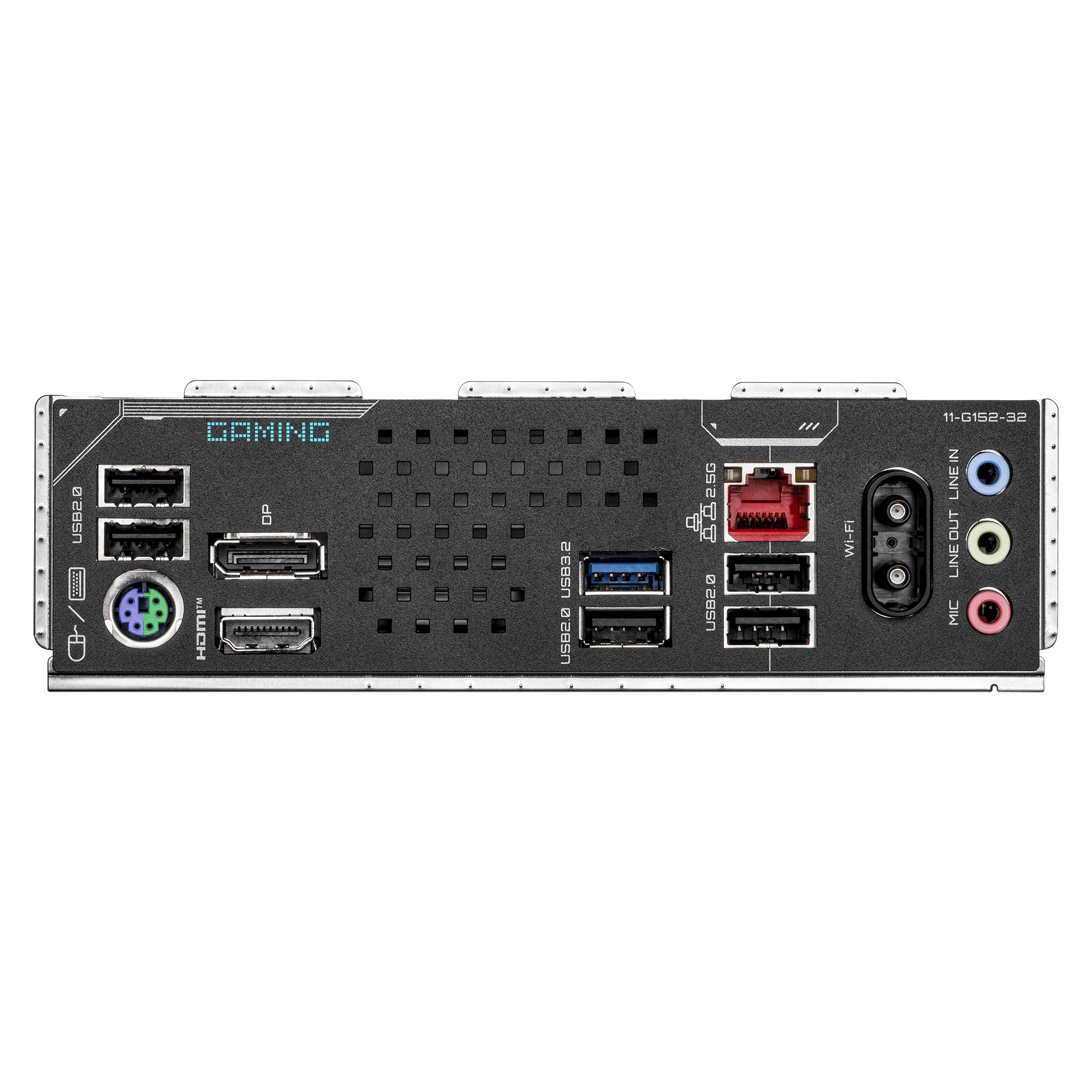

• 1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  1 x USB 3.2 Gen 1 port
  5 x USB 2.0/1.1 ports
  1 x RJ-45 port
  2 x antenna connectors (1T1R)
  3 x audio jacks
  (Note) Actual support may vary by CPU.

• iTEI/O Controller Chip

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install

• 1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup

• NortonInternet Security (OEM version)

• Support for Windows 11 64-bit
  Support for Windows 10 64-bit

* The Intel NPU driver is only supported on Windows 11.

• Micro ATX Form Factor; 24.4cm x 21.5cm
