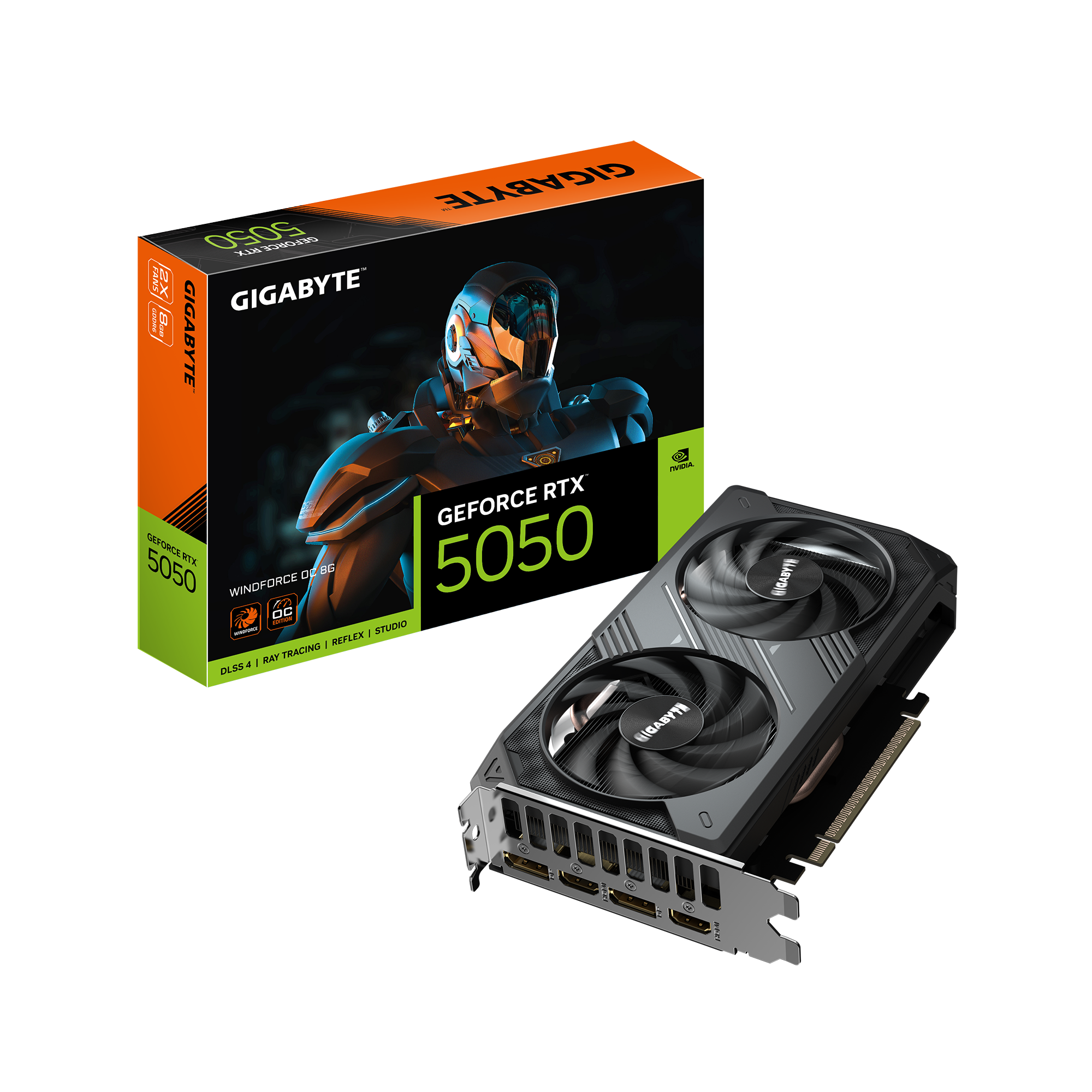

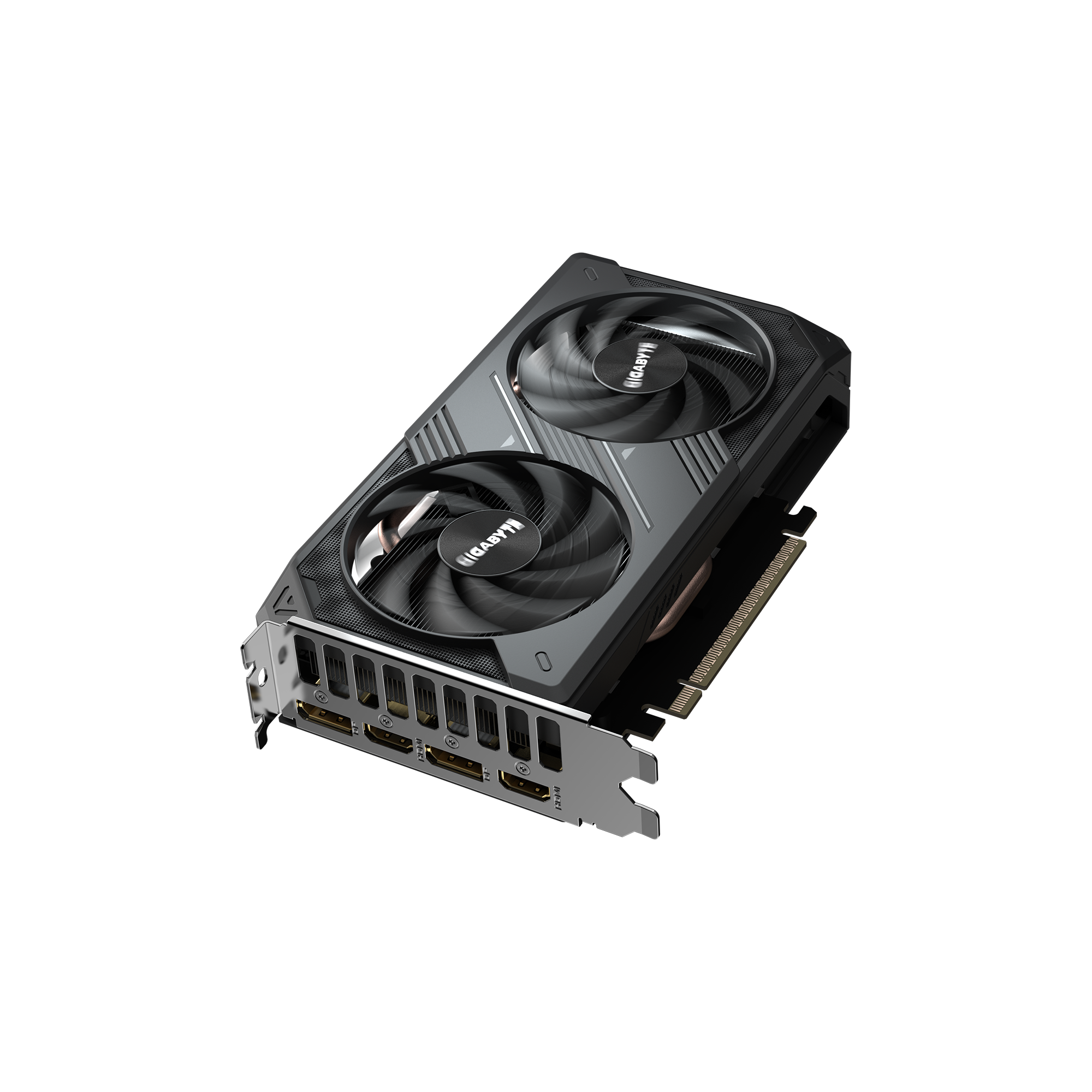

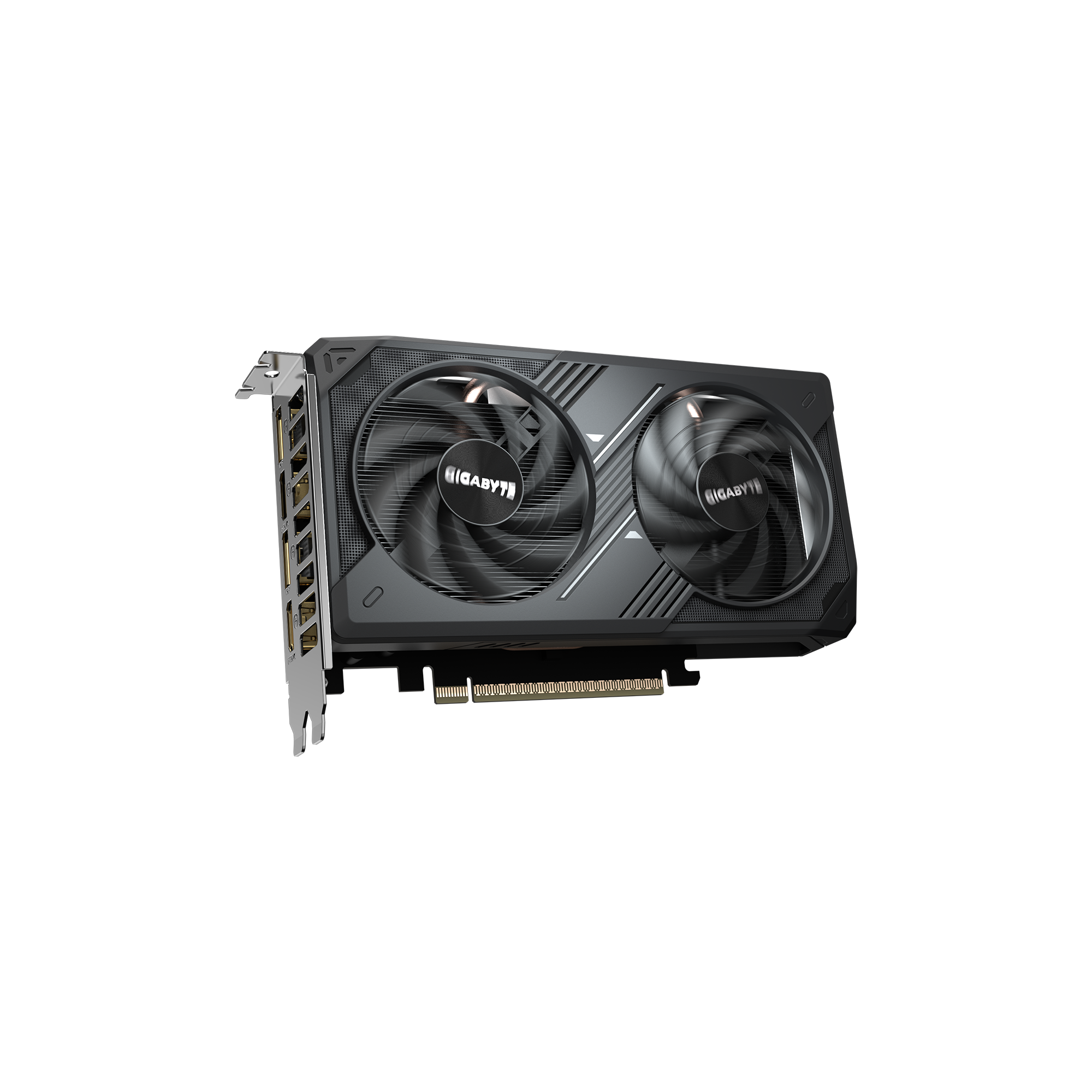

Gigabyte GeForce RTX 5050 WINDFORCE OC 8G 8GB GDDR6 128-Bit Dual Fan Graphics Card ( GV-N5050WF2OC-8GD )

Gigabyte GeForce RTX 5050 WINDFORCE OC 8G 8GB GDDR6 128-Bit Dual Fan Graphics Card ( GV-N5050WF2OC-8GD )

• WINDFORCE COOLING SYSTEM :- The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, a composite copper heat pipe, a copper plate, 3D active fans, and screen cooling.
• HAWK FAN :- The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
• GRAPHENE NANO LUBRICANT :- Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
• ALTERNATE SPINNING :- Reduce the turbulence of adjacent fans and increase airflow pressure.
• 3D ACTIVE FAN :- The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
• SERVER-GRADE THERMAL CONDUCTIVE GEL :- To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
• COPPER PLATE & COMPOSITE COPPER HEAT PIPE :- The copper plate directly contacts the GPU, coupled with the composite copper heat pipe, which quickly transfers the heat of the GPU and VRAM to the heatsink.
• SCREEN COOLING :- Extended heatsink allows air to pass through, providing better heat dissipation.
• ULTRA COOLING – Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
• LOW POWER LOSS – Metal Chokes hold energy much longer than common iron-core chokes at high frequency, thus effectively reducing core energy loss and EMI interference.
• LONGER LIFE – Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
• FRIENDLY PCB DESIGN :- Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

• Chipset :- GeForce RTX 5050
• Core Clock:- 2587 MHz (Reference card : 2572 MHz)
• CUDA Cores:- 2560
• Memory Clock:- 20 Gbps
• Memory Size:- 8 GB
• Memory Type:- GDDR6
• Memory Bus:- 128 bit
• Card Bus:- PCI-E 5.0
• Digital max resolution:- 7680×4320
• Multi-view:- 4
• Card size:- L=199 W=116 H=40 mm
• PCB Form:- ATX
• DirectX:- DirectX 12 API
• OpenGL:- 6
• Power requirement:- 550W
• Power Connectors:- 8 Pin*1

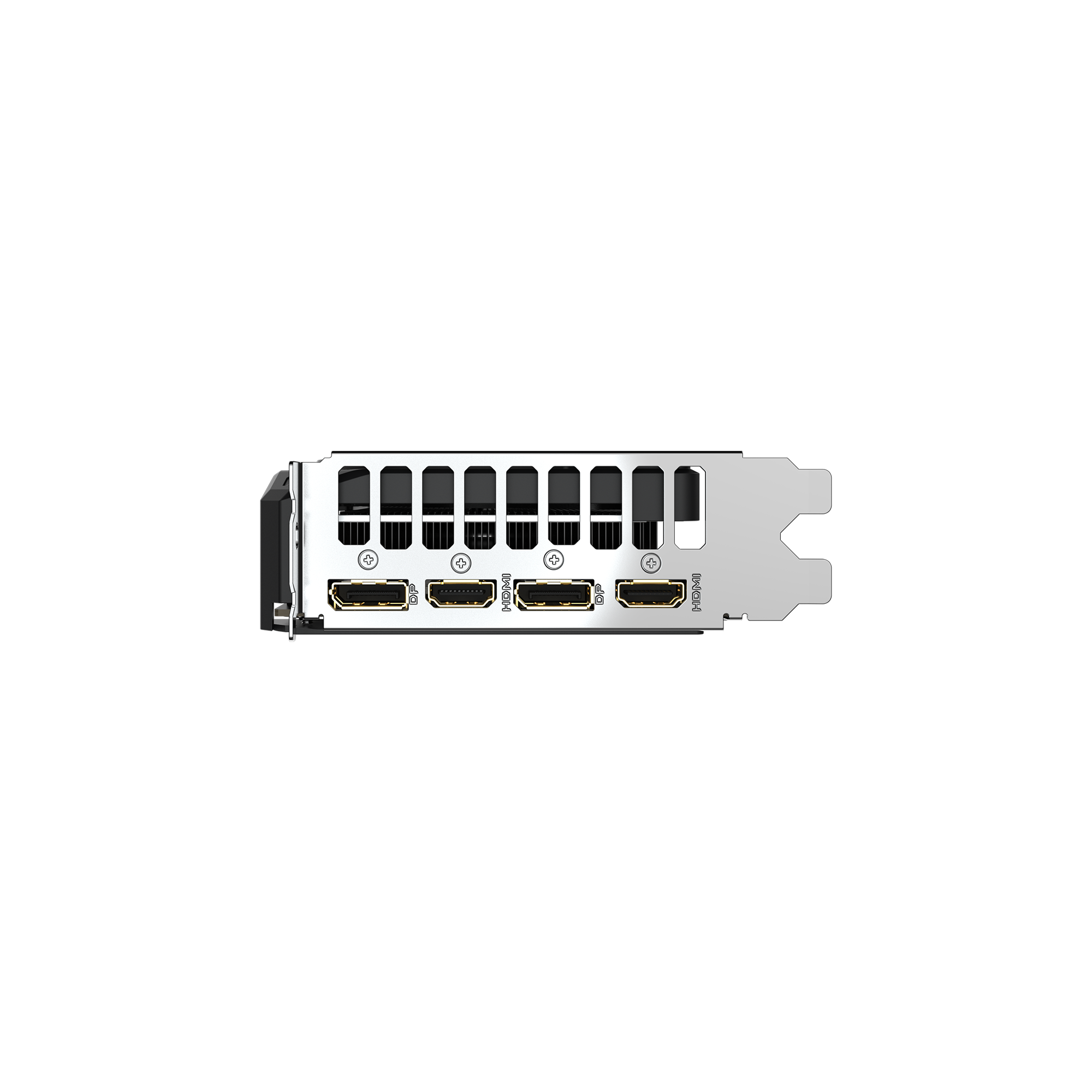

• Output:- DisplayPort 2.1b *2, HDMI 2.1b *2
• Accessories:- Quick guide
