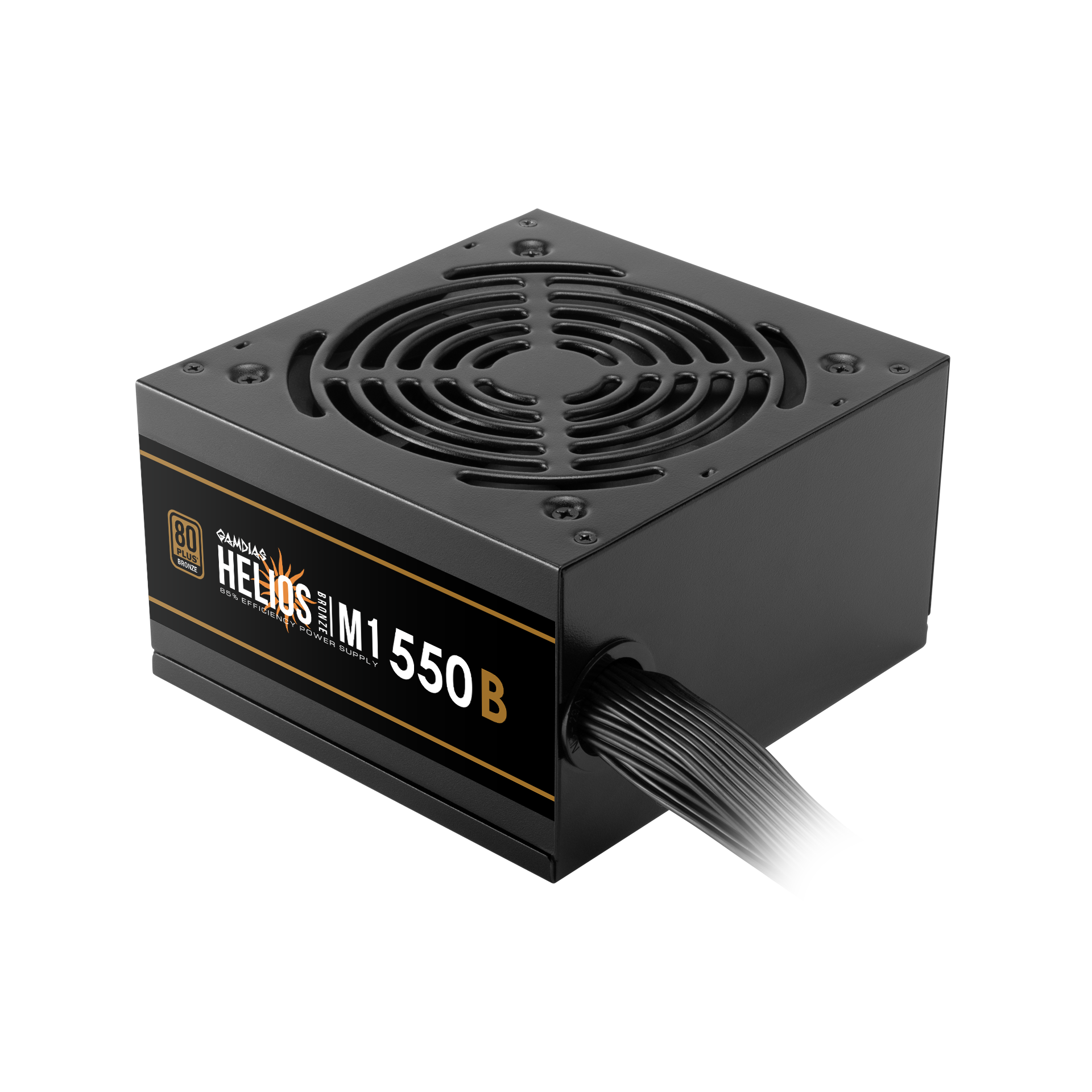

Gamdias HELIOS M1-550B 550W 80 Plus Bronze Non Modular Power Supply Unit

Gamdias HELIOS M1-550B 550W 80 Plus Bronze Non Modular Power Supply Unit

• SMART, STABLE AND RELIABLE :- The HELIOS M1-550B features an 80 PLUS Bronze certification that guarantees 85% efficiency, and flat black cables for easy installation and cable management. It is also equipped with a 120mm hydraulic bearing smart fan that can adjust the fan speed according to temperature automatically and ensure low-noise operation.
• 80 PLUS BRONZE CERTIFIED:- Certified with 80 PLUS Bronze, the HELIOS M1-550B delivers stable power output at up to 85% efficiency and reduces energy consumption.
• SMART VENTILATION:- The power supply unit features automatic fan speed optimization, which allows the fan speed to be adjusted according to the detection of temperature and load. The 120mm hydraulic bearing fan ensures stable operation and longer lifespan.
• BLACK FLAT CABLES:- The flexible black cables are designed for easy cable installation, avoiding clutter, and increase the airflow within the case.
• HEAVY-DUTY PROTECTION:- The power supply unit maintains stable output voltage as well as offering multiple protections against short circuit, overload, overheating, low voltage and more.

Model

• HELIOS M1-550B

POWER

• Type:- ATX12V v2.4
• Efficiency:- Meet 80 PLUS Bronze efficiency
• Power Factor Correction:- APFC with PF value of 0.99
• Support MB Sync:- No
• Dimension (L x W x H) :- 140 x 150 x 86 mm
• Support C6/C7 power state:- Yes

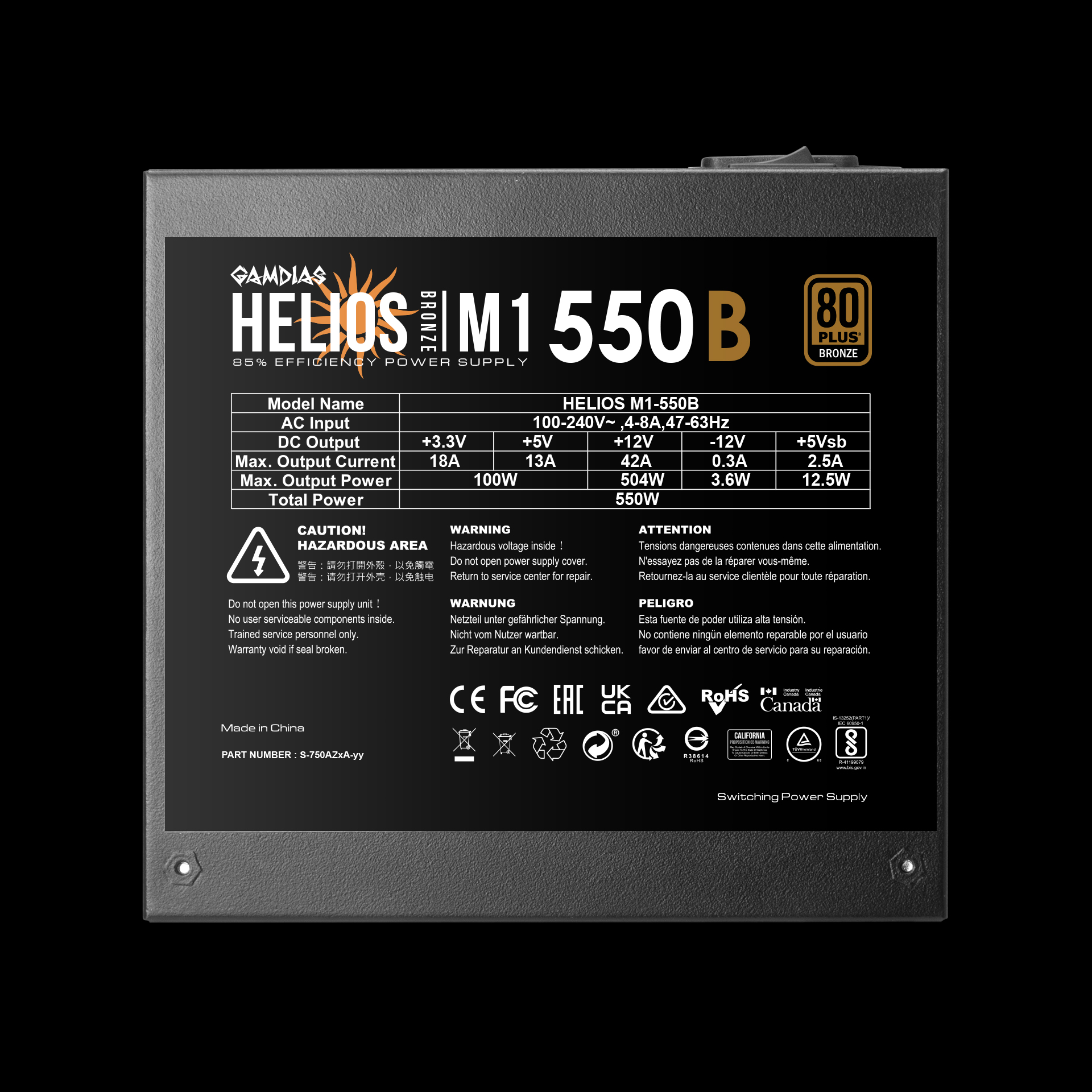

• AC Input:- 100-240V / 4-8A / 47-63Hz
• DC Output:- +3.3V / +5V / +12V / -12V / +5Vsb
• Output Current:- 18A / 13A / 42A / 0.3A / 2.5A
• Output Power:- 100W / 504W / 3.6W / 12.5W
• Total Power550W
• Protection:- OVP / UVP / OPP / OCP / SCP
• Main Power:- 1 (20+4 Pin)
• CPU:- 1 (4+4 Pin)
• PCI-E:- 2 (6+2 Pin)
• SATA:- 5 (5 Pin)
• Molex:- 3 (4 Pin)
• Modular:- Non Modular
• Flat Cable:- Yes

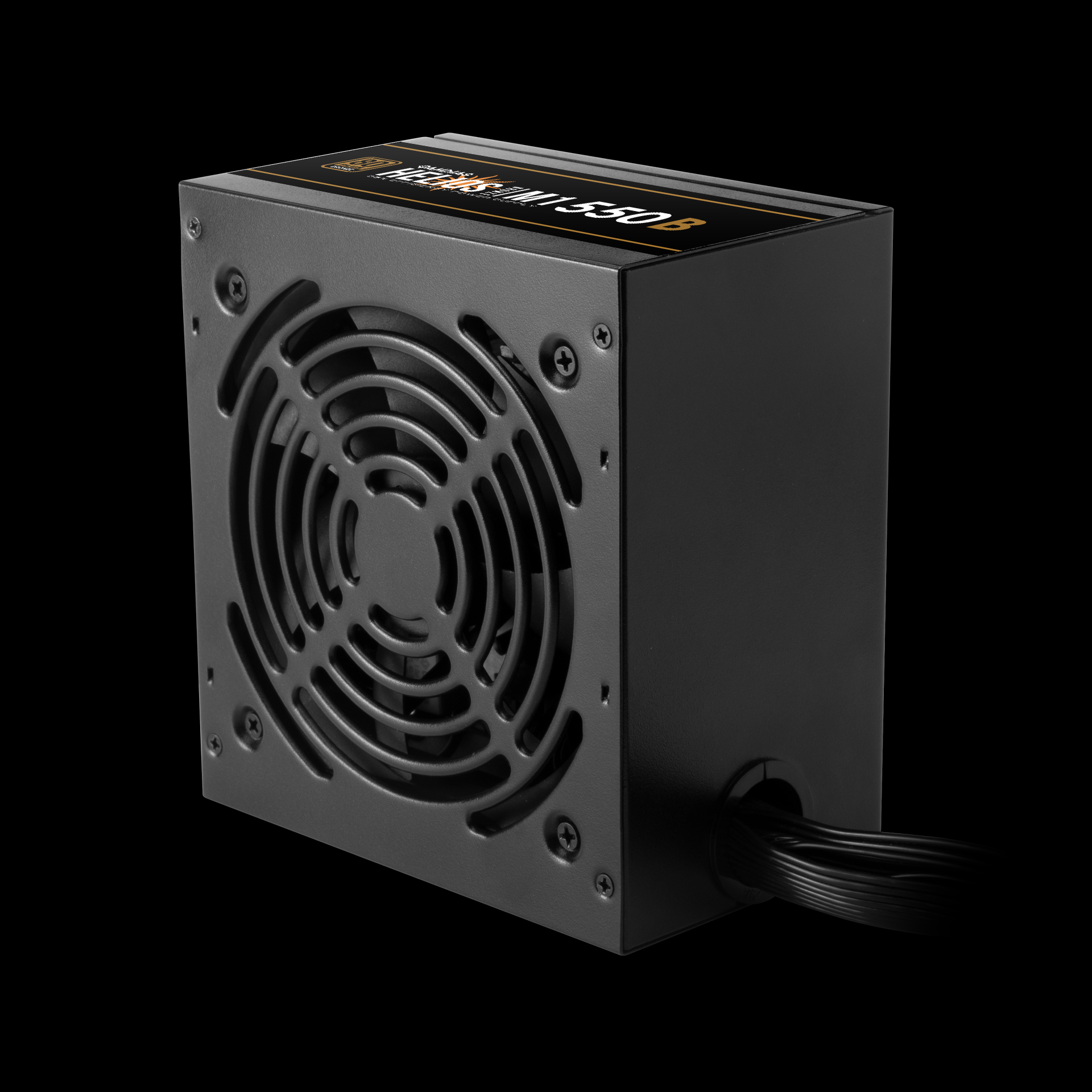

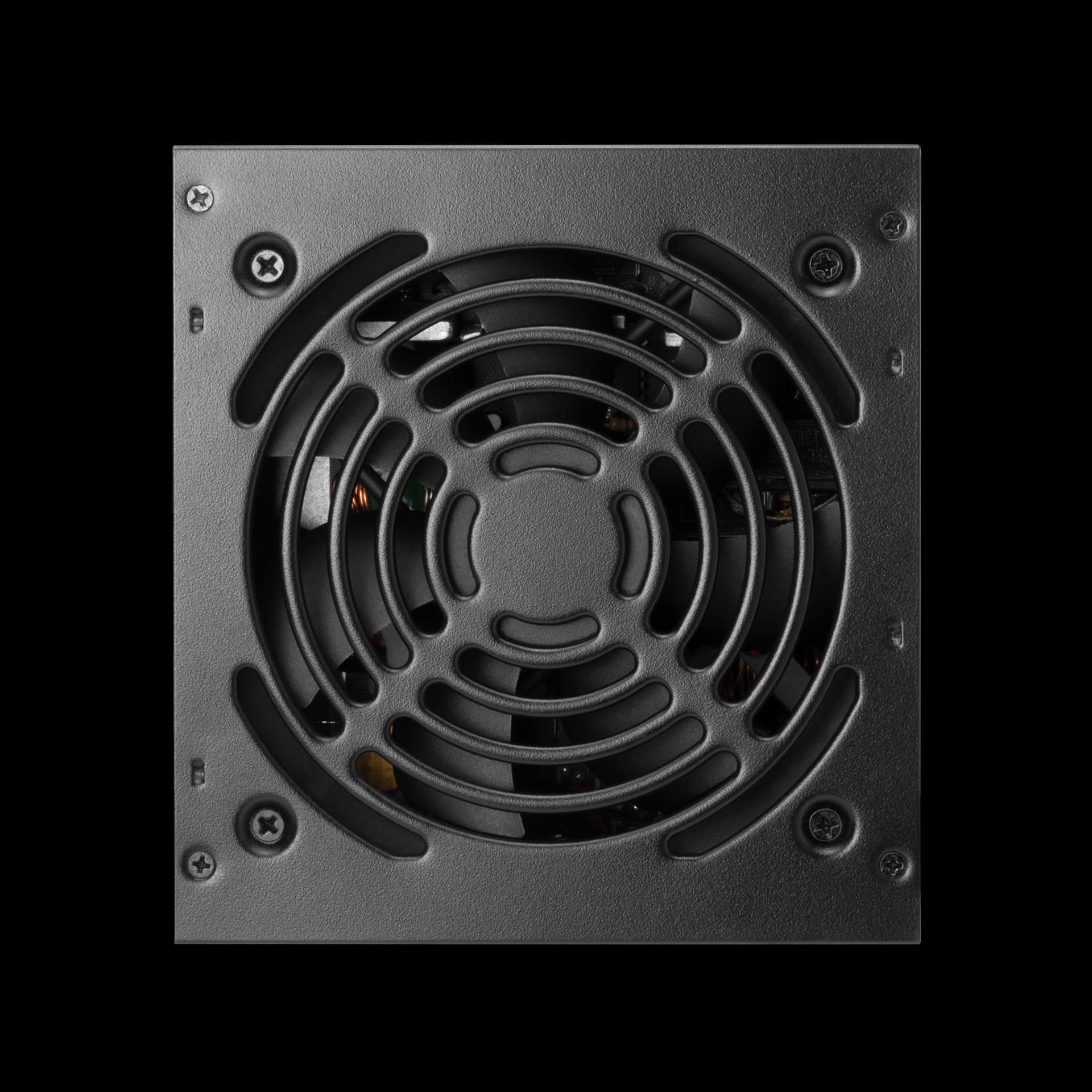

• Cooling System:- 120mm hydraulic bearing fan
• Silent Mode:- No
