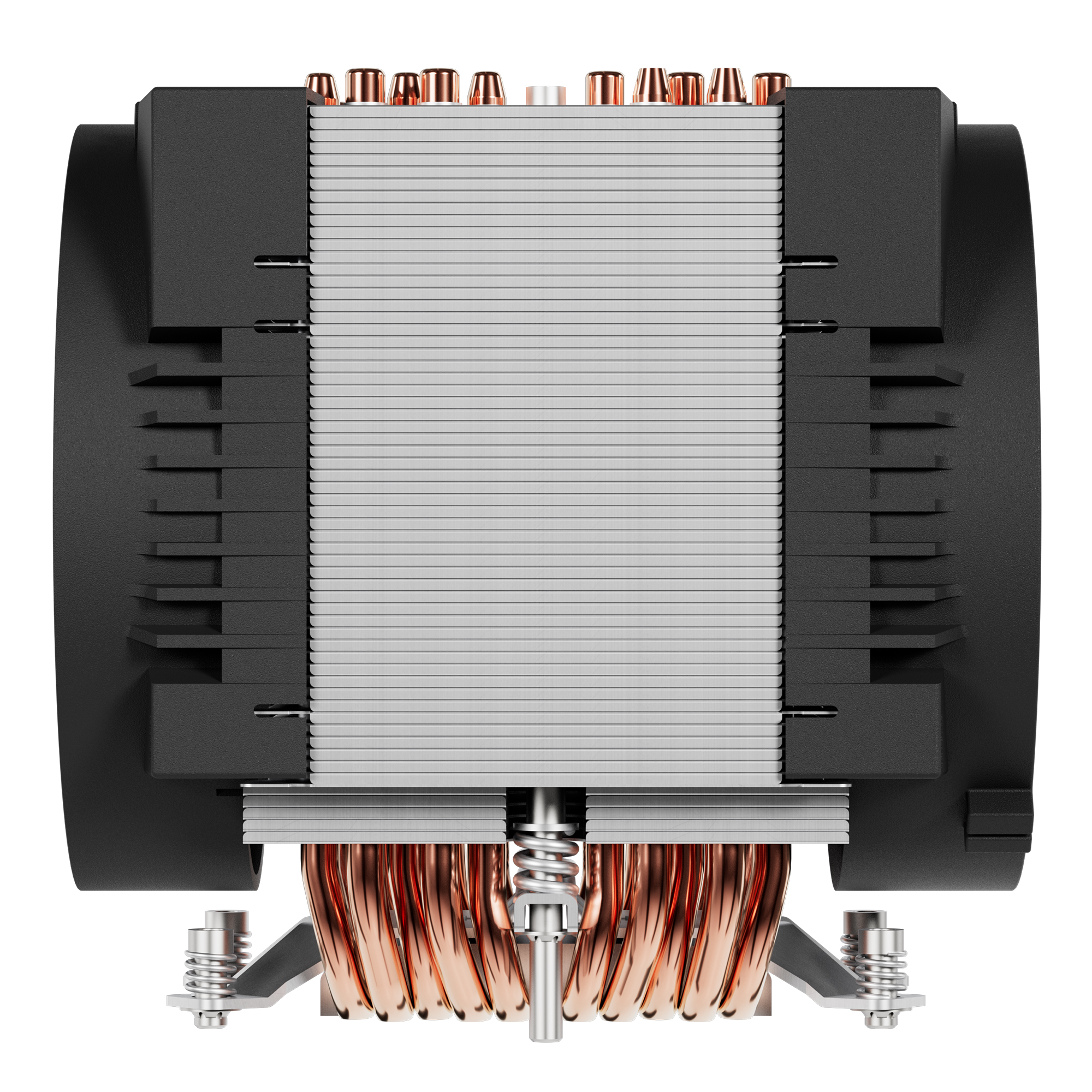

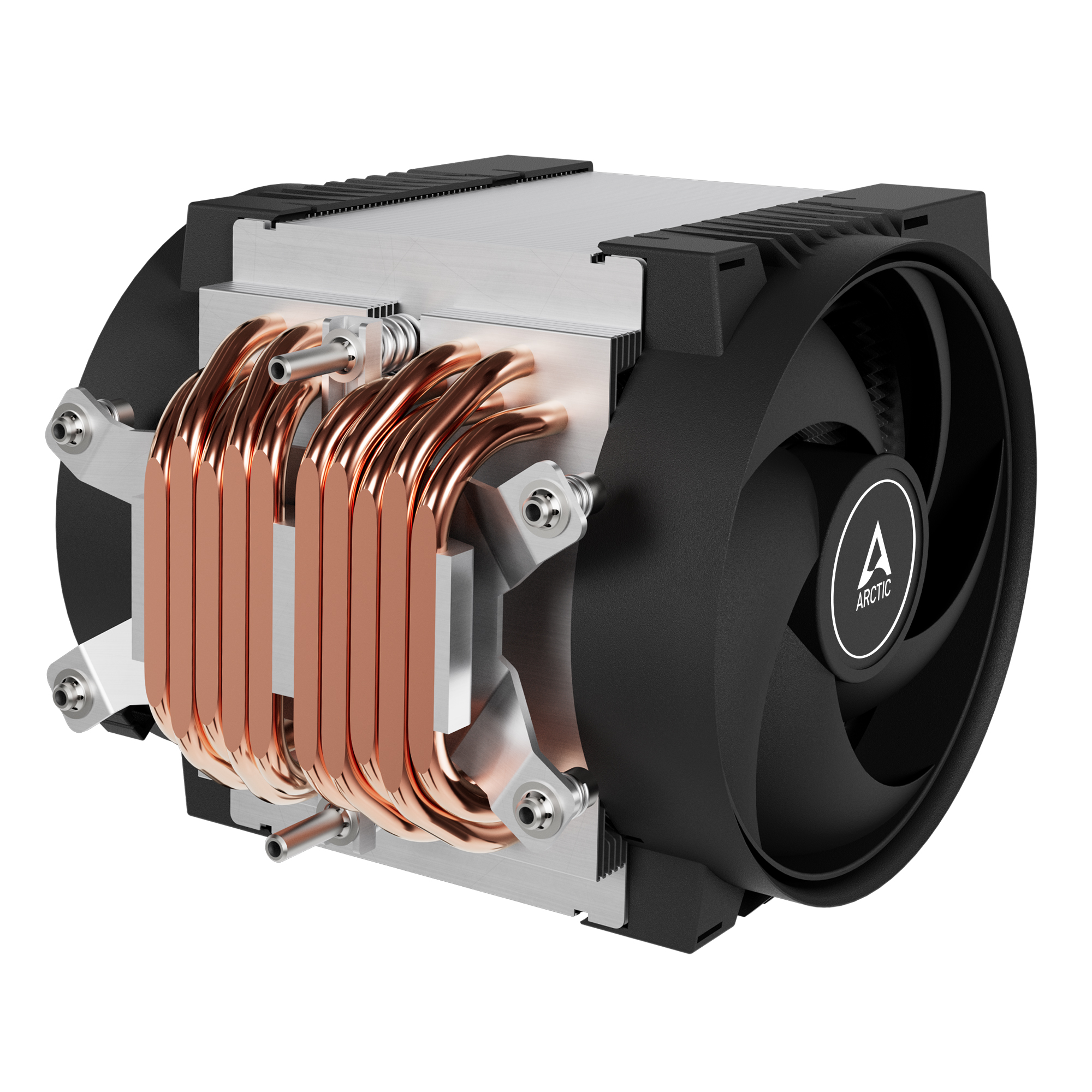

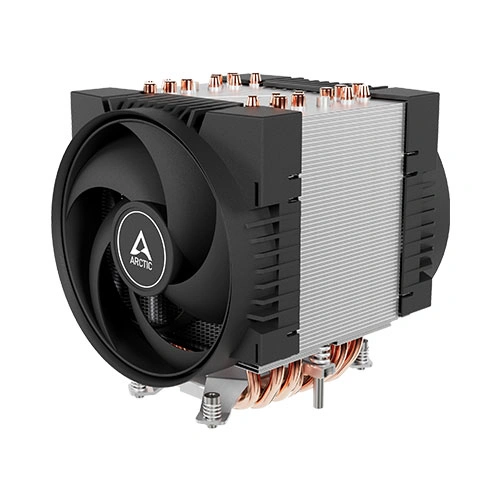

Arctic Freezer 4U-SP5 4U Server CPU Air Cooler For AMD SP5 ( ACFRE00158A )

Arctic Freezer 4U-SP5 4U Server CPU Air Cooler For AMD SP5 ( ACFRE00158A )

• Server Cooler specifically designed for AMD SP5 :- The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.
• Compact Design and Dual Socket Compatibility :- With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 147 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
• Powerful Fans in Push-Pull Configuration :- The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5’s high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
• Premium Thermal Paste Included :- The Freezer 4U-SP5 comes with MX-6 thermal paste. ARCTIC’s Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
• Designed for Continuous Operationn :- Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

Technical specifications & manual

• General Specifications
  • Thermal Compound :- ARCTIC MX-6 0.8 g Syringe incl.
  • Operating Ambient Temperature :- 0—40 °C

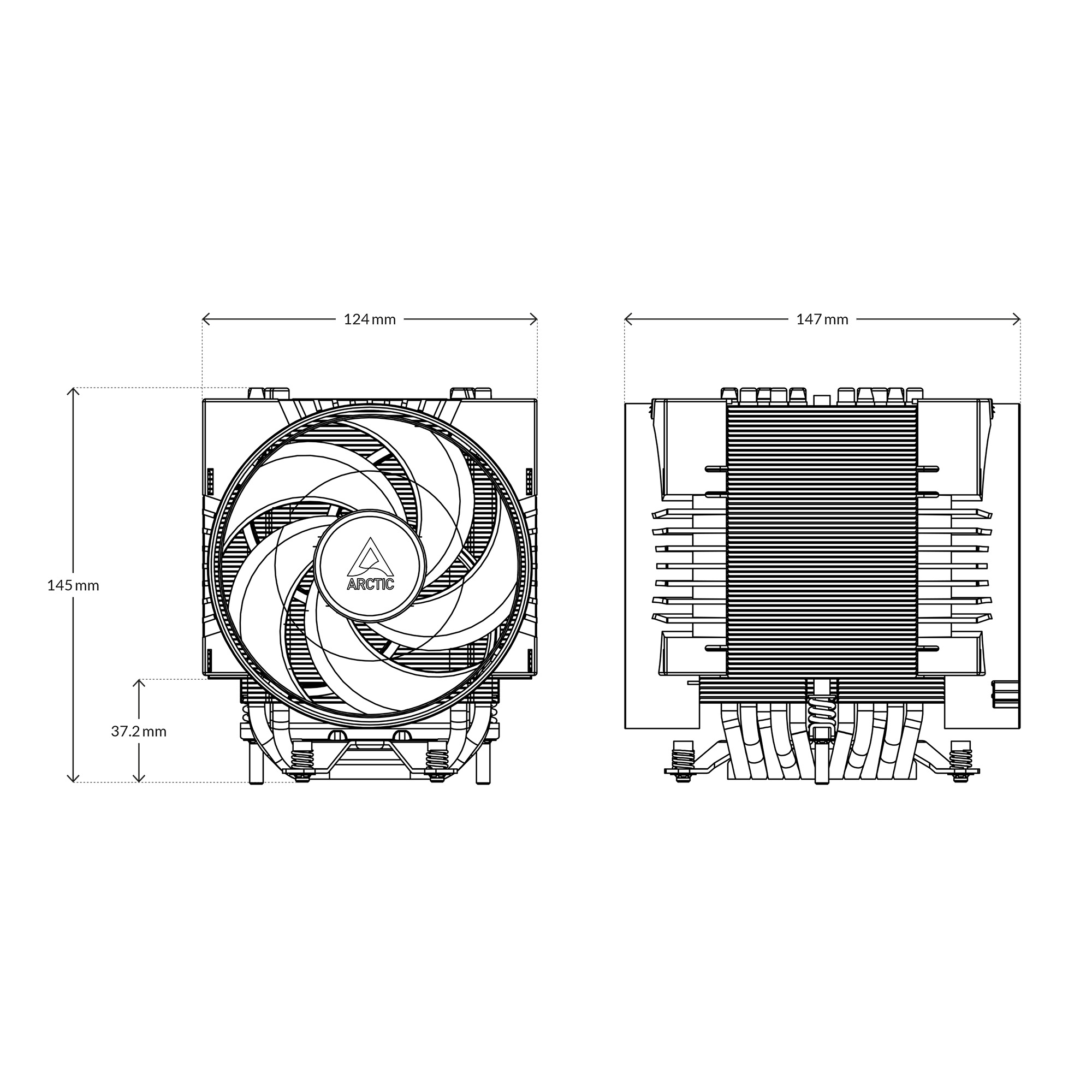

  • Dimensions :- 124 (L) x 147 (W) x 145 (H) mm
  • Weight :- 1472 g
• Compatibillity
  • AMD :- SP5
  • Server Rack Unit :- 4HE & up
• Heatsink Specifications
  • Heat Pipe :- Direct Touch, Ø 6 mm x 10
  • Number of Fins :- 62
  • Fin Material :- Aluminium
• Fan Specifications
  • General :- 2x 120 mm PWM Fans
  • Fan Speed :- 300–3300 rpm, PWM Controlled
  • Connector :- 4-Pin Plug
  • Cable Length :- 200 mm
  • Bearing :- Dual Ball Bearing
  • Noise Level :- 45.3 dBA
  • Air Flow :- 81.04 cfm | 137.69 m³/h
  • Static Pressure :- 4.35 mmH₂O
  • Current | Voltage :- 0.29 A | 12 V DC
  • Startup Voltage :- 3.1 V DC

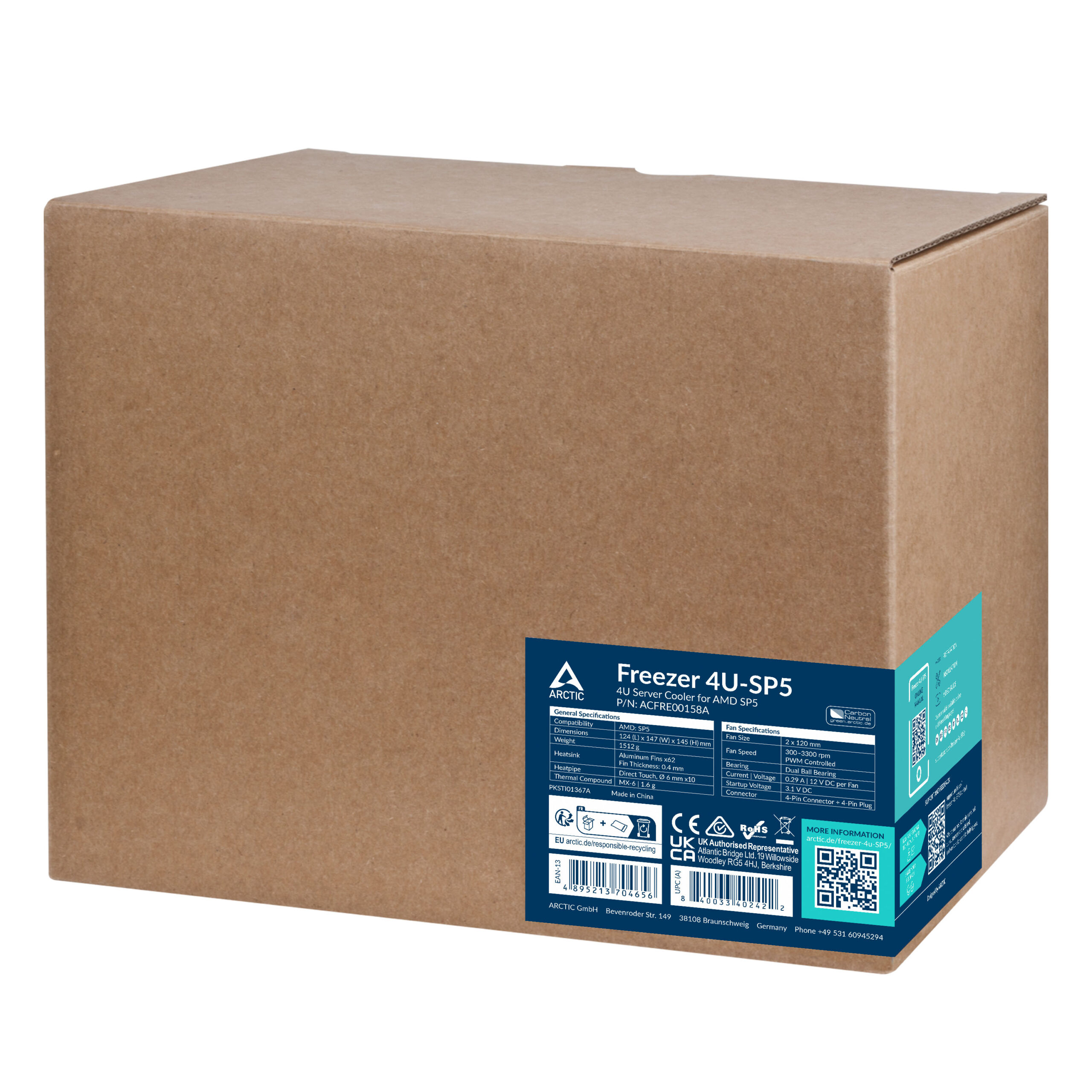

• Packaging
  • Width: 160 mm
  • Height: 141 mm
  • Length: 206 mm
  • Weight: 1.715 kg
