Deepcool PL550D 550W 80 PLUS Bronze Black Power Supply Unit ( R-PL550D-FC0B-IN-V2 )
Deepcool PL550D 550W 80 PLUS Bronze Black Power Supply Unit ( R-PL550D-FC0B-IN-V2 )
The PL550D updates DeepCool non-modular PSUs with a 12V-2×6 cable and brings them into compliance with INTEL’s ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
₹3,590.00
CompareDeepcool PL550D 550W 80 PLUS Bronze Black Power Supply Unit ( R-PL550D-FC0B-IN-V2 )
- NATIVE ATX3.1 :- Based on INTEL’s latest ATX3.1 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.
- PREMIUM ELECTROLYTIC CAPACITORS :- High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

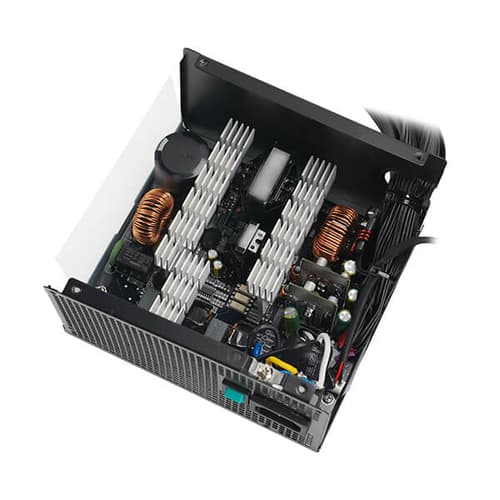

- ROCK SOLID RELIABILITY :- Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
- PAST, PRESENT, AND FUTURE :- Equipped with three PCIe, two EPS, and a 16AWG 12V-2×6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Specifications
| Model | PL550D |
| P/N | R-PL550D-FC0B-IN-V2 |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Bronze |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC+DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/RCM/EAC/ CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| MTBF | 100,000 Hours |
| Warranty | 5 Years |
| Brand | |
|---|---|
| PSU Series | |
| PSU Wattage | 550W |
| Modular | Non Modular |
| 80+Certification | 80+ Bronze |
| PCIe Connector(6+2) | 1 |
| SATA Connector | 2 |
| Peripheral (4-pin) | 2 |
| Product Warranty | 5 years |
| Call For Availability | |
| Product Payment |
