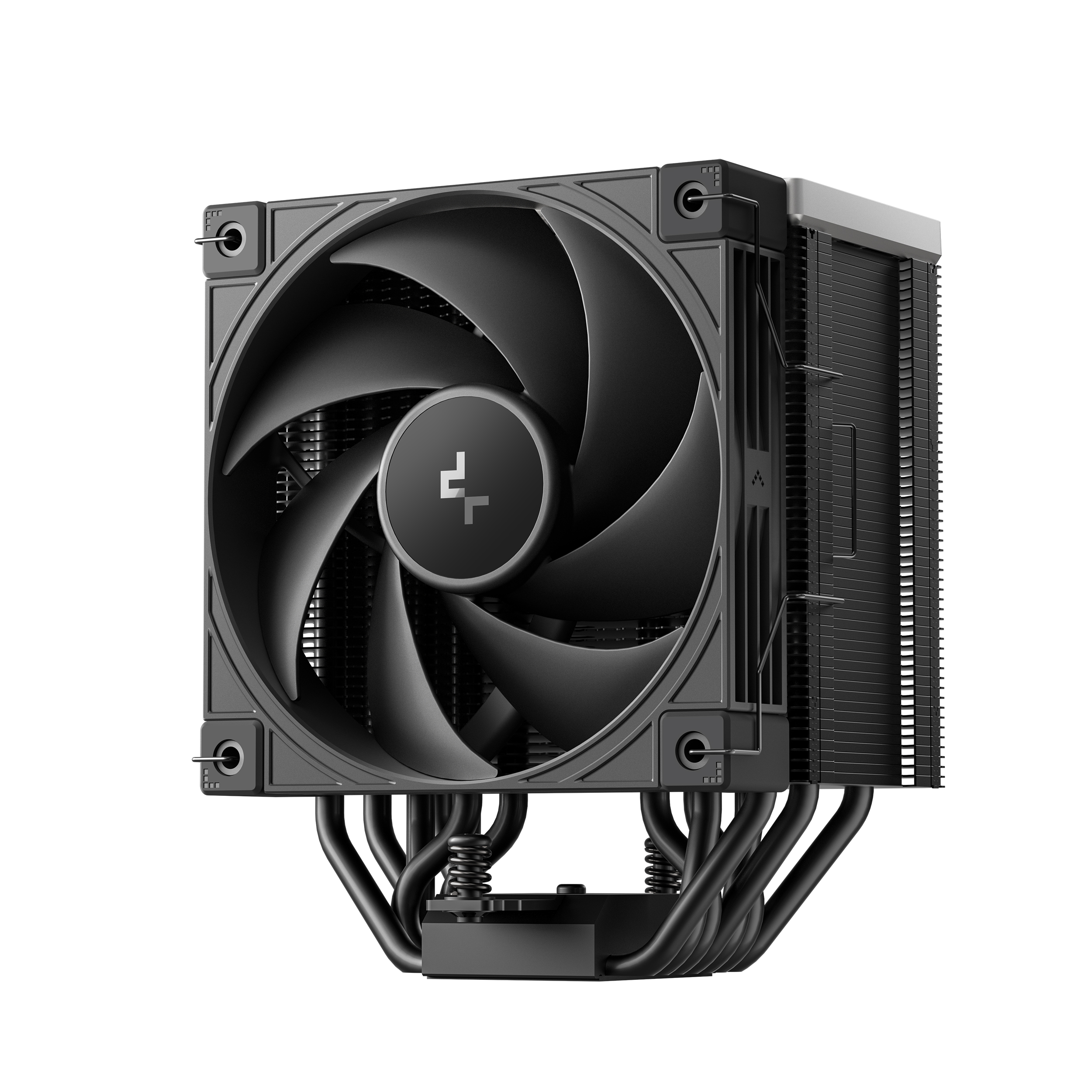

Deepcool AK700 DIGITAL NYX 120mm Next Generation Performance Black CPU Air Cooler With Seven Advanced Copper Heat Pipes ( R-AK700-BKNNMN-GJD-1 )
- NEXT GENERATION PERFORMANCE
- Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK700 DIGITAL NYX reaches a bump in cooling performance.
- THE DIGITAL TOUCH
- The standout addition of the AK700 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
- AI-TUNED CHILL. POWERED BY DeepCreative
- With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
- *Fans instantly shift to full speed when CPU hits above 80 °C, crushing heat without delay
Fans automatic revert to preset mode once the CPU temp drops below 80 °C
- *Fans instantly shift to full speed when CPU hits above 80 °C, crushing heat without delay
- PROVEN AK DESIGN

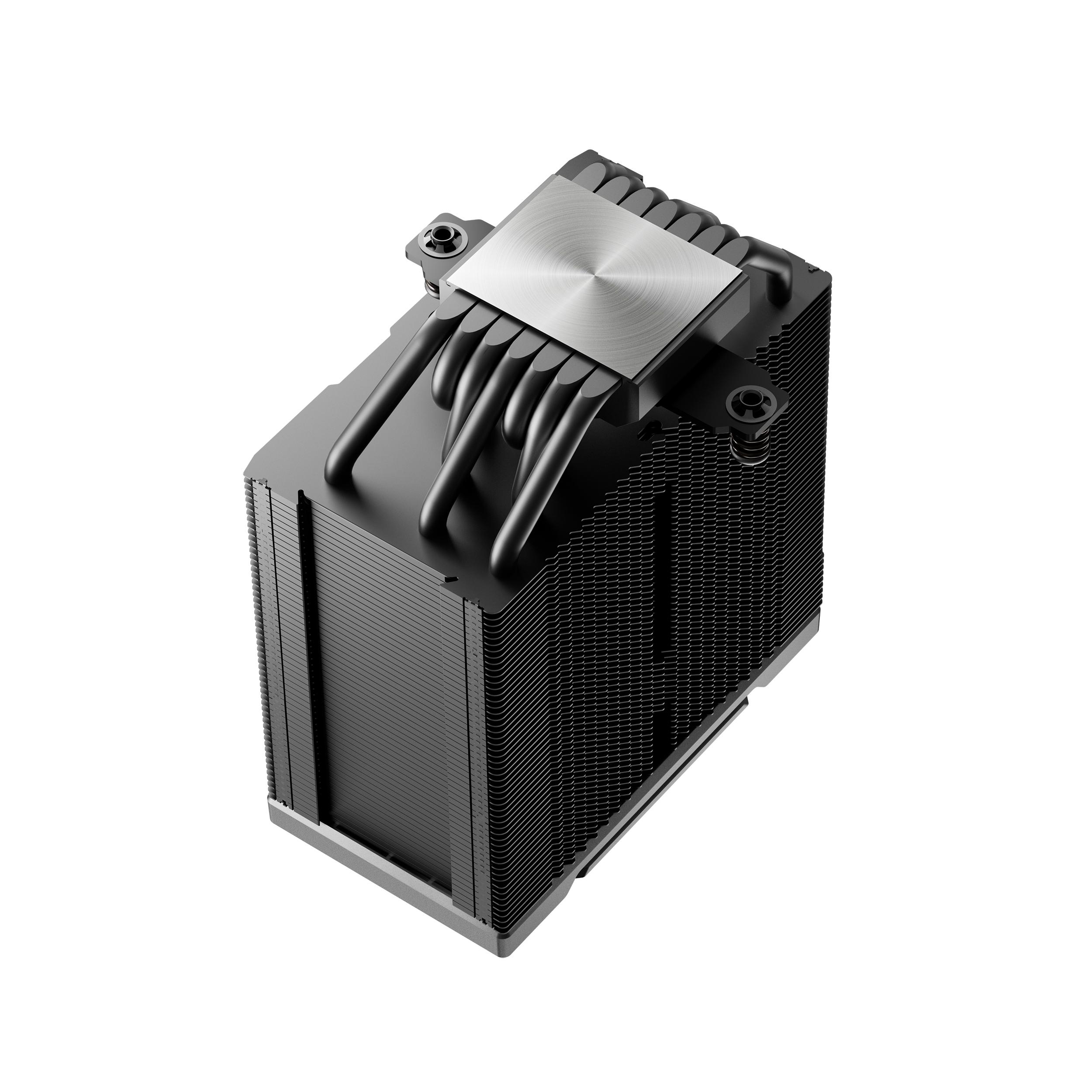

- The AK700 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and seven copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
- PREMIUM COMPATIBILITY
- Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.
- COOL, QUIET, AND POWERFUL
- Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK700 DIGITAL NYX’s fans operate smoothly and quietly.
- 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.
- Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
- Full load noise :- 36 dBA
- Fan Speed :- 2700±10%PRM
- Dynamic PWM Range :- 0 RPM<5% PWM
- Limited Warranty Coverage :- 3 Years
- MULTI-PLATFORM PERFORMANCE
- The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
- Application For
- Intel :- LGA1851/1700/1200/115X
- AMD:- AM5/AM4
- Technical Spec
- With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
| Product Dimensions | 126×98×157 mm(L×W×H) |
| Heatsink Dimensions | 124×76×151 mm(L×W×H) |
| Net Weight | 1252 g |
| Heatpipe | Ø6 mm×7 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 2700±10% RPM(max) |
| Fan Airflow | 77.23 CFM |
| Fan Air Pressure | 5.13 mmAq |
| Fan Noise | 21.0/28.8/36.0 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.35 A |
| Fan Power Consumption | 4.2 W |
| Display Module Rated Current | 0.13 A±10% |
| Display Module Rated Voltage | 5 VDC |
| Display Module Power Consumption | 0.65 W |
| Display Area | 29×39 mm |
| EAN | 6933412729624 |
| P/N | R-AK700-BKNNMN-GJD-1 |
