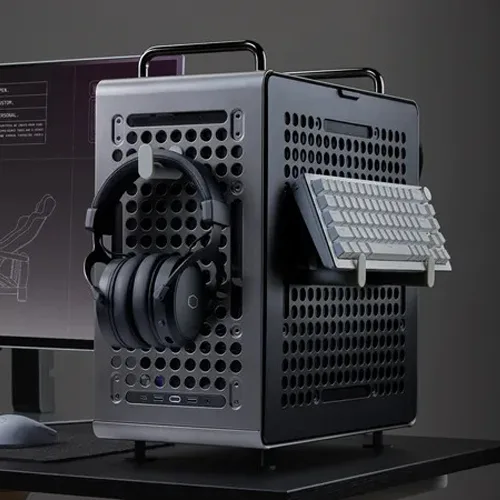

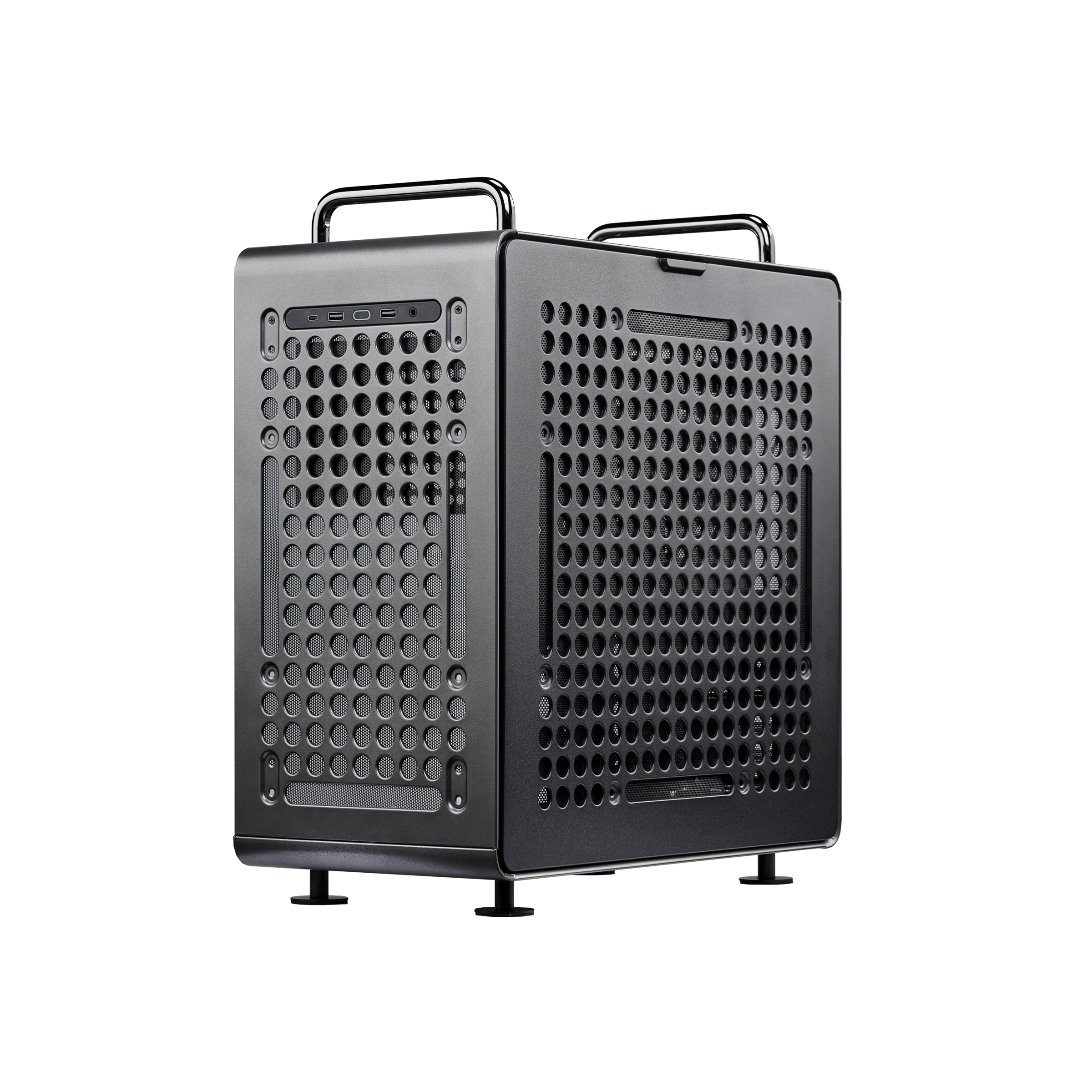

Cooler Master QUBE 540 Stardust Iron ATX Mid Tower Tempered-Glass Side Panel Pc Cabinet With Pre-installed Fan( Q540-MGNN-S00 )

Cooler Master QUBE 540 Stardust Iron ATX Mid Tower Tempered-Glass Side Panel Pc Cabinet With Pre-installed Fan( Q540-MGNN-S00 )

• Compact Yet Capable :- Small size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.
• Flexible Orientation Design :- Vertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.
• Create Your Own Layout :- A modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.
• Repositionable I/O Panel and Movable Handles :- Mount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.
• Versatile Modular Layout :- Oce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.
• Vertical GPU Ready :- Supports vertical GPU installation to highlight premium graphics and aesthetics.

Specifications

• Product Name :- QUBE 540
• Model Number :- Stardust Iron: Q540-MGNN-S00
• Color(s) :- Stardust Iron
• Materials – Exterior :- Steel
• Material – Side Panel (Right) :- Steel
• Material – Side Panel (Left) :- TG
• Dimensions (L x W x H) :- Protrusions: 438.5 x 225 x 492.1 mm
• Dimensions (L x W x H) :- Protrusions: 425 x 225 x 425 mm
• Volume (w/o protrusions) :- 64 L
• Volume (with panel, protrusions and feet) :- 55 L
• Motherboard Support :- ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
• Expansion Slots :- 7
• Drive Bays – 5.25″ ODD :- N/A
• Drive Bays – 3.5″ HDD :- 1 (Shared 3.5″ and 2.5″ mounting on PSU bracket)
• Drive Bays – 2.5″ SSD :- 2 (Max. 5)
• I/O Panel – USB Ports :- 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
• I/O Panel – Audio In / Out :- 1 x 3.5 Mic / Audio Combo Jack
• Fan Support – Front :- 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
• Fan Support – Top :- 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
• Fan Support – Rear :- 1x 120mm
• Fan Support – Bottom :- 3 x 120 mm / 2 x 140 mm
• Preinstalled Fan(s) – Front :- N/A
• Preinstalled Fan(s) – Top :- N/A
• Pre-installed Fans – Rear :- 1x 120mm Black Fan
• Radiator Support – Front :- 140 / 280 / 360 mm (w/o I/O panel)
• Radiator Support – Top :- 140 / 280 / 360 mm (w/o I/O panel)
• Radiator Support – Rear :- 120 mm
• Radiator Support – Bottom :- 140 / 280 / 360mm (w/o I/O panel)
• Clearances – CPU Cooler :- 172 mm
• Clearances – Power Supply :- 200 mm
• Clearances – Graphics Card :- 415 mm (w/o Front Fan)
• Cable Routing – Behind Motherboard Tray :- 27 mm
• Dust Filters :- Top / Bottom / Front
• Power Supply Support :- ATX / SFX
• Warranty :- 2 years
• Series :- QUBE Series
• Size :- Mid Tower
