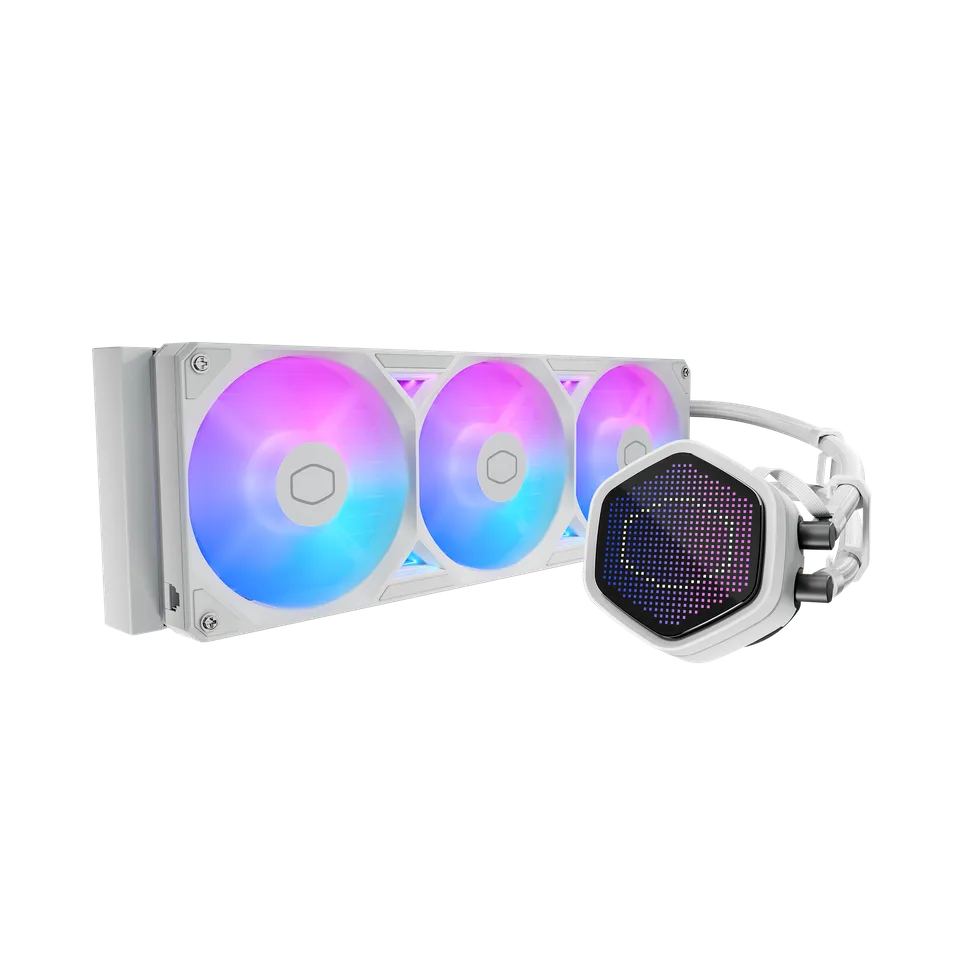

Cooler Master MasterLiquid Atmos II Pixel LED 360 Pixel LED 360mm White CPU Liquid Cooler ( MLX-D36M-A25SZ-PW )

Cooler Master MasterLiquid Atmos II Pixel LED 360 Pixel LED 360mm White CPU Liquid Cooler ( MLX-D36M-A25SZ-PW )

MASTERLIQUID ATMOS II PIXEL LED :- Introducing Cooler Master’s all-new Atmos II Pixel LED CPU cooler, designed to elevate your cooling experience. The MasterLiquid Atmos II Pixel LED offers enhanced customization, enabling users to switch the panel information to system stats, GIFs, images, scrolling text and more. The low-profile pump design makes it ideal for fitting into compact cases. The MasterLiquid Atmos II Pixel LED delivers exceptional cooling performance, quieter operation, and the flexibility to personalize your build. Make it yours with Atmos II Pixel LED—the perfect blend of performance, customization, and silence.

Patented design:- Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality:- Fully automated production and assembly of the pump with fully recorded production history.

Tough. Reliable. Built to Endure. :- Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions

PRE-INSTALLED SICKLEFLOW EDGE ARGB FAN:- High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics.

ULTRA-LOW PROFILE PUMP DESIGN:- The flat design allows installation in cases of different sizes while maintaining strong performance.

QUICK AND EASY INSTALLATION:- A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.

Offset Mounting Brackets for LGA 1851:- Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which prec

• Product Number :- 360 Pixel LED White- MLX-D36M-A25SZ-PW
• CPU Socket:-Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
• CPU Socket:-AMD AM5 / AM4
• Radiator Material:-Aluminum
• Radiator Dimensions :-394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
• Pump Dimensions:-5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
• Pump Profiles:-Addressable Gen2 RGB
• Pump Speed:-3400 ± 300 RPM
• Pump MTTF:->210,000 Hours
• Pump Noise Level:-25 dBA (Max)
• Pump Rated Voltage:-12 VDC
• Pump Power Consumption:-84 W
• Pump Connector:-3-Pin ARGB + 4-Pin PWM
• Tube Length:- 400 mm
• Fan Dimensions (L x W x H) :-  361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
• Profile:-Addressable Gen 2 RGB
• Fan Quantity:-1 PC
• Fan Speed:-690 ~ 2500 RPM ± 15%
• Fan Airflow:- 322.8 m³/h (190 CFM)
• Fan Air Pressure:-61 mmH2O
• Fan MTTF:->160,000 Hours
• Fan Noise Level:-  38.5 dB(A)
• Fan Bearing Type:-Loop Dynamic Bearing
• Fan Connector:-7-Pin PWM + ARGB
• Fan Rated Voltage:-12 VDC
• Fan Rated Current:-5 A
• Fan Safety Current:-8 A
• Fan Power Consumption:-6 W
• Radiator Size:-360
• Cooler Type:-Liquid Cooler
• Series:-MasterLiquid
• Pixel LED Exterior Color:- White
• Pixel LED Dimensions:-85 x 79.2 x 16 mm (3.4 x 3.1 x 0.6 inch)
• Pixel LED Connector:-USB Type-C to Motherboard 9 pin
• Pixel LED Screen Resolution:-28 x 26 px (556 px)
• Pixel LED Screen Orientation:-Software-MasterCTRL adjustable
• Pixel LED Rated Voltage:- 5 VDC
• Pixel LED Rated Current:-5 A
• Pixel LED Safety Current:-0 A
• Pixel LED Power Consumption:-2 W
• Warranty:-6 years
