Cooler Master MasterFrame 500 Mesh ARGB Silver E-ATX Mid Tower Tempered Glass PC Cabinet With Pre-installed ARGB Fans ( MF500M-SHNN-S01 )

Cooler Master MasterFrame 500 Mesh ARGB Silver E-ATX Mid Tower Tempered Glass PC Cabinet With Pre-installed ARGB Fans ( MF500M-SHNN-S01 )

MasterFrame 500 Mesh

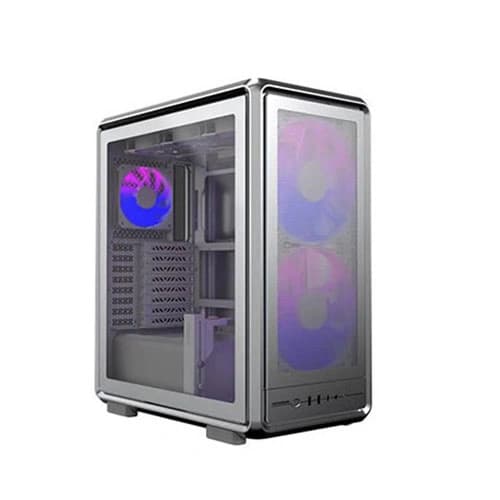

The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.

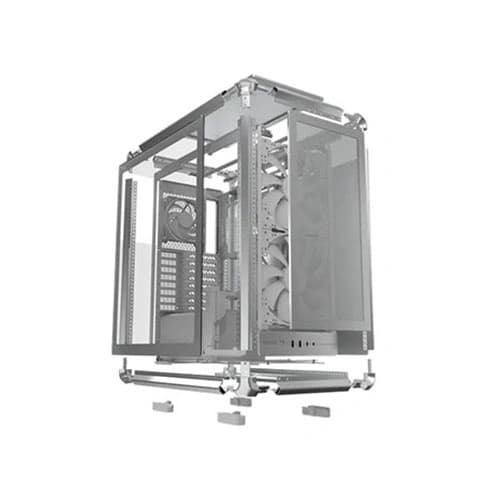

• FreeForm 2.0 Exo-structure : The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
• Versatile & Maker-Driven: Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
• Flexible Motherboard Support: Supports Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
• Extensive Cooling Support: Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.
• Tool-Free Panel Removal: Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
• Included GPU support bracket: The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
• Model Number : Silver: MF500M-SHNN-S01 (ARGB)
• Color(s) : Silver
• Materials – Exterior: SGCC Steel, Aluminum
• Materials – Side panel (Right / Left) : Tempered Glass
• Dimensions (L x W x H) : 471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions)
• Volume: 9 L (Excl. Protrusions)
• Motherboard Support: Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support)
• Power Supply Support: ATX
• PCI Expansion Slots: 8
• 5″ Drive Bays: 0
• 5″ / 3.5″ Drive Bays (or SSD) : 1 (Bottom)
• Preinstalled Drive Bays – 3.5″ / 2.5″ Drive Bay (or SSD) : 1x 2.5 or 1x 3.5
• I/O Panel – USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2×2 Type C
• I/O Panel – Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
• Pre-installed Fans – Front: ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm
• Pre-installed Fans – Rear: ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm
• Fan Support – Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
• Fan Support – Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
• Fan Support – Rear: 1x 120mm
• Fan Support – Bottom: 1x 120mm
• Radiator Support – Front: 120 / 140 / 240 / 280 / 360mm
• Radiator Support – Top: 120 / 140 / 240 / 280 / 360mm
• Radiator Support – Rear: 120 mm
• Dust Filters: Mesh Only (Removable Filters)
• Clearance – CPU Cooler: 190 mm
• Clearance – PSU: 235 mm
• Clearance – Graphics Card: 390 mm
• Included Accessories: GPU Support Bracket
• Cable Routing – Behind Motherboard Tray: 43 mm
• Warranty: 2 years
• Size: Mid Tower
• Series: MasterFrame Series
