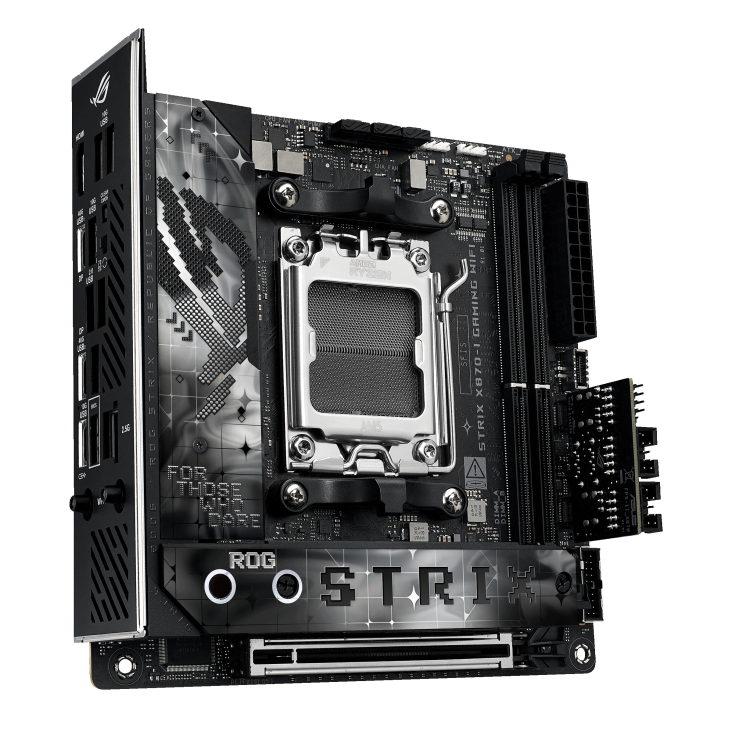

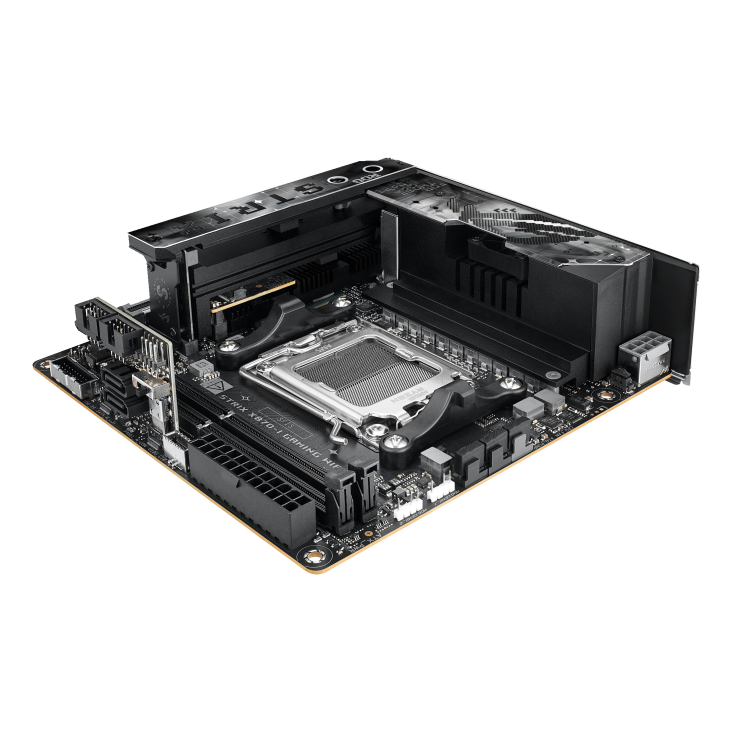

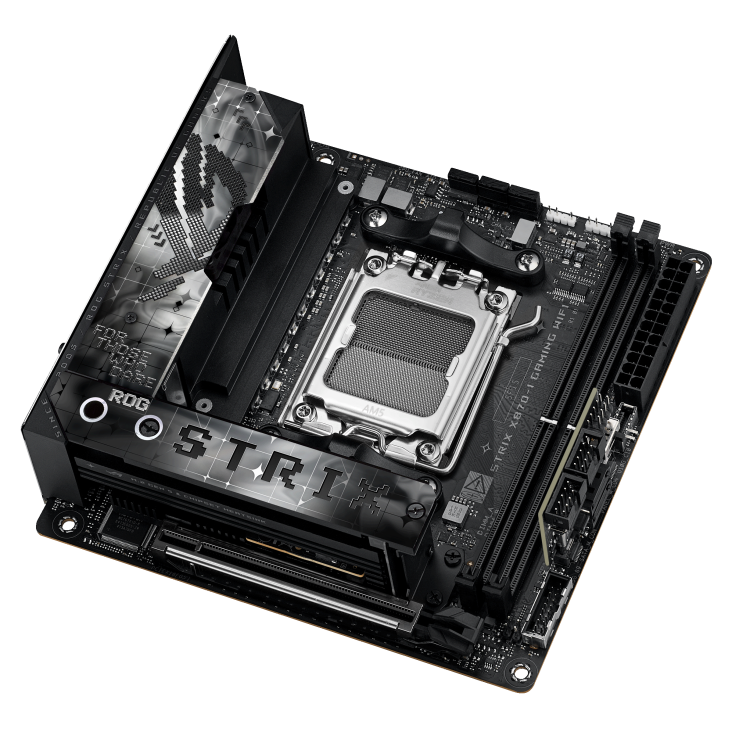

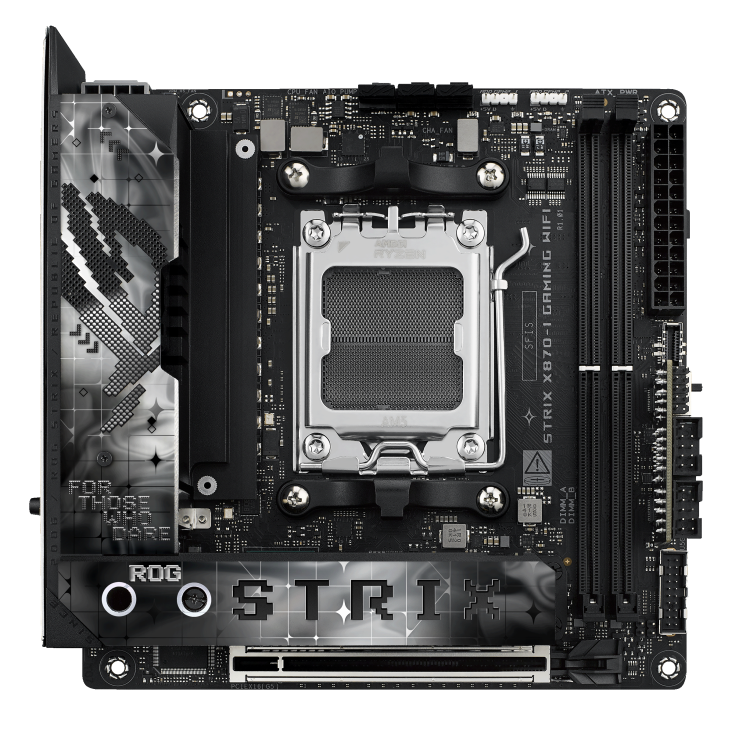

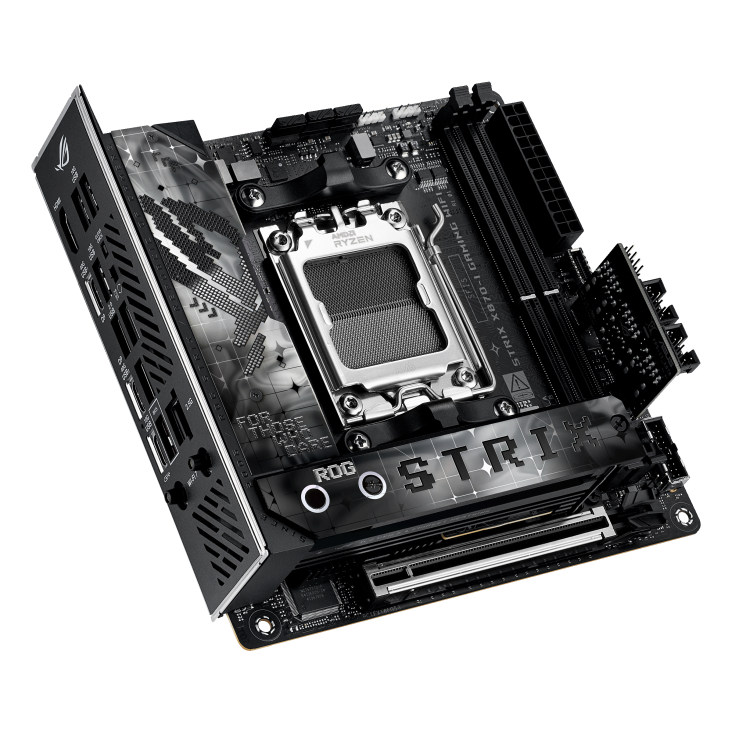

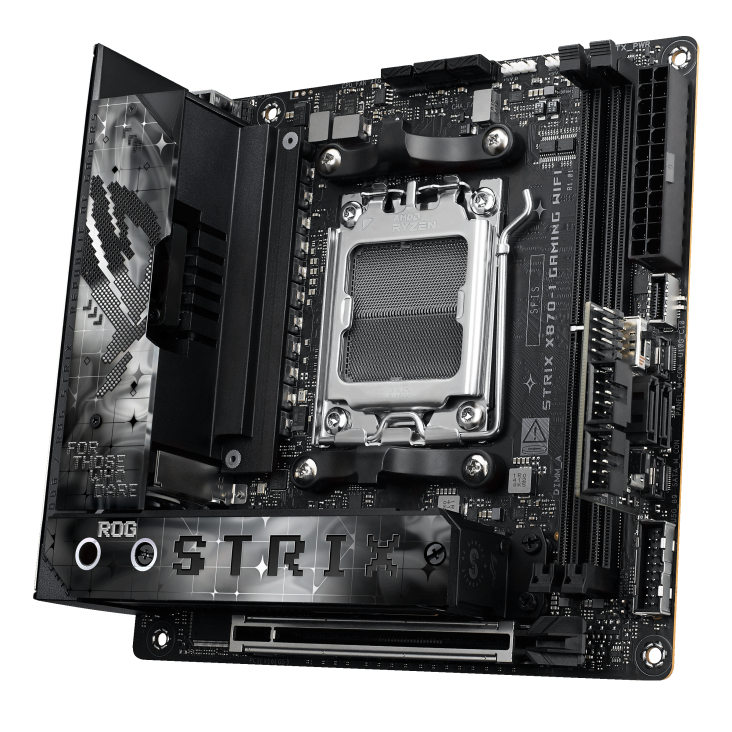

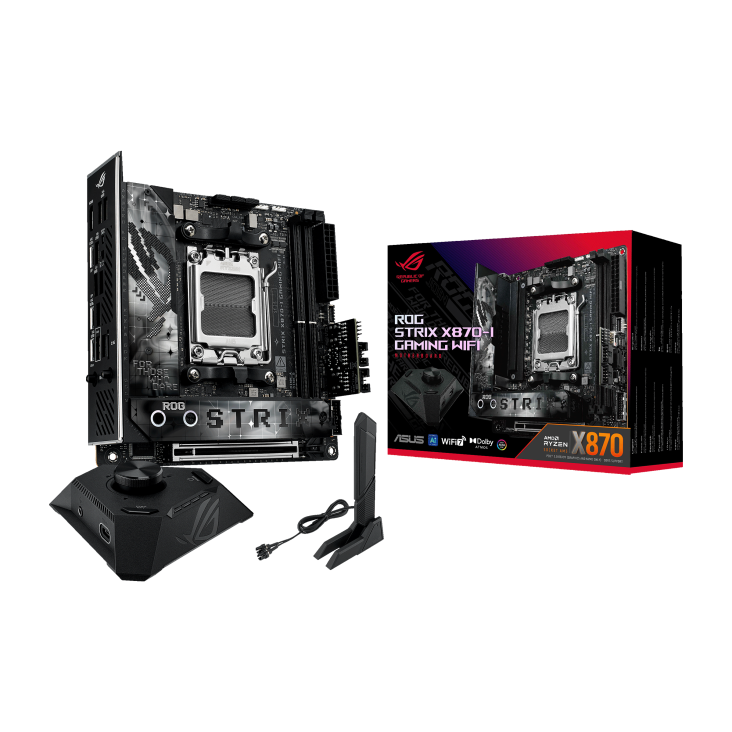

Asus ROG STRIX X870-I GAMING WIFI Mini-ITX Motherboard ( AMD Socket AM5, Support AMD Ryzen 9000 & 8000 & 7000 Series Desktop CPU, 2 x DDR5 Ram slots, Max 128GB Memory )

• 2 x DIMM slots, max. 128GB, DDR5
• Supports up to
• 8400+MT/s(OC) with Ryzen 9000 Series Processors,
• 8600+MT/s(OC) with Ryzen 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM*”
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• 1 x HDMI port**
• 2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors’ or graphic cards’ resolution.

• AMD Ryzen 9000 & 7000 Series Desktop Processors
• 1 x PCIe 5.0 x16 slot
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*

• Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
• AMD Ryzen 9000 & 7000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors*
• M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
• AMD X870 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• 2 x SATA 6Gb/s ports***

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1

*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 7*
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
• Bluetooth v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”

• Rear USB (Total 10 ports)
• 2 x USB4 (40Gbps) port(s)(2 x USB Type-C)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C)
• 3 x USB 2.0 port(s) (3 x Type-A)
• Front USB (Total 3 ports)
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• * USB Type-C power delivery output: max. 5V/3A
• ROG STRIX HIVE II(Total 2 ports)
• 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C)
• ROG FPS Card (Total 3 ports)
• 2 x USB 2.0 headers additional 3 USB 2.0 ports

• ROG Strix Hive II Audio Features
• – ROG Hyper-Grounding Technology
• – ESS SABRE9260Q DAC
• – Silver-plated audio jacks
• – Dedicated audio PCB layers

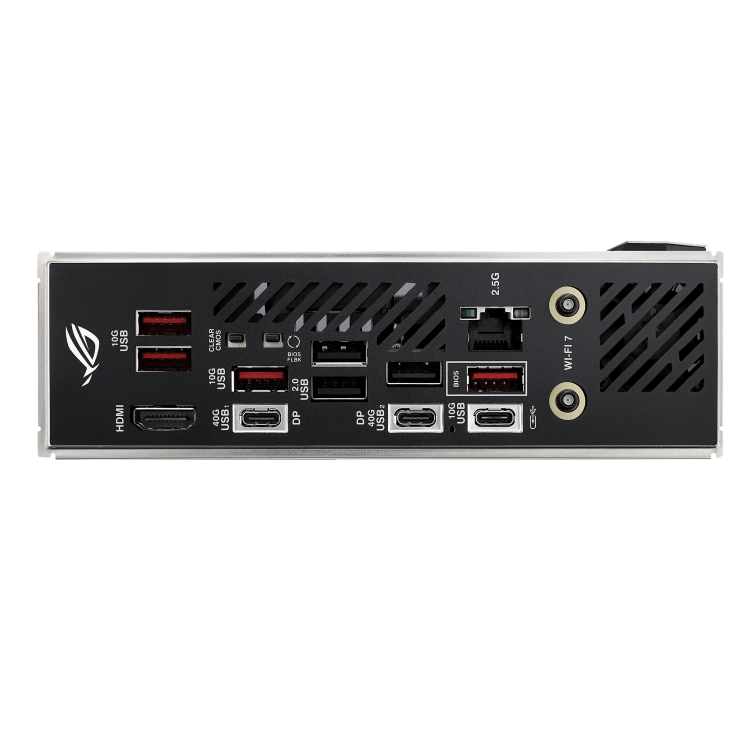

• 2 x USB4 (40Gbps)(2 x USB Type-C)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C, 1 port supports ROG STRIX HIVE II)
• 3 x USB 2.0 port(s) (2 x Type-A)
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 1 x 4-pin Chassis Fan header(s)

Power Related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)

USB

• 1 x USB 10Gbps connector (supports USB Type-C )
• 1 x USB 5Gbps header support(s) 2
• additional USB 5Gbps ports

Miscellaneous

• 2 x Addressable Gen 2 headers
• 1 x 2-pin Power Button header
• 1 x Thermal Sensor header
• 2 x USB Type-C connectors to install ROG FPS card

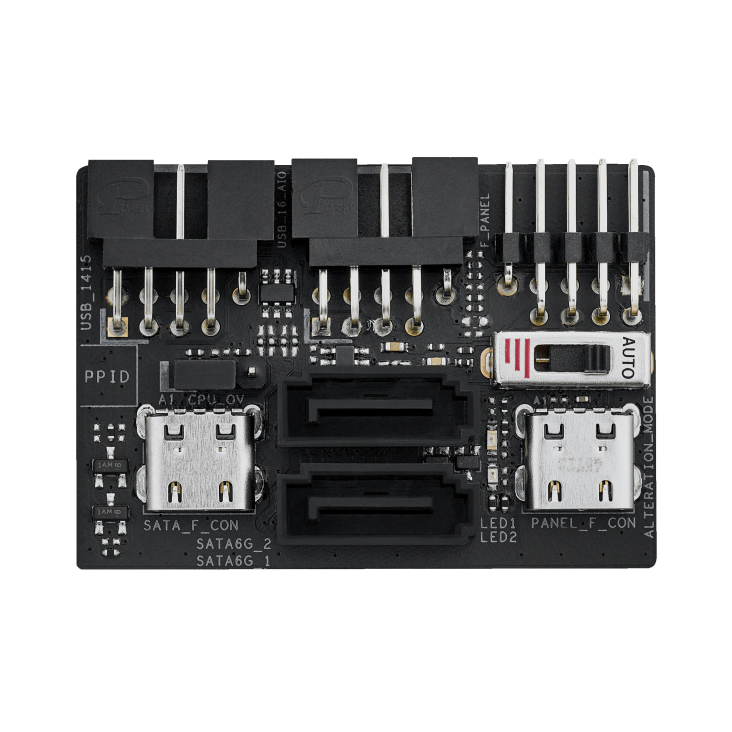

ROG FPS card

• 2 x SATA 6Gb/s ports
• 1 x CPU Over Voltage jumper
• 1 x Front Panel header
• 1 x Alteration PCIe Mode switch
• 2 x USB 2.0 headers support 3
• additional USB 2.0 ports

• – M.2 Q-Latch
• – PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• – Q-Antenna
• – Q-DIMM
• – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• – Q-Slot

ASUS Thermal Solution

• – M.2 heatsink

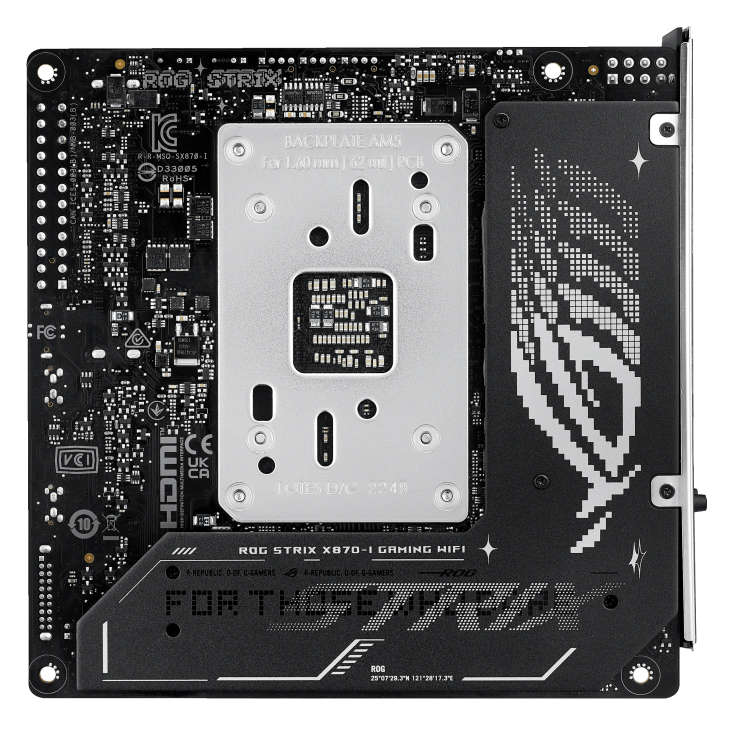

• – Aluminum backplate

ASUS EZ DIY

• – BIOS FlashBack button
• – BIOS FlashBack LED
• – Clear CMOS button
• – ProCool II
• – Pre-mounted I/O shield
• – SafeSlot
• – SafeDIMM
• Aura Sync
• – Addressable Gen 2 header(s)

ROG STRIX HIVE II

• 1 x USB Type-C connects to motherboard
• 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C)
• 1 x Headphone jack with mic in
• 1 x Power button
• 1 x FlexKey button
• 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Software Features

• Armoury Crate
• – AIDA64 (60 days free trial)
• – Aura Creator
• – Aura Sync
• – Fan Xpert 4 (with AI Cooling II)
• – GameFirst
• – HWiNFO
• – Power Saving
• ASUS Driver Hub
• ASUS GlideX
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)

UEFI BIOS

• AI Overclocking Guide
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI
• BIOS EZ Mode
• – ASUS
• MyHotkey
• FlexKey
• Dynamic OC Switcher

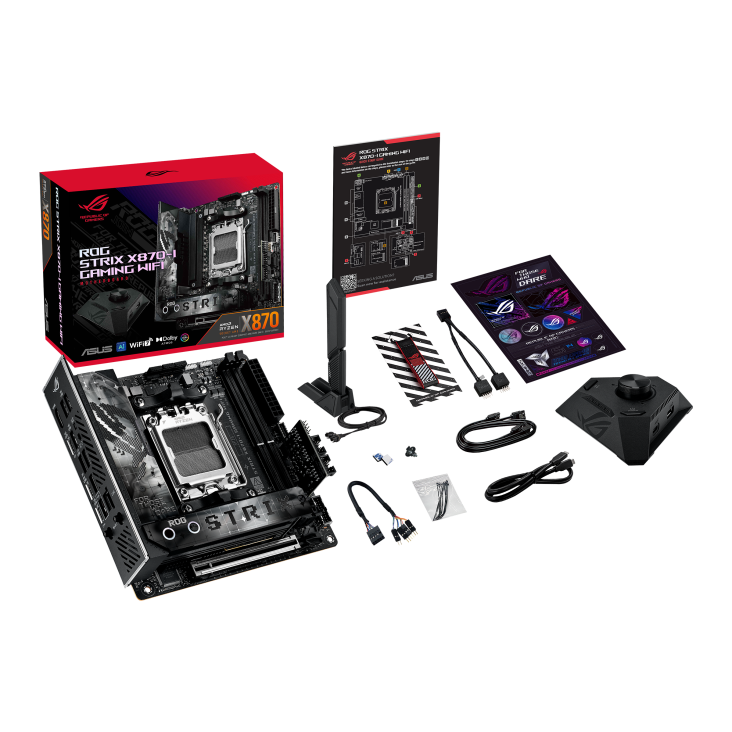

• Cables
• 1 x Panel cable
• 1 x ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables
• ROG FPS Card
• 1 x ROG FPS Card
• ROG STRIX HIVE II
• 1 x ROG STRIX HIVE II
• 1 x USB Type-C power connection cable
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package(s)
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x M.2 rubber package(s)
• Documentation
• 1 x Quick start guide

6.7 inch x 6.7 inch (17 cm x 17 cm)
