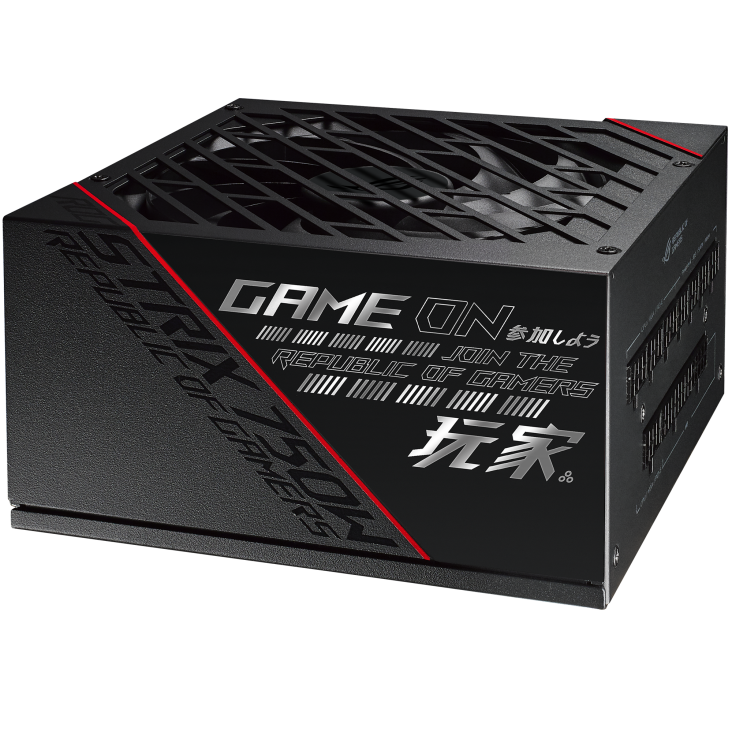

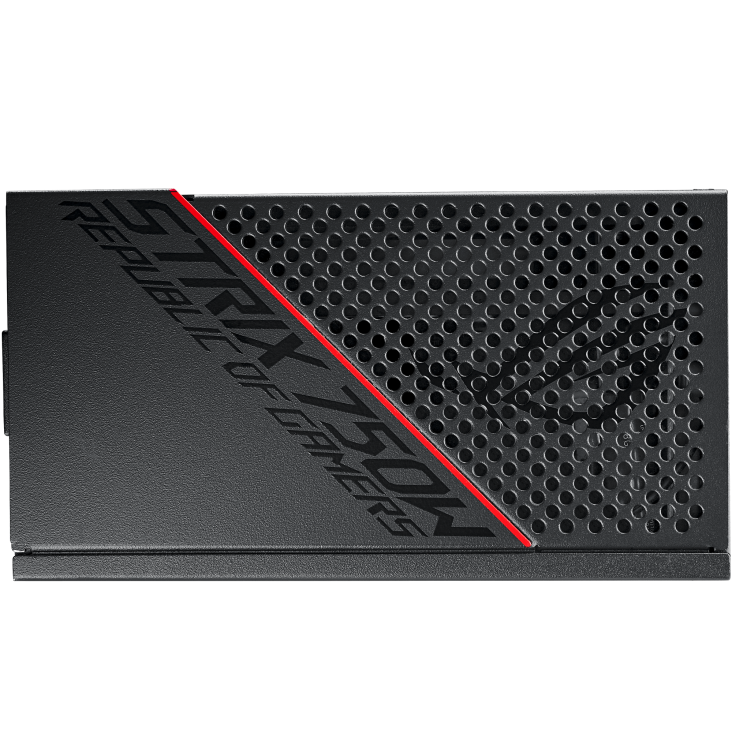

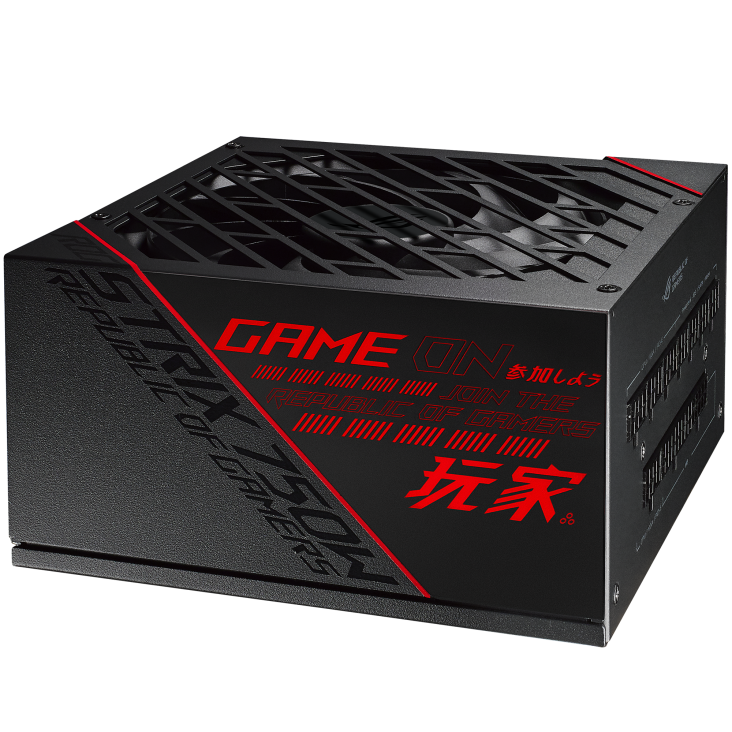

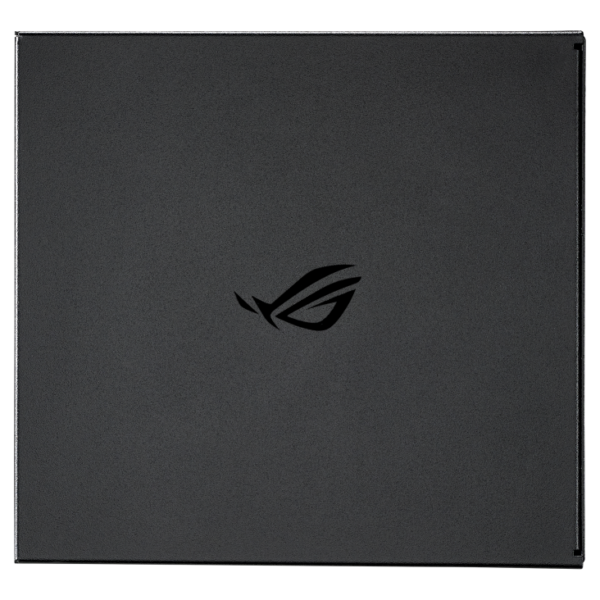

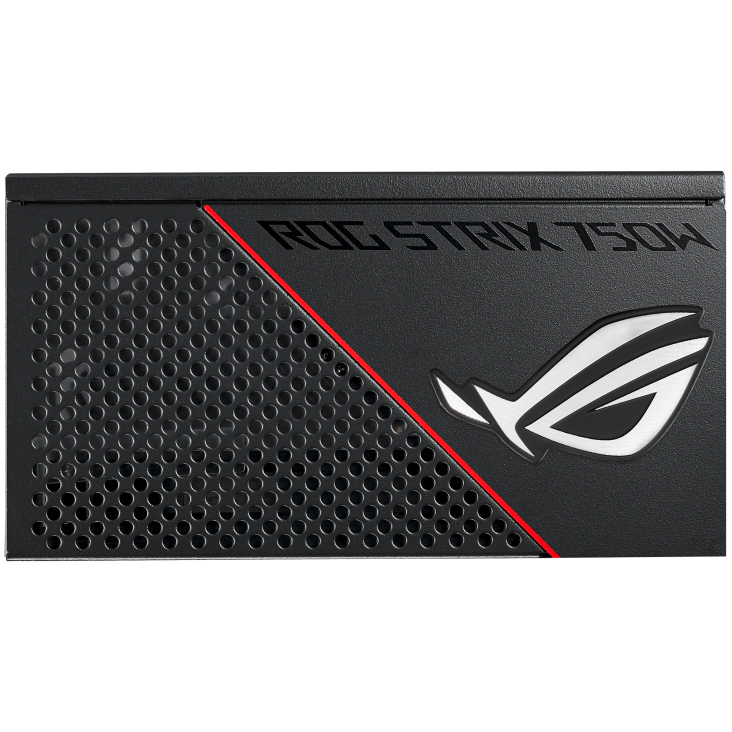

Asus ROG STRIX 750G 750Watt 80 Plus Gold Certification Fully Modular Power Supply Unit

Asus ROG STRIX 750G 750Watt 80 Plus Gold Certification Fully Modular Power Supply Unit

Frozen Silence

The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

ROG Heatsinks

Let it sink in

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

80 Plus Gold Certification

Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

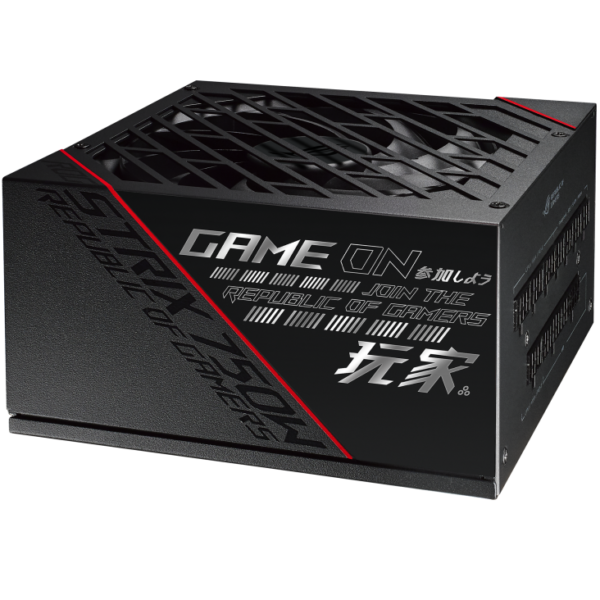

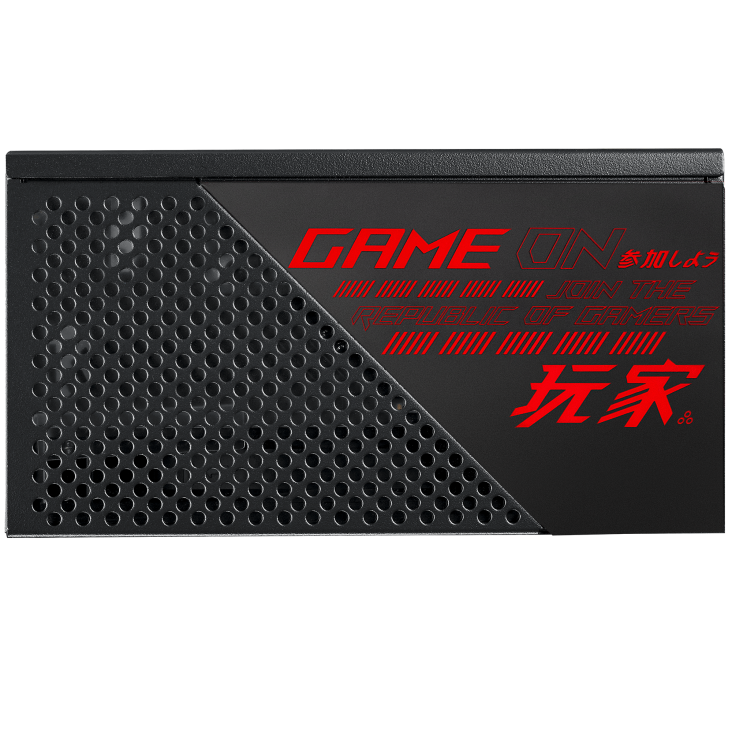

Cosmetic Customization

A e s t h e t i c

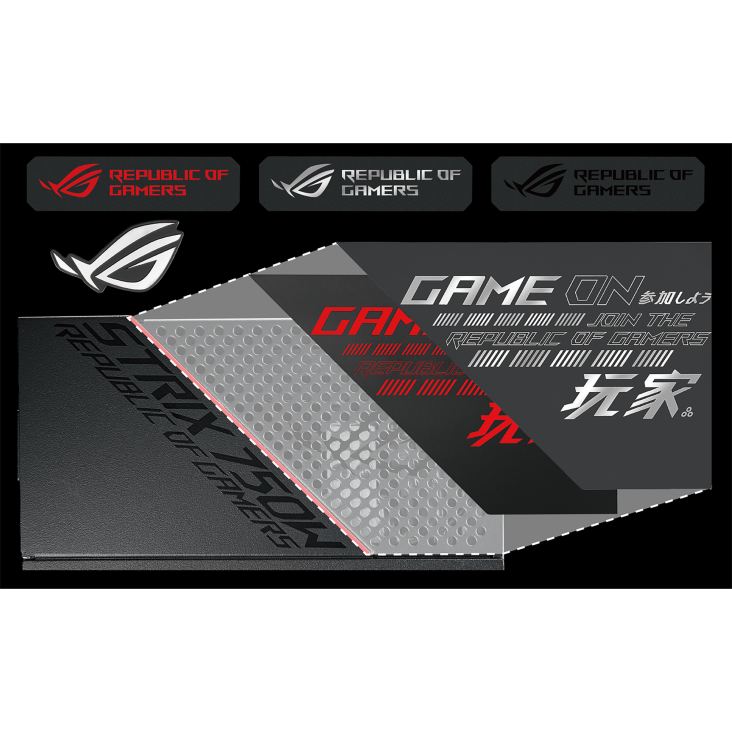

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

Model

ROG-STRIX-750G

Intel Specification

ATX12V

PFC Type

Active PFC

Dimensions

16 x 15 x 8.6 Centimeter

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

RGB Connector

NA

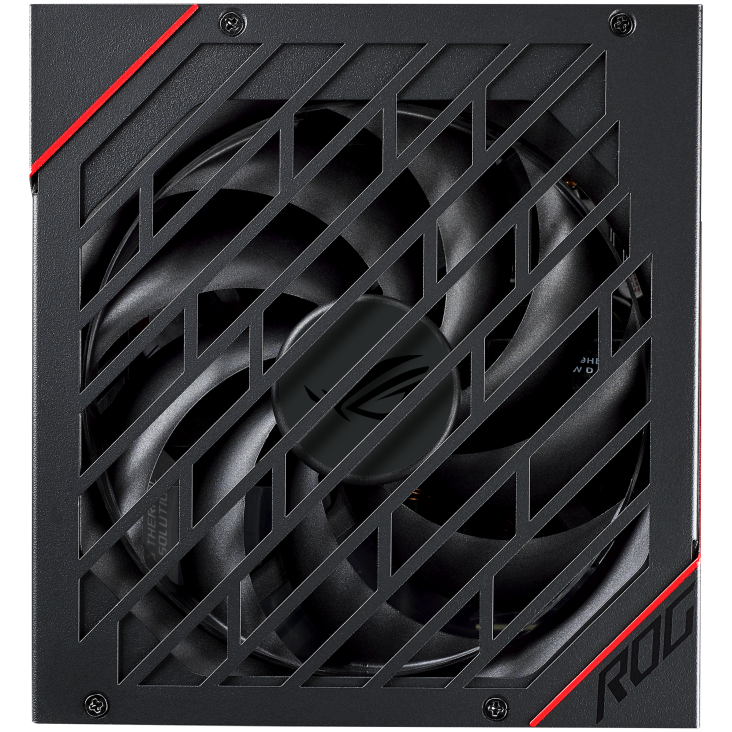

Fan Size

135mm

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 62A 0.3A 3A

Total Output

750W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 4
SATA x 8
Peripheral x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x1 (610mm)
CPU Cable x 2 (1000mm)
PCIE 1-to-2 Cable x2 (675+75mm)
SATA 1-to-4 Cable x1 (410+150+150+150mm)
SATA 1-to-4 Cable x1 (450+120+120+120mm)
Peripheral 1-to-3 Cable x1 (450+120+120mm)
Join the ROG badge x 2
ROG logo magnet x 1
ROG label x 3

*MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

Cybenetics Noise Level Certification

NA

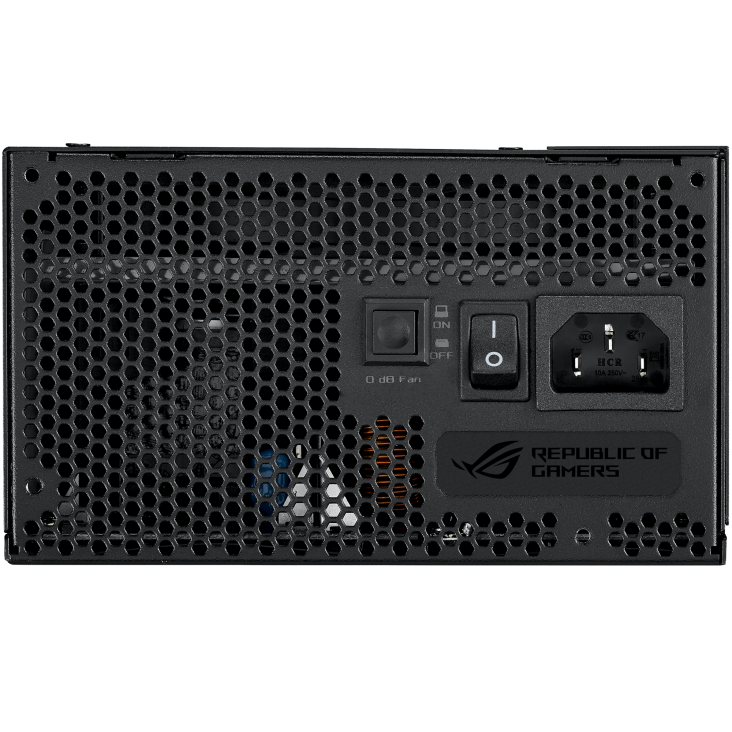

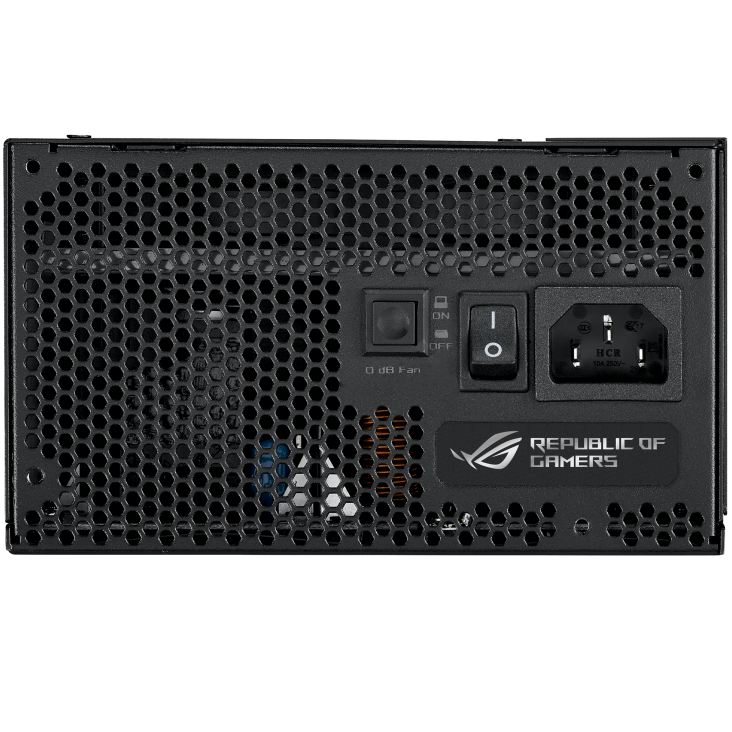

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
