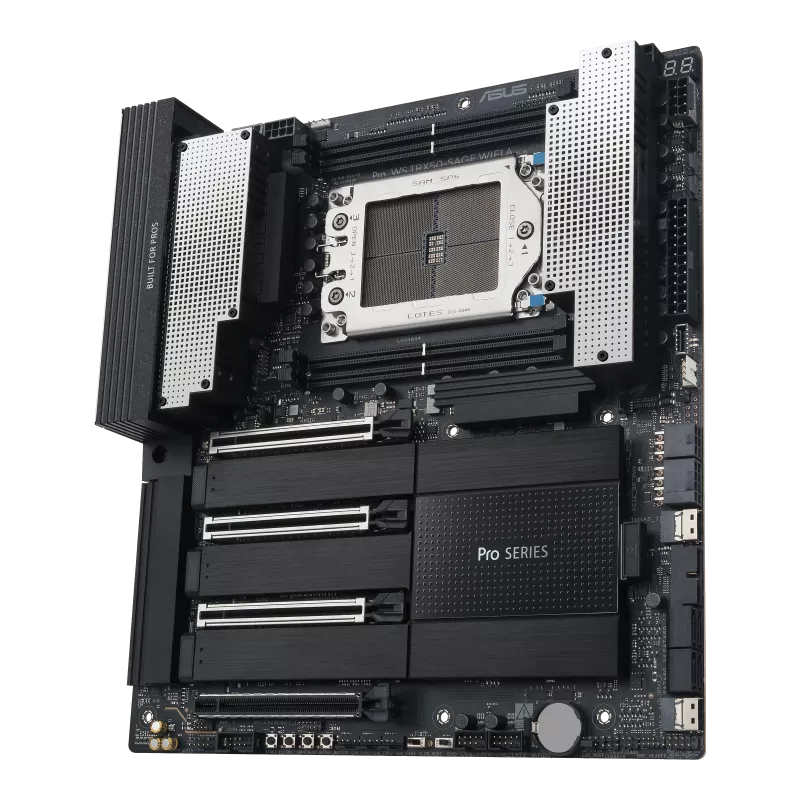

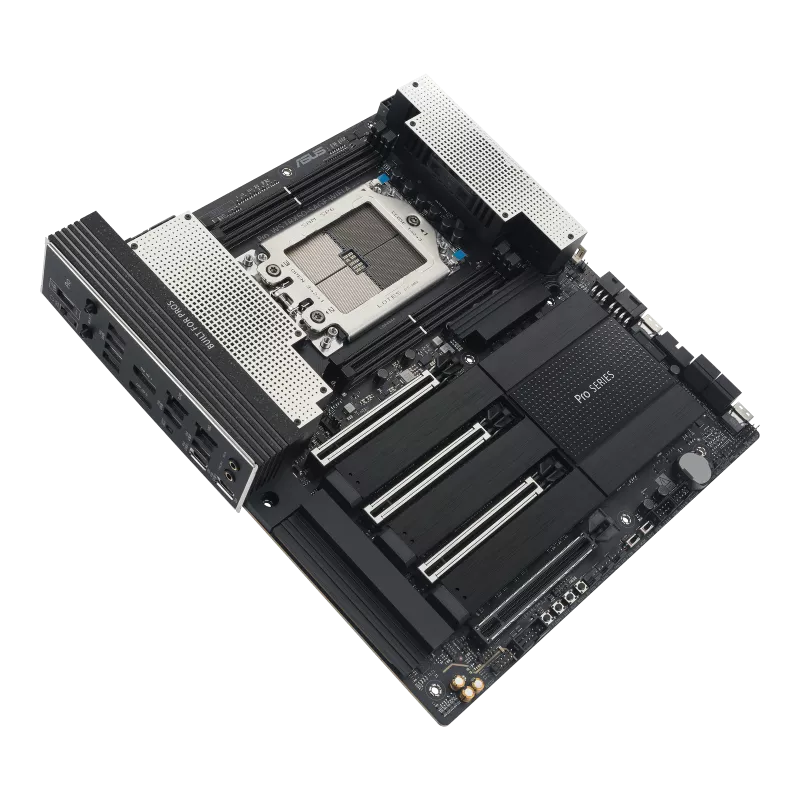

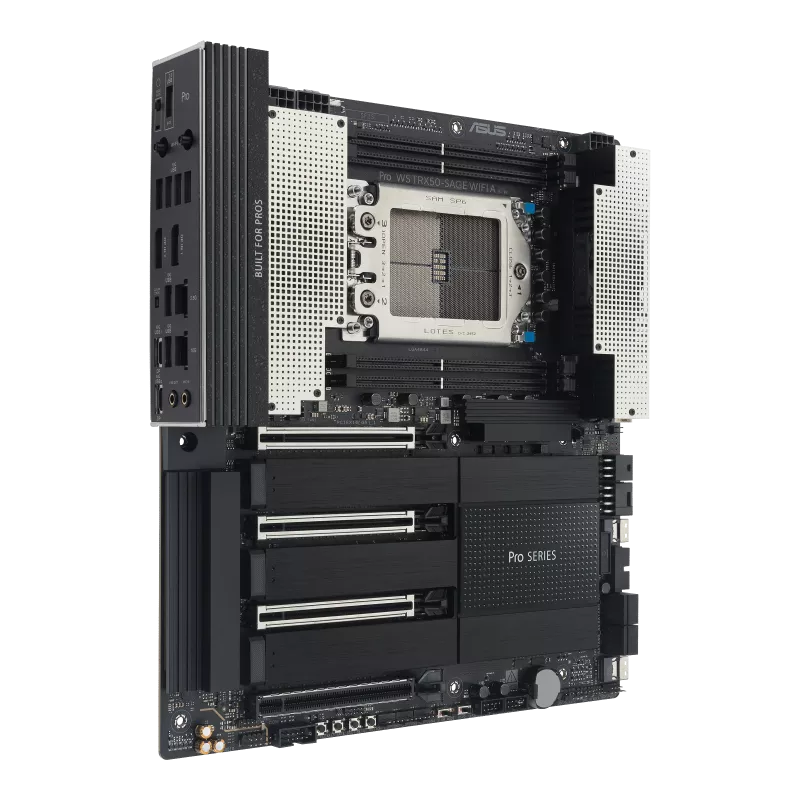

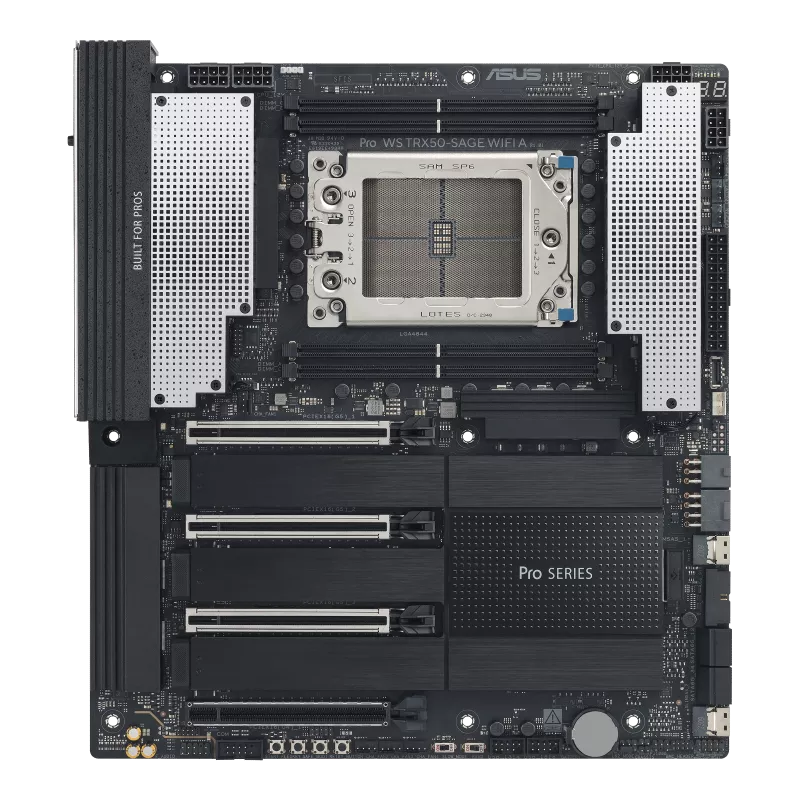

Asus Pro WS TRX50-SAGE WIFI A Workstation CEB Motherboard ( AMD Socket sTR5 , Supports Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors, 4 x DDR5 Max 1TB RAM Support )

Asus Pro WS TRX50-SAGE WIFI A Workstation CEB Motherboard ( AMD Socket sTR5 , Supports Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors, 4 x DDR5 Max 1TB RAM Support )

• A WORKSTATION WONDERLAND
• The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen Threadripper processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.With onboard PCIe power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4 (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.
• CPU AND MEMORY OVERCLOCKING READY
• For AMD Threadripper 9000 & 7000 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI A motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing
• Power Stages in VRM Area
• The Pro WS TRX50-SAGE WIFI A voltage regulator module setup is comprised of 20+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen processors demand, and stability for extreme overclocking.
• Active VRM Cooling Solutions
• The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency, while fins also significantly improve heat dissipation
• ProCool II Connectors
• ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
• Onboard PCIe Power Connectors
• An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
• ECC R-DIMM Memory Support
• The Pro WS TRX50-SAGE WIFI A motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
• Multi-GPU Support
• The Pro WS TRX50-SAGE WIFI A motherboard features three PCIe 5.0 x16 slots and one PCIe4.0 x16 that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and AI era applications.
• WiFi 7
• Next-gen WiFi 7 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
• Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
• Marvell AQtion 10 Gbps Ethernet
• With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.
• Intel 2.5 Gb Ethernet
• Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.
• USB 20 Gbps with PD
• Front panel connector offers a transfer rate of up to 20 Gbps. Supports Power Delivery up to 30 watts, to charge devices faster than previous types of USB ports.
• Dual USB4 Connectivity
• Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the USB4 port.
• 2 PCIe 5.0/4.0 slots
• The Pro WS TRX50-SAGE WIFI A includes four onboard M.2 slots. Users working with massive files can use RAID to group multiple NVMe devices together for massive I/O bandwidth and speedy data reading and writing. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.
• SlimSAS Ports​
• The Pro WS TRX50-SAGE WIFI A motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.
• ASUS IPMI Expansion Card
• The Pro WS TRX50-SAGE WIFI A is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.
• ASUS Control Center Express
• The Pro WS TRX50-SAGE WIFI A comes with ASUS Control Center Express — a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.
• Chipset Cooling
• A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures
• 10 Gb LAN Cooling
• An ideally located and extended heatsink on the 10 Gb Ethernet controller ensures the stable performance of high-speed networking anytime, anywhere.
• 2 Cooling
• All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance from next-gen drives.
• PCIe Q-release Slim
• The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot. This design also keeps the original method of removing the graphics card by pushing down on the retention clip.
• EZ DIY Design SafeSlot & SafeDIMM
• PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering users to insert modules with speed, accuracy and confidence.
• 2 Q-Release & Q-Latch
• The new M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
• The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

• Model
  • Pro WS TRX50-SAGE WIFI A
• CPU
  • AMD Socket sTR5 for Ryzen  Threadripper  PRO 9000 & 7000 WX-Series and Ryzen  Threadripper  9000 & 7000 Series Processors **
    *Refer CPU support list.
    **System boot may take longer with Threadripper 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.
• Chipset
  • AMD TRX50 Chipset
• Memory
  • 4 x DIMM slots, DDR5, ECC Registered Memory*
    4 Channel Memory Architecture
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support
• Expansion Slots
  • AMD Ryzen  Threadripper  PRO 9000 & 7000 WX-Series and Ryzen  Threadripper  9000 & 7000 Series Processors
    3 x PCIe 5.0 x16 slots
    1 x PCIe 4.0 x16 slot
    * Please check the PCIe bifurcation table on the support site
• Storage
  • Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
    AMD Ryzen  Threadripper  PRO 9000 & 7000 WX-Series  and AMD Ryzen  Threadripper  9000 & 7000 Series Processors
    2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    AMD TRX50 Chipset
    M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
    4 x SATA 6Gb/s ports
    SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***
    AMD Ryzen  Threadripper  PRO 9000 & 7000 WX-Series
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
    SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
    ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
    *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
    **** Supported when the Threadripper PRO series CPU is installed
• RAID Support
  • AMD RAIDXpert2 Technology
    PCIe RAID 0/1/5/10
    SATA RAID 0/1/5/10
• Ethernet
  • 1 x Marvell AQtion 10Gb Ethernet
    1 x Intel I226-LM 2.5Gb Ethernet
• Wireless & Bluetooth
  • “Wi-Fi 7 (Realtek RTL8922AE)
    2×2 Wi-Fi 7* (802.11be)
    Supports 2.4/5/6GHz frequency band**
    Supports Wi-Fi 7 160MHz bandwidth
    Bluetooth v5.4***
    *Wi-Fi features may vary depending on the operating system
    For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
    For Windows 10, only Wi-Fi 6 is supported.
    ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
• USB
  • Rear USB (Total 9 ports)
    2 x USB4 (40Gbps)  (2 x USB Type-C)
    6 x USB 10Gbps ports (6 x Type-A )
    1 x USB 2.0 ports (1 x Type-A )
    Front USB (Total 7 ports)
    1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD)*
    1 x USB 5Gbps header supports 2 additional USB 5G ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• Audio
  • Realtek ALC1220P Surround Sound High Definition Audio CODEC*
    – Impedance sense for front and rear headphone outputs
    – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    – Supports up to 32-Bit/192 kHz playback”
    Audio Features
    – Audio Shielding
    – Dedicated audio PCB layers
    – Unique de-pop circuit
    * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
    * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

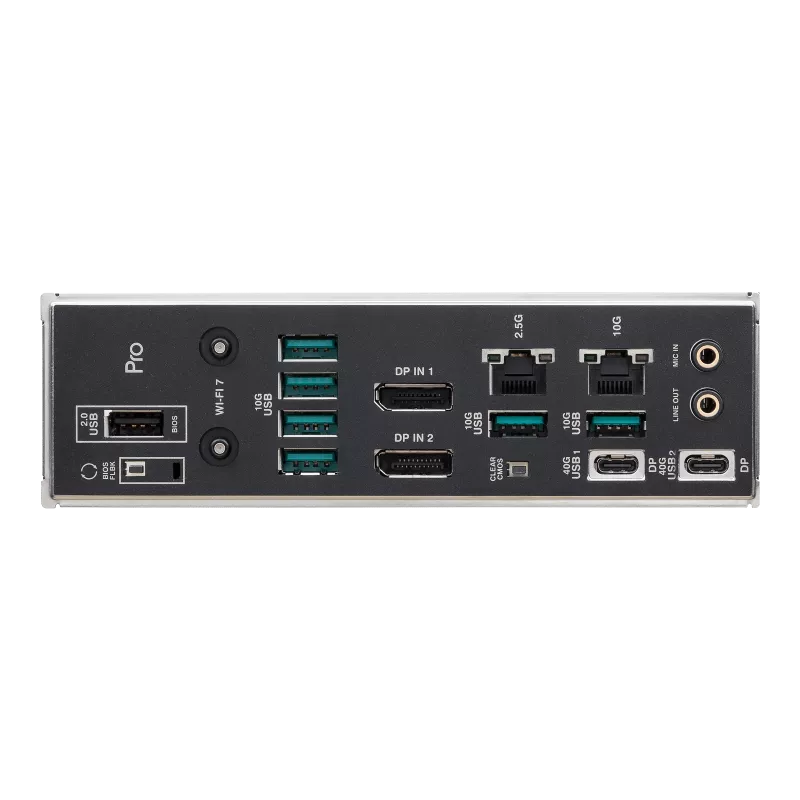

• Back Panel I/O Ports
  • 2 x USB4 (40Gbps) ports (2 x USB Type-C)
    6 x USB 10Gbps ports (6 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    2 x DisplayPort IN
    1 x Wi-Fi Module
    1 x Marvell AQtion 10Gb Ethernet port
    1 x Intel 2.5Gb Ethernet port
    2 x Audio jacks
    1 x BIOS FlashBack  button
    1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x W_PUMP+ header
    4 x 4-pin Chassis Fan headers
    2 x 4-pin VRM Fan header (with VRM FAN onboard)
    Power related
    1 x 24-pin Main Power connectors
    1 x 4-pin to 24-pin Main Power connectors
    2 x 8-pin +12V CPU Power connector
    2 x 8-pin PCIe to CPU power connectors
    1 x 6-pin PCIe Power connector
    1 x 8-pin PCIe Power connector
    Storage related
    4 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    2 x SlimSAS port
    USB
    1 x USB 20Gbps connector supports USB Type-C
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    1 x Addressable RGB Gen 2 header
    1 x BMC header
    1 x COM Port header
    1 x FlexKey button
    1 x Front panel audio header (F_AUDIO)
    1 x Start button
    1 x Safe boot button
    1 x ReTry button
    1 x LN2 mode jumper
    1 x Slow mode switch
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin Front Panel System header
    1 x Chassis intrusion header
    1 x Thermal Sensor header
    7 x ProbeIt Measurement Points
• Special Features
  • ASUS Q-Design
    – Q-Code
    – M.2 Q-Latch
    – M.2 Q-Release
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink and onboard thermal pads
    – M.2 heatsink backplate
    – VRM heatsink design with active fans
    ASUS EZ DIY
    – BIOS FlashBack button
    – BIOS FlashBack LED
    – Clear CMOS button
    – Dual DIMM clips
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    –  Addressable RGB Gen 2 header
    Bespoke Motherboard Design & Business Focused Features
    – 24/7 Reliability
    – Overcurrent Protection
• Software Features
  • ASUS Exclusive Software
    Armoury Crate
    – Fan Xpert 4
    – Aura Sync
    ASUS CPU-Z
    ASUS DriverHub
    IT Management software supported
    – ASUS Control Center Express(ACCE)
    Adobe Creative Cloud (Free Trial)
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUSTeK. EzFlash Utility
    FlexKey
    * For more software features, please visit the asus support site additional information.
    ** For detailed information on the supported models and restricted regions for this redemption offer,
• Remote Management Features
  • IT Management software supported
    – ASUS Control Center Express(ACCE)
    Ready for IPMI Expansion Card*
    1 x BMC header
    * IPMI Expansion Card is sold separately.
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE (UEFI mode)

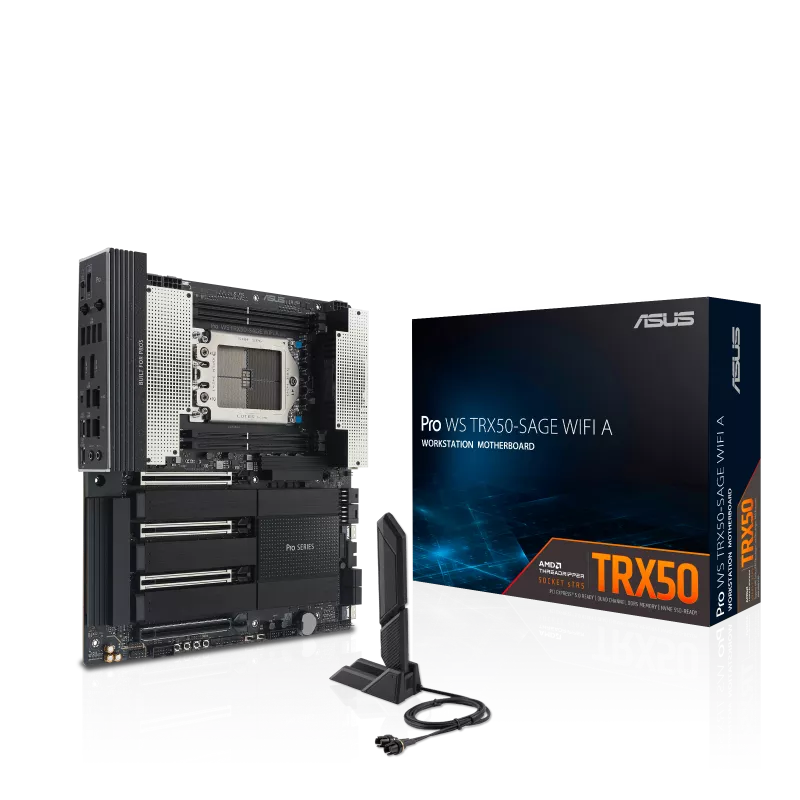

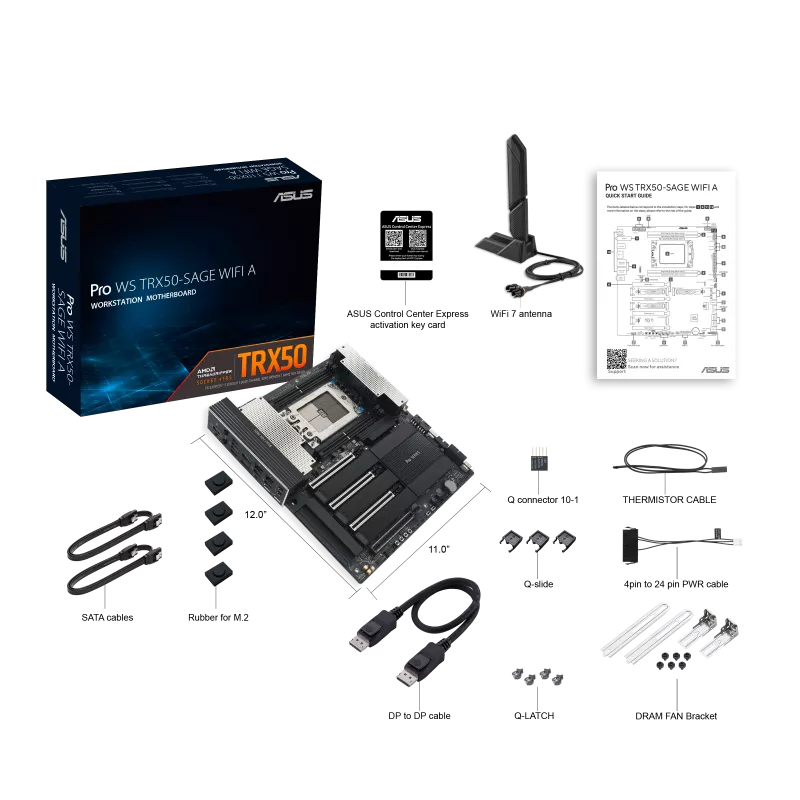

• Accessories
  • Cables
    2 x SATA 6Gb/s cables
    1 x Thermistor cable pack
    1 x DisplayPort cable
    1 x 4pin to 24-pin ATX power connector
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    2 x M.2 Q-Latch package(2 in 1)
    2 x M.2 Q-Slide package
    2 x M.2 Rubber Packages
    1 x Fan bracket
    1 x Q-connector
    Documentation
    1 x ACC Express Activation Key Card
    1 x QSG
• Operating System
  • Windows 11
• Form Factor
  • CEB 12 inch x 11 inch (30.5 cm x 28.0 cm)
