Asus Prime H610M-F WIFI D4 micro-ATX Motherboard ( Intel Socket LGA1700, Supports Intel Core 14th & 13th Gen Cpu, Intel Core 12th Gen, Pentium Gold and Celeron Cpu, 2 x DDR4 RAM Slots, Max 64GB RAM )

Asus
Availability:

Out of stock
Compare

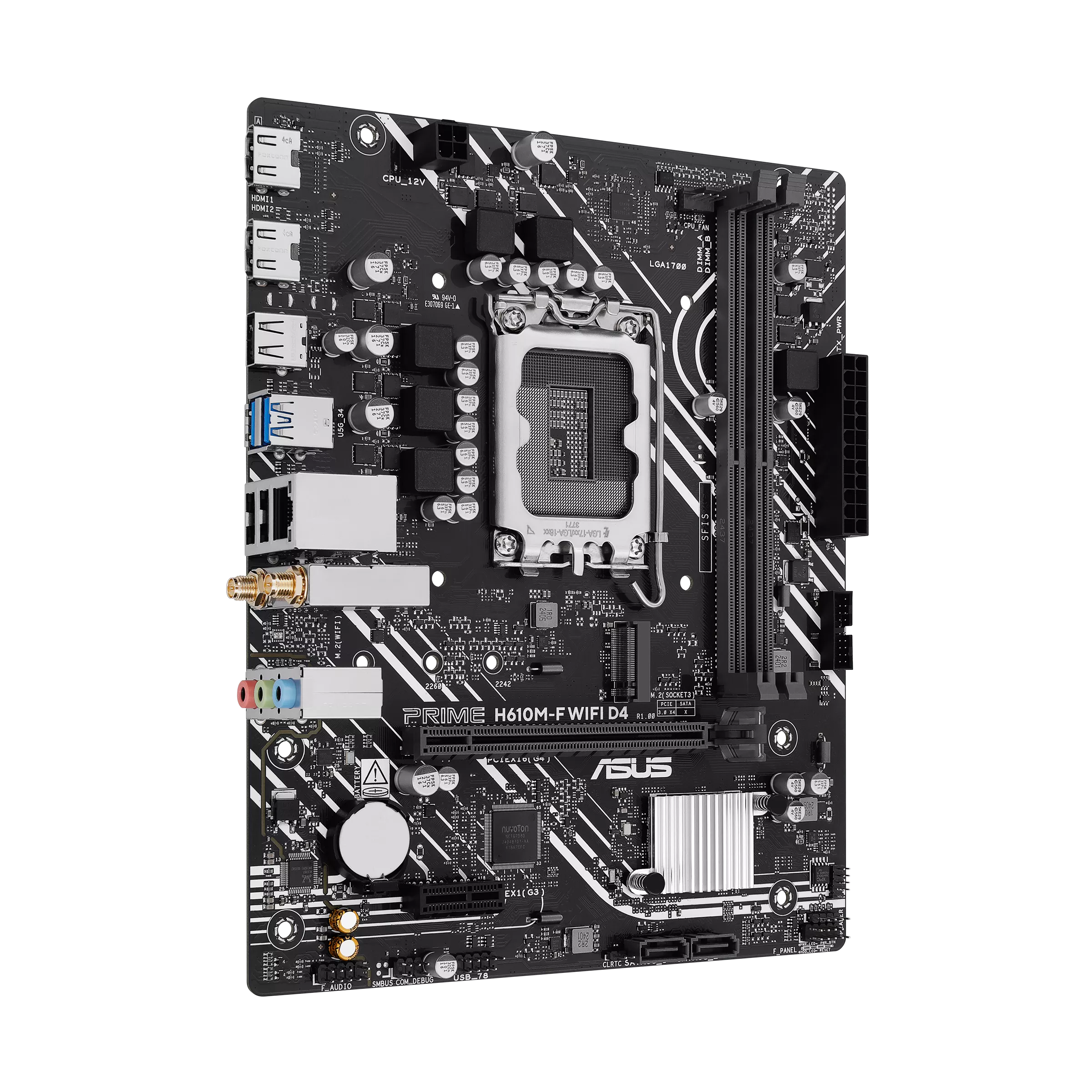

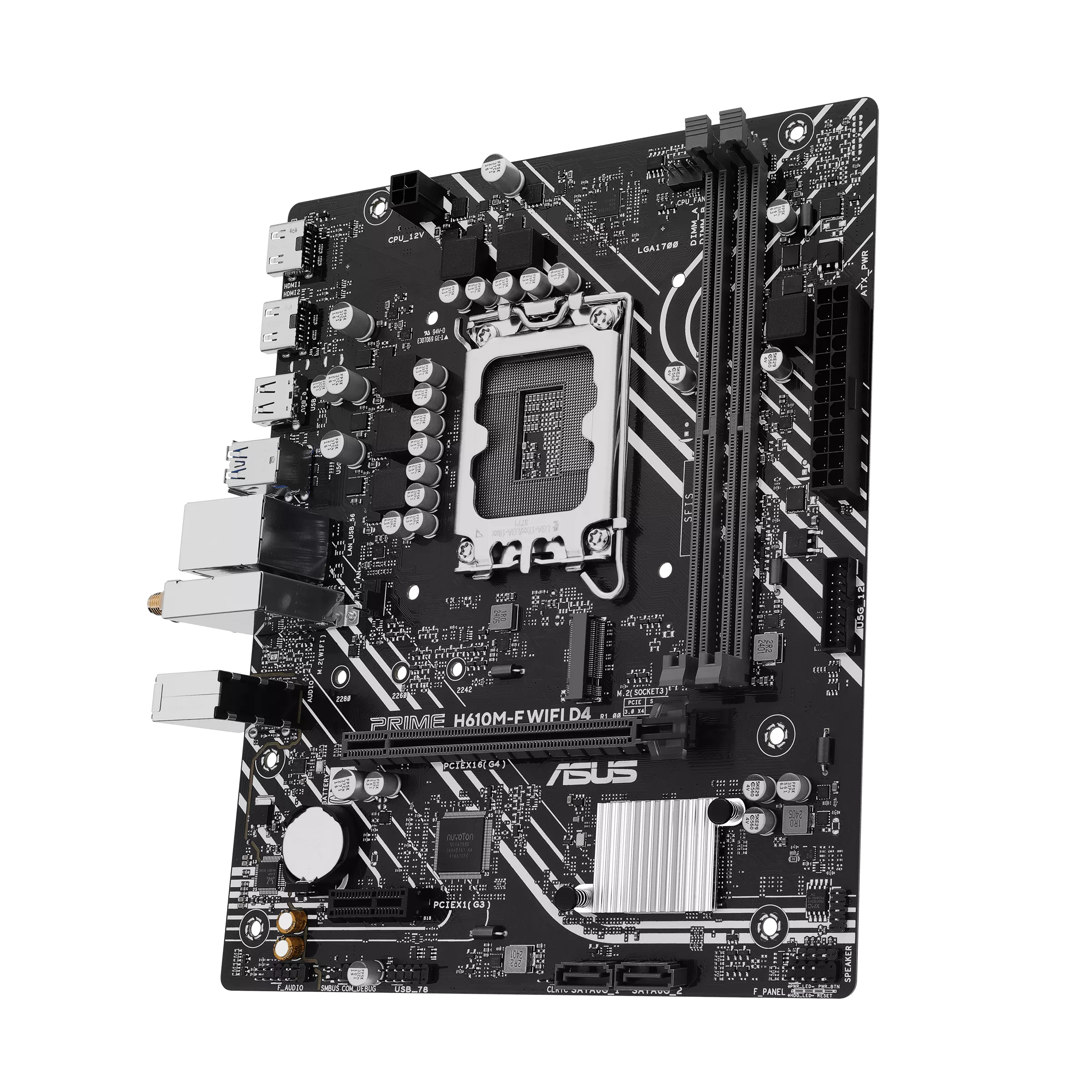

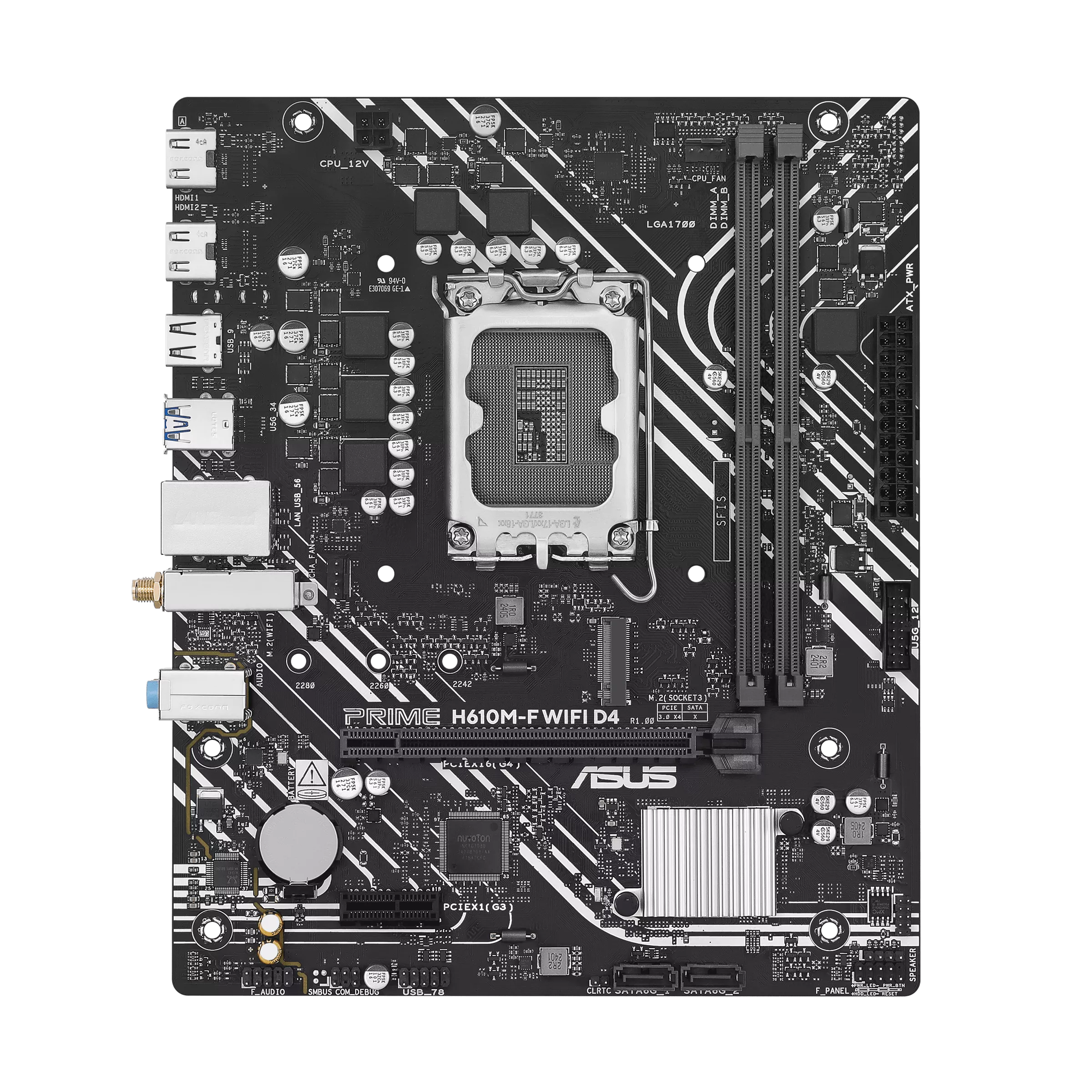

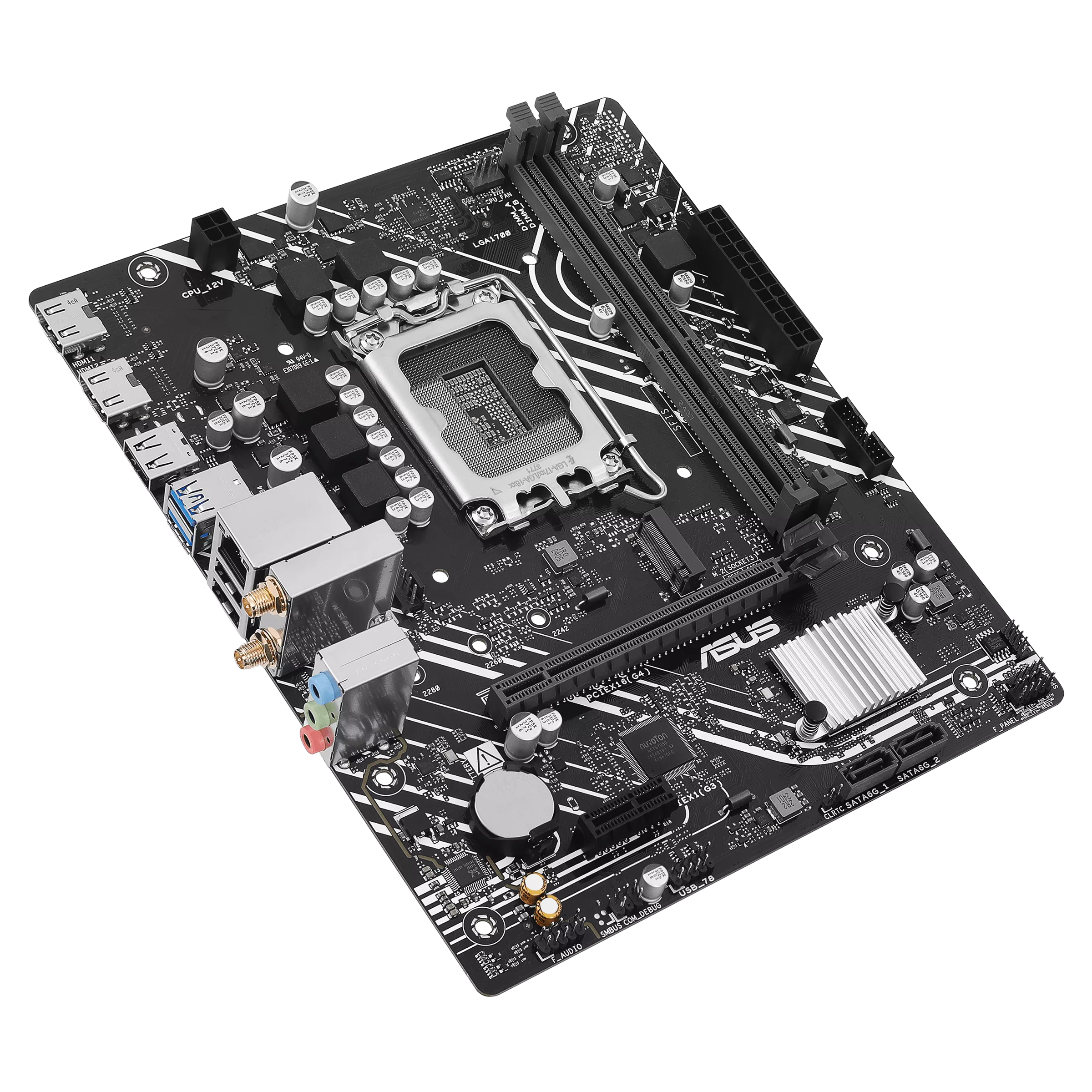

Asus Prime H610M-F WIFI D4 micro-ATX Motherboard ( Intel Socket LGA1700, Supports Intel Core 14th & 13th Gen Cpu, Intel Core 12th Gen, Pentium Gold and Celeron Cpu, 2 x DDR4 RAM Slots, Max 64GB RAM )

  • Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors
  • Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support
  • Comprehensive Cooling: PCH heatsink
  • 5X Protection III: Multiple hardware safeguards for all-round protection

₹7,950.00

Out of stock

Compare

Asus Prime H610M-F WIFI D4 micro-ATX Motherboard ( Intel Socket LGA1700, Supports Intel Core 14th & 13th Gen Cpu, Intel Core 12th Gen, Pentium Gold and Celeron Cpu, 2 x DDR4 RAM Slots, Max 64GB RAM )

  • FLEXIBILITY- Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
  • All-Around Energy Efficiency- The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
  • Precise Digital Power Control- The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
  • UEFI BIOS- The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
  • Advanced Tuning for Serious Tweakers- An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
  • Quick and Simple Setup- EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
  • storage- PRIME H610M-F WIFI D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
  • PCIe 4.0- Prime H610 motherboards are designed specifically for 14th, 13th and 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Model PRIME H610M-F WIFI D4
CPU Intel Socket LGA1700 for Intel Core 14th & 13th GenProcessors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0**** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel H610 Chipset
Memory 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architectureSupports Intel Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list
Graphics 2 x HDMI port**
* Graphics specifications may vary between CPU types.** Supports 4K@30Hz as specified in HDMI 1.4.
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
– To ensure compatibility of the device installed
Storage Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
2 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet

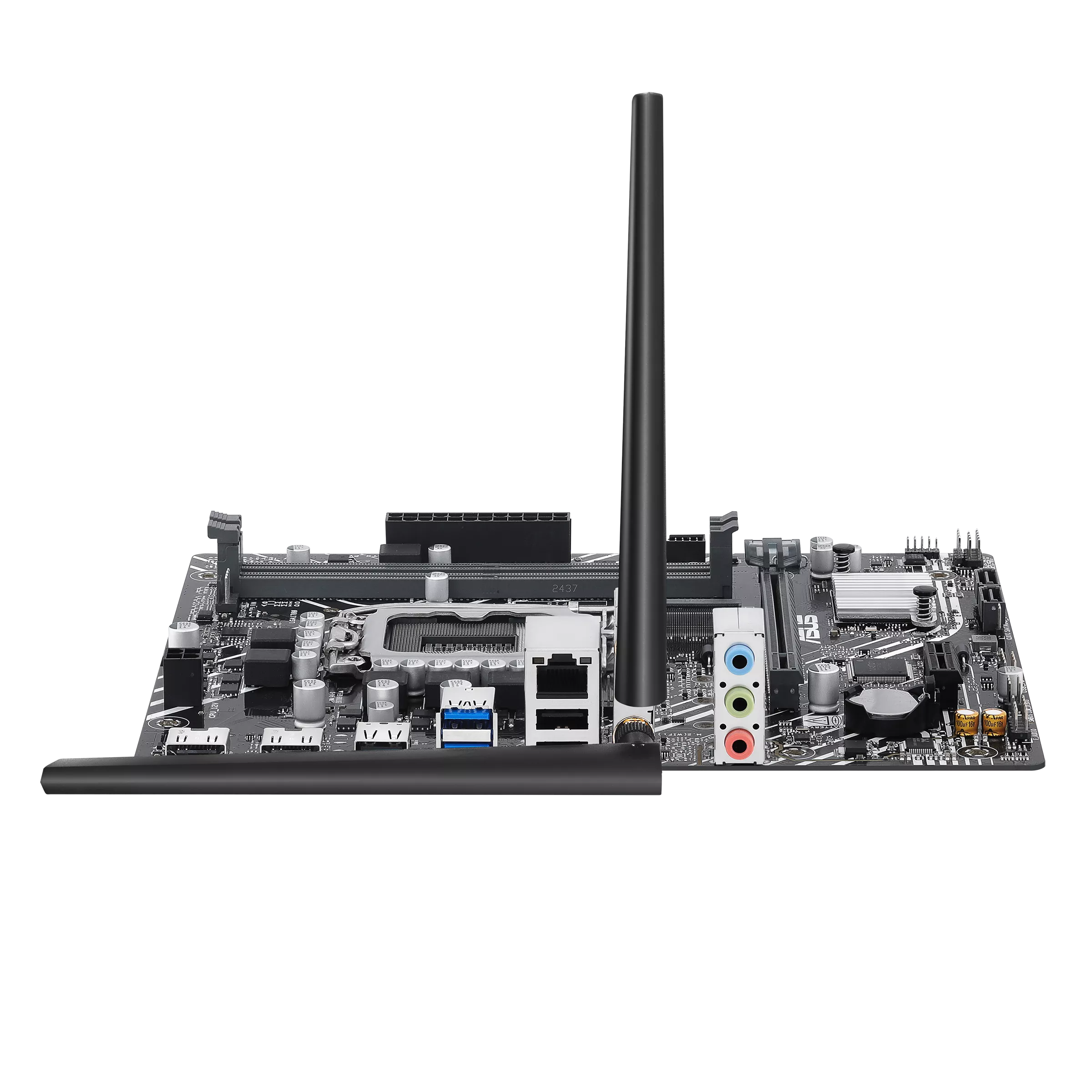

Wireless & Bluetooth Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB Rear USB (Total 5 ports)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

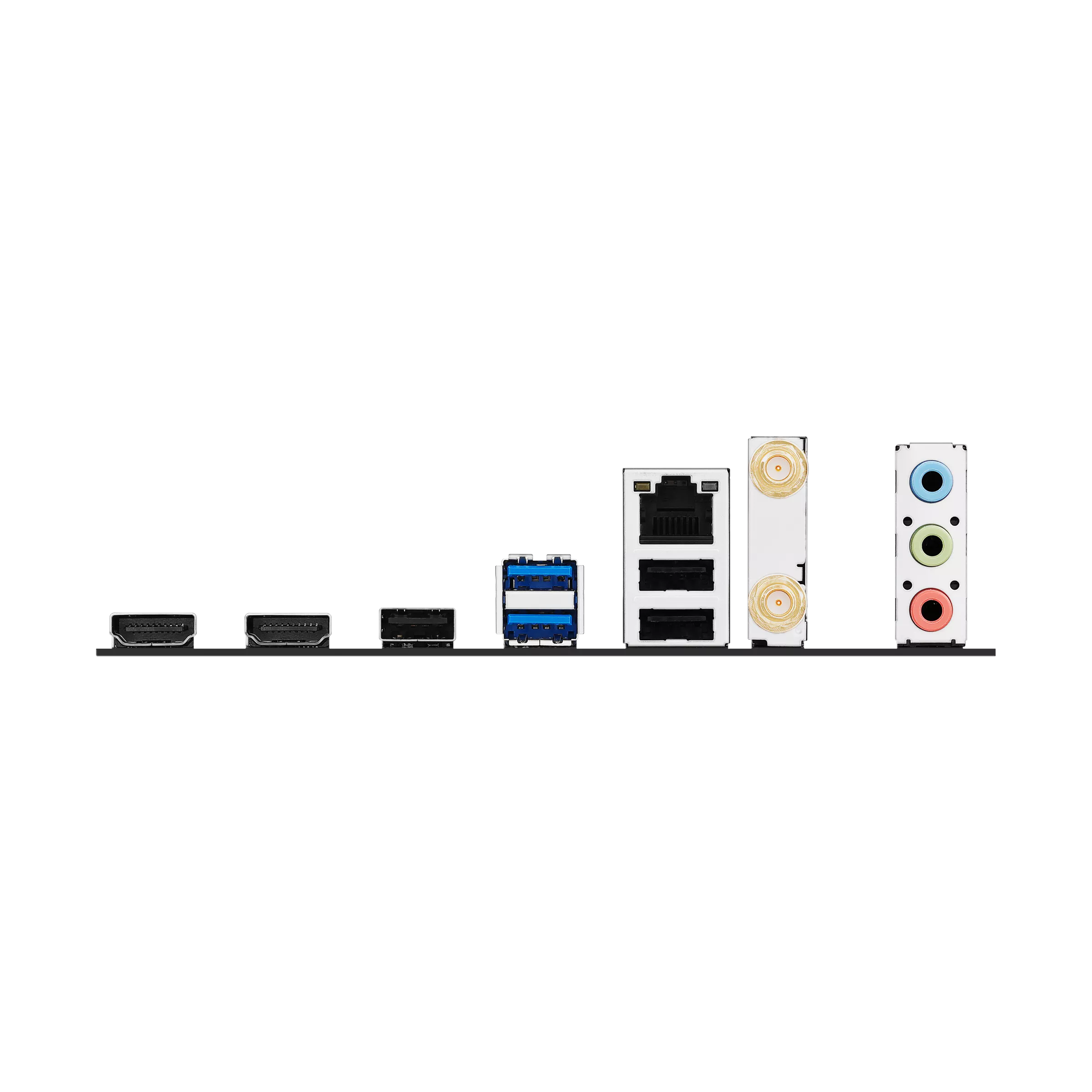

Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
2 x HDMI port
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin Front Panel System header
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage protection
– SafeSlot Core
– Stainless-steel back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Aluminum heatsink design
Software Features ASUS Exclusive Software
Armoury Crate
– Power Saving
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
BIOSx 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

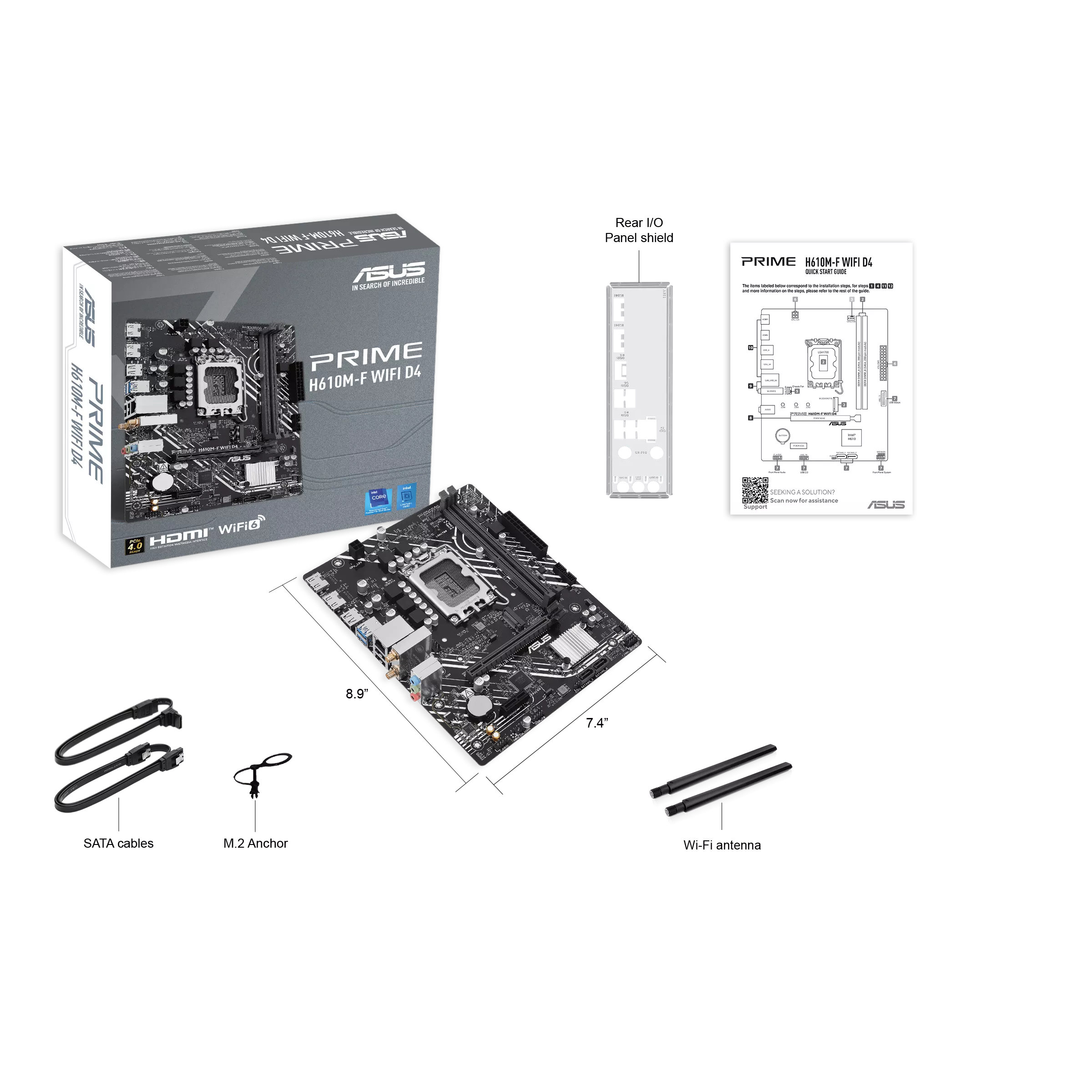

Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas

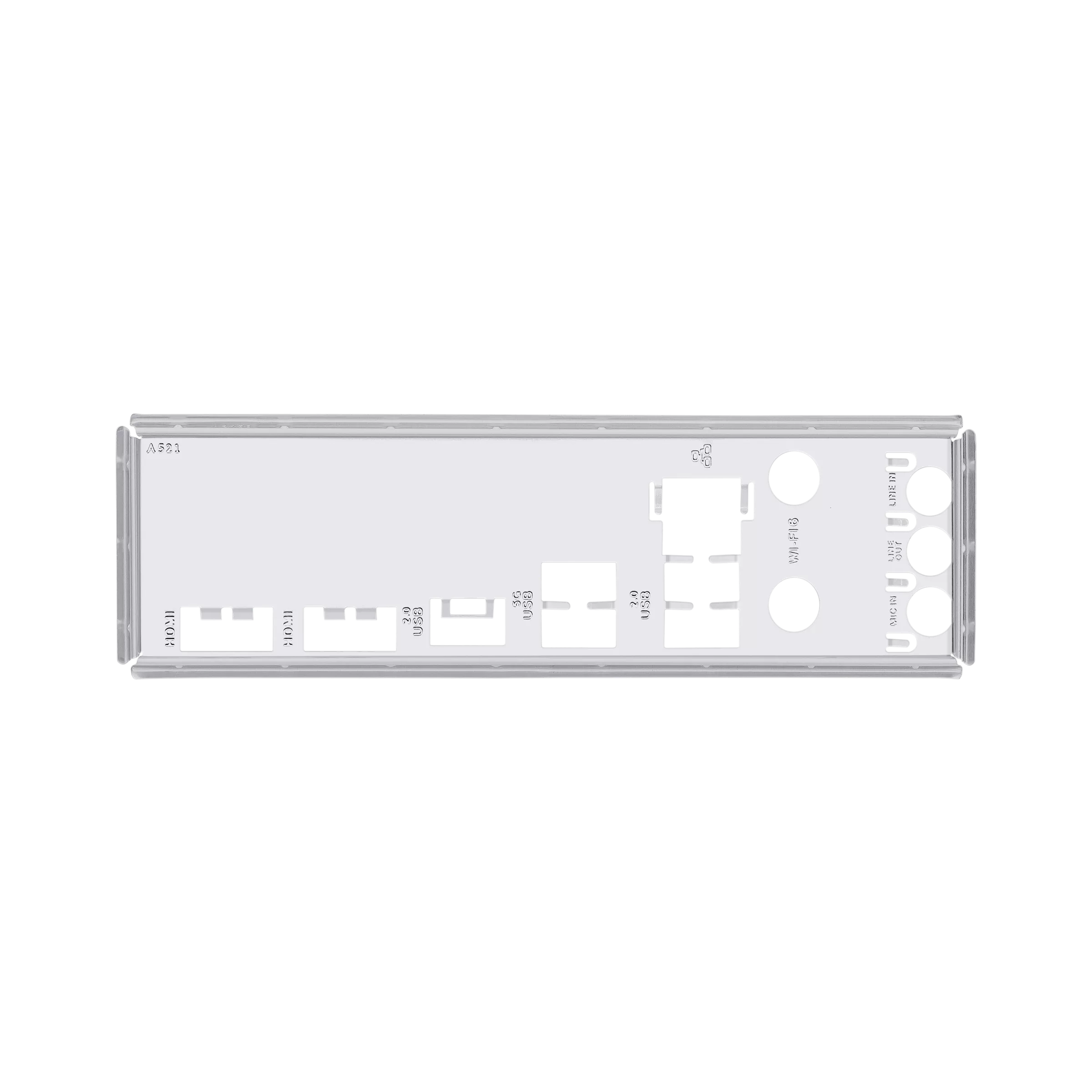

1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide
Operating System Windows 11 , Windows 10 64-bit
Form Factor micro-ATX Form Factor 8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )
SKU: PRIME-H610M-F-WIFI-D4 Categories: , , Brand:
Brand

Mb Form Factor

Mb Platform

Mb Cpu Support

Mb Socket

LGA1700
MB Chipset

Intel H610
No Of Ram Slots

Supported Memory Type

DDR4
Max Memory Support

Mb Wifi In Built

Mb M.2 Slots
