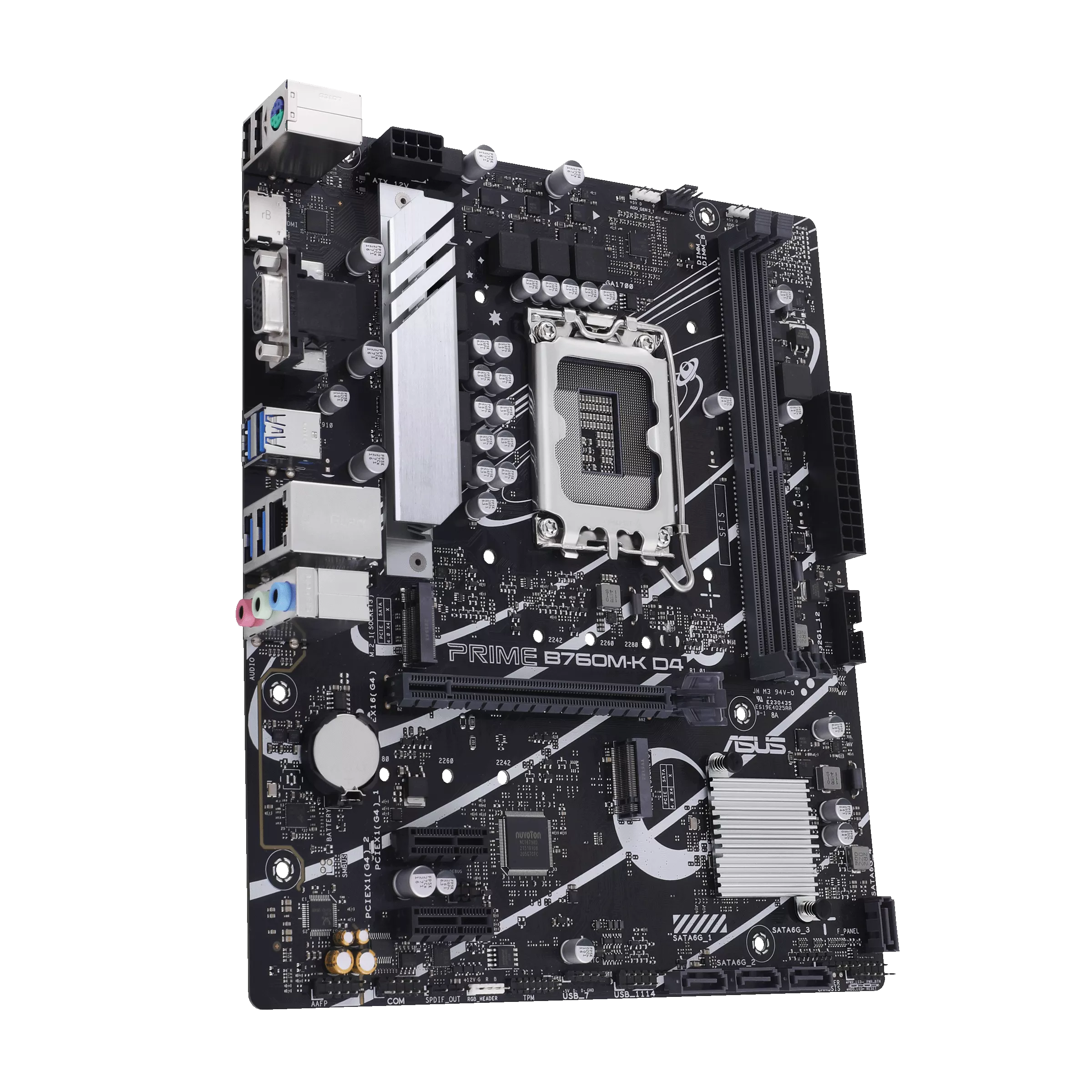

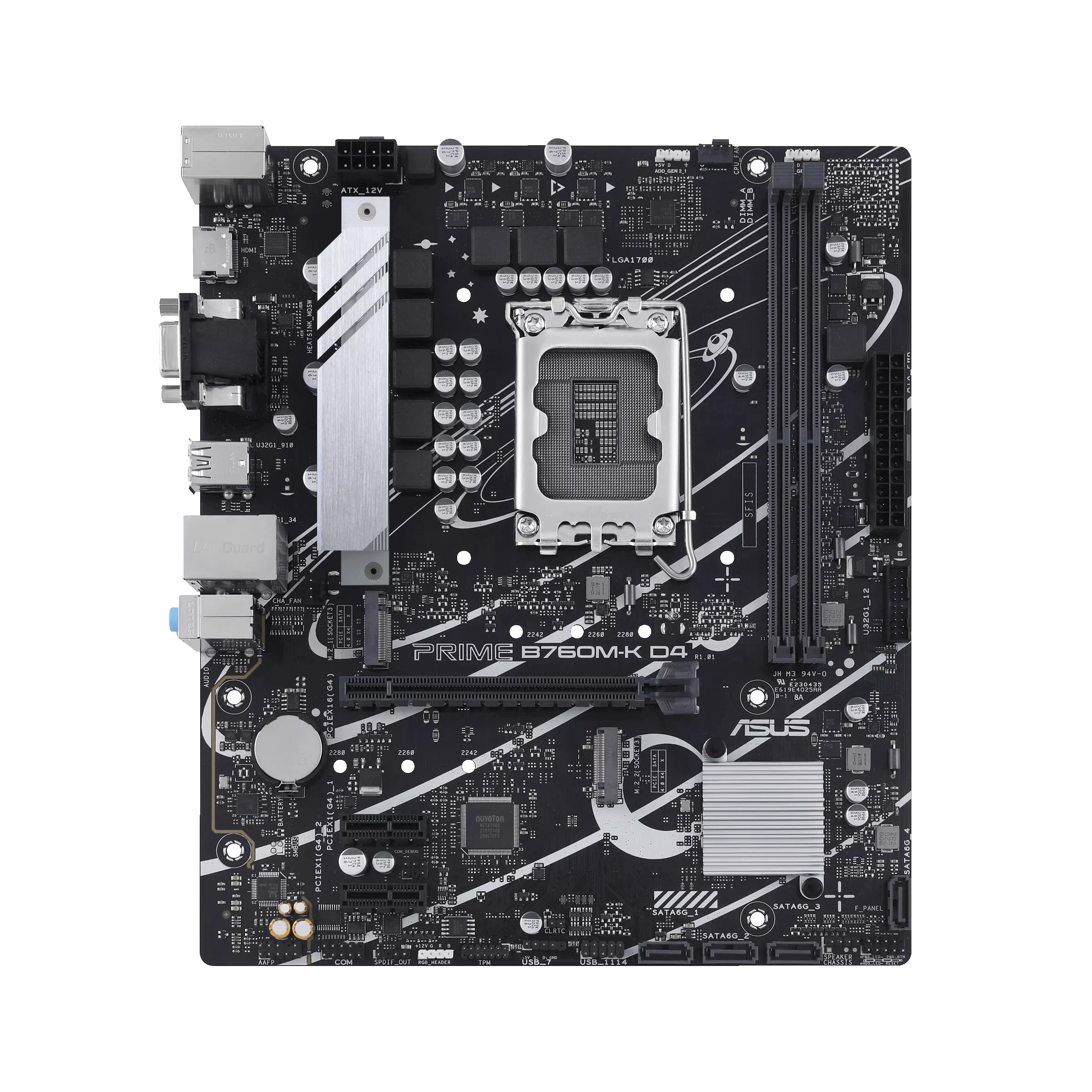

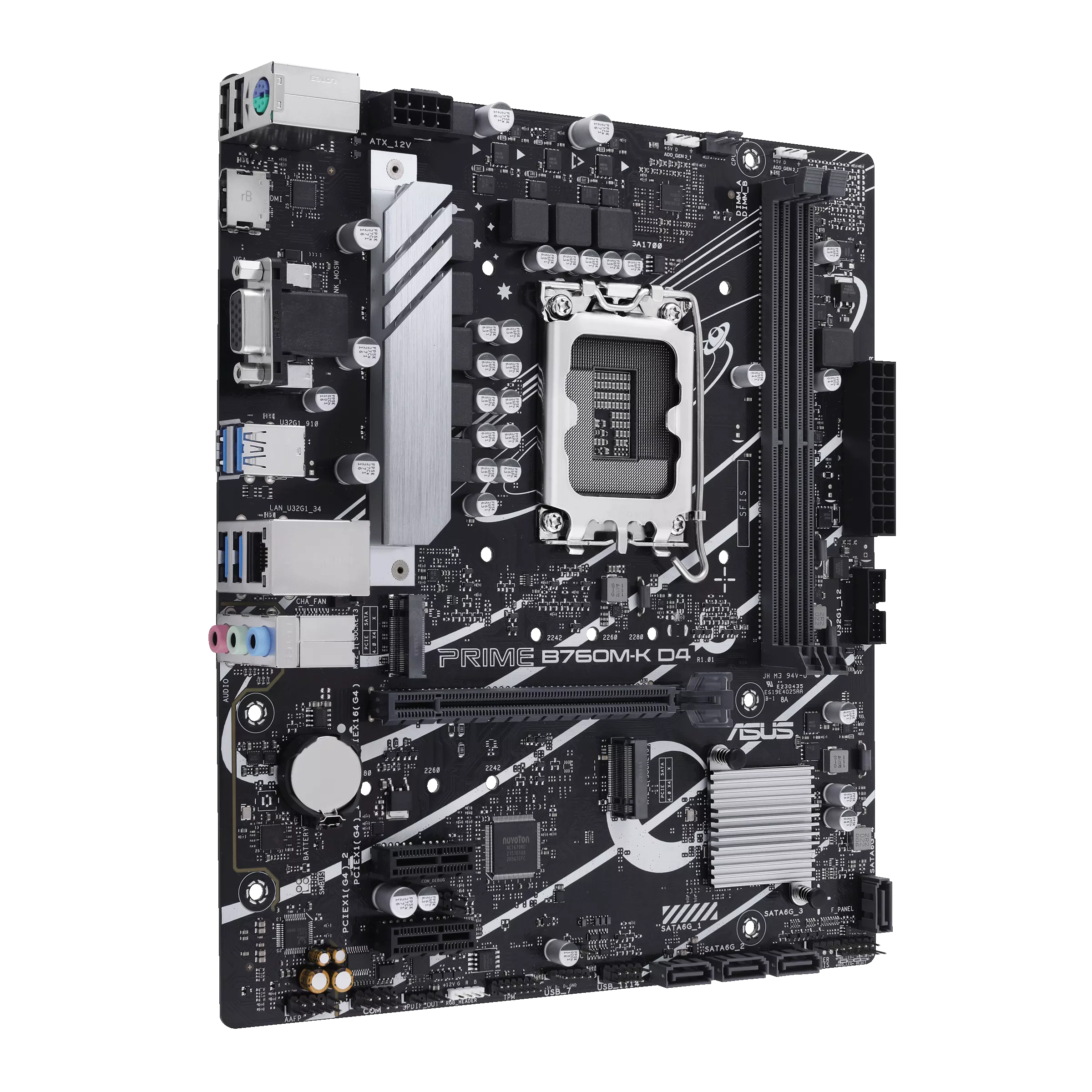

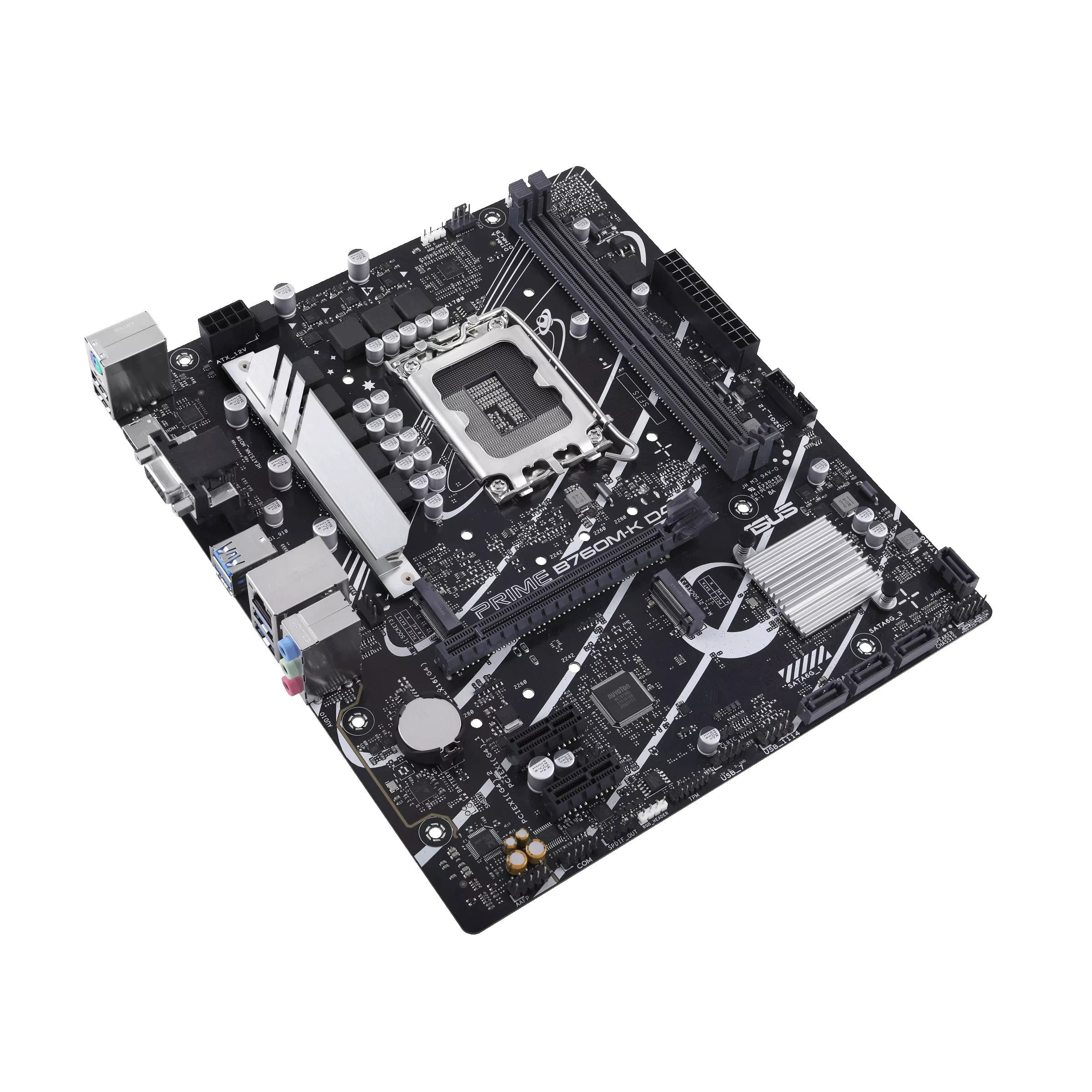

Asus PRIME B760M-K D4 mATX Motherboard ( Intel Socket LGA1700 , Support Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors, 2 x DDR4 Ram Slots, Max 64GB Memory Support )

Asus PRIME B760M-K D4 mATX Motherboard ( Intel Socket LGA1700 , Support Intel Core 14^th & 13^th Gen Processors, Intel Core 12^th Gen, Pentium Gold and Celeron Processors, 2 x DDR4 Ram Slots, Max 64GB Memory Support )

• Model
  • PRIME B760M-K D4
• CPU
  • IntelSocket LGA1700 for Intel Core 14^th & 13^th Gen Processors, Intel Core 12^th Gen, Pentium Gold and Celeron Processors*
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
    ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel B760 Chipset
• Memory
  • 2 x DIMM, Max. 64GB, DDR4
    5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list .
• Graphics
  • 1 x VGA port
    1 x HDMI port**
    * Graphics specifications may vary between CPU types.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • IntelCore Processors (14^th &13^th & 12^th Gen)
    1 x PCIe 4.0 x16 slot
    Intel B760 Chipset
    2 x PCIe 4.0 x1 slots
    Note: To ensure compatibility of the device installed,
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel Core Processors (14^th&13^th & 12^th Gen)
    2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
• USB
  • Rear USB (Total 6 ports)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A）
    Front USB (Total 5 ports)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

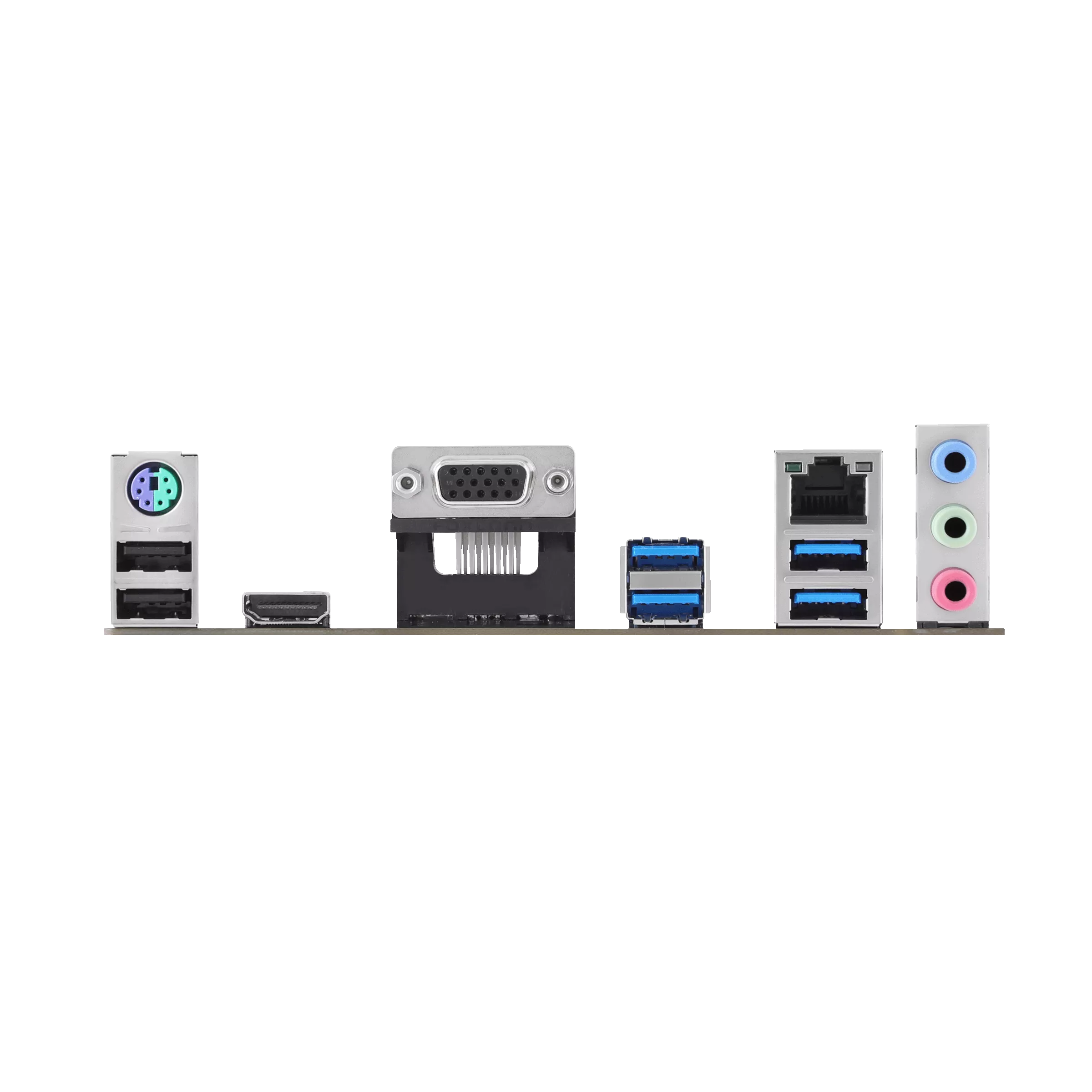

• Back Panel I/O Ports
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x VGA port
    1 x HDMI port
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
  • Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin Chassis Fan header
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 3 additional USB 2.0 ports
    Miscellaneous
    2 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header
• Special Features
  • ASUS 5X PROTECTION III
    – DIGI+ VRM
    – LANGuard
    – Overvoltage Protection
    – SafeSlot Core
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – Q-DIMM
    – Q-LED Core
    – Q-Slot
    ASUS EZ DIY
    – ProCool
    ASUS Thermal Solution
    – VRM heatsink design
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
    Armoury Crate
    – Aura Sync
    – Fan Xpert
    – Power Saving
    AI Suite 3
    – DIGI+ VRM
    – PC Cleaner
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
  • WOL by PME, PXE

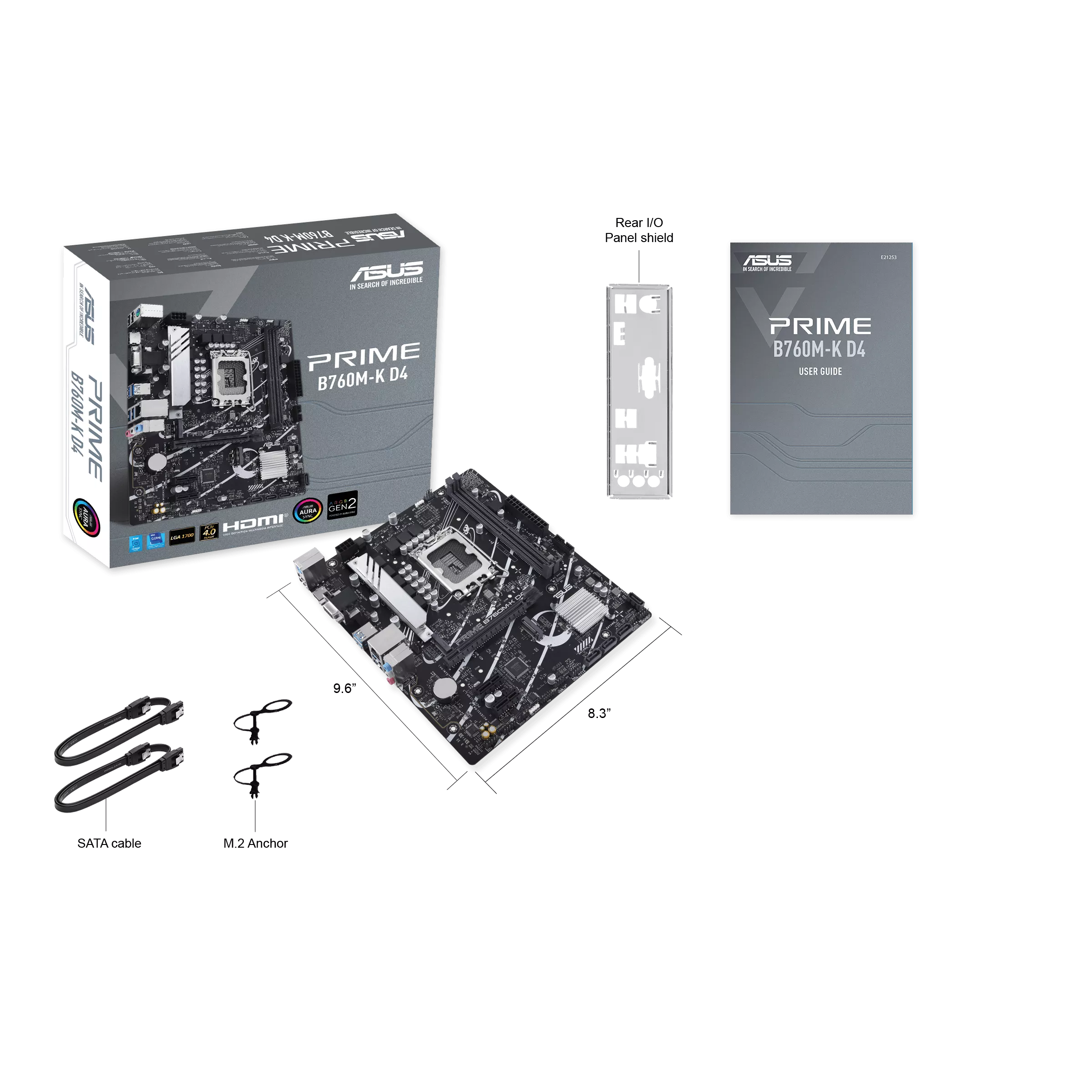

• Accessories
  • Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    2 x M.2 anchors
    Documentation
    1 x User guide
• Operating System
  • Windows11, Windows 10 64-bit
• Form Factor
  • mATX Form Factor
    6 inch x 8.3 inch (24.4cm x 21.1cm)
