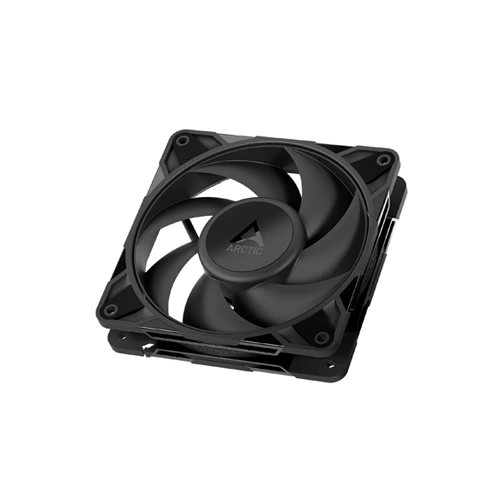

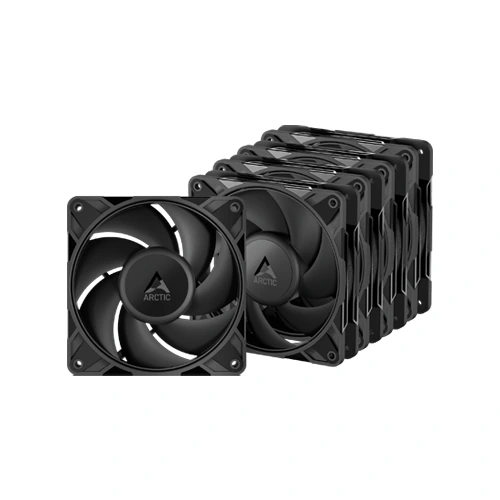

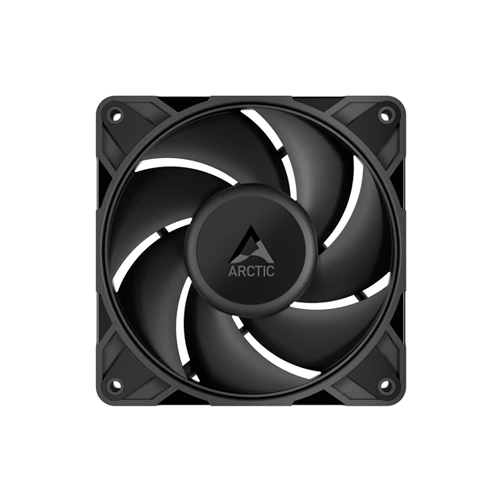

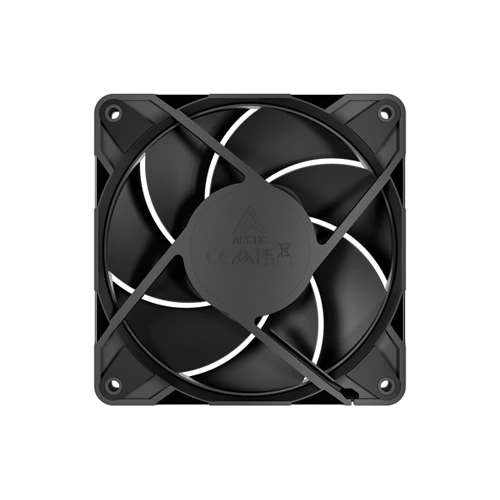

Arctic P12 Pro PST 120mm Five Pack 3000RPM PWM Cabinet Fan With Cable Splitter ( ACFAN00307A )

Arctic P12 Pro PST 120mm Five Pack 3000RPM PWM Cabinet Fan With Cable Splitter ( ACFAN00307A )

• Maximum Performance, Redefined :- Revised fan blade design for an optimal balance of performance and smooth operation.
• Optimized Bearing-Shaft Design (FDB) :- A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
• Automated Balancing:- An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
• SOTA Microcontroller:- Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
• More Power – Less Noise:- The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
• Minimum Gap Dimensions for Maximum Efficiency:- Enables higher static pressure and maximum airflow efficiency.
• Fan Specifications:
  • Fan Speed: 600–3000 rpm, PWM controlled 0 rpm below 5 % PWM
  • Airflow: 77 cfm | 131 m³/h
  • Static Pressure: 6.9 mmH2O
  • Fan Bearing: Fluid Dynamic Bearing
  • Typical Voltage: 12 V DC
  • Start Up Voltage: 3.3 V DC
  • Current: 0.33 A
  • Cable Length: 400 mm + 80 mm Daisy-Chain Cable
  • Connector: 4-Pin Fan Plug + 4-Pin Socket
• General Specifications
  • Operating Ambient Temperature: 0–40 °C
  • Dimensions: 120 (L) x 120 (W) x 25 (H) mm
  • Net Weight: 185 g
