Arctic Liquid Freezer III Pro 360 A-RGB Multi Compatible All-in-One Black CPU Liquid Cooler ( ACFRE00184A )

Arctic Liquid Freezer III Pro 360 A-RGB Multi Compatible All-in-One Black CPU Liquid Cooler ( ACFRE00184A )

Integrated VRM Fan :- PWM-controlled fan lowers the voltage regulator temperature, ensuring stable performance.

Offset Mounting for Intel and AMD:- Shifts the cold plate to the CPU hotspot for more efficient heat transfer.

Intel Contact Frame:- Optimized contact pressure distribution for longer CPU lifespan and improved heat dissipation.

Integrated Cable Management:- Fan cables integrated into the sleeving simplify installation and minimize cable clutter.

The New P12 Pro Fans More Performance at Any Speed:- The P12 Pro unleashes its full potential: quieter and more powerful at low speeds, with greater performance reserves under load—for maximum cooling without compromise.

Premium-Class Radiator:- The 38 mm radiator not only enhances heat dissipation but also holds more liquid than conventional 27 mm radiators. This reduces heat buildup and ensures more efficient handling of temperature spikes.

Premium Tubing:- Reinforced EPDM tubing with braided sheathing for increased durability

Easy Installation:- Pre-installed, pre-wired fans, straightforward mounting, and an animated online manual.

Includes MX-6 Thermal Paste:- Simply apply in a cross pattern—the water pump’s cold plate distributes the paste evenly

Limited Compatibility with Certain Motherboards:- Some motherboards may be incompatible with the Liquid Freezer III Pro due to oversized SSD coolers in the M.2_1 slot. For affected motherboards, we provide a compatible M.2 cooler free of charge.

General Specifications

• TIM :- MX-6 (0.8 g)
• Warranty :- 6 Years
• Operating Ambient Temperature :- 0—40 °C
• Pump :- 800–2800 rpm, (PWM controlled)
• Current | Voltage :- 0.35 A | 12 V DC
• Cold Plate :- Copper, Micro Skived Fins
• Tube Length :- 450 mm
• Tube Diameter :- Outer: 12.4 mm, Inner: 6.0 mm
• Weight :- 2005 g

Compatibillity

• Intel:-LGA1851, LGA1700
• AMD:-AM5, AM4
• PI | NNPI:-396 | 326

Radiator

• Material:-Aluminium

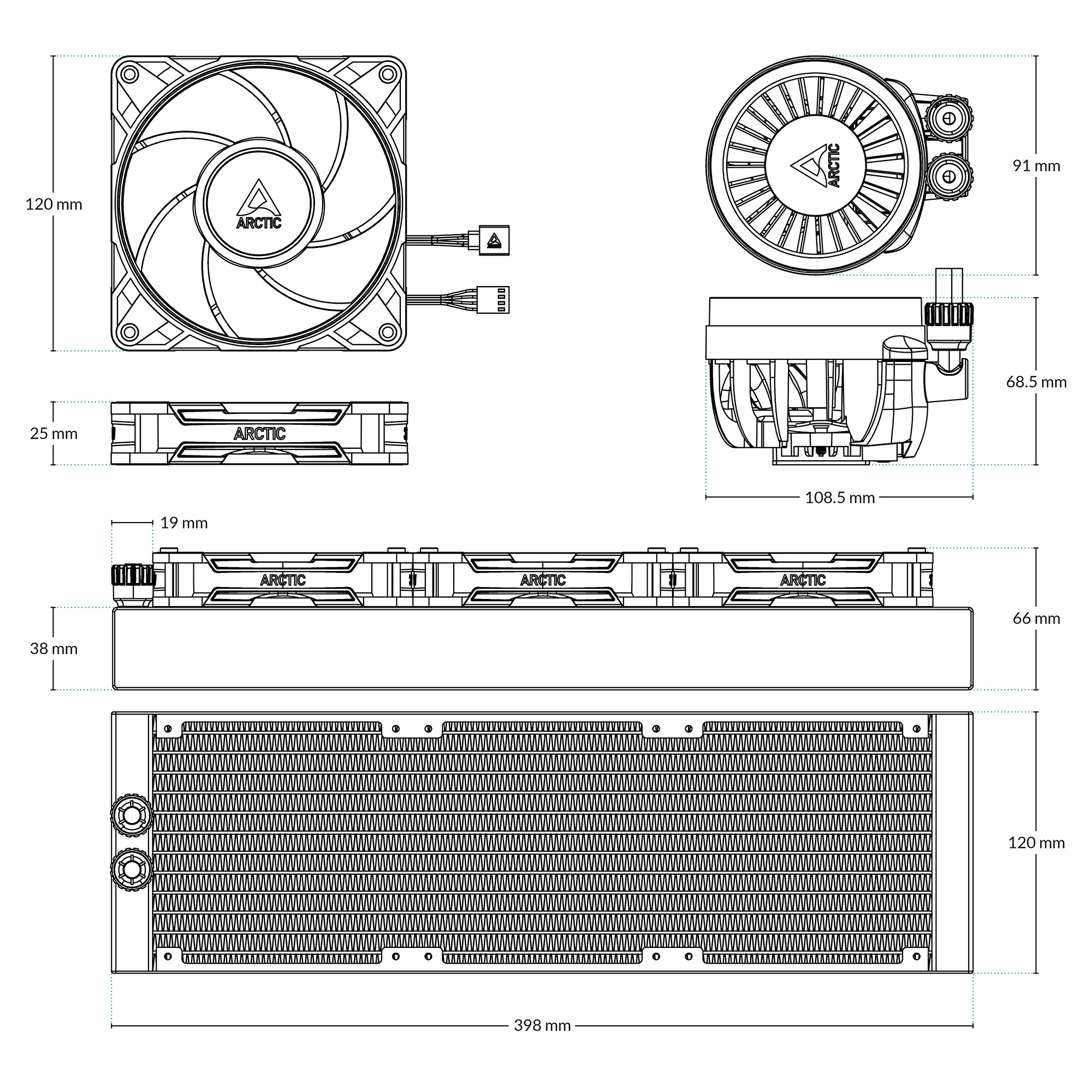

• Dimensions:-398 (L) x 120 (W) x 38 (H) mm

VRM Module

• VRM Fan:-400–2500 rpm (PWM-controlled)
• Current | Voltage:-0.05 A | 12 V DC
• LEDs:-12x A-RGB Gen2 LEDs
• Current | Voltage:-0.40 A | 5 V DC

Radiator Fan

• General:-3x P12 Pro A-RGB
• Speed:-600–3000 rpm
• Airflow:-77 cfm | 131 m³/h³/h
• Static Pressure:-6.9 mmH₂O
• Bearing:-Fluid Dynamic Bearing
• Current | Voltage:-0.33 A | 12 V DC
• Connector:-4-Pin Fan Plug

RGB

• LEDs:-12x A-RGB Gen2 LEDs
• Current | Voltage:-0.40 A | 5 V DC
• Connector:-3-Pin A-RGB Plug + 3-Pin Socket
