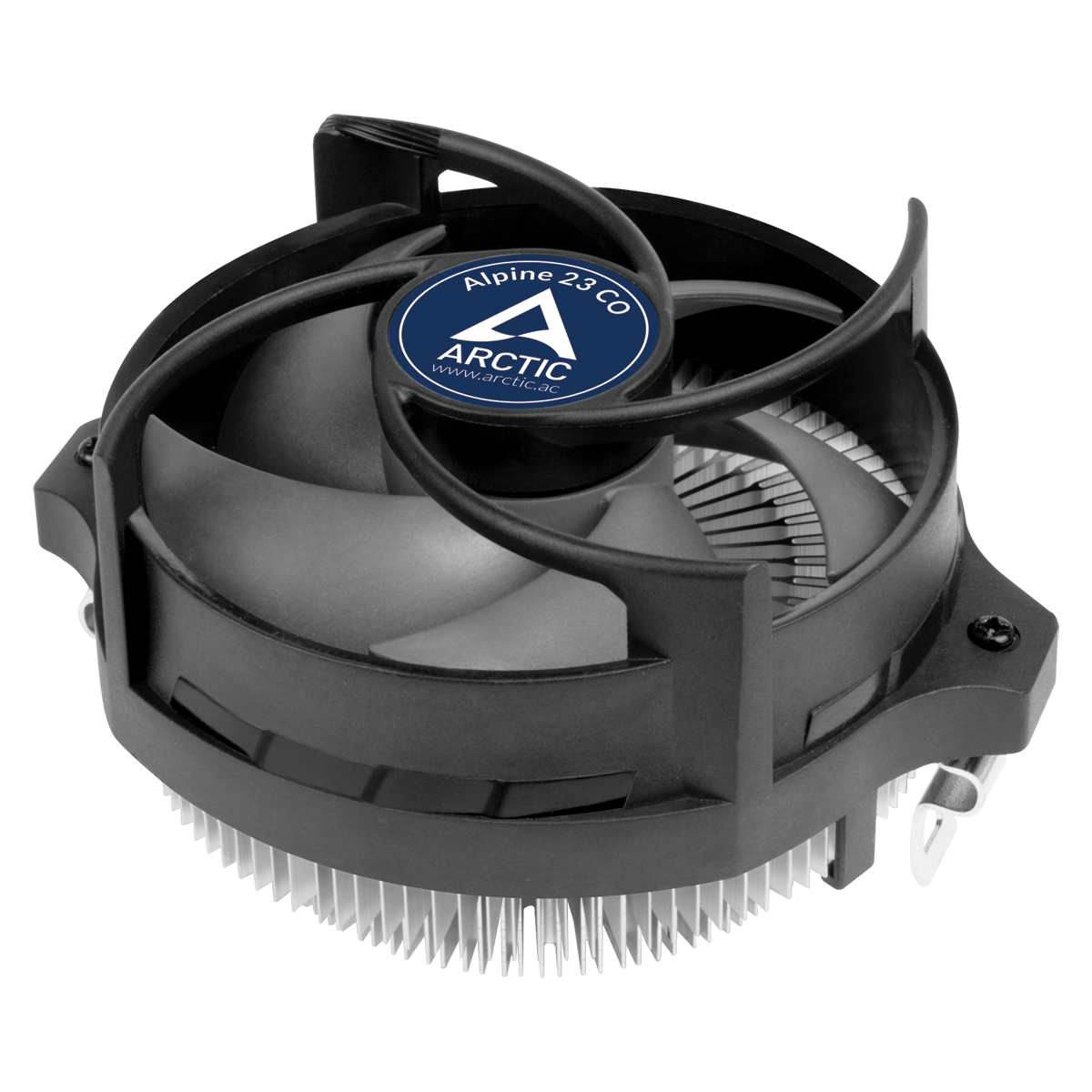

Arctic Alpine 23 CO Compact AMD CPU Air Cooler For Continuous Operation ( ACALP00036A )

Arctic Alpine 23 CO Compact AMD CPU Air Cooler For Continuous Operation ( ACALP00036A )

• Future-Proof Compatibility :- At the end of 2022, AMD released the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we can guarantee the compatibility of ARCTIC coolers with AMD’s new processors.

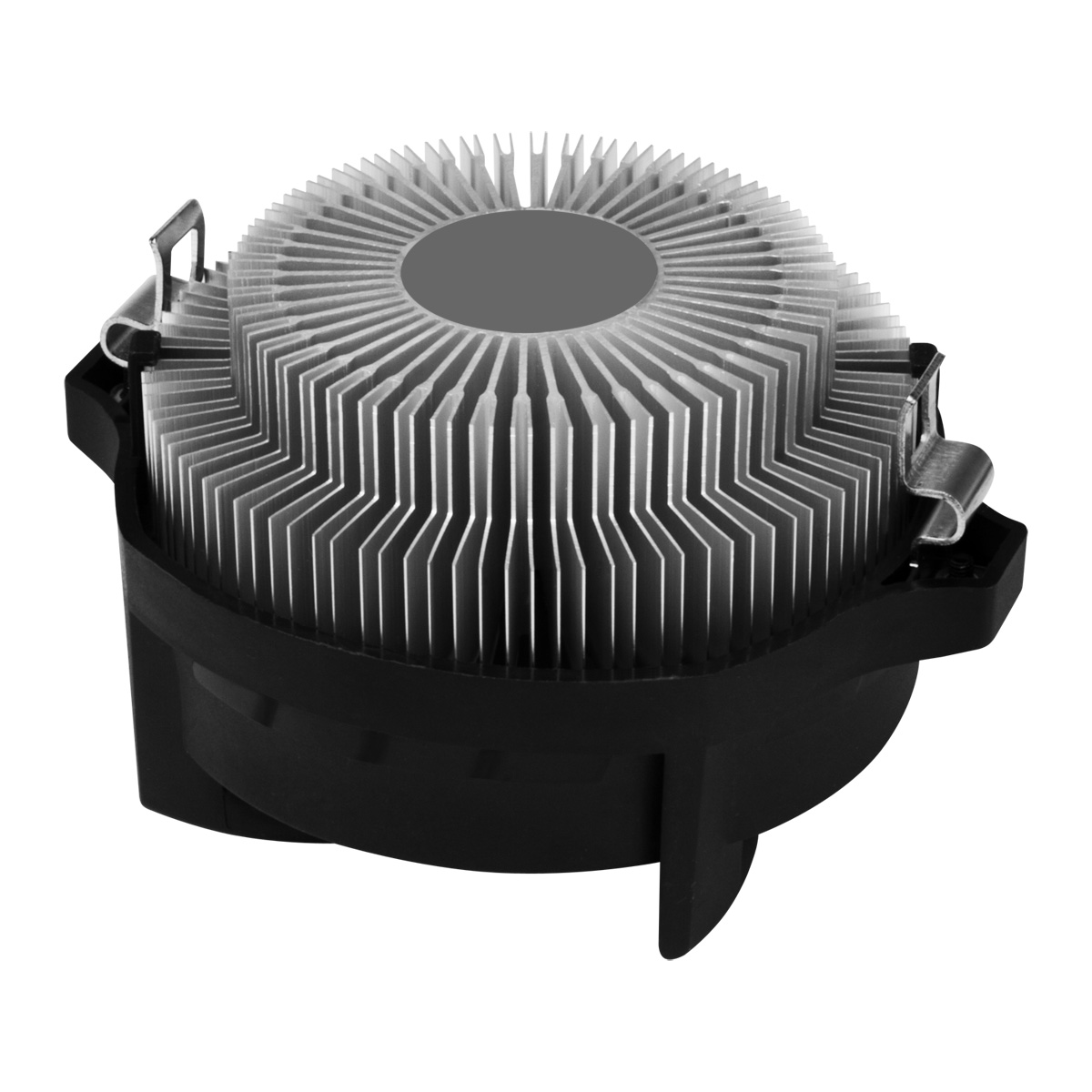

• Improved Cooling Performance by New Production Process :- The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
• Wide rpm Range :- The Alpine 23 CO features a new motor technology with a very wide, PWM-controlled rpm range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.
• Lower Power Consumption & Minimum Vibration :- The new Alpine 23 CO is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from the commutation of a regular DC motor. These factors contribute to saving energy, lowering the coil temperature, and reducing vibrations to a minimum without compromising performance.
• For Continuous Operation :- The premium quality dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
• Extended Life Span :- A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
• Pre-Applied MX-4 Thermal Paste :- The pre-applied, high-performance MX-4 thermal compound ensures fast and clean installation.
• Easy and Fast Installation :- Thanks to the mounting clips, the installation is really easy. Alpine 23 CO is simply plugged into the existing AMD retention modules and screwed tight.
• Quality You Can Rely On :- To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It’s a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer’s guarantee on the Alpine 23 CO.

General Specifications

• Compatibility
  • AMD Socket: AM5, AM4
  • Ram Clearance: unlimited
  • Warranty: 6 Years
  • Operating Ambient Temperature: 0—40 °C
• Heatsink

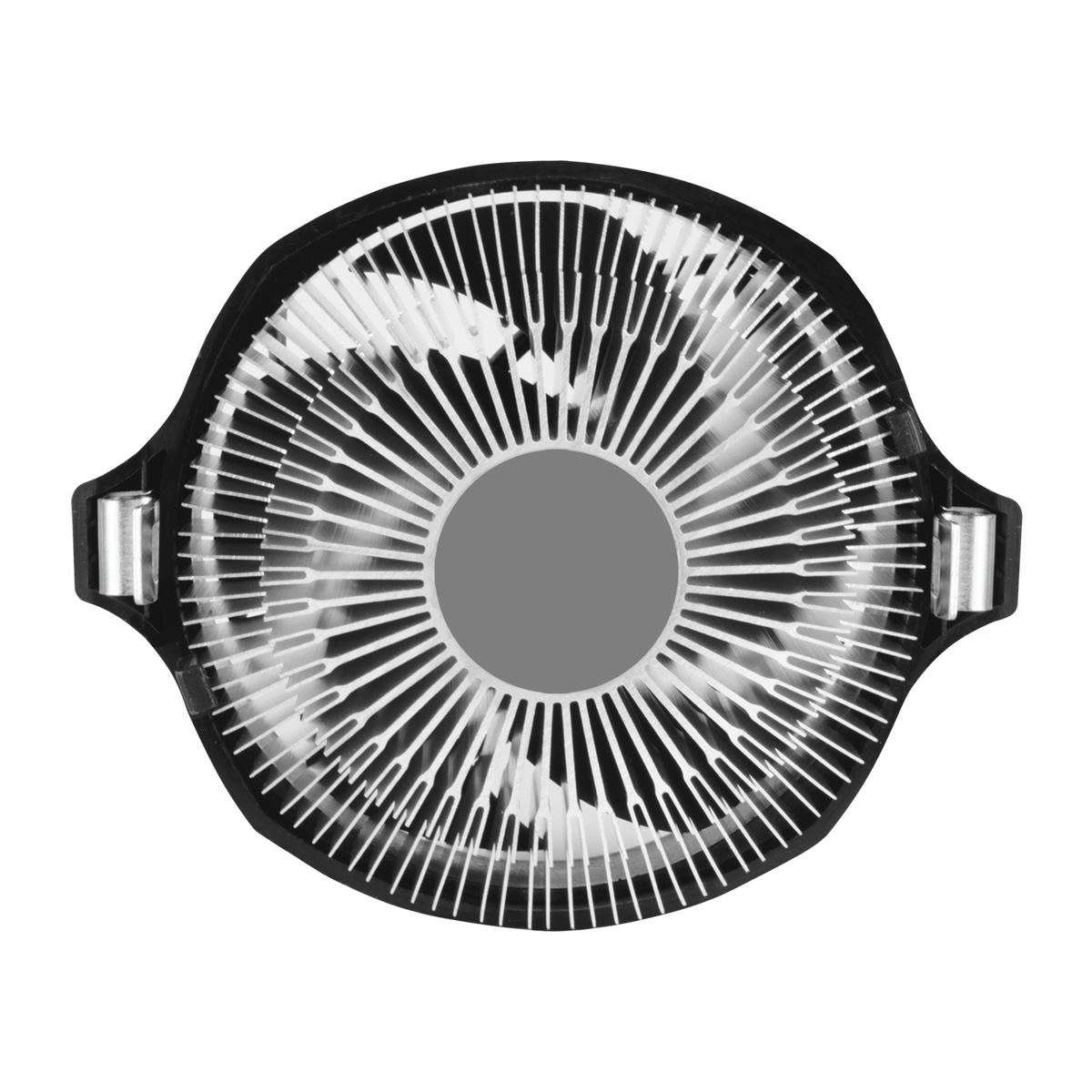

  • Outer Diameter: 93.4 mm
  • Fin Material: Aluminum
  • Number of Fins: 50 Y-shaped Fins
  • Thermal Paste: MX-4 pre-applied

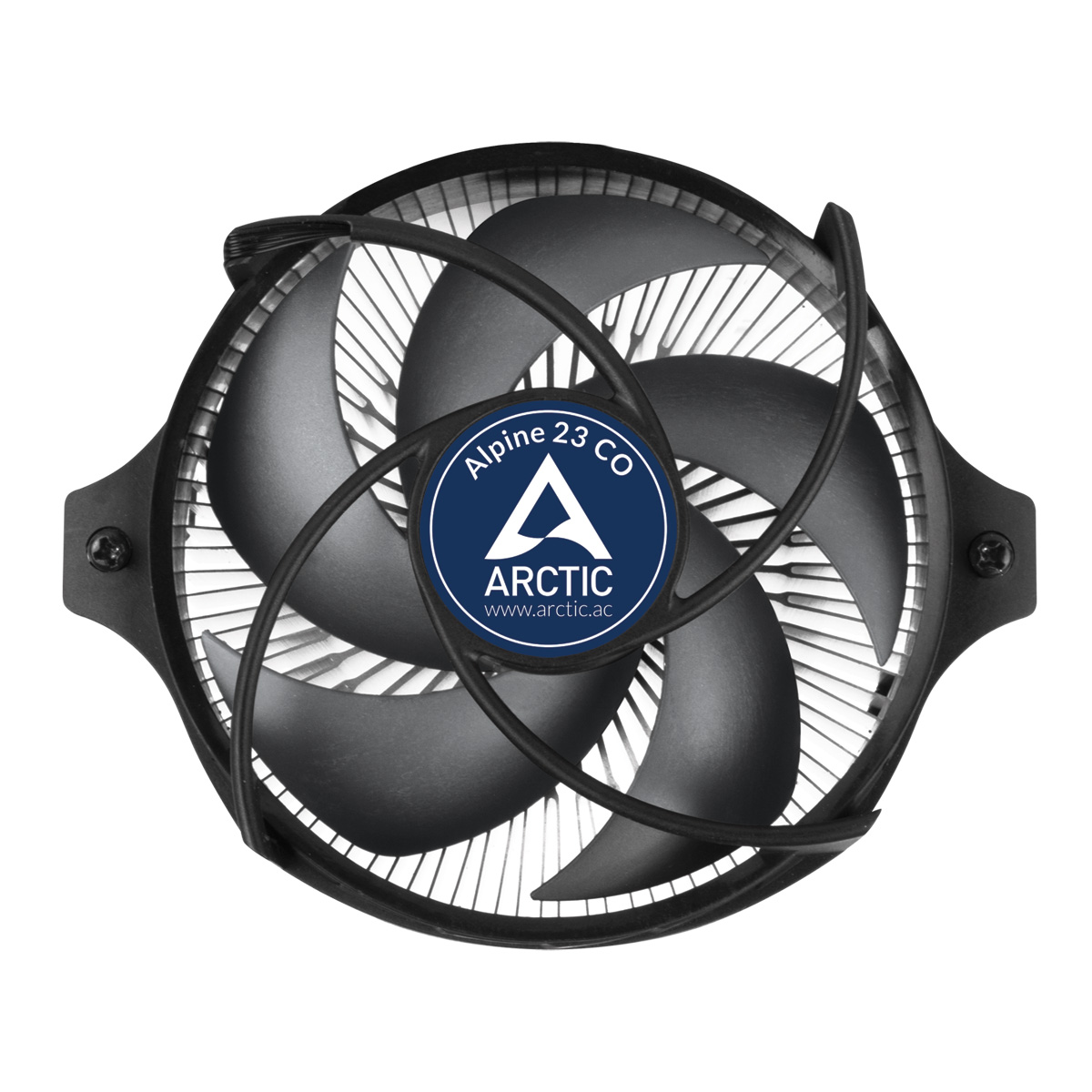

• Fan
  • Fan Diameter: 90 mm
  • Fan Speed: 200—2700 rpm
  • Fan Bearing: Dual Ball Bearing
  • Noise Level: 0.3 Sone
  • Current: 0.09 A
  • Connector: 4-Pin

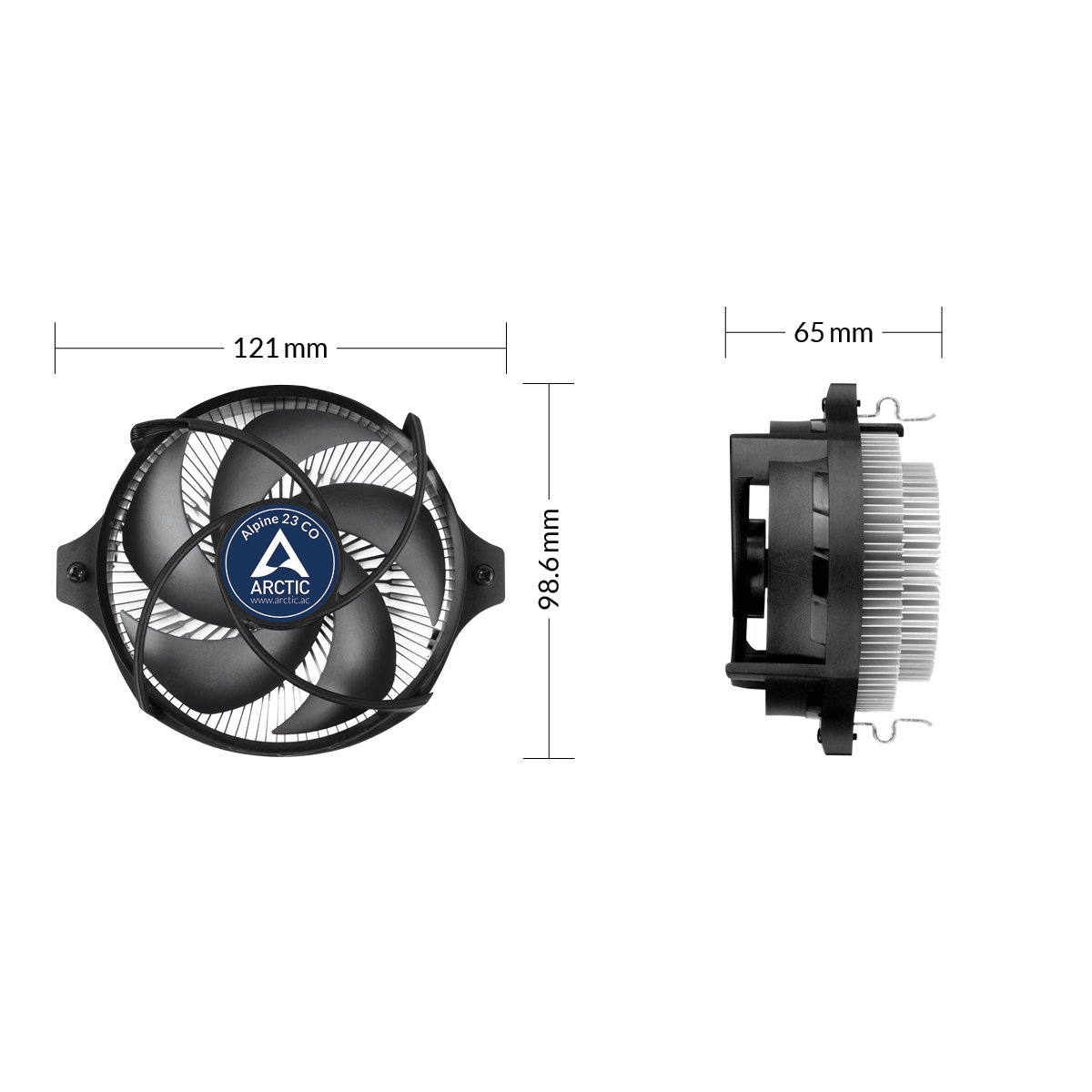

• Size & Weight
  • Installation height: 65 mm
  • Length: 98.6 mm
  • Width: 121 mm
  • Height: 65 mm
  • Weight: 275.5
• Packaging
  • Width: 111 mm
  • Height: 76 mm
  • Length: 111 mm
  • Weight: 0.338 kg
