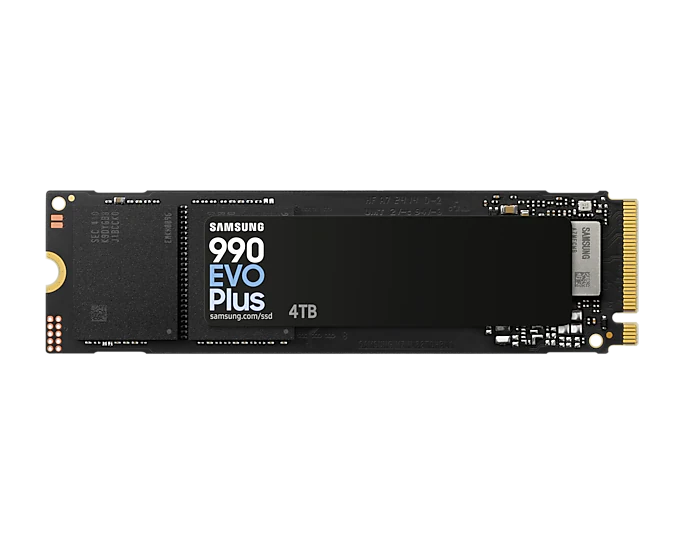

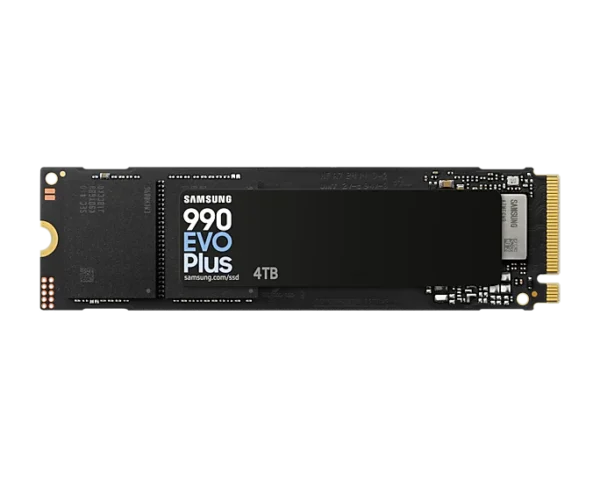

Samsung 990 EVO Plus 4TB M.2 NVMe 2.0 PCIe Gen 4.0 Internal SSD ( MZ-V9S4T0BW )

Samsung 990 EVO Plus 4TB M.2 NVMe 2.0 PCIe Gen 4.0 Internal SSD ( MZ-V9S4T0BW )

• Form Factor :-M.2
• Capacity :- 4TB
• Sequential Read Speed :-Up to 7,250 MB/s
• Sequential Write Speed :-Up to 6,300 MB/s

• Model Code (Capacity) :-MZ-V9S4T0BW(4TB)

General Feature

• Application :-Client PCs
• FORM FACTOR :-M.2 (2280)
• INTERFACE :-PCIe Gen 4.0 x4 / 5.0 x2 NVMe 2.0
• DIMENSION (WxHxD) :-80.15 x 22.15 x 2.38mm
• WEIGHT :-Max 9.0g Weight
• STORAGE MEMORY :-Samsung V-NAND TLC
• CONTROLLER :-Samsung in-house Controller
• CACHE MEMORY :-HMB(Host Memory Buffer)

Special Feature

• TRIM Support :-Supported
• S.M.A.R.T Support :-Supported
• GC (GARBAGE COLLECTION) :-Auto Garbage Collection Algorithm
• ENCRYPTION SUPPORT :-AES 256-bit Encryption (Class 0) TCG/Opal
  IEEE1667 (Encrypted drive)
• WWN SUPPORT :-Not supported
• DEVICE SLEEP MODE SUPPORT :-Yes

Performance

• SEQUENTIAL READ :-4TB: Up to 7,250 MB/s
• SEQUENTIAL WRITE :-4TB: Up to 6,300 MB/s
• RANDOM READ (4KB, QD32) :- 4TB: Up to 1,050,000 IOPS
• RANDOM WRITE (4KB, QD32) :- 4TB: Up to 1,400,000 IOPS

Environment

• AVERAGE POWER CONSUMPTION (System Level) :-4TB: Average: Read 5.5 W / Write 4.8 W
• POWER CONSUMPTION (IDLE):- 4TB: Typical 60 mW
• POWER CONSUMPTION (DEVICE SLEEP) :- 4TB: Typical 5mW
• ALLOWABLE VOLTAGE:- 3.3 V ± 5 % Allowable voltage
• RELIABILITY (MTBF) :- 1.5 Million Hours Reliability (MTBF)
• OPERATING TEMPERATURE:- 0 – 70 ℃ Operating Temperature
• Shock:- 1,500 G & 0.5 ms (Half sine)

Accessories

• INSTALLATION KIT:- Not Available

Software

• MANAGEMENT SW : Magician Software for SSD management

Warranty

 MZ-V9S4T0BW(4TB) :- 5-year or 2400 TBW limited warranty
