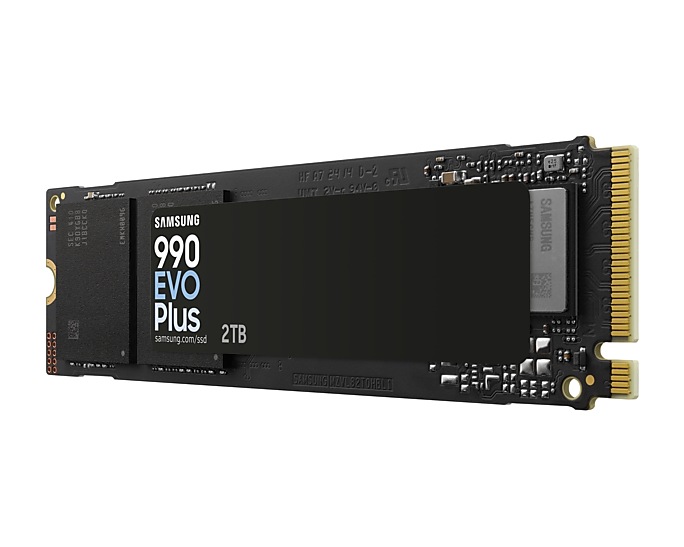

Samsung 990 EVO Plus 2TB M.2 NVMe PCIe 4.0 Internal SSD ( MZ-V9S2T0BW )
General Feature
- Application :-Client PCs
- Rated Capacity :-2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Form Factor :-M.2 (2280)
- Interface :-PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
- Dimension (WxHxD) :-Max 80.15 x Max 22.15 x Max 2.38 mm
- Weight :-Max 9.0g Weight
- Storage Memory :-Samsung V-NAND TLC
- Controller :-Samsung in-house Controller
- Cache Memory :-HMB(Host Memory Buffer)
Special Feature
- TRIM Support :-Supported
- S.M.A.R.T Support :-Supported
- GC (Garbage Collection) :-Auto Garbage Collection Algorithm
- Encryption Support :-AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
- WWN Support :-Not supported
- Device Sleep Mode Support :-Yes
Performance
- Sequential Read :-Up to 7,250 MB/s * Performance may vary based on system hardware & configuration
- Sequential Write :-Up to 6,300 MB/s * Performance may vary based on system hardware & configuration
- Random Read (4KB, QD32) :-Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32) :-Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration
Environment
- Average Power Consumption (system level) :-Average: Read 4.6 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle) :-Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
- Power Consumption (Device Sleep) :-Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage :-3.3 V ± 5 % Allowable voltage
- Reliability (MTBF) :-1.5 Million Hours Reliability (MTBF)
- Operating Temperature :-0 – 70 ℃ Operating Temperature
- Shock :-1,500 G & 0.5 ms (Half sine)
