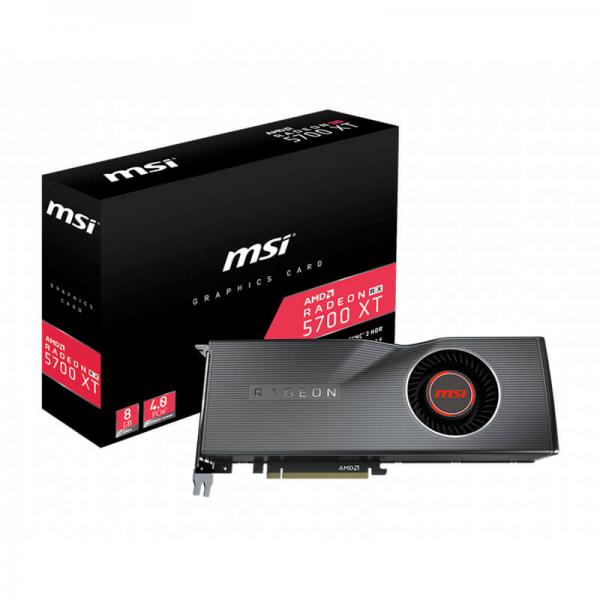

MSI Radeon RX 5700 XT 8GB GDDR6 256-bit Gaming Graphics Card ( RX-5700-XT-8G )

MSI RADEON RX 5700 XT 8GB GDDR6 256-BIT GAMING GRAPHICS CARD ( MSI-RX-5700-XT-8G )

SPECIFICATION:

MEMORY SIZE	8GB
Output	DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
Memory	14Gbps
MEMORY TYPE	GDDR6
OpenGL	4.5
Core Name	NAVI 10 XT
Memory Bus	256-bit
Core clock	Boost: Up to 1905 MHz Game: 1755 MHz Base: 1605 MHz
GRAPHICS PROCESSING UNIT	Radeon™ RX 5700 XT
SERIES	RX 5700
Cores	2560 Units(40CU)
DirectX Version Support	12
Digital Maximum Resolution	7680×4320
HDCP Support	2.2
Interface	PCI Express 4.0
CHIPSET	AMD Radeon
Power Consumption	225 W
Weight (Card / Package)	1110 g / 1549 g
Maximum Displays	4
Afterburner OC	Y
Recommended Power Supply	600 W
Multi-GPU Technology	Crossfire™, 2-Way (Bridgeless)
Card Dimension(mm)	270x 110x 40 mm
VR Ready	Y
Power Connectors	8-pin x 1+ 6-pin x 1
WARRANTY	3 Years

Features:

Core/Memory

• Boost Clock / Game Clock / Base Clock / Memory Speed
  up to 1905 MHz / 1755 MHz / 1605 MHz / 14 Gbps
• 8GB GDDR6

All Solid Capacitors

• 10 years long lifetime under full load.
• 1Lower temperature and higher efficiency.
• 1Aluminum core for higher stability.

Afterburner Overclocking Utility

• Wireless control through Android/iOS devices.
• Predator: In-game video recording.

RDNA Architecture with 2nd Gen 7nm GPU

• Engineered from the ground up with superior performance and power efficiency, RDNA is the architecture powering AMD’s 7nm gaming GPU, delivering 1.25 performance per clock compared to previous 14nm processors.

AMD Radeon FreeSync™

• Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.

AMD RADEON™ RX 5700 XT GPU

The AMD Radeon RX 5700 XT GPU performs as good as it looks. Enhance your battle station with a metal exoskeleton for heat dissipation, fused with the reimagined contour silhouette, and precision machined accents. Great gaming experiences are created by bending the rules. Harness industry-leading technologies and experience powerful, accelerated gaming customized for you.

A NEW EXTREME RDNA ARCHITECTURE

The Radeon RX 5700 Series GPUs are powered by the new RDNA architecture, the heart of AMD’s advanced 7nm technology process. RDNA features up to 40 completely redesigned Compute Units delivering incredible performance and up to 4x IPC improvements, new instructions better suited for visual effects such as volumetric lighting, blur effects, and depth of field, and multi-level cache hierarchy for greatly reduced latency and highly responsive gaming. The RDNA architecture enables DisplayPort 1.4 with Display Stream Compression for extreme refresh rates and resolutions on cutting edge displays for insanely immersive gameplay

GAME FIDELITY, ACCELERATED

The Radeon RX 5700 Series GPUs power high fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. High-performance RDNA architecture was engineered to greatly enhance features like Radeon™ Image Sharpening, FidelityFX, TressFX, TrueAudio Next, and VR technologies³ for maximum performance and beautiful gaming experiences.

IMMERSIVE GAMING DYNAMICS

Take your gaming experience to the next level. Experience stutter-free, tear-free gaming with AMD Radeon FreeSync™¹ and FreeSync™ 2 HDR² technology, available on over 700 monitors. Get the competitive edge with reduced input latency thanks to Radeon™ Anti-Lag, providing an ultra-fast response time for your favorite esports games. The latest Radeon™ Software unleashes the full potential of your GPU, with day-0 drivers optimized for new game releases and a highly customizable gaming experience.

AFTERBURNER

MSI Afterburner is the world’s most recognized and widely used graphics card Overclocking software. It gives you full control of your graphics card and enables you to monitor your system’s key metrics in real-time.
