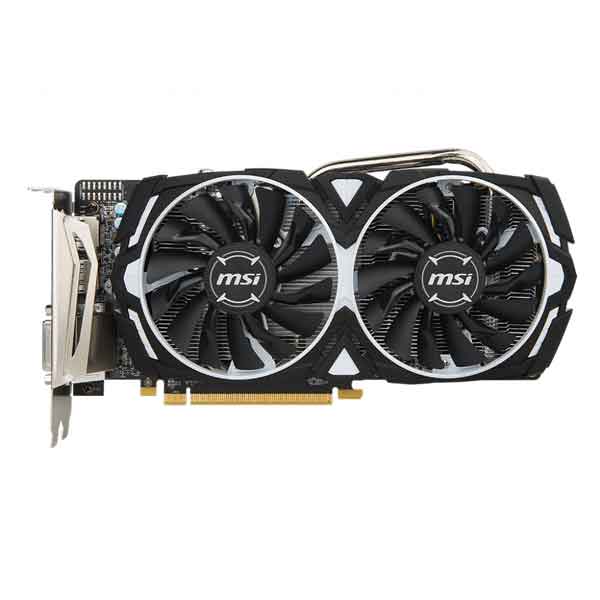

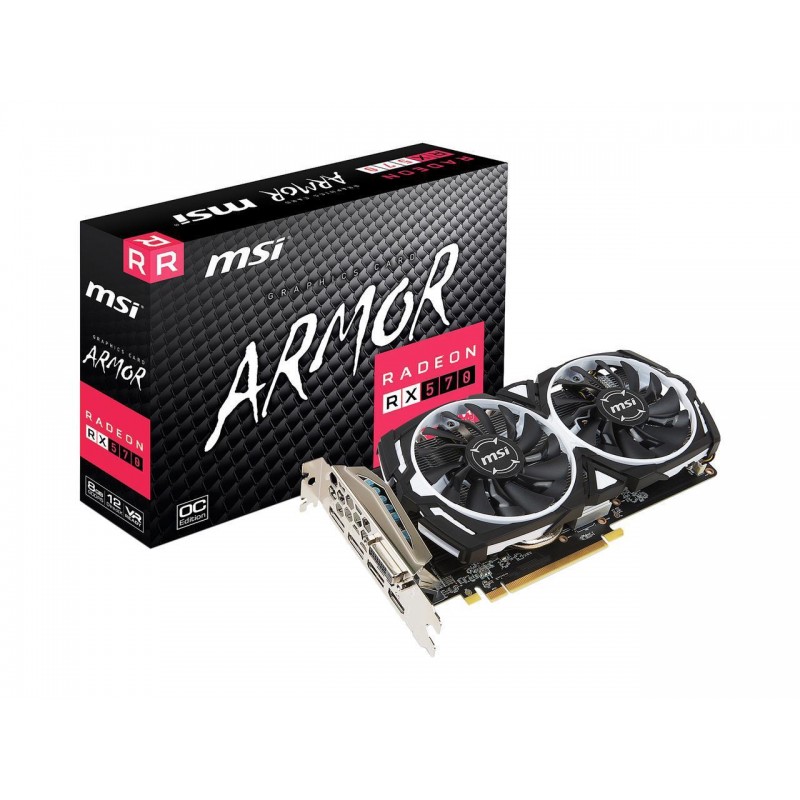

MSI Radeon RX 570 ARMOR OC 8GB GDDR5 256-bit Gaming Graphics Card ( RX-570-ARMOR-8G-OC )

MSI GRAPHICS CARD RX 570 8G GDDR5 ARMOR OC ( RX-570-ARMOR-8G-OC )

SPECIFICATION:

Model	Radeon™ RX 570 ARMOR 8G OC
MEMORY SIZE	8GB
Output	DisplayPort x 3 / HDMI / DL-DVI-D
Memory	MEMORY SPEED = 7000 MHz
MEMORY TYPE	GDDR5
OpenGL	4.5
Core Name	Polaris 20 XL
Memory Bus	256-bit
Core clock	1268 MHz
GRAPHICS PROCESSING UNIT	Radeon™ RX 570
SERIES	RX 570
Cores	2048 Units
DirectX Version Support	12
HDCP Support	Yes
Interface	PCI Express x16
CHIPSET	AMD Radeon
Power Consumption	150 W
Weight (Card / Package)	622 g / 972 g
Maximum Displays	5
Afterburner OC	Yes
Recommended Power Supply	450 W
Multi-GPU Technology	Crossfire™, 2-Way (Bridgeless)
Card Dimension(mm)	246 x 130 x 39 mm
VR Ready	Yes
Power Connectors	8-pin x 1

FEATURES:

Core/Memory

• Boost Clock / Memory Frequency
• up to 1268 MHz / 7000 MHz
• 8GB GDDR5

TORX Fan

• – Dispersion fan blade: Steep curved blade accelerating the airflow.
• – Traditional fan blade: Provides steady airflow to massive heat sink below.
• Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
• Advanced Airflow Control technology: Improves cooling efficiency by using advanced aerodynamics to focus airflow.

Afterburner Overclocking Utility

• Wireless control through Android/iOS devices.
• Predator: In-game video recording.
• Kombustor: built-in DirectX12 benchmark.
• Supports multi-GPU setups.

All Solid Capacitors

• 10 years long lifetime under full load.
• Lower temperature and higher efficiency.

DEMAND MORE, DEMAND RADEON

Guiding the Future of Gaming

The 4th generation GCN architecture is engineered for gamers who play anything from the latest MOBA’s to the most popular AAA titles. Asynchronous Shaders and an enhanced Geometry Engine power new levels of smooth gameplay performance.

Nvidia

Immersive VR Experiences

Experience the next level of immersion with the world of VR gaming and entertainment with Radeon RX graphics cards powered by the revolutionary Polaris architecture.

AMD FreeSync™ Technology

Puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.  HDR compatible  Enhanced contrast and colors deliver a strikingly sharp, colorful, and vivid visual experience.

HEATSINK & AIRFLOW CONTROL

Under the classy shroud and powerful dual fans is a huge heatsink with countless aluminum fins that help dissipate the heat from the GPU. The copper heatpipes are infused in the baseplate to ensure efficient cooling. The aluminum fins are rigged with Airflow Control technology to maximize airflow towards the heatpipes.

AFTERBURNER

MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
