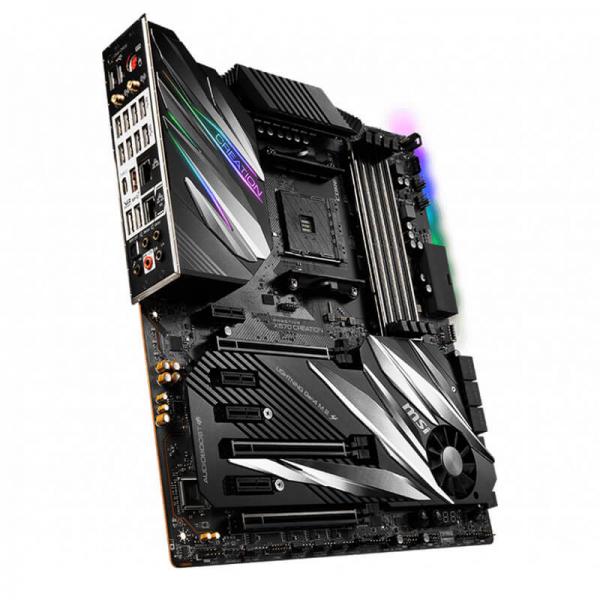

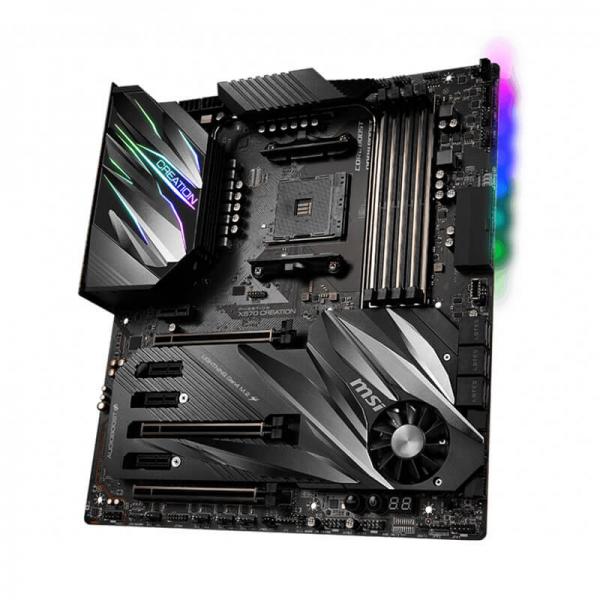

MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory )
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 2
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 3
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 4
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 5
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 6
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 7
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 8
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 9
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 10
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 11
MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory ) - Image 12
, ,

MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory )

MSI
Availability:

Out of stock
Compare

ZERO PAYMENT GATEWAY CHARGES
FREE TRANSIT INSURANCE

₹41,388.50

Out of stock

Compare

MSI PRESTIGE X570 Creation E-ATX Motherboard ( AMD Socket AM4, For Ryzen Series CPU, 4 RAM Slots, Max 128 GB Memory )

FEATURES:

Unique look and feel inspired by the concept of element explosion tailor-made for designers and content creators. Features 2x Lightning Gen 4 M.2 with Shield Frozr, Frozr Heatsink and Extended Heat-pipe Design, 10G Super LAN and Wi-Fi 6, Core Boost, Audio Boost 4

  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports 4 DIMMs, Dual Channel Memory DDR4
  • Dual LAN with 10G Super LAN and WI-FI 6: Next level network speed, secure networking with fastest data throughput to improve efficiency.
  • Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance
  • Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
  • Extended Heat-pipe Design: Enlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink
  • Extended Heatsink Design with Pre-installed I/O Shielding: All-metal extended heatsink cover ensures even high-end processors to run in full speed and provides convenience for installation
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 safer and faster
  • Creator Center: An optimized software with various system modes and resources for a wide range of scenarios and needs
  • Core Boost: With dual 8pin power supply and IR digital power design to support more cores and provide better performance
  • Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality
  • M.2 XPANDER-Z GEN4: An add-on card offers two extra Lightning Gen 4 M.2 slots and features FROZR heatsink design to increase your storage capacity at maximum Gen 4 speed

SPECIFICATIONS:

PROCESSOR Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
CHIPSET AMD® X570 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB Dual channel memory architecture
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOTS
  • 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5)1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode)
    • 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0×16/x0, x8/x8 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8/x0 mode
  • 4x PCIe 2.0 x1 slots
  1. The speeds may vary for different devices
MULTI-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
STORAGE

AMD® X570 Chipset

  • Supports RAID 0, RAID 1 and RAID 10
USB

AMD® X570 Chipset

  • 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector
  • 12x USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
  • 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output
LAN
  • 1x Intel® I211AT Gigabit LAN controller
  • 1x Aquantia® AQC107 10-Gigabit LAN controller
WIFI & BLUETOOTH

Intel® Wi-Fi 6 AX200

  • The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 7x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 2x 2-pin Thermal Sensors connectors
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin CORSAIR LED connector
BACK PANEL PORTS
  1. PS/2 Combo Port
  2. Intel Wi-Fi 6
  3. LAN Port
  4. 10G LAN Port
  5. HD Audio Connectors
  6. Clear CMOS Button
  7. USB 2.0 Ports
  8. USB 3.2 Gen1 Ports
  9. USB 3.2 Gen2 Type-A+C
  10. USB 3.2 Gen1 Type-A
  11. Optical S/PDIF OUT
DIMENSIONS
  • 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
  • E-ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
