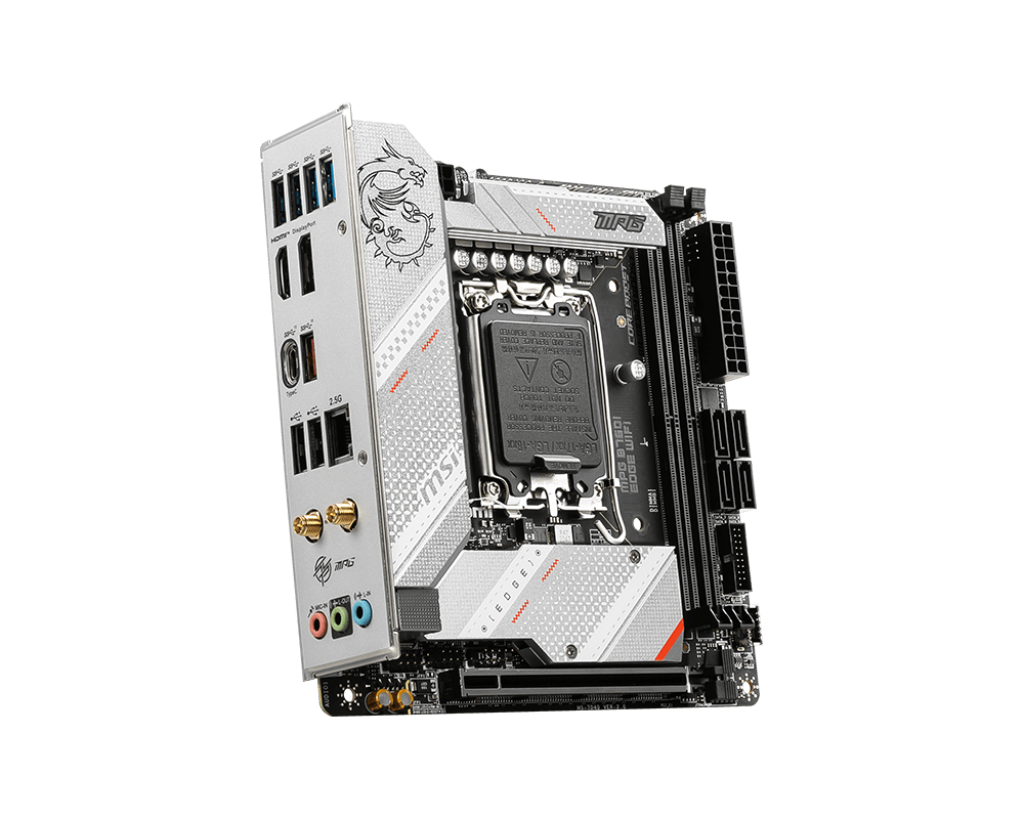

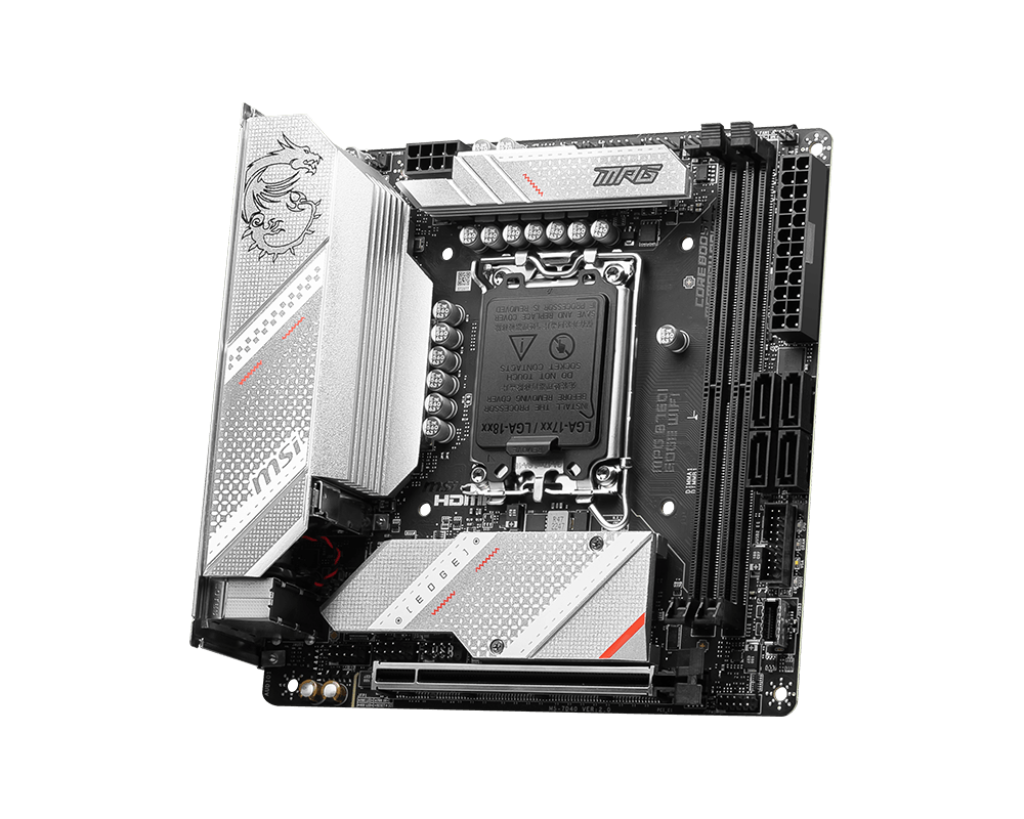

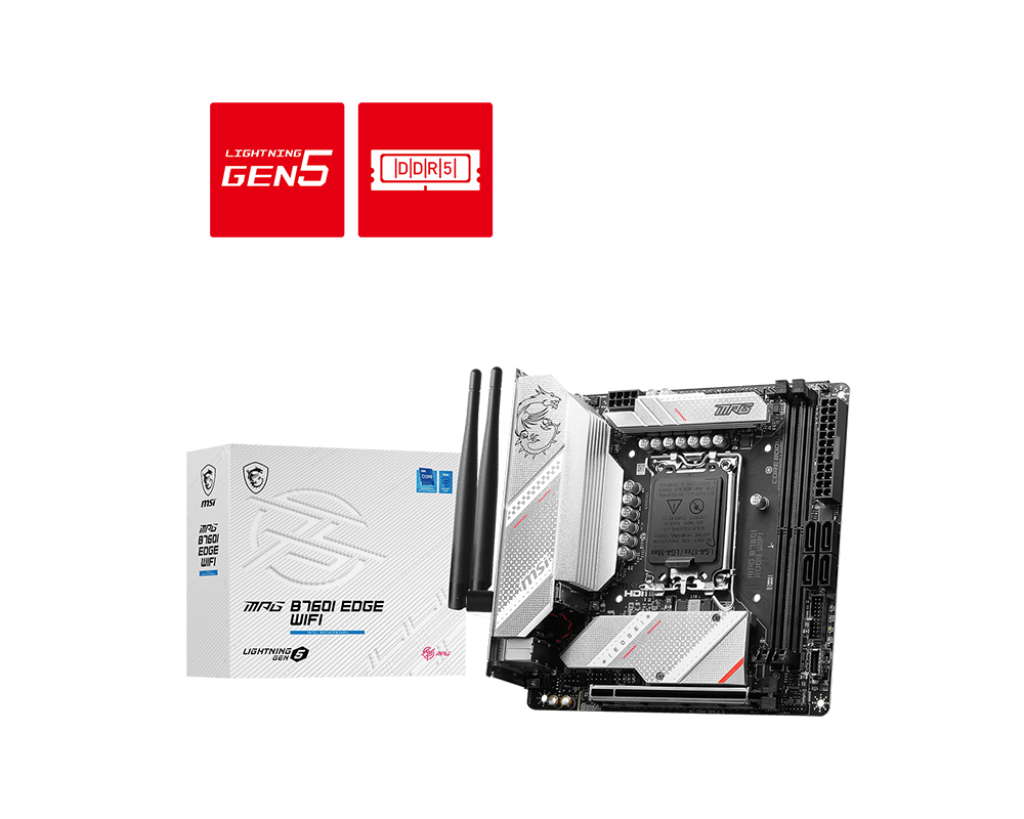

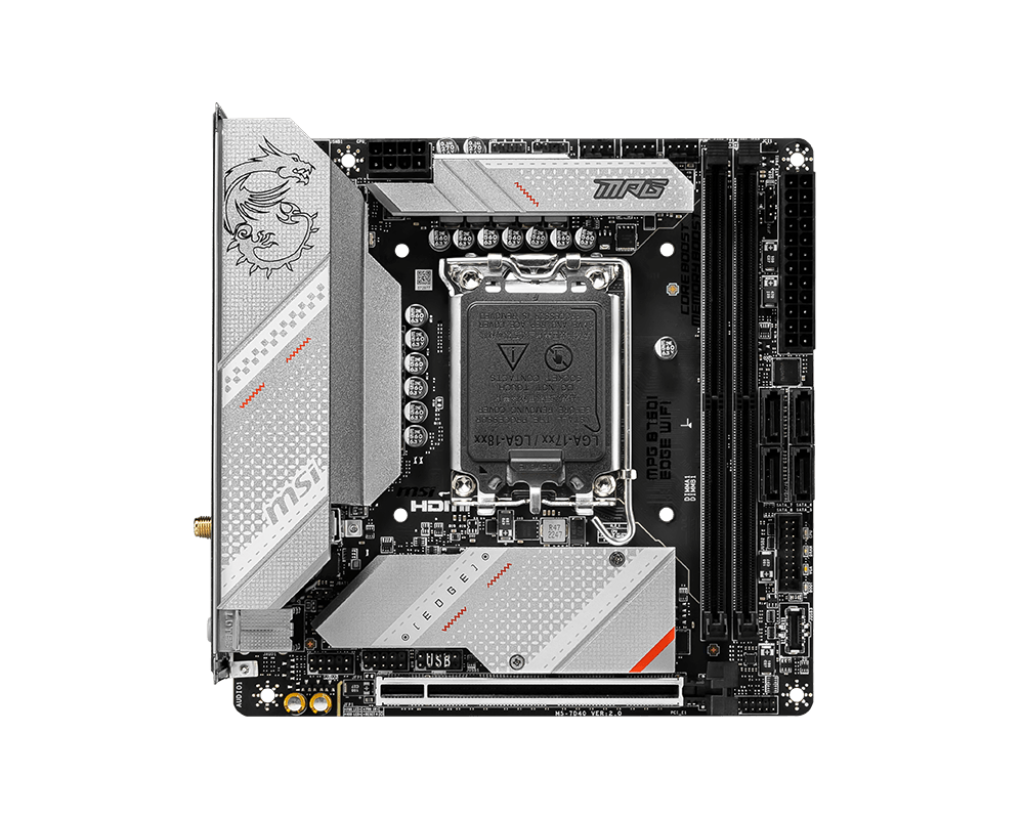

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM )
MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM ) - Image 2
MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM ) - Image 3
MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM ) - Image 4
MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM ) - Image 5
, ,

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM )

MSI
Compare

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM )

  • Support IntelCore 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
  • Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
  • Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 8-layer PCB made by server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

₹23,090.00

Compare

MSI MPG B760I EDGE WIFI Mini-ITX Motherboard ( Intel Socket LGA 1700, Support Intel Core 14th, 13th, 12th Gen Cpu, Intel Pentium Gold and Celeron Cpu, 2x DDR5 RAM Slots, Max 128GB RAM )

Chipset INTEL B760
CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
2x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Realtek RTL8125BG 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 4x EZ Debug LED

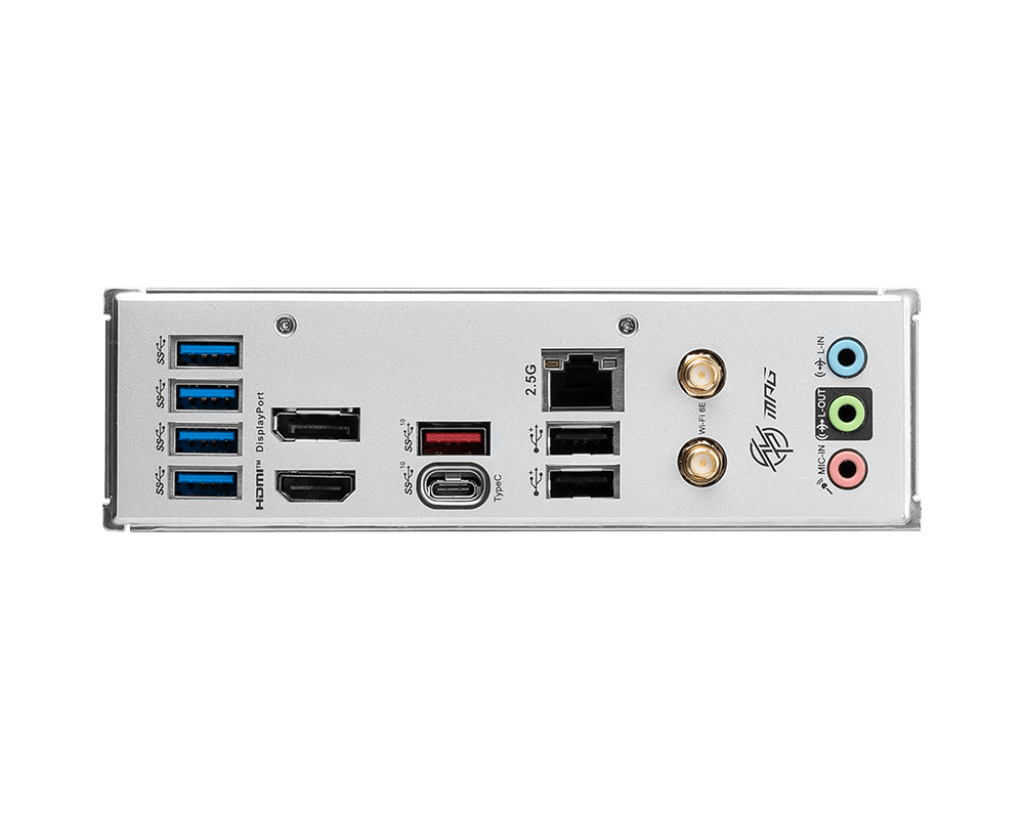

BACK PANEL PORTS
  1. USB 5Gbps
  2. Display Port
  3. USB 10Gbps
  4. 2.5G LAN
  5. Audio Connectors
  6. HDMI
  7. USB 10Gbps (Type-C)
  8. USB 2.0
  9. Wi-Fi / Bluetooth
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info Mini-ITX
170mmx170mm



SKU: MPG-B760I-EDGE-WIFI Categories: , , Brand:
Brand

Mb Form Factor

Mb Platform

Mb Cpu Support

Mb Socket

LGA1700
MB Chipset

Intel B760
No Of Ram Slots

Supported Memory Type

DDR5
Max Memory Support

Mb Wifi In Built

Mb M.2 Slots
