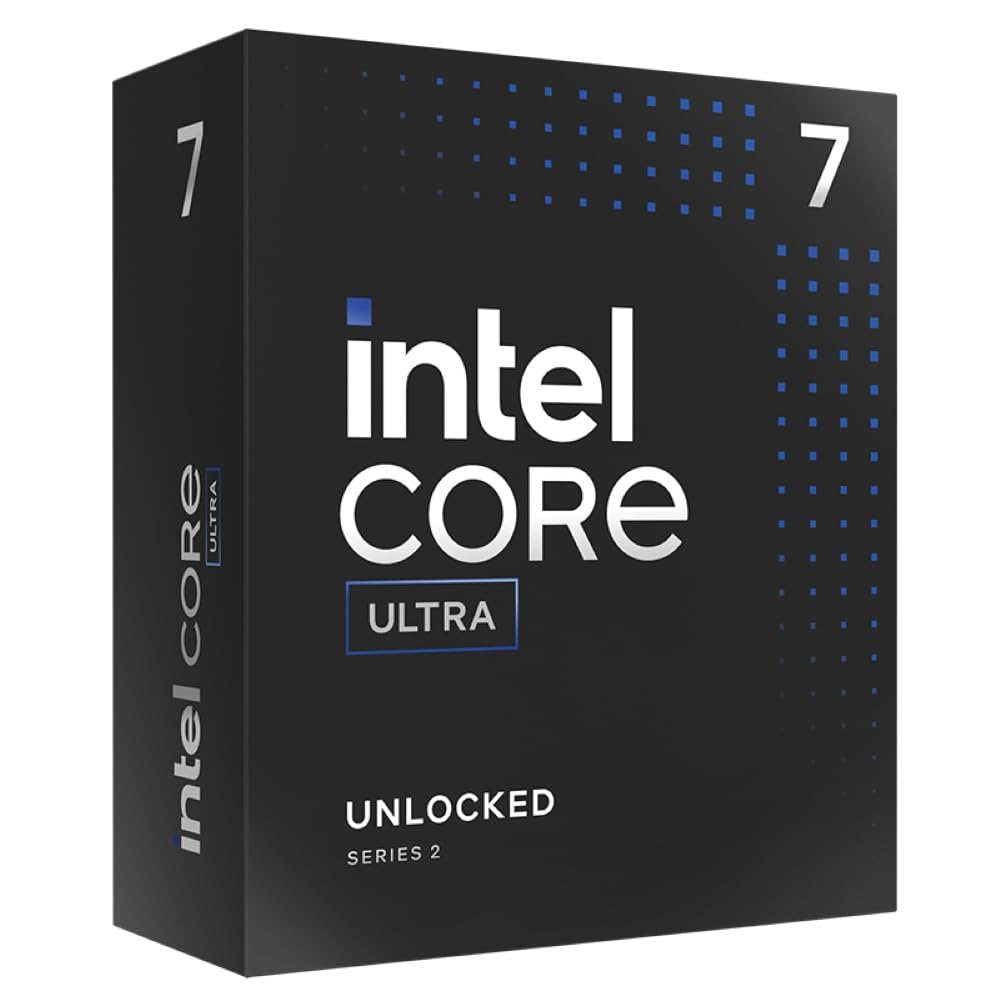

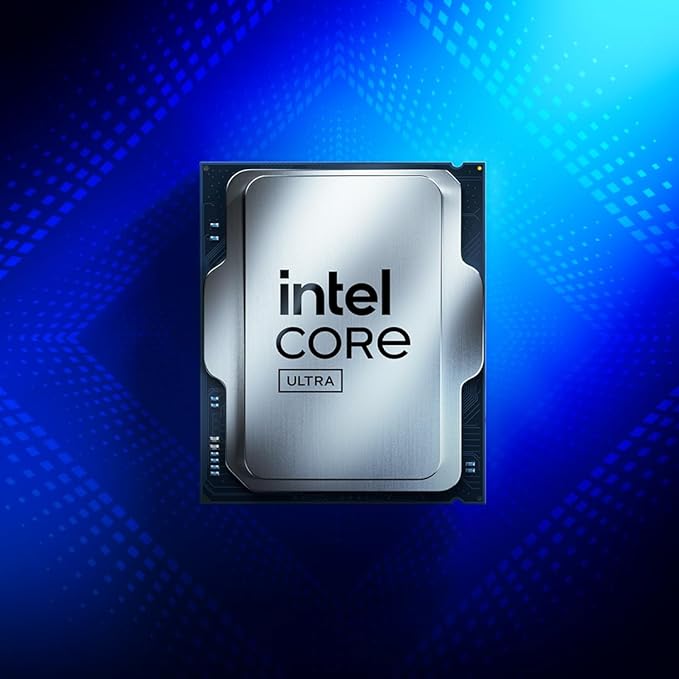

Intel Core Ultra 7-265K (Series 2) Desktop Processor BX80768265K ( Intel Socket FCLGA1851, Total Cores 20, Total Threads 20,  30 MB Intel Smart Cache, Max Turbo Frequency 5.5 GHz )

Intel Core Ultra 7-265K (Series 2) Desktop Processor BX80768265K ( Intel Socket FCLGA1851, Total Cores 20, Total Threads 20,  30 MB Intel Smart Cache, Max Turbo Frequency 5.5 GHz )

Essentials

• Product Collection : Intel Core Ultra Processors (Series 2)
• Code Name : Products formerly Arrow Lake
• Vertical Segment : Desktop
• Processor Number : 265K
• Overall Peak TOPS (Int8) : 33

CPU Specifications

• Total Cores : 20
• # of Performance-cores : 8
• # of Efficient-cores : 12
• Total Threads : 20
• Max Turbo Frequency : 5 GHz
• Intel Turbo Boost Max Technology 3.0 Frequency ^‡: 5 GHz
• Performance-core Max Turbo Frequency : 4 GHz
• Efficient-core Max Turbo Frequency : 6 GHz
• Performance-core Base Frequency : 9 GHz
• Efficient-core Base Frequency : 3 GHz
• Cache : 30 MB Intel Smart Cache
• Total L2 Cache : 36 MB
• Processor Base Power : 125 W
• Maximum Turbo Power : 250 W
• Intel Deep Learning Boost (Intel DL Boost) on CPU : Yes
• AI Software Frameworks Supported by CPU : OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography : TSMC N3B

Supplemental Information

• Marketing Status : Launched
• Launch Date : Q4’24
• Embedded Options Available : No
• Use Conditions : PC/Client/Tablet, Workstation

Memory Specifications

• Max Memory Size (dependent on memory type) : 256 GB
• Memory Types : Up to DDR5 6400 MT/s
• Maximum Memory Speed : 6400 MHz
• Max # of Memory Channels : 2
• ECC Memory Supported ^‡: Yes

GPU Specifications

• GPU Name^‡: Intel® Graphics
• Graphics Base Frequency : 300 MHz
• Graphics Max Dynamic Frequency : 2 GHz
• GPU Peak TOPS (Int8) : 8
• Graphics Output : 1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
• X^e-cores : 4
• Max Resolution (HDMI)^‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
• Max Resolution (DP)‡ : 8K @ 60Hz
• Max Resolution (eDP – Integrated Flat Panel)‡ : 4K @ 60Hz
• DirectX* Support : 12
• OpenGL* Support : 5
• OpenCL* Support : 3
• Intel® Quick Sync Video : Yes
• # of Displays Supported ^‡ : 4
• Device ID : 0x7D67
• Intel Deep Learning Boost (Intel DL Boost) on GPU : Yes

NPU Specifications

• NPU Name^‡ : Intel AI Boost
• NPU Peak TOPS (Int8) : 13
• Sparsity Support : Yes
• Windows Studio Effects Support : Yes
• AI Software Frameworks Supported by NPU : OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• Direct Media Interface (DMI) Revision : 4
• Max # of DMI Lanes : 8
• Intel Thunderbolt
• 4 : Yes
• Scalability : 1S Only
• PCI Express Revision : 0 and 4.0
• PCI Express Configurations ^‡: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
• Max # of PCI Express Lanes : 24

Package Specifications

• Sockets Supported : FCLGA1851
• Thermal Solution Specification : PCG 2020A
• Max Operating Temperature : 105 °C

Advanced Technologies

• Intel Volume Management Device (VMD) : Yes
• Intel Gaussian & Neural Accelerator : 5
• Intel Thread Director : Yes
• Intel Speed Shift Technology : Yes
• Intel Turbo Boost Max Technology 3.0 ^‡: Yes
• Intel Turbo Boost Technology ^‡: 0
• Intel 64 ^‡: Yes
• Instruction Set : 64-bit
• Instruction Set Extensions : Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep Technology : Yes
• Thermal Monitoring Technologies : Yes

Security & Reliability

• Intel vPro Eligibility ^‡: Intel vPro Enterprise
• Intel Hardware Shield Eligibility ^‡: Yes
• Intel Threat Detection Technology (TDT) : Yes
• Intel Active Management Technology (AMT) ^‡: Yes
• Intel Standard Manageability (ISM) ^‡: Yes
• Intel Remote Platform Erase (RPE) ^‡ : Yes
• Intel One-Click Recovery ^‡ : Yes
• Intel Control-Flow Enforcement Technology : Yes
• Intel Total Memory Encryption – Multi Key : Yes
• Intel AES New Instructions : Yes
• Secure Key : Yes
• Intel Trusted Execution Technology ^‡: Yes
• Execute Disable Bit ^‡: Yes
• Intel OS Guard : Yes
• Intel Boot Guard : Yes
• Mode-based Execute Control (MBEC) : Yes
• Intel Stable IT Platform Program (SIPP) : Yes
• Intel Virtualization Technology with Redirect Protection (VT-rp) ^‡ : Yes
• Intel Virtualization Technology (VT-x) ^‡: Yes
• Intel Virtualization Technology for Directed I/O (VT-d) ^‡: Yes
• Intel VT-x with Extended Page Tables (EPT) ^‡: Yes
