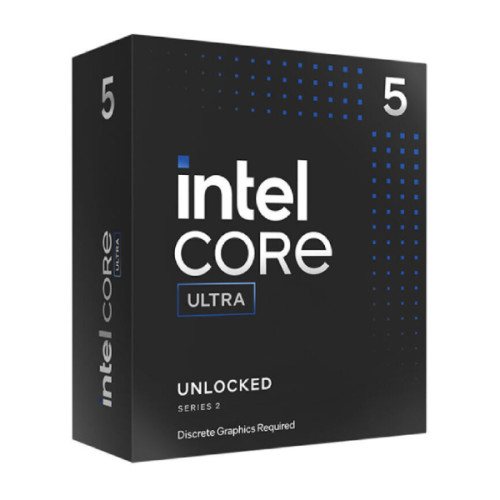

Intel Core Ultra 5 Processor 245KF (Series 2) Desktop Processor BX80768245KF ( Intel Socket FCLGA1851, Total Cores 14, Total Threads 14,  24 MB Intel Smart Cache, Max Turbo Frequency 5.2 GHz )

Intel

Intel Core Ultra 5 Processor 245KF (Series 2) Desktop Processor BX80768245KF ( Intel Socket FCLGA1851, Total Cores 14, Total Threads 14,  24 MB Intel Smart Cache, Max Turbo Frequency 5.2 GHz )

28,790.00

Compare

Intel Core Ultra 5 Processor 245KF (Series 2) Desktop Processor BX80768245KF ( Intel Socket FCLGA1851, Total Cores 14, Total Threads 14,  24 MB Intel Smart Cache, Max Turbo Frequency 5.2 GHz )

Essentials

  • Product Collection :- Intel Core Ultra Processors (Series 2)
  • Code Name :-Products formerly Arrow Lake
  • Vertical Segment :-Desktop
  • Processor Number :-245KF
  • Overall Peak TOPS (Int8) :-22

CPU Specifications

  • Total Cores :- 14
  • # of Performance-cores :- 6
  • # of Efficient-cores :- 8
  • Total Threads :- 14
  • Max Turbo Frequency :- 2 GHz
  • Performance-core Max Turbo Frequency :- 2 GHz
  • Efficient-core Max Turbo Frequency :- 6 GHz
  • Performance-core Base Frequency :- 2 GHz
  • Efficient-core Base Frequency :- 6 GHz
  • Cache :- 24 MB Intel Smart Cache
  • Total L2 Cache :- 26 MB
  • Processor Base Power :- 125 W
  • Maximum Turbo Power :- 159 W
  • Intel Deep Learning Boost (Intel DL Boost) on CPU :- Yes
  • AI Software Frameworks Supported by CPU :- OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
  • CPU Lithography :- TSMC N3B

Supplemental Information

  • Marketing Status :- Launched
  • Launch Date :- Q4’24
  • Embedded Options Available :- No
  • Use Conditions :- PC/Client/Tablet

Memory Specifications

  • Max Memory Size (dependent on memory type) :- 256 GB
  • Memory Types :- Up to DDR5 6400 MT/s
  • Maximum Memory Speed :- 6400 MHz
  • Max # of Memory Channels :- 2

NPU Specifications

  • NPU Name :- Intel AI Boost
  • NPU Peak TOPS (Int8) :- 13
  • Sparsity Support :- Yes
  • Windows Studio Effects Support :- Yes
  • AI Software Frameworks Supported by NPU :- OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

  • Direct Media Interface (DMI) Revision :- 4
  • Max # of DMI Lanes :- 8
  • Intel Thunderbolt 4 :- Yes
  • Scalability :- 1S Only
  • PCI Express Revision :- 0 and 4.0
  • PCI Express Configurations :- Up to 1×16+2×4, 2×8+2×4,
    1×8+4×4
  • Max # of PCI Express Lanes :- 24

Package Specifications

  • Sockets Supported :- FCLGA1851
  • Thermal Solution Specification :- PCG 2020A
  • Max Operating Temperature :- 105 °C

Advanced Technologies

  • Intel Volume Management Device (VMD) :- Yes
  • Intel Gaussian & Neural Accelerator :- 5
  • Intel Thread Director :- Yes
  • Intel Speed Shift Technology :- Yes
  • Intel Turbo Boost Technology :- 0
  • Intel 64 :- Yes
  • Instruction Set :- 64-bit
  • Instruction Set Extensions :- Intel SSE4.1, Intel SSE4.2, Intel AVX2
  • Idle States :- Yes
  • Enhanced Intel SpeedStep Technology :- Yes
  • Thermal Monitoring Technologies :- Yes

Security & Reliability

  • Intel Standard Manageability (ISM) :- Yes
  • Intel Control-Flow Enforcement Technology :- Yes
  • Intel AES New Instructions :- Yes
  • Secure Key :- Yes
  • Intel Trusted Execution Technology :- Yes
  • Execute Disable Bit :- Yes
  • Intel OS Guard :- Yes
  • Intel Boot Guard :- Yes
  • Mode-based Execute Control (MBEC) :- Yes
  • Intel Virtualization Technology (VT-x) :- Yes
  • Intel Virtualization Technology for Directed I/O (VT-d) :- Yes
  • Intel VT-x with Extended Page Tables (EPT) :- Yes
SKU: BX80768245KF Categories: , , Brand:
