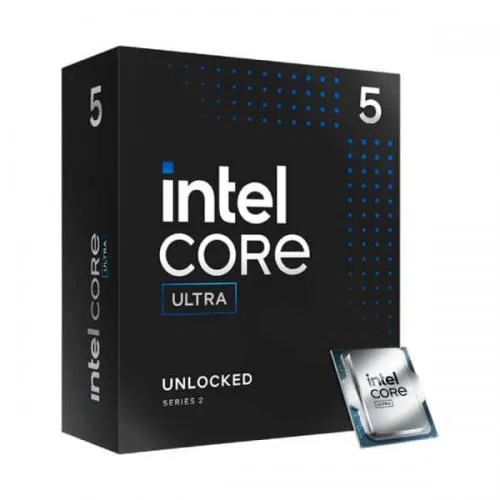

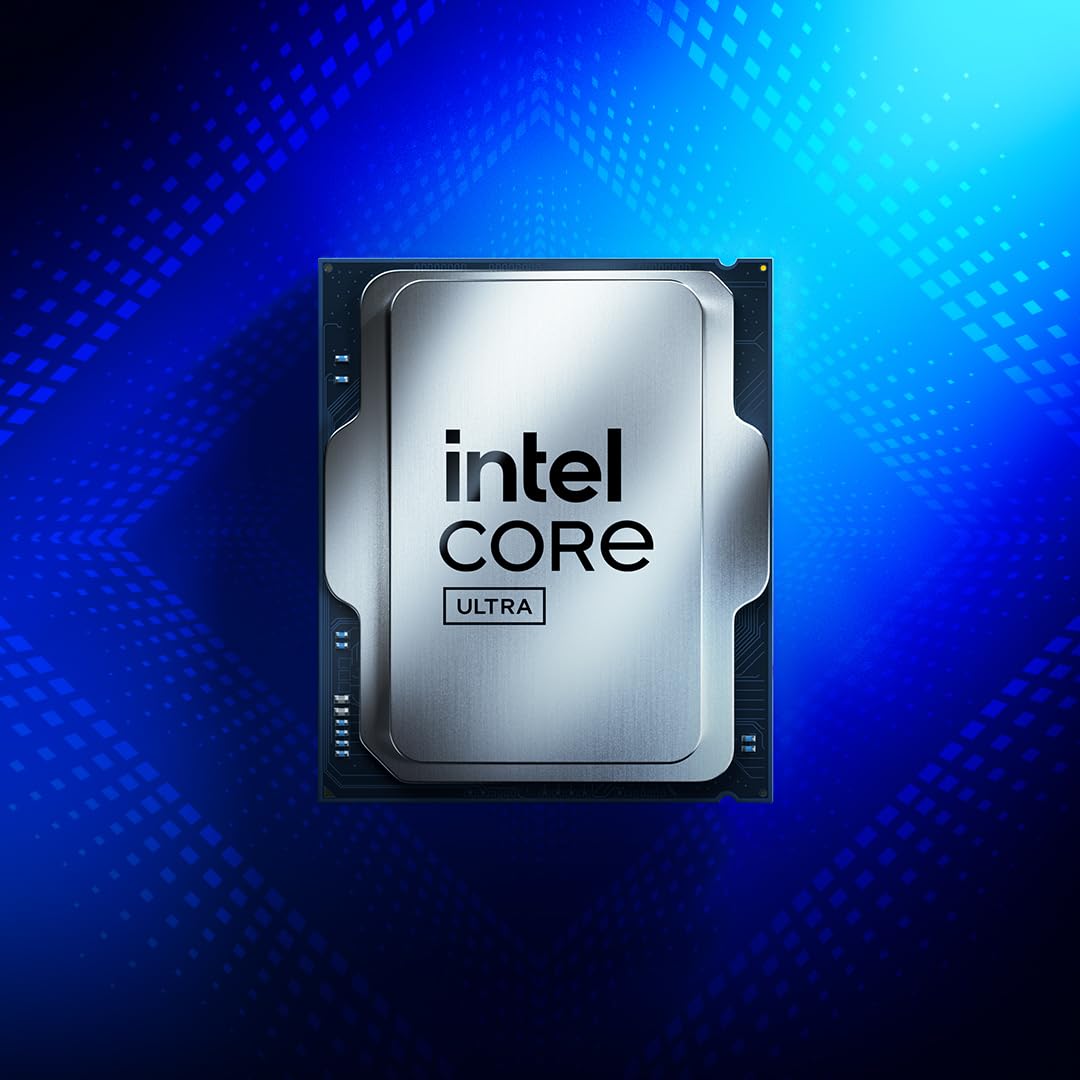

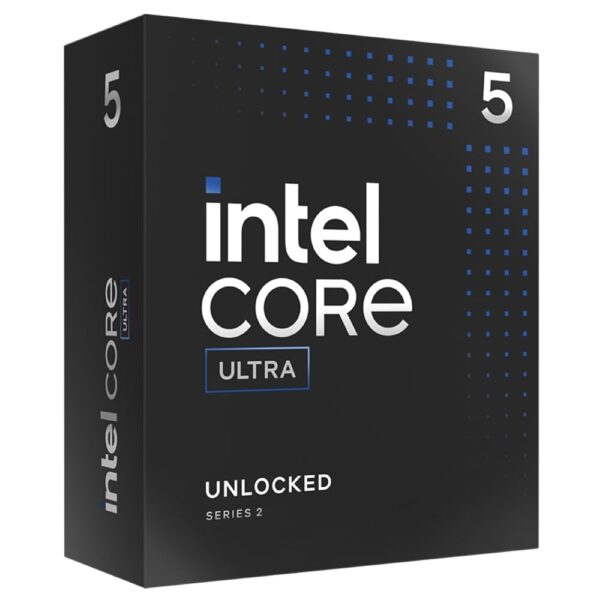

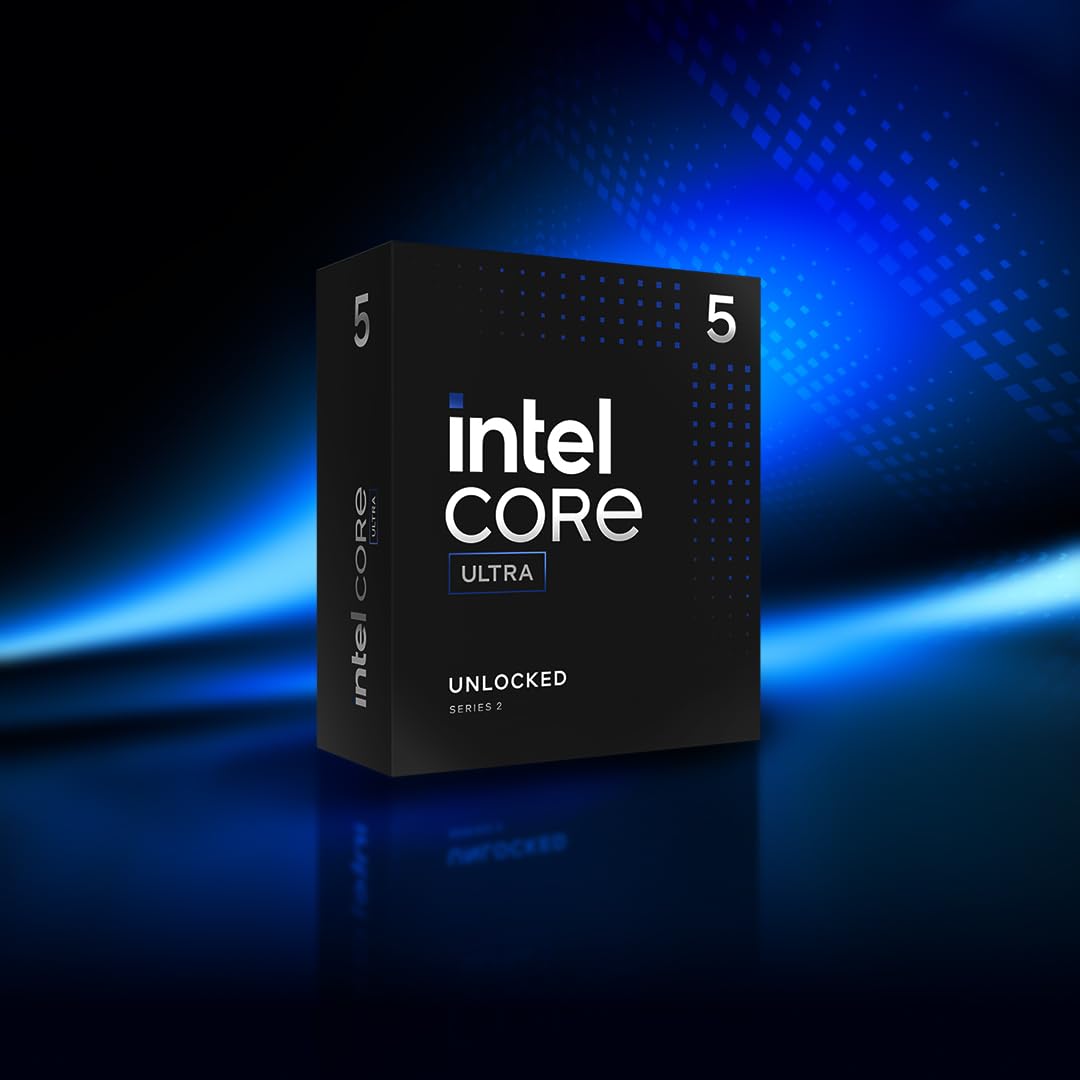

Intel Core Ultra 5 245K Desktop Processor BX80768245K ( Intel Socket FCLGA1851, Total Cores 14, Total Threads 14, 24 MB Intel Smart Cache, Max Turbo Frequency 5.2 GHz )
Essentials
- Product Collection : Intel Core Ultra Processors (Series 2)
- Code Name : Products formerly Arrow Lake
- Vertical Segment : Desktop
- Processor Number : 245K
- Overall Peak TOPS (Int8) : 30
CPU Specifications
- Total Cores : 14
- # of Performance-cores : 6
- # of Efficient-cores : 8
- Total Threads : 14
- Max Turbo Frequency :2 GHz
- Performance-core Max Turbo Frequency :2 GHz
- Efficient-core Max Turbo Frequency :6 GHz
- Performance-core Base Frequency :2 GHz
- Efficient-core Base Frequency :6 GHz
- Cache : 24 MB Intel Smart Cache
- Total L2 Cache : 26 MB
- Processor Base Power : 125 W
- Maximum Turbo Power : 159 W
- Intel Deep Learning Boost (Intel DL Boost) on CPU : Yes
- AI Software Frameworks Supported by CPU : OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
- CPU Lithography : TSMC N3B
- Supplemental Information
- Marketing Status :Launched
- Launch Date : Q4’24
- Embedded Options Available : No
- Use Conditions : PC/Client/Tablet, Workstation
Memory Specifications
- Max Memory Size (dependent on memory type) : 256 GB
- Memory Types : Up to DDR5 6400 MT/s
- Maximum Memory Speed : 6400 MHz
- Max # of Memory Channels : 2
- ECC Memory Supported ‡: Yes
GPU Specifications
- GPU Name‡:Intel Graphics
- Graphics Base Frequency :300 MHz
- Graphics Max Dynamic Frequency :9 GHz
- GPU Peak TOPS (Int8) :8
- Graphics Output :1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
- Xe-cores:4
- Max Resolution (HDMI)‡:4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
- Max Resolution (DP)‡ :8K @ 60Hz
- Max Resolution (eDP – Integrated Flat Panel)‡ :4K @ 60Hz
- DirectX* Support :12
- OpenGL* Support :5
- OpenCL* Support :3
- Intel Quick Sync Video :Yes
- # of Displays Supported ‡:4
- Device ID:0x7D67
- Intel Deep Learning Boost (Intel DL Boost) on GPU :Yes
NPU Specifications
- NPU Name‡:Intel AI Boost
- NPU Peak TOPS (Int8) :13
- Sparsity Support:Yes
- Windows Studio Effects Support:Yes
- AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
- Direct Media Interface (DMI) Revision: 4
- Max # of DMI Lanes: 8
- Intel Thunderbolt 4 : Yes
- Scalability: 1S Only
- PCI Express Revision : 0 and 4.0
- PCI Express Configurations ‡: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
- Max # of PCI Express Lanes : 24
Package Specifications
- Sockets Supported : FCLGA1851
- Thermal Solution Specification : PCG 2020A
- Max Operating Temperature : 105 °C
Advanced Technologies
- Intel Volume Management Device (VMD) : Yes
- Intel Gaussian & Neural Accelerator : 5
- Intel Thread Director : Yes
- Intel Speed Shift Technology : Yes
- Intel Turbo Boost Technology ‡: 0
- Intel 64 ‡: Yes
- Instruction Set : 64-bit
- Instruction Set Extensions : Intel SSE4.1, Intel SSE4.2, Intel AVX2
- Idle States : Yes
- Enhanced Intel SpeedStep Technology : Yes
- Thermal Monitoring Technologies : Yes
Security & Reliability
- Intel vPro Eligibility ‡: Intel vPro Enterprise
- Intel Hardware Shield Eligibility ‡: Yes
- Intel Threat Detection Technology (TDT) : Yes
- Intel Active Management Technology (AMT) ‡: Yes
- Intel Standard Manageability (ISM) ‡: Yes
- Intel Remote Platform Erase (RPE) ‡: Yes
- Intel One-Click Recovery ‡: Yes
- Intel Control-Flow Enforcement Technology : Yes
- Intel Total Memory Encryption – Multi Key : Yes
- Intel AES New Instructions : Yes
- Secure Key : Yes
- Intel Trusted Execution Technology ‡: Yes
- Execute Disable Bit ‡: Yes
- Intel OS Guard : Yes
- Intel Boot Guard : Yes
- Mode-based Execute Control (MBEC) : Yes
- Intel Stable IT Platform Program (SIPP) : Yes
- Intel Virtualization Technology with Redirect Protection (VT-rp) ‡: Yes
- Intel Virtualization Technology (VT-x) ‡: Yes
- Intel Virtualization Technology for Directed I/O (VT-d) ‡: Yes
- Intel VT-x with Extended Page Tables (EPT) ‡: Yes
