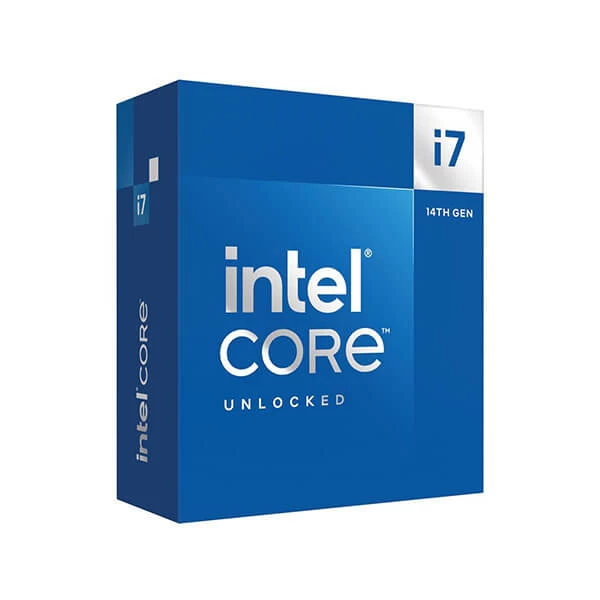

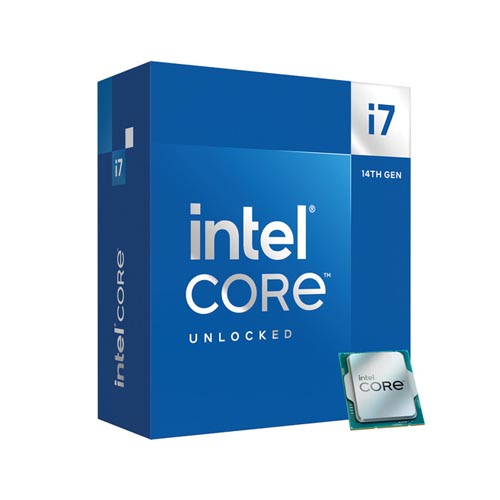

Intel Core i7-14700K 14th Gen Desktop Processor BX8071514700K ( Intel Socket FCLGA1700, Total Cores 20, Total Threads 28, 33 MB Intel Smart Cache, Max Turbo Frequency 5.6 GHz )
Essentials
- Product Collection : Intel Core i7 Processors (14th gen)
- Code Name : Products formerly Raptor Lake
- Vertical Segment : Desktop
- Processor Number : i7-14700K
- Lithography : Intel 7
CPU Specifications
- Total Cores : 20
- # of Performance-cores : 8
- # of Efficient-cores : 12
- Total Threads : 28
- Max Turbo Frequency : 5.6 GHz
- Intel Turbo Boost Max Technology 3.0 Frequency ‡: 5.6 GHz
- Performance-core Max Turbo Frequency : 5.5 GHz
- Efficient-core Max Turbo Frequency : 4.3 GHz
- Performance-core Base Frequency : 3.4 GHz
- Efficient-core Base Frequency : 2.5 GHz
- Cache : 33 MB Intel Smart Cache
- Total L2 Cache : 28 MB
- Processor Base Power : 125 W
- Maximum Turbo Power : 253 W
Supplemental Information
- Marketing Status : Launched
- Launch Date : Q4’23
- Embedded Options Available : No
- Use Conditions : PC/Client/Tablet, Workstation
Memory Specifications
- Max Memory Size (dependent on memory type) : 192 GB
- Memory Types : Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s - Max # of Memory Channels : 2
- Max Memory Bandwidth : 89.6 GB/s
- ECC Memory Supported ‡: Yes
GPU Specifications
- GPU Name‡:Intel UHD Graphics 770
- Graphics Base Frequency : 300 MHz
- Graphics Max Dynamic Frequency : 1.6 GHz
- Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
- Execution Units : 32
- Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
- Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz
- Max Resolution (eDP – Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz
- DirectX* Support : 12
- OpenGL* Support : 4.5
- OpenCL* Support : 3.0
- Multi-Format Codec Engines : 2
- Intel Quick Sync Video : Yes
- Intel Clear Video HD Technology : Yes
- # of Displays Supported ‡: 4
- Device ID : 0xA780
Expansion Options
- Direct Media Interface (DMI) Revision :4.0
- Max # of DMI Lanes : 8
- Scalability : 1S Only
- PCI Express Revision : 5.0 and 4.0
- PCI Express Configurations ‡: Up to 1×16+4, 2×8+4
- Max # of PCI Express Lanes : 20
Package Specifications
- Sockets Supported :FCLGA1700
- Max CPU Configuration : 1
- Thermal Solution Specification : PCG 2020A
- TJUNCTION: 100°C
- Package Size : 45.0 mm x 37.5 mm
- Max Operating Temperature : 100 °C
Advanced Technologies
- Intel Volume Management Device (VMD) :Yes
- Intel Gaussian & Neural Accelerator : 3.0
- Intel Thread Director : Yes
- Intel Deep Learning Boost (Intel DL Boost) on CPU : Yes
- Intel Speed Shift Technology : Yes
- Intel Turbo Boost Max Technology 3.0 ‡: Yes
- Intel Turbo Boost Technology ‡: 2.0
- Intel Hyper-Threading Technology ‡: Yes
- Intel 64 ‡: Yes
- Instruction Set : 64-bit
- Instruction Set Extensions : Intel SSE4.1, Intel SSE4.2, Intel AVX2
- Idle States : Yes
- Enhanced Intel SpeedStep Technology : Yes
- Thermal Monitoring Technologies : Yes
Security & Reliability
- Intel vPro Eligibility ‡:Intel vPro Enterprise, Intel vPro Essentials, Intel vPro Platform
- Intel Hardware Shield Eligibility ‡: Yes
- Intel Threat Detection Technology (TDT) : Yes
- Intel Active Management Technology (AMT) ‡: Yes
- Intel Standard Manageability (ISM) ‡: Yes
- Intel Remote Platform Erase (RPE) ‡: Yes
- Intel One-Click Recovery ‡: Yes
- Intel Control-Flow Enforcement Technology : Yes
- Intel Total Memory Encryption – Multi Key: Yes
- Intel AES New Instructions : Yes
- Secure Key : Yes
- Intel OS Guard: Yes
- Intel Trusted Execution Technology ‡: Yes
- Execute Disable Bit ‡: Yes
- Intel Boot Guard : Yes
- Mode-based Execute Control (MBEC) : Yes
- Intel Stable IT Platform Program (SIPP) : Yes
- Intel Virtualization Technology with Redirect Protection (VT-rp) ‡: Yes
- Intel Virtualization Technology (VT-x) ‡: Yes
- Intel Virtualization Technology for Directed I/O (VT-d) ‡: Yes
- Intel VT-x with Extended Page Tables (EPT) ‡: Yes
