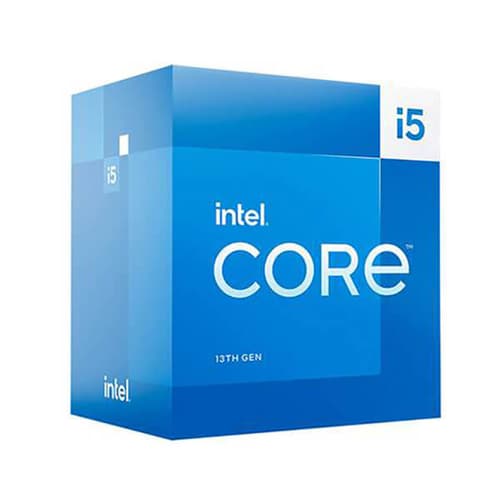

Intel Core i5-13400 13th Gen Desktop Processor BX8071513400 ( Intel Socket FCLGA1700, Total Cores 10, Total Threads 16, 20 MB Intel Smart Cache, Max Turbo Frequency 4.60 GHz )

Intel Core i5-13400 13th Gen Desktop Processor BX8071513400 ( Intel Socket FCLGA1700, Total Cores 10, Total Threads 16, 20 MB Intel Smart Cache, Max Turbo Frequency 4.60 GHz )

Essentials

• Product Collection:- 13th Generation Intel Core i5 Processors
• Vertical Segment:- Desktop
• Processor Number :- i5-13400
• Lithography :- Intel 7

CPU Specifications

• Total Cores :- 10
• # of Performance-cores:- 6
• # of Efficient-cores:- 4
• Total Threads :- 16
• Max Turbo Frequency :-60 GHz
• Performance-core Max Turbo Frequency :-60 GHz
• Efficient-core Max Turbo Frequency :-30 GHz
• Performance-core Base Frequency :-50 GHz
• Efficient-core Base Frequency :-80 GHz
• Cache :- 20 MB Intel Smart Cache
• Total L2 Cache:-5 MB
• Processor Base Power :- 65 W
• Maximum Turbo Power :- 148 W

Supplemental Information

• Marketing Status:- Launched
• Launch Date :- Q1’23
• Embedded Options Available :- Yes
• Use Conditions :- PC/Client/Tablet

Memory Specifications

• Max Memory Size (dependent on memory type) :- 192 GB
• Memory Types :- Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels :- 2
• Max Memory Bandwidth :-8 GB/s

GPU Specifications

• GPU Name^‡:- Intel UHD Graphics 730
• Graphics Base Frequency :- 300 MHz
• Graphics Output :- eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units  :- 24
• Max Resolution (HDMI)^‡:- 4096 x 2160 @ 60Hz
• Max Resolution (DP)‡  :- 7680 x 4320 @ 60Hz
• Max Resolution (eDP – Integrated Flat Panel)‡  :- 5120 x 3200 @ 120Hz
• DirectX* Support  :- 12
• OpenGL* Support  :-5
• OpenCL* Support  :-0
• Multi-Format Codec Engines  :- 1
• Intel Quick Sync Video  :- Yes
• Intel Clear Video HD Technology  :- Yes
• # of Displays Supported ^‡:- 4
• Device ID :- 0x4682/0xA782

Expansion Options

• Direct Media Interface (DMI) Revision :-0
• Max # of DMI Lanes :- 8
• Scalability :- 1S Only
• PCI Express Revision  :-0 and 4.0
• PCI Express Configurations ^‡:- Up to 1×16+4, 2×8+4
• Max # of PCI Express Lanes  :- 20

Package Specifications

• Sockets Supported  :- FCLGA1700
• Max CPU Configuration :- 1
• Thermal Solution Specification  :- PCG 2020C
• TJUNCTION :– 100°C
• Package Size :-0 mm x 37.5 mm
• Max Operating Temperature  :- 100 °C

Advanced Technologies

• Intel Volume Management Device (VMD)  :- Yes
• Intel Gaussian & Neural Accelerator  :-0
• Intel Thread Director  :- Yes
• Intel Deep Learning Boost (Intel DL Boost) on CPU  :- Yes
• Intel Speed Shift Technology  :- Yes
• Intel Turbo Boost Max Technology 3.0 ^‡:- No
• Intel Turbo Boost Technology ^‡:-0
• Intel Hyper-Threading Technology ^‡:- Yes
• Intel 64 ^‡:- Yes
• Instruction Set  :- 64-bit
• Instruction Set Extensions  :- Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States  :- Yes
• Enhanced Intel SpeedStep Technology  :- Yes
• Thermal Monitoring Technologies  :- Yes

Security & Reliability

• Intel Standard Manageability (ISM) ^‡:- Yes
• Intel Control-Flow Enforcement Technology  :-Yes
• Intel AES New Instructions  :- Yes
• Secure Key  :- Yes
• Intel OS Guard :- Yes
• Execute Disable Bit ^‡:- Yes
• Intel Boot Guard  :- Yes
• Mode-based Execute Control (MBEC)  :- Yes
• Intel Virtualization Technology (VT-x) ^‡:- Yes
• Intel Virtualization Technology for Directed I/O (VT-d) ^‡:- Yes
• Intel VT-x with Extended Page Tables (EPT) ^‡:- Yes
