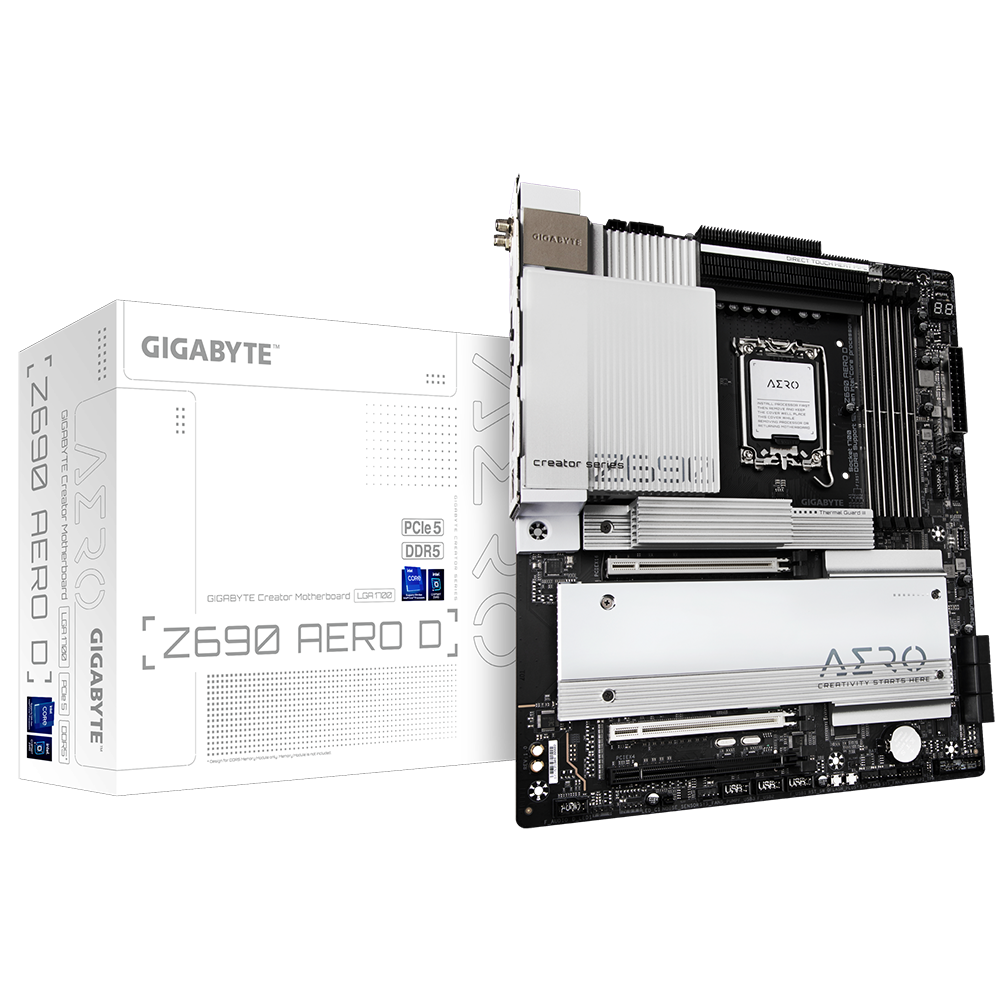

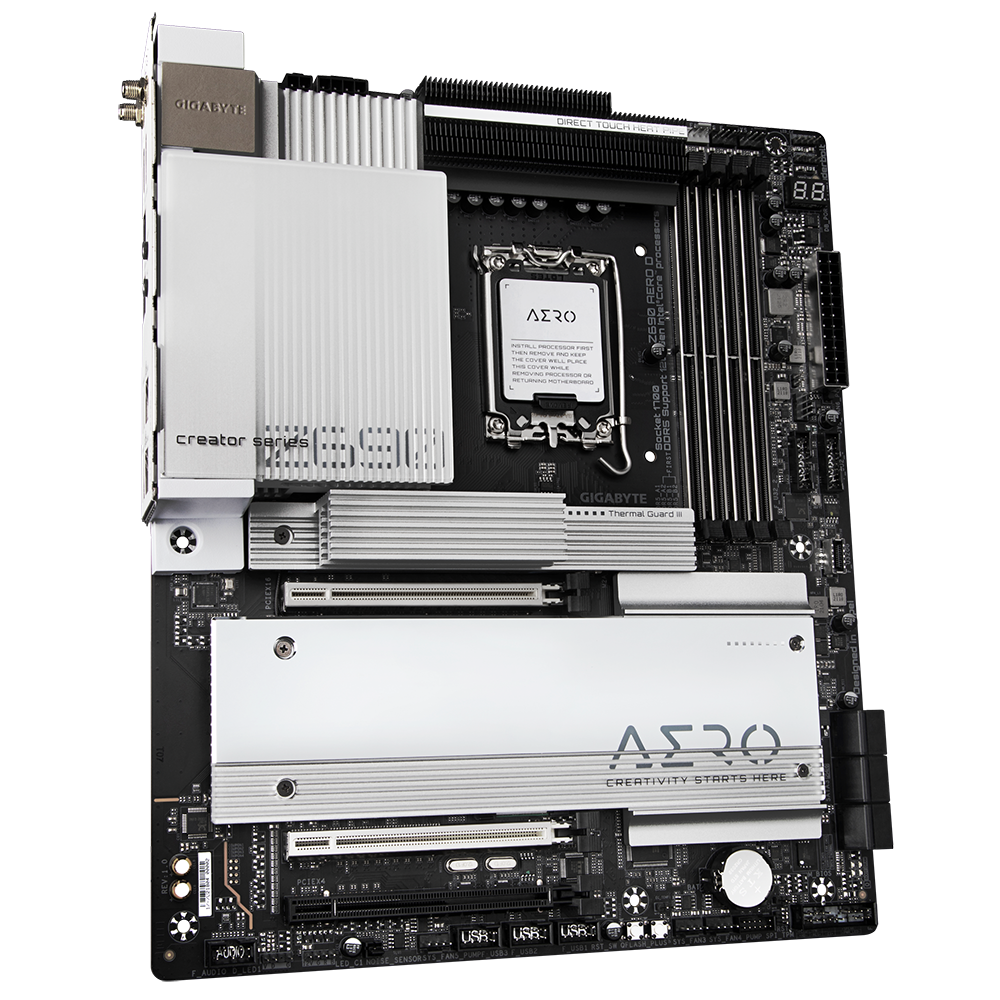

Gigabyte Z690 AERO D (rev. 1.x) E-ATX Motherboard ( Intel LGA1700 Socket, Supports Intel 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron CPU 2 x DDR5 RAM Slots, Max 256GB RAM )

Gigabyte Z690 AERO D (rev. 1.x) E-ATX Motherboard ( Intel LGA1700 Socket, Supports Intel 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron CPU 2 x DDR5 RAM Slots, Max 256GB RAM )

• CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors*
  2. L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.

• Chipset
  1. Intel Z690 Express Chipset
• Memory
  1. Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• Onboard Graphics

Integrated Graphics Processor+Intel Thunderbolt 4 Controller:

• 1. 1 x VisionLINK TB connector (Intel Thunderbolt 4/USB Type-C port)
  2. 1 x Intel Thunderbolt 4 connector (USB Type-C port)
     * The Intel Thunderbolt 4 connectors support DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)
     * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, “Back Panel Connectors,” for more information.)
     * Support for DisplayPort 1.4 version and HDCP 2.3.

Integrated Graphics Processor-Intel HD Graphics support:

• 1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

• Audio

Realtek ALC4080 codec (rear panel audio)

• 1. Support for DTS:X Ultra
  2. High Definition Audio
  3. 2-channel

Realtek ALC897 codec (front panel audio)

• LAN
  1. Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps) (LAN2)
  2. Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
• Wireless Communication module

WIFI Module

• 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
     (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
• Storage Interface

CPU:

• 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• 1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

• USB

Chipset+Intel Thunderbolt 4 Controller:

• 1. 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

• 1. 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
  2. 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

• 1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

• 1. 6 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 3 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 4 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
  15. 2 x USB 3.2 Gen 1 headers
  16. 3 x USB 2.0/1.1 headers
  17. 1 x noise detection header
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  19. 1 x Q-Flash Plus button
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper
  23. 2 x temperature sensor headers
• Back Panel Connectors
  1. 2 x SMA antenna connectors (2T2R)
  2. 1 x DisplayPort In port
  3. 1 x HDMI port
  4. 2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
  5. 6 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x RJ-45 ports
  7. 2 x audio jacks
• I/O Controller
  1. iTE I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  7. Noise detection
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor
  1. E-ATX Form Factor; 30.5cm x 25.9cm
