Gigabyte TRX40 AORUS MASTER ATX Motherboard ( AMD sTRX4 Socket, For Ryzen Threadripper 3rd Generation CPU, 8 RAM Slots, Max 256GB RAM Support )

FEATURES:

The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS Core takes inspiration from the falcon’s aerodynamic wings, incorporating a multi-layered design which features wing shaped contours and also resembles the falcon’s high velocity ascension and dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

quality components and GIGABYTE R&D design capability, TRX40 AORUS MASTER is a true beast among motherboards.


16+3 Direct Digital Power Design
Power Architecture



Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS®codecs.
DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.

Learn more about the immersive gaming sound experience powered by DTS Sound Unbound at https://dts.com/sound-unbound-app

*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.
SPECIFICATIONS:
  • CPU
    AMD Socket sTRX4:

    1. Support 3rd Generation AMD Ryzen™ Threadripper™ processors
    (Please refer “CPU Support List” for more information.)
  • Chipset
    1. AMD TRX40
  • Memory
    1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
    2. Quad Channel memory architecture
    3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer “Memory Support List” for more information.)
  • Audio
    1. 1 x Realtek® ALC4050H codec+1 x Realtek® ALC1220-VB codec (Rear audio)
    2. 1 x Realtek® ALC4050H codec+1 x ESS SABRE9218 DAC chips (Front audio)
    3. Support for DTS:X® Ultra
    4. High Definition Audio
    5. 2/4/5.1/7.1-channel
    6. Support for S/PDIF Out
  • LAN
    1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN)
    2. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)
  • Wireless Communication module
    Intel® Wi-Fi 6 AX200

    1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.0
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
    2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
    3. 1 x PCI Express x1 slot
      (All of the PCI Express slots conform to PCI Express 4.0 standard.)
  • Multi-Graphics Technology
    1. Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
  • Storage Interface
    Integrated in the CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
    2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
    Integrated in the Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
    2. 8 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
  • USB
    Integrated in the CPU:

    1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Integrated in the Chipset:

    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
    4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+2 USB 2.0 Hubs:

    1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 2 x system fan headers
    6. 4 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 3 x M.2 Socket 3 connectors
    10. 8 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x noise detection header
    17. 1 x GIGABYTE add-in card connector
    18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    19. 1 x power button
    20. 1 x reset button
    21. 2 x BIOS switches
    22. 2 x temperature sensor headers
    23. 1 x Clear CMOS jumper
    24. Voltage Measurement Points

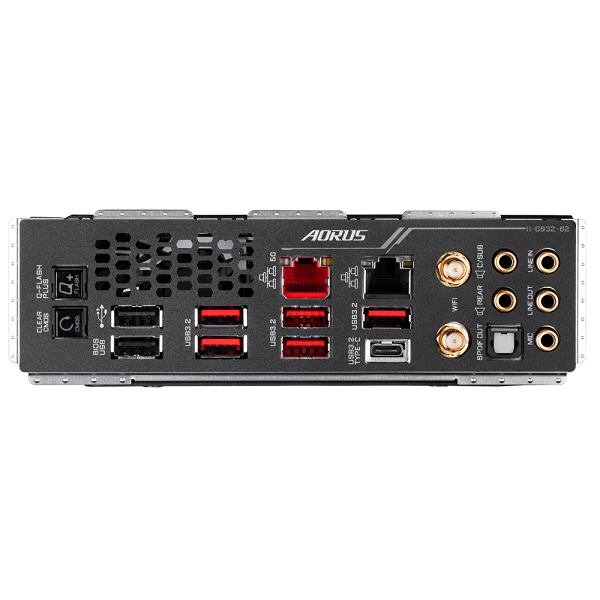

  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 1 x Clear CMOS button
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    5. 5 x USB 3.2 Gen 2 Type-A ports (red)
    6. 2 x USB 2.0/1.1 ports
    7. 2 x RJ-45 ports
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    8. Noise detection
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      AutoGreen
      Cloud Station EasyTune
      Fast Boot
      Game Boost
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart Survey
      System Information Viewer
      USB Blocker
      USB TurboCharger
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
    3. XSplit Gamecaster + Broadcaster (12 months license)
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 26.9cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
