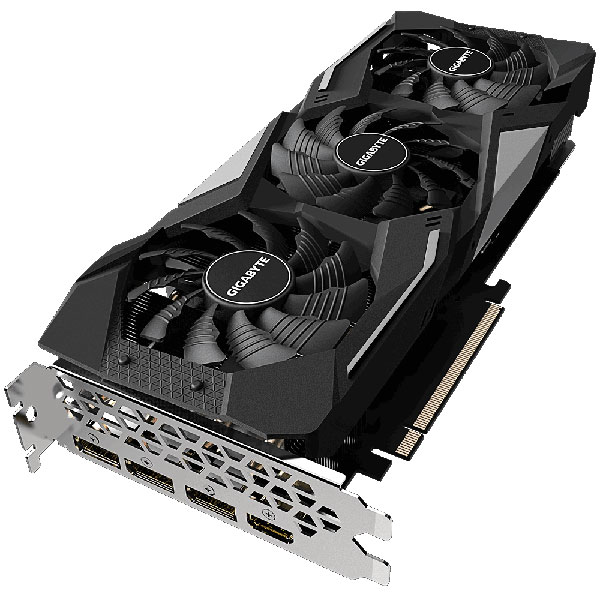

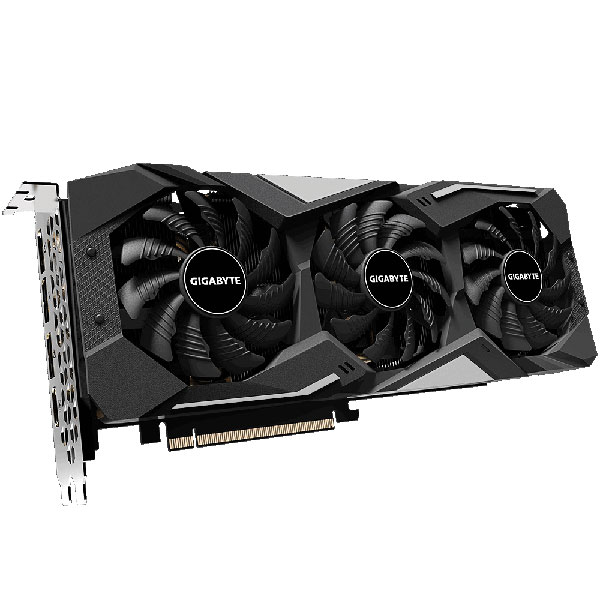

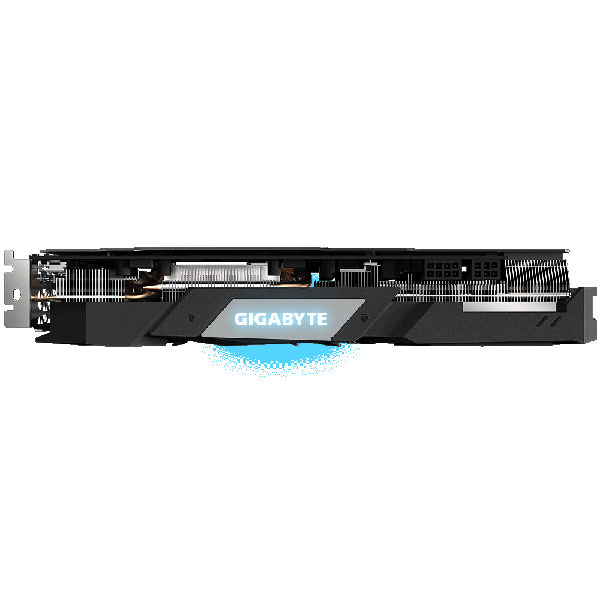

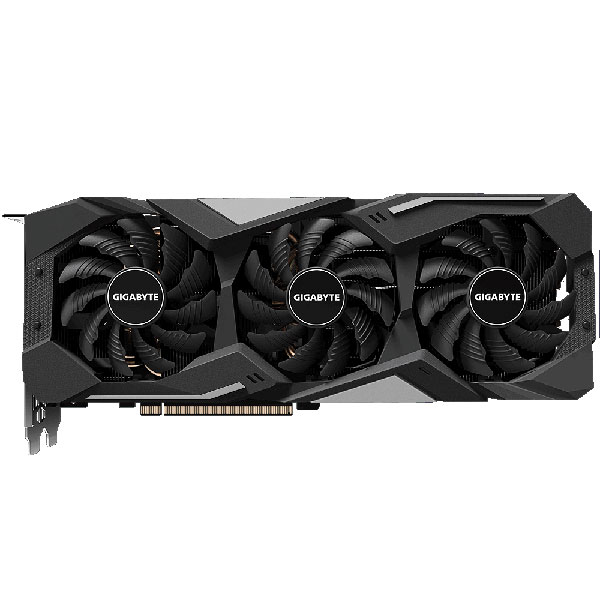

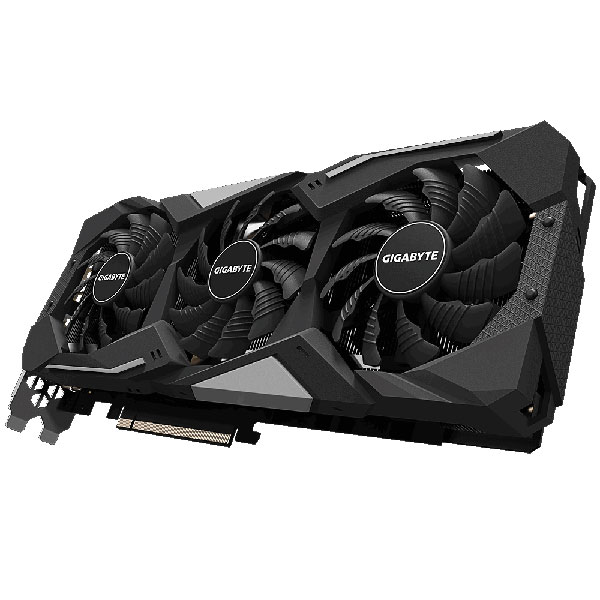

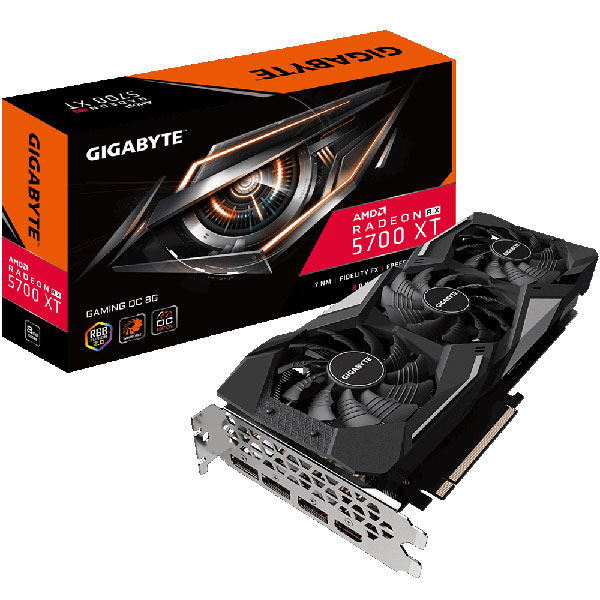

Gigabyte Radeon RX 5700 XT GAMING OC 8 GB GDDR6 256 bit Gaming Graphics Card (GV-R57XTGAMING OC-8GD)



Bend the Rules



Great gaming experiences are created by bending the rules. The all new RDNA powered Gigabyte Radeon RX 5700 XT GAMING OC gives you exceptional performance for High-fidelity gaming. Take control with Gigabyte Radeon RX 5700 XT Gaming OC and experience powerful, accelerated gaming customized for you.



Features :



> Powered by AMD Radeon RX 5700 XT
> Integrated with 8GB GDDR6 256-bit memory interface
> WINDFORCE 3X Cooling System with alternate spinning fans
> RGB Fusion 2.0 – synchronize with other AORUS devices
> Metal Back Plate
> PCI-Express 4.0 Support





Core Clock



> Boost Clock : up to 1905 MHz
> Game Clock : 1795 MHz (Reference card is 1755 MHz)
> Base Clock : 1650 MHz (Reference card is 1605 MHz)



Overview :



Windforce 3X Cooling System	Alternate Spinning Fans	Extreme Durability and Overclocking
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.	The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.	The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PCI-E 4.0 Support	Protection Metal Back Plate	Extreme Gaming DNA
Gigabyte Radeon RX 5700 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.	The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.	The AMD Radeon RX 5700 XT graphics card, powered by the advanced 7nm RDNA architecture, features new Compute Units delivering incredible performance and is optimized for better visual effects such as volumetric lighting, blur effects, depth of field, and multi-level cache hierarchy for reduced latency and highly responsive gaming.
Aorus Engine
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.



Technical Specifications :



Model No.	GV-R57XTGAMING OC-8GD
Chipset	Radeon RX 5700 XT
Core Clock	Boost Clock : Up to 1905 MHz Game Clock : 1795 MHz (Reference card is 1755 MHz) Base Clock : 1650 MHz (Reference card is 1605 MHz)
Stream Processors	2560
Process Technology	7 nm
Memory Clock	14000 MHz
Memory Size	8 GB
Memory Type	GDDR6
Memory Bus	256 bit
Memory Bandwidth (GB/sec)	448 GB/s
Card Bus	PCI-E 4.0 x 16
Digital max resolution	7680×4320@60Hz
Multi View	4
Card Size	L=279.85 W=114.35 H=49.55 mm
PCB Form	ATX
DirectX	12
OpenGL	4.6
Power Requirement	600W
Power Connectors	8 Pin*1, 6 Pin*1
Output	DisplayPort 1.4 *3 HDMI 2.0b *1
Accessories	1. Quick guide
