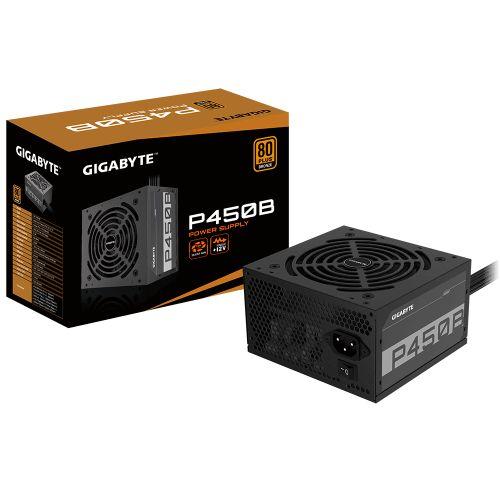

Gigabyte P450B 80 PLUS Bronze Certified 120mm Silent Fan Power Supply Unit
Availability:
In stock
P450B
| Model | P450B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC( > 0.9 typical) |
| Input Voltage | 100-240 Vac(full range) |
| Input Current | 8-4 A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 450W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120 mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Bronze |
| Efficiency | 85% at typical load |
| MTBF | > 100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | > 16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1 |
₹2,690.00
In stock
Compare
Gigabyte P450B 80 PLUS Bronze Certified PSU
The Gigabyte P450B Power Supply Unit is an 80 PLUS Bronze Certified SMPS which is Ideal for Budget to Mid End Gaming Rigs and Video Editing and Rendering Workstations. With 120mm Silent Fan, Reliable Flat Cables and Single +12V Rail, you can Work, Play or Stream for Days at a Time.
Gigabyte P450B Features :
> 80 PLUS Bronze certified
> 120mm Silent Hydraulic Bearing (HYB) Fan
> Reliable flat cable
> Single +12V rail
> OVP/OPP/SCP/UVP/OCP/OTP protection
> 3 years warranty
Gigabyte P450B Technical Specifications :
> Model : P450B
> Type : Intel Form Factor ATX 12V v2.31
> PFC : Active PFC( > 0.9 typical)
> Input Voltage : 100-240 Vac(full range)
> Input Current : 8-4 A
> Input Frequency : 60-50 Hz
> Output Capacity : 450W
> Dimension : 150 x 140 x 86 mm
> Fan Type : 120 mm Hydraulic Bearing (HYB) Fan
> 80 PLUS : Bronze
> Efficiency : 85% at typical load
> MTBF : > 100,000 hours
> Protection : OVP/OPP/SCP/UVP/OCP/OTP
> Power Good Signal : 100-500ms
> Hold Up Time : > 16ms
> Cable Type : Flat, All black
> Connectors : ATX/MB 20+4 Pin x 1 : 550mm*1, CPU/EPS 4+4 Pin x 1 : 600mm*1, P CI-e 6+2 Pi n x 2 : 550mm+150mm*1, S ATA x 6 : 50 0mm+120mm+120mm*2, 4 Pin Periphe r al x 3 + 4-Pin floppy x 1 : 500mm+120 mm+120mm+120mm*1
