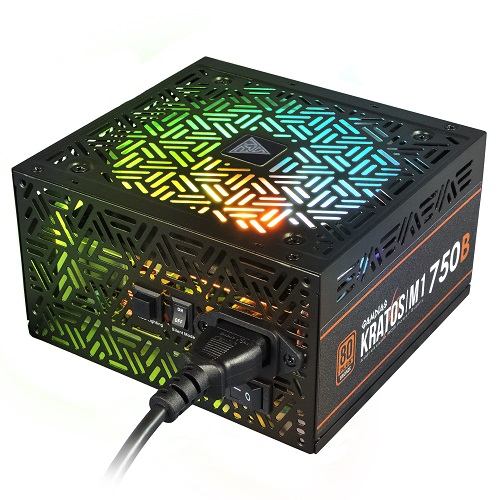

GAMDIAS Kratos M1-750B 750W 80 Plus Bronze Power Supply With Neon-Flex RGB Lighting Effects
SPECIFICATIONS |
|
Model |
KRATOS M1-750B |
POWER |
|
Type |
ATX12V v2.2 |
Efficiency |
Meet 80 PLUS Bronze efficiency |
Power Factor Correction |
APFC with PF value of 0.99 |
Support MB Sync |
5V 3-pin Addressable (Digital) RGB Header Only |
Dimension (L x W x H) |
140 x 150 x 86 mm |
Support C6/C7 power state |
No |
AC Input |
100-240V / 6-12A / 47-63Hz |
DC Output |
+3.3V / +5V / +12V / -12V / +5Vsb |
Max. Output Current |
20A / 20A / 60A / 0.3A / 2.5A |
Max. Output Power |
130W / 720W / 3.6W / 12.5W |
Total Power |
750W |
Protection |
OVP / UVP / OPP / SCP / SP |
Main Power |
1 (20+4 Pin) |
CPU |
1 (20+4 Pin) |
PCI-E |
4 (6+2 Pin) |
SATA |
5 (5 Pin) |
Molex |
2 (4 Pin) |
Floppy |
1 (4 Pin) |
Modular |
Non Modular |
Flat Cable |
Yes |
Lighting Effect |
30 Neon-Flex RGB |
Silent Mode |
Yes |
DC to DC |
No |
