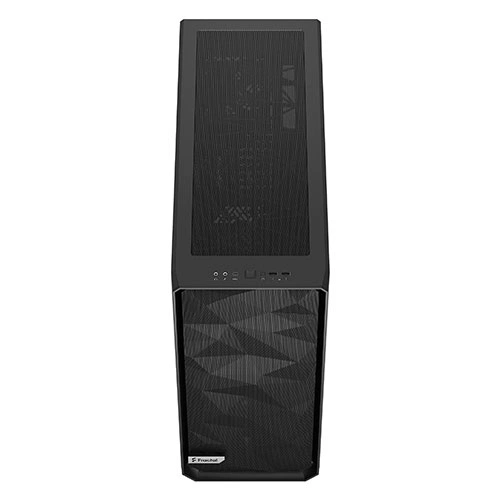

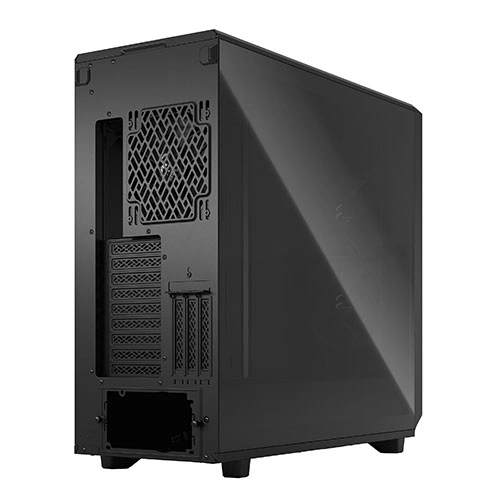

Fractal Design Meshify 2 XL Black Tempered Glass Light Tint E-ATX Gaming PC Case ( FD-C-MES2X-02 )

Fractal Design Meshify 2 XL Black Tempered Glass Light Tint E-ATX Gaming PC Case ( FD-C-MES2X-02 )

Detachable front filter

• The nylon filter is easily removed from the hinged mesh panel for increased airflow
• Tether-free bezel for easier access to front fan mounts
• Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

Superlative storage

• Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
• The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
• Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design

• Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
• Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)

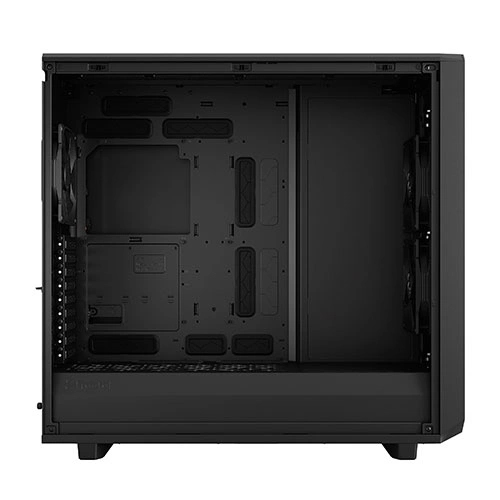

• An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB

Open and interchangeable

• Remove the entire top to build and route with zero hindrance.

Type-C interface

• USB 3.2 Gen 2×2 Type-C front I/O offers speeds up to 20 Gbps.

Nexus+ 2 fan hub

• Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans

Versatile multibrackets

• The included Multibrackets lets you convert unused fan positions to HDD, SSD or pump mounts

Easy cable management

• Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
• 5″/2.5″ Universal drive mounts: 6 included, 18 positions total + 2 Multibrackets
• Dedicated 2.5″ drive mounts: 2 included, 5 positions total
• Expansion slots: 9 + 3
• Front interface: 1x USB 3.2 Gen 2×2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts: 11x 120 mm or 9x 140 mm
• Dust filters: Top, front and bottom
• Fixed velcro straps: Yes
• Cable routing grommets: Yes
• Captive thumbscrews: HDD, SSD and PSU brackets
• Left side panel: Tempered glass dark tint
• Right side panel: Steel

Compatibility

• Motherboard compatibility:E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
• Power supply type:ATX
• PSU max length: 250 mm (both HDD cages installed)
• GPU max length: Storage layout: 340 mm Open layout: 530 mm (505 mm w/ front fan)
• CPU cooler max height:185 mm
• Cable routing space:30 mm

Fan Support

• Front fan:4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included)
• Top fan:4x 120 mm or 3x 140 mm
• Rear fan:1x 120/140 mm, (1x Dynamic X2 GP-14 included)
• Bottom fan:2x 120/140 mm

Radiator Support

• Front radiator:Up to 480/420 mm
• Top radiator:Up to 480/420 mm
• Rear radiator:120 mm
• Bottom radiator:Up to 240/280 mm

Cabinet Size	FULL-TOWER
Color	Black
Material	Steel,Tempered Glass
Expansion Slots	9 + 3
Motherboard Size	SSI-EEB,SSI-CEB,EE-ATX,E-ATX,ATX,M-ATX,M-ITX
Max CPU Cooler Height	185mm
Max PSU Length	250mm
Max Gpu Length	530mm
Max 3.5″ HDD	6
Max 2.5″ SSD	5
Dust Filters	Top,Front,Bottom
Pre Installed Fans	3
Max Fan Support	11
Radiator Support	480mm,420mm,360mm,280mm,240mm,140mm,120mm
Front I/O Panel	USB 3.2 Gen 2×2 Type-C (20 Gbps),USB 3.0,Audio I/O,Power button, Reset button
Warranty	2 Years
